In modern industrial production, rotating equipment such as pumps and reactors are widely used in the transportation and processing of corrosive media such as acids, alkalis, salts, and organic substances. Mechanical seals, as a crucial component for preventing media leakage and ensuring equipment safety and production stability, directly impact system efficiency and safety. However, in complex operating environments, ordinary mechanical seals often struggle to simultaneously achieve pressure resistance, temperature resistance, and corrosion resistance. The H7N mechanical seal was developed and launched to provide a reliable sealing solution for various acid, alkali, salt, and organic media. This product not only adapts to high-pressure and high-temperature conditions but also possesses excellent corrosion resistance and stability, making it an ideal choice for safe and efficient operation in industrial production.
Structural Features and Technical Advantages

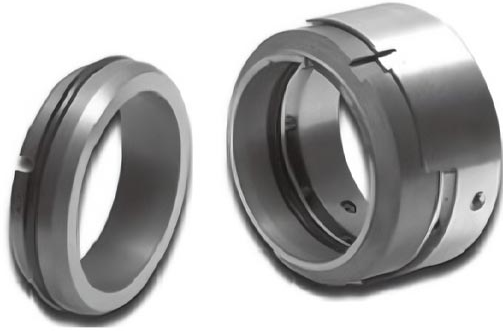

The H7N mechanical seal employs an internal packing combined with an internal flow design, forming a stable liquid film on the sealing face, effectively reducing friction and wear. The internal flow structure ensures uniform circulation of the media between the sealing surfaces, resulting in a more balanced temperature and pressure distribution, thereby extending seal service life and improving the long-term reliability of equipment operation. Employing a single-end-face unbalanced design, the H7N mechanical seal effectively withstands axial thrust under high-pressure conditions while reducing the load on bearings. The unbalanced structure exhibits stronger adaptability to pressure fluctuations, ensuring stable contact of the sealing face under varying operating conditions, thereby improving sealing performance.
The H7N mechanical seal utilizes a conical spring drive design, enabling the sealing face to automatically adjust pressure during operation, maintaining good contact. The fixed rotation direction design further ensures that the seal will not experience misalignment or leakage during long-term operation, making equipment operation more stable and safer.
Performance Parameters and Applicable Conditions
The H7N mechanical seal can withstand pressures ranging from 2.5 to 4.0 MPa and is suitable for temperature environments from -50 to 220°C, meeting the complex operating requirements of most chemical and pharmaceutical industries. Even under high temperature and high pressure conditions, the seal maintains stable contact, ensuring long-term stable operation. This series of seals is designed to withstand linear velocities up to 20 m/s, with specifications ranging from 14 to 200 mm, suitable for various pump types and equipment sizes, meeting the wide range of application needs from small process equipment to medium and large pump stations. It maintains low friction and wear resistance even at high linear velocities, significantly improving equipment operating efficiency. The H7N mechanical seal is suitable for various media such as acids, alkalis, salts, and organic substances. Material selection and structural design ensure excellent corrosion resistance and chemical stability. Whether in strong acids, strong alkalis, or media containing salts or organic solvents, this mechanical seal maintains stable performance, reduces leakage risk, and ensures process safety.
Application Advantages and Value
High Reliability: Unique structural design ensures stable contact at the sealing end face, reducing leakage risk.
Wide Adaptability: Strong compatibility with pressure, temperature, linear velocity, and media, suitable for various operating conditions.
Low Maintenance Costs: Excellent wear and corrosion resistance extends service life and reduces equipment downtime.
Easy Operation: The fixed rotation direction and conical spring structure make installation and commissioning easier, reducing operational difficulty.
Safe and Environmentally Friendly: Effectively prevents leakage of harmful media, meeting modern industrial environmental protection requirements.
The H7N mechanical seal is suitable not only for chemical, pharmaceutical, and metallurgical industries, but also for food, environmental protection, and other processes involving acids, alkalis, salts, and organic substances, providing a solid guarantee for safe equipment operation.
The H7N mechanical seal is an industrial sealing product that combines high performance and high reliability. Its internal packing, internal flow, single-end unbalanced structural design, conical spring drive, and fixed rotation direction ensure stable and long-lasting sealing performance under pressures of 2.5~4.0 MPa, temperatures of -50~220°C, and linear velocities of 20 m/s. Whether dealing with acid, alkali, salt, or organic media, this seal exhibits excellent corrosion resistance and reliability, significantly reducing leakage risks and maintenance costs. Meanwhile, its wide range of specifications and easy installation design enable the H7N mechanical seal to operate efficiently in various industries and under diverse conditions, providing enterprises with a safe, reliable, and economical sealing solution. Choosing the H7N mechanical seal means choosing stability, safety, and efficiency in industrial production.
