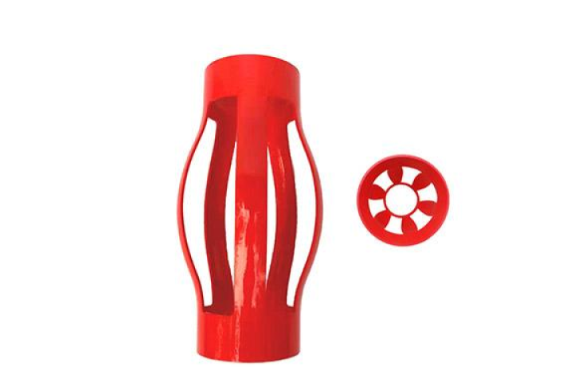

Integrated centering units are primarily used in cementing operations to control the casing’s position in the wellbore, keeping it as centered as possible to optimize the distribution of cement slurry in the annulus. Cementing quality depends not only on the properties of the cement slurry itself but also on the casing position, fluid displacement efficiency, and wellbore cleanliness. The centering unit, by stabilizing the geometric position, makes the entire cementing process more uniform and controllable.
Maintaining Casing Centering Improves Cement Sheath Uniformity
Casing eccentricity directly leads to uneven cement sheath thickness, creating weak areas and affecting long-term sealing performance. The integrated centering unit, through its elastic support structure, fixes the casing in the central region of the wellbore, allowing the cement slurry to flow evenly around the casing’s outer wall, thus forming a cement sheath of uniform thickness. A uniform cement sheath structure reduces local stress concentration and improves overall stability after cementing.
Optimizing Annular Fluid Distribution Enhances Displacement Efficiency
During the cementing process, the displacement effect between the drilling fluid and the cement slurry is crucial. If the casing is eccentric, it will cause uneven distribution of annular velocity, and some areas are prone to stagnation, affecting the quality of replacement. The centering device improves the annular clearance, making the fluid channel more symmetrical, thereby improving the uniformity of fluid flow.
- Uniform annular clearance reduces low-velocity areas
- Improves drilling fluid and cement slurry replacement efficiency
- Reduces the risk of mud residue
- Improves the stability of the fluid flushing path
- Improves overall flow continuity
After optimizing the flow state, the cementing process is more stable and controllable.
Improving Wellbore Cleanliness Enhances Bonding Effect
The cleanliness of the wellbore directly affects the bonding strength between cement and the formation. If there is mud cake or drill cuttings residue on the wellbore, it will affect the cement bonding quality. The centering device stabilizes the casing position, allowing the fluid to flush the wellbore surface more evenly, reducing residue and thus improving the cleanliness of the wellbore. After the cleanliness is improved, the cement bonds more tightly to the formation, and the overall sealing effect is more reliable.
Enhancing Casing Stability and Reducing Eccentricity Risk
Casing is susceptible to displacement in downhole environments due to gravity, wellbore friction, and fluid impact. The integrated centering device stabilizes the casing in the center of the wellbore through structural support, reducing the probability of eccentricity. This stable geometric position not only improves fluid distribution but also reduces local stress concentration, ensuring the casing maintains a good stress state during cementing, thereby improving overall construction stability.
Adapting to Complex Well Conditions and Ensuring Construction Stability
Casing displacement is more pronounced in highly deviated wells, horizontal wells, and irregular wellbore environments, placing higher demands on the centering device’s performance. The integrated centering device boasts strong structural stability, maintaining good support under various well conditions and ensuring the casing remains relatively centered. Its stable adaptability allows it to function effectively in complex construction environments, ensuring the continuity and reliability of the cementing process, thus improving overall project quality.
