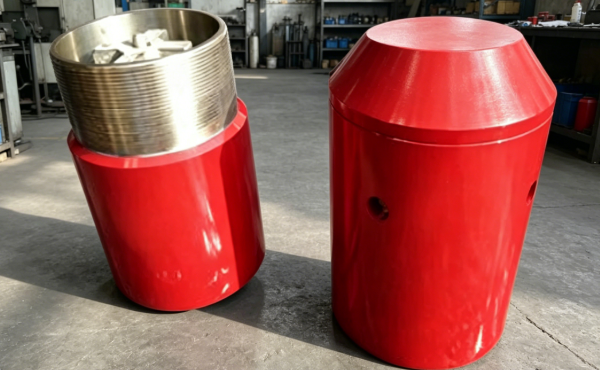

In oil drilling and cementing operations, float shoes and float collars are common casing accessories. Both serve to check for backflow and assist in cementing, leading to frequent confusion. In reality, float shoes and float collars differ significantly in their installation location, structural design, and operational functions. Understanding these differences is crucial for their proper use in actual operations, improving cementing efficiency and downhole stability.
Different Installation Locations of Float Shoes and Float Collars
Float shoes are typically installed at the bottom of the casing string, directly at the front of the casing. Their primary function is to guide the casing into the wellbore and provide backflow check. Due to their foremost position, float shoes require excellent guiding performance to reduce friction between the casing and the wellbore during lowering.
Float collars, on the other hand, are installed a certain distance above the float shoes and are part of the casing connection components. Their main function is to work with the cement plug to isolate the cement slurry and help control the cementing process. Because of their different installation locations and different downhole functions, they are usually used together.
Significant Differences in Structural Design
While both float shoes and float collars feature one-way valves, their overall design focuses differ.
- Float shoes typically employ a smooth guiding structure at the front end.
- Float collars are more similar in shape to ordinary casing couplings.
- Float shoes emphasize wear resistance and guiding capabilities.
- Float collars prioritize sealing and pressure-bearing performance.
- Differences in their internal check valve structures.
These structural differences determine their specific applications in cementing operations.
Float Shoes Primarily Serve Guiding and Check Valve Functions
When casing is run into the wellbore, the wellbore environment is often complex. Without a guiding structure, the bottom of the casing is prone to collisions or jamming. Float shoes, with their conical or arc-shaped design, help the casing run more smoothly into the well while reducing running resistance. In addition to their guiding function, the one-way valve inside the float shoe prevents mud and cement slurry backflow, thus maintaining stable pressure inside the casing. In deep wells, deviated wells, or complex well conditions, float shoes effectively improve casing running efficiency, making them a crucial basic tool in cementing operations.
Float Hoops are primarily used in conjunction with cementing processes.
Float hoops are more of an auxiliary control tool in cementing processes. They are typically used to support cement plugs and help achieve effective isolation between mud and cement slurry.
- They can support upper and lower rubber plugs.
- They help control cement slurry flow.
- They improve the stability of cementing operations.
- They reduce mud and cement slurry mixing.
- They facilitate the assessment of the grouting stage.
During construction, when the cement plug reaches the float hoop position, a significant pressure change signal is generated, allowing operators to determine whether the construction process is complete.
Float shoes and float hoops are usually used together.
In actual construction, float shoes and float hoops are not interchangeable but rather casing accessories that need to be used together. Float shoes are responsible for casing guidance and bottom check valves, while float hoops are responsible for controlling the construction process in conjunction with the cement plug. Both work together to improve the overall cementing effect. Different well conditions place different demands on the performance of float shoes and float collars. For example, high-pressure wells prioritize sealing performance, while complex well sections emphasize wear resistance. Therefore, during the selection process, it is necessary to combine the well depth, casing specifications, and construction techniques for a reasonable match. Only with the correct combination can the cementing operation be successfully completed.
