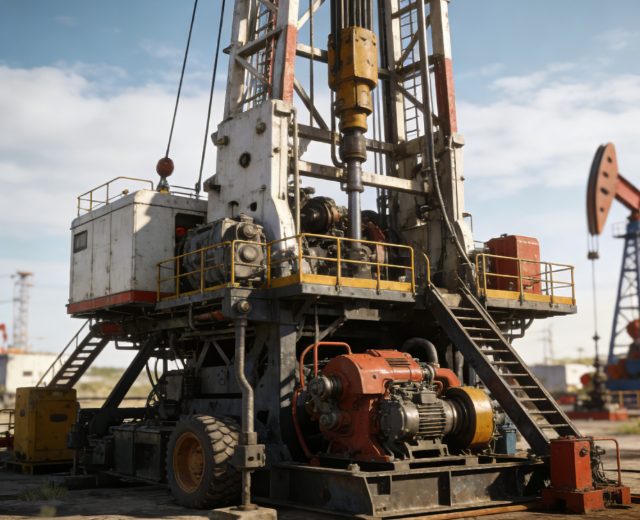

In the fields of oil exploration, geological drilling, and infrastructure engineering, mechanical drilling rigs serve as core equipment. Their working principle integrates multiple disciplines such as mechanical transmission, hydraulic control, and fluid dynamics, achieving efficient rock breaking through precise energy conversion and coordinated operations. From power transmission to cuttings removal, each step embodies the wisdom of engineering technology. The core process can be broken down into four main modules: power supply, rotary rock breaking, axial pressurization, and circulating cuttings removal.
The power system is the “heart” of the drilling rig, providing the initial energy for the entire system. Modern drilling rigs generally use diesel engines or electric motors as power sources, distributing energy to various actuators through a transmission system. Taking an electric-driven drilling rig as an example, the torque output by the electric motor is regulated by a frequency converter control system and then transmitted to the rotary system through a gearbox or hydraulic motor, achieving stepless speed regulation and precise control. This design not only improves energy efficiency but also dynamically adjusts drilling parameters according to formation hardness—using high-speed rotation in soft formations to improve efficiency, and reducing speed and increasing torque in hard rock formations to avoid excessive drill bit wear.
The rotary system is the direct executor of rock breaking, its core function being to convert power into the rotational motion of the drill bit. Traditional drilling rigs rely on a rotary table drive, transmitting torque to the drill string via a crisscross drill pipe; while modern top-drive drilling rigs integrate the drive unit directly on top of the drill pipe, eliminating the need for a crisscross drill pipe and rotary table, resulting in smoother drill pipe rotation and more efficient torque transmission. Taking a certain type of 5000-meter drilling rig as an example, its top-drive system can provide up to 300 kN·m of torque, and when paired with a 311 mm diameter roller cone bit, it can achieve a drilling speed of 0.5 meters per hour in granite formations. During rotation, the cutting teeth of the drill bit generate intense friction with the rock surface, breaking the rock mass through compression, shearing, and impact. The broken rock cuttings are then thrown towards the well wall as the drill bit rotates.
The application of axial pressure is crucial to ensuring rock breaking efficiency. The drilling rig’s hoisting system, through pulley blocks and a winch, applies several tons to hundreds of tons of drilling pressure to the drill string. Taking a certain type of land drilling rig as an example, its hook has a load-bearing capacity of 450 tons. The winch pulley system amplifies the force eightfold, allowing the drill bit to penetrate the rock formation with sufficient pressure. During drilling, the driller needs to adjust the pressurization in real time based on drilling speed, torque, and drilling pressure parameters. Insufficient drilling pressure can cause the drill bit to slip, leading to low drilling efficiency; excessive drilling pressure can cause the drill string to bend or the drill bit to be damaged. Maintaining this dynamic balance relies on the real-time monitoring and automatic adjustment functions of the drilling rig’s control system.
The circulation system acts as a “cleaner” for maintaining wellbore stability, achieving cuttings removal, drill bit cooling, and wellbore support through drilling fluid circulation. The mud pump injects high-pressure drilling fluid into the drill pipe cavity, which is then ejected at high speed through the drill bit nozzles to the bottom of the well, creating an impact force to assist in rock breaking. The drilling fluid carrying cuttings returns to the surface along the annular space between the drill pipe and the wellbore, where it is purified by solids control equipment such as vibrating screens and desanders before being reinjected into the well. Taking a certain type of reverse circulation drilling rig as an example, it employs a pump-suction cuttings removal method. A negative pressure is created through the central channel of the drill pipe, directly sucking the cuttings to the surface. This improves cuttings removal efficiency by more than 30% compared to direct circulation drilling rigs, making it particularly suitable for loose formations and deep well operations. The stable operation of the circulation system not only prevents stuck pipe accidents caused by cuttings accumulation but also balances formation pressure through drilling fluid density regulation, avoiding well kicks or well collapses.
From power supply to cuttings removal, the working principle of mechanical drilling rigs embodies the deep integration of mechanical engineering, fluid mechanics, and materials science. With technological iteration, modern drilling rigs are evolving towards intelligence and automation—top drive systems integrate real-time monitoring of drilling parameters, circulation systems are equipped with cuttings particle size analysis functions, and power systems adopt hybrid power to reduce energy consumption. These innovations not only improve drilling efficiency and safety but also drive energy exploration into deeper and more complex areas, providing stronger technological support for human development of underground resources.
