Vibrating screens are widely used in mining, building materials, chemical industries, and particle classification, primarily for screening, separation, and material conveying. Many users focus on screening efficiency but lack understanding of their operating principles. In reality, a vibrating screen doesn’t simply rely on “shaking” to achieve the screening process; rather, it utilizes excitation force, the screen surface’s motion trajectory, and the material’s dynamic response to collectively achieve the screening process. Understanding the working principle helps in better understanding the equipment’s operating logic and application value.
The Excitation System Generates the Power Required for Screening

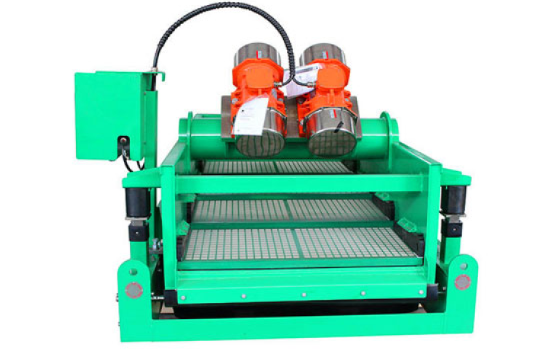

The operation of a vibrating screen is based on its excitation system. The equipment typically generates periodic excitation force through a vibrating motor, eccentric block, or other excitation mechanism. This power is transmitted to the screen body, causing the screen surface to vibrate regularly. The magnitude, frequency, and direction of the excitation force directly affect the material’s movement on the screen surface. Only with a stable excitation input can the screening process continue; therefore, the excitation system is the core driving force for the vibrating screen’s operation.
Dynamic Separation of Materials Driven by Screen Surface Movement
When the screen surface moves under vibration, the material is subjected to throwing, sliding, and tumbling, and is continuously redistributed on the screen surface. During this dynamic process, particles are separated based on their size differences. Small particles fall through the screen holes, while larger particles continue to move along the screen surface to the discharge end. Different screen surface movement trajectories result in different material dynamic behaviors; therefore, the screening effect is closely related to the movement mode.
Particle Classification Depends on the Coordination of Screen Holes and Movement
Vibrating screens do not rely solely on screen hole size for classification; the screen hole structure also needs to coordinate with the movement state to achieve effective screening.
- Appropriate screen hole size determines particle passage conditions.
- Material tumbling helps increase the probability of passing through the screen.
- Continuous vibration reduces the risk of particle blockage.
- Screen surface inclination angle affects material movement speed.
- Dynamic throwing enhances screening uniformity.
The synergistic effect of screen holes and movement is the key logic in the working principle of vibrating screens.
Different Vibration Patterns Affect Operational Performance
Depending on their structural design, vibrating screens can exhibit linear, circular, or composite motion trajectories, each corresponding to different application requirements. Linear motion is more suitable for efficient conveying and screening, while circular trajectories facilitate material tumbling and are suitable for fine particle processing. Changes in motion patterns affect material residence time, screening efficiency, and processing capacity. Therefore, equipment performance is not solely determined by the magnitude of vibration force but is closely related to the overall motion pattern.
The Working Principle is Essentially a Dynamic Screening Process
The essence of a vibrating screen is not static filtration, but rather a continuous screening process achieved through the combined action of power input, screen surface movement, and particle dynamic response. During movement, materials are continuously rearranged, contact the screen openings, and are separated. This dynamic mechanism enables the equipment to process large quantities of particulate material. Understanding this working principle helps explain why excitation parameters, screen structure, and operating conditions all affect screening results and allows for a more accurate assessment of the equipment’s application value under different operating conditions.
