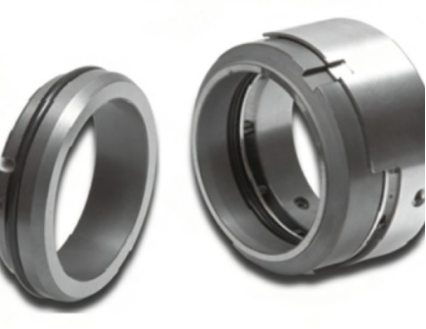

In modern industrial equipment, mechanical seals are crucial components ensuring safe system operation, especially in industries with extremely high sealing requirements such as chemical, petroleum, and pharmaceutical manufacturing. The H7N mechanical seal is a high-performance sealing product designed to meet these high standards. Through optimized structural design and material matching, it enables stable operation of equipment even under high temperatures, high pressures, and corrosive media. Compared to traditional seals, the H7N mechanical seal offers significant improvements in reliability, applicability, and service life.
This seal employs an internal structure combined with an internal circulation design, resulting in more uniform cooling and lubrication, effectively reducing friction and heat accumulation. Simultaneously, its single-end unbalanced structure combined with a conical spring drive system ensures stable sealing force while enhancing equipment operational safety. Whether in complex chemical reaction environments or in industrial equipment operating continuously for extended periods, the H7N mechanical seal delivers stable and durable performance.
Structural Design Advantages
The H7N mechanical seal features numerous structural optimizations, making it more reliable in actual operation. First, the built-in structural design reduces external environmental interference with the sealing system, lowering the risk of leakage. It also makes the overall structure more compact, facilitating installation and maintenance. Second, the internal circulation design creates a stable flow path within the sealing cavity, effectively removing heat generated by friction and preventing sealing surface failure due to overheating. Furthermore, the conical spring drive system is a major highlight. This structure provides uniform and stable clamping force during operation, maintaining good sealing surface contact even under pressure fluctuations or equipment vibration. Combined with the fixed rotation direction design, torque transmission is more reliable, reducing the possibility of slippage or failure. These structural features work together to ensure the H7N mechanical seal maintains high efficiency even under complex operating conditions.
What are its performance advantages?
The H7N mechanical seal offers comprehensive performance, meeting various industrial needs. Specific advantages include: an applicable temperature range from -50°C to 220°C, adapting to extreme temperature differences and ensuring stable operation of equipment under different seasons or process conditions. Withstanding pressures from 2.5 to 4.0 MPa, it is suitable for medium and high-pressure equipment, exhibiting particularly stable performance in chemical reaction and transportation systems. Its shaft diameter design, ranging from 14 mm to 200 mm, allows for compatibility with various equipment types, enhancing versatility. Capable of operating at speeds up to 20 m/s, it is suitable for high-speed rotating equipment, reducing seal failure caused by speed variations. It is suitable for environments containing acids, alkalis, salts, and various organic compounds, maintaining excellent sealing performance even in complex chemical media.
What are its advantages compared to traditional mechanical seals?
A comparison between the H7N mechanical seal and traditional mechanical seals clearly demonstrates its advantages. Traditional mechanical seals often suffer from material aging or sealing surface damage when exposed to corrosive media. The H7N seal, through optimized material and structural design, effectively improves corrosion resistance, thereby extending its service life. Traditional seals often use simple spring structures, which can lead to uneven force distribution and localized wear. The H7N seal employs a conical spring design, resulting in more even force distribution and smoother operation. Furthermore, traditional seals are prone to failure under high temperature or high pressure environments, while the H7N seal improves heat dissipation through an internal circulation design, maintaining stable performance even in harsh environments. Traditional seals require frequent maintenance and replacement, while the H7N seal, due to its wear and corrosion resistance, has a longer maintenance cycle and lower overall operating costs. This comprehensive advantage makes it more competitive in industrial applications.
Frequently Asked Questions
Q: Which industries are suitable for the H7N mechanical seal?
A: Primarily suitable for industries requiring the handling of corrosive media, such as chemical, petroleum, pharmaceutical, and environmental protection equipment.
Q: Can it be used in high temperature and high pressure environments?
A: Yes, its design parameters cover medium-high pressure and high temperature ranges, ensuring stable operation.
Q: Is installation complex?
A: Due to its built-in structure, installation is relatively simple, but it is still recommended that it be performed by qualified personnel to ensure sealing effectiveness.
Q: Is maintenance frequent?
A: Not frequent. Its wear and corrosion resistance gives it a long service life, reducing the frequency of maintenance.
These issues demonstrate that the H7N mechanical seal exhibits high applicability and reliability in practical applications.
How does it perform in real-world applications?
In a chemical plant’s acid delivery system, ordinary mechanical seals frequently leaked due to corrosion and temperature variations, impacting production efficiency and increasing maintenance costs. After switching to H7N mechanical seals, equipment operation significantly improved. During long-term operation, the seal reliably withstood the corrosion of acidic media while maintaining excellent sealing performance even under significant temperature fluctuations. The equipment maintenance cycle was extended from a few months to over a year, substantially reducing maintenance costs. Furthermore, the production environment became safer due to effective leakage control. Similar applications in alkali delivery and organic solvent handling also demonstrated excellent performance, further proving the reliability of the H7N mechanical seal in complex industrial environments.
The H7N mechanical seal, with its rational structural design, excellent performance parameters, and wide applicability, exhibits significant advantages in the industrial field. Whether in terms of corrosion resistance, temperature difference resistance, or pressure bearing capacity, it meets the requirements of harsh operating conditions. For businesses, choosing a stable and reliable sealing product can not only improve equipment operating efficiency but also reduce maintenance costs and safety risks. The H7N mechanical seal is precisely such a solution that balances performance and economy, providing long-term stable sealing protection for industrial equipment.
