Design Features
- Back-to-back installation
- Double-end face seal
- Designed for large shaft diameters
- Cartridge (integrated) structure
- Self-aligning bearings
- Stationary ring limiting on the medium side
- High-pressure structural design
- Special flushing flow channels
- Keyway with cross-drive transmission
Operating Parameters
|
Parameter |
Range |
|
Temperature |
-40°C to 260°C (depending on materials) |
|
Pressure |
6.4 – 12.0 MPa |
|
Speed |
≤ 300 RPM |
|
Flush Plan |
PLAN54 |
|
Standards |
GB/T24319 |
Product Description

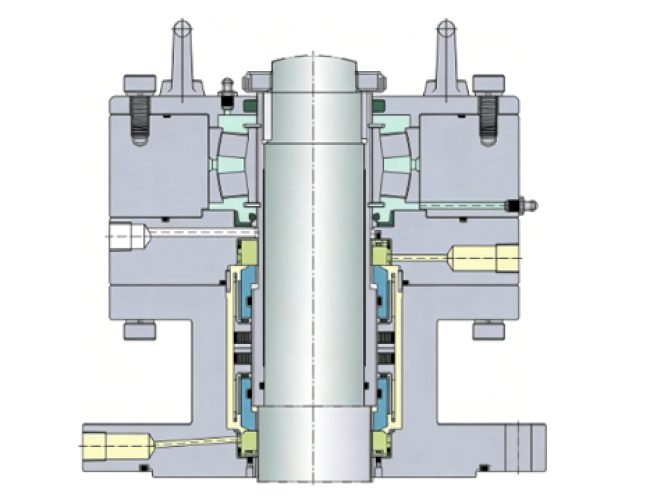

This product is a high-pressure double-end face metal mechanical seal specifically designed for pressure vessels.
The integrated structure of packing and sealing adopts an optimized design, including increased wall thickness, pressure balancing, enhanced sealing performance, and improved heat dissipation at the seal faces. It offers superior pressure resistance, easy installation, and stable, reliable performance.
