In oil drilling operations, well control safety is a core issue concerning personnel lives, equipment integrity, and the environment. When encountering high-pressure oil and gas formations or experiencing sudden well kicks or blowouts, a sophisticated well control system must be activated rapidly, and the kill line is the “lifeline” within this system. It establishes a high-pressure circulation channel to precisely inject weighted drilling fluid into the wellbore, balancing formation pressure and preventing catastrophic accidents. Its working principle integrates the wisdom of mechanical engineering, fluid mechanics, and materials science.
The core function of the kill line is “pressure control.” When the wellhead pressure rises abnormally, operators first shut down the blowout preventer (BOP) assembly, cutting off the flow of fluid within the well to the outside, creating a sealed space. At this time, the kill line connects directly to the wellbore through the BOP’s four-way connector, and a high-pressure pump at its inlet injects pre-mixed weighted drilling fluid into the line at high pressure. For example, when an offshore drilling platform detected a sudden surge in wellhead pressure to 70 MPa, the operations team used a dual-loop kill line system to inject kill fluid with a density of 1.8 g/cm³ into the well within 15 minutes, gradually filling the wellbore space and ultimately stabilizing the bottomhole pressure within a safe range. During this process, the kill fluid must overcome formation pressure, forming a “liquid column pressure barrier” to prevent further upward flow of oil and gas.

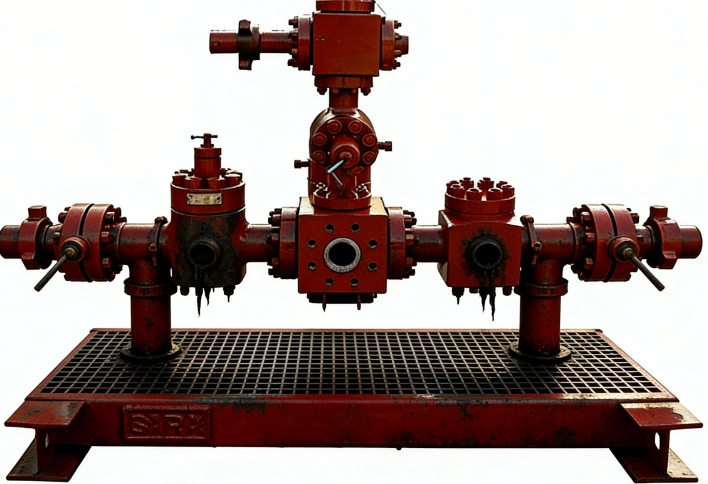

Structurally, the kill line consists of a high-strength alloy steel pipe body, one or two dedicated control valves, flanged quick connectors, and pressure sensors. Its rated operating pressure must strictly match the pressure rating of the blowout preventer (BOP). Common specifications include a series ranging from 35 MPa to 105 MPa, with pipe diameters covering 76 mm to 127 mm, adaptable to extreme operating conditions from -29℃ to 121℃. Taking a certain type of kill pipeline as an example, its pipe body adopts a double-layer composite structure. The inner layer is a wear-resistant ceramic coating, and the outer layer is an impact-resistant alloy steel, which can withstand high-pressure impacts and resist the abrasion of solid particles in the drilling fluid. The control valve adopts a hydraulic drive design, which can complete the opening and closing action within 3 seconds, ensuring rapid response in emergencies. In addition, the pressure sensor equipped at the pipeline inlet can monitor the injection pressure changes in real time, and the data is transmitted wirelessly to the central control system, providing operators with decision-making basis.
In actual operation, the operation procedure of the kill pipeline must be strictly followed. Taking a land drilling team as an example, when a well kick occurs, the team first activates the blowout preventer assembly to seal the wellhead pressure within the casing; then, the kill pipeline gate valve is opened to establish a circulation path; next, kill fluid with a density of 1.8 g/cm³ is injected into the well at a flow rate of 50 L/s using a cement truck. During this process, operators need to continuously monitor the wellhead pressure changes and adjust the opening of the control valve to ensure that the kill fluid pressure is always slightly higher than the formation pressure. A work log shows that by precisely controlling the injection rate of the kill fluid, the team reduced the bottomhole pressure from an initial 45 MPa to a safe range of 25 MPa within two hours, while simultaneously preventing damage to the wellbore structure.
Regarding maintenance standards, the petroleum industry implements a three-tiered management system for kill pipelines: daily inspections check valve opening and closing status and sealing; monthly testing requires a 21 MPa pressure stabilization test; and annual inspections cover comprehensive flaw detection and pressure-bearing capacity verification. For example, during an annual inspection of a drilling platform, a microcrack was found in the weld of a pipeline. After locating the defect using ultrasonic flaw detection technology, the team immediately replaced the pipe, avoiding potential safety hazards. Furthermore, all newly built drilling platforms must be equipped with a dual-loop kill pipeline system to ensure well control capability is maintained even in the event of a single-loop failure.
From a technological evolution perspective, intelligentization is becoming a new direction for the development of kill pipelines. By integrating vibration sensors, pressure fluctuation monitoring modules, and big data analysis platforms, future equipment can achieve self-monitoring and fault early warning. For example, a research team is developing a machine learning-based well-killing fluid flow prediction model. By analyzing historical operational data, it optimizes injection parameters in advance, improving well-killing efficiency by 30%. Simultaneously, the introduction of remote control technology allows operators to control pipeline opening and closing from a control room, significantly reducing operational risks under high-pressure environments.
Well-killing pipelines in oil drilling are both the “last line of defense” against crises and the “front line” of technological innovation. From the precise design of mechanical structures to the deep integration of intelligent systems, from single-function to multi-scenario adaptation, the evolution of this equipment reflects humanity’s relentless pursuit of safety and efficiency in exploring underground energy resources. With continuous breakthroughs in materials science, sensor technology, and artificial intelligence, future well-killing pipelines will be even “smarter,” providing more reliable safety guarantees for drilling operations and helping the energy industry move towards deeper and farther goals.
