Mud pumps are critical conveying equipment in petroleum, mining, chemical, and engineering construction fields. They operate under harsh conditions of high solids content, high abrasion, and high loads. The reliability of their sealing system directly determines the safety and continuity of equipment operation. In practical applications, mechanical seals are often among the most prone to failure and the most difficult to maintain components of a mud pump. Improper selection can lead to frequent leaks and downtime for maintenance, and may also trigger a series of chain reactions such as bearing damage and pump body wear, increasing overall operating costs.
Core Considerations
The primary prerequisite for selecting a mechanical seal for a mud pump is a full understanding of the complexity of the operating conditions. Mud media typically have high solids content, high particle hardness, and poor fluidity, resulting in severe abrasion of the sealing face and auxiliary seals. Therefore, the following aspects should be considered during selection: whether the medium allows contact with flushing fluid, and whether it has corrosive or easily crystallizing/depositing characteristics, directly determine the choice of seal structure. Operating parameters include pressure, temperature, and speed. Slurry pumps operate under conditions such as 1.6MPa and 120℃, placing high demands on the pressure resistance, temperature resistance, and thermal stability of the seals. When the fixed material content reaches 30%, the sealing end face must possess extremely strong wear resistance and erosion resistance, while also preventing particles from entering the sealing surface and causing scratches.
External Cooling and Internal Flushing Structures

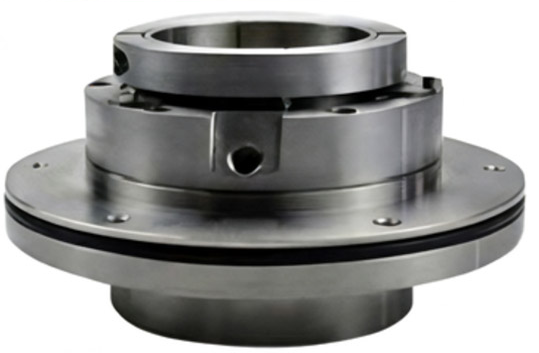

For slurry conditions, mechanical seals typically employ two structural forms: external cooling or internal flushing. The ZGJ type mechanical seal from Dongying Zeyi Petroleum Equipment Co., Ltd. adopts an external cooling structure, its most significant feature being that the flushing water does not directly contact the slurry medium. The flushing fluid forms an independent cooling and lubrication environment on the outside of the seal, effectively removing frictional heat from the end face and isolating slurry particles. This structure is particularly suitable for applications where the medium cannot be diluted or where external liquids are not allowed to enter the process system. The ZGJ type operates under normal pressure conditions, has a relatively stable structure, and is easy to maintain, perfectly meeting the basic reliability and wear resistance requirements of most slurry pumps. The ZHJ type mechanical seal is an internal flushing structure, allowing flushing water to contact the medium. The design concept involves using a cleaning fluid with a pressure 0.1 MPa higher than the medium pressure to create a continuous positive flush on the sealing end face, preventing solid particles from entering the sealing pair. This structure is more suitable for applications where the medium allows flushing and high end face cleanliness is required, significantly reducing wear risk under high solids content conditions.
Compatibility Analysis of Structural Form and Operating Parameters
Given the given operating parameters—200 mm diameter, operating pressure 1.6 MPa, temperature 120℃, and fixed material content 30%—this corresponds to typical medium-to-high intensity mud pump conditions. This places several requirements on the mechanical seal: In terms of pressure, the sealing structure must possess good pressure-bearing capacity and stable end face specific pressure control to prevent end face opening or abnormal wear due to pressure fluctuations. Zeyi’s ZGJ and ZHJ type seals are structurally reinforced for mud pump conditions and can adapt to the 1.6 MPa operating pressure requirement. Regarding temperature, 120℃ falls within the medium-to-high temperature operating range, placing clear requirements on the thermal stability of the sealing material and the aging resistance of auxiliary sealing components. This directly determines the importance of material combinations.
Selection of Sealing Materials
The long-term stable operation of a mud pump’s mechanical seal largely depends on the scientific selection of materials. Dongying Zeyi Petroleum Equipment Co., Ltd. has a strong focus on targeted material selection. For sealing face materials, it offers a variety of combinations including graphite, silicon carbide, tungsten carbide, and alumina. Silicon carbide and tungsten carbide, with their excellent wear resistance and erosion resistance, are very suitable for high-solids mud conditions; graphite materials have advantages in lubrication performance and thermal shock resistance, making them suitable for appropriate pairing with hard materials. For auxiliary sealing materials, the configuration of nitrided butyl rubber, fluororubber, and acrylic rubber covers multiple requirements such as wear resistance, temperature resistance, and chemical corrosion resistance, and can adapt to long-term operation at 120℃. For metal components, materials such as stainless steel, SUS304, and SUS316L are used, which not only ensures structural strength but also improves overall corrosion resistance, providing a guarantee for stable operation in complex media environments.
Advantages of Selecting Mechanical Seals for Mud Pumps
As can be seen from the comprehensive structural design and material configuration, the mechanical seals for mud pumps from Dongying Zeyi Petroleum Equipment Co., Ltd. are not simply improvements on general-purpose products, but rather specialized designs tailored to the highly abrasive and high-solids-content conditions of mud. The ZGJ type external cooling structure emphasizes media isolation and stability, while the ZHJ type internal flushing structure emphasizes end-face cleanliness and wear resistance, providing clear and specific selection guidelines for different operating conditions. This ‘condition-based’ design approach helps engineers quickly match suitable sealing structures in practical applications, reducing operational risks caused by ambiguous selection.
In the high-solids-content and highly abrasive conditions of mud pumps, mechanical seals must not only ‘seal,’ but also be ‘wear-resistant, erosion-resistant, and operationally stable.’ The ZGJ type external cooling mechanical seal and the ZHJ type internal flushing mechanical seal provided by Dongying Zeyi Petroleum Equipment Co., Ltd. are both closely aligned with the actual usage requirements of mud pumps in terms of structural design and material configuration. Combining operating parameters such as 1.6MPa pressure, 120℃ temperature, and 30% fixed material content, its products exhibit significant advantages in wear resistance, temperature resistance, and operational reliability. Through scientific selection, its mud pump mechanical seals can provide more reliable sealing guarantees for equipment operation under complex conditions, making it a professional solution worthy of key consideration in the selection of mud pump mechanical seals.
