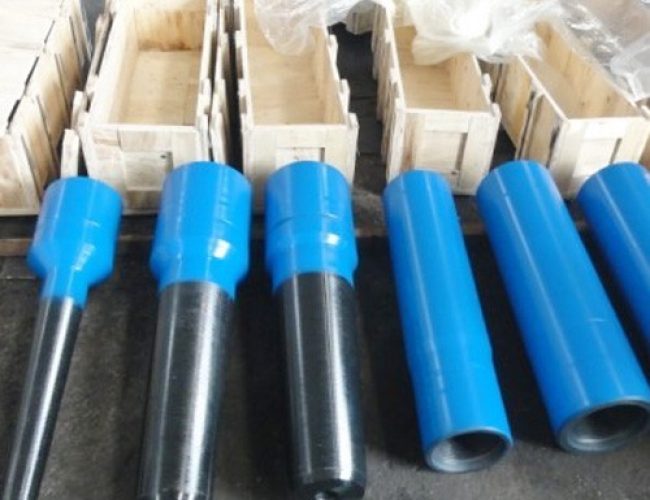

The male taper is a tool specifically designed for threading and fishing from the inner holes of dropped objects with holes, such as drill pipes and oil pipes. It has a high success rate in fishing for dropped pipe – like objects with couplings. The male taper can be used in combination with right – hand and left – hand threaded drill pipes and other tools for different fishing techniques. The male taper is turned from forged high – strength alloy steel materials and made through heat treatment. In order to facilitate threading, cutting grooves are made on the male taper.
Technical parameters：
| Model | Joint Outer Diameter | Joint Thread | Fishing Hole Diameter Range |
| GZ-NC26 | 89(31/2) | NC26 | 50~76(2~3) |
| GZ-NC26 | 89(31/2) | NC26 | 31~57(11/4~21/4) |
| GZ-NC31 | 105(41/8) | NC31 | 35～60(13/8~2-3/8) |
| GZ-NC31 | 105(41/8) | NC31 | 46~68(113/16~211/16) |
| GZ-NC31 | 105(41/8) | NC31 | 79~105(31/8~41/8) |
| GZ-NC31 | 105(41/8) | NC31 | 60~86(23/8~33/8) |
| GZ-NC31 | 105(41/8) | NC31 | 40~67(19/16~25/8) |
| GZ-NC38 | 121(43/4) | NC38 | 50.8～78(2~31/16) |
| GZ-NC38 | 121(43/4) | NC38 | 84～106(35/16~43/16) |
| GZ-NC38 | 121(43/4) | NC38 | 82~121(31/4~43/4) |
| GZ-NC46 | 159(61/4) | NC46 | 57~95(21/4~33/4) |
| GZ-NC46 | 159(61/4) | NC46 | 38~70(11/2~23/4) |
| GZ-NC46 | 159(61/4) | NC46 | 127~159(5~61/4) |
| GZ-NC46 | 159(61/4) | NC46 | 102~140(4~51/2) |
| GZ-NC46 | 159(61/4) | NC46 | 76~114(3~41/2) |
| GZ-NC46 | 159(61/4) | NC46 | 59~81(25/16~33/16) |
| GZ-NC50 | 165(61/2) | NC50 | 70～90(23/~4～39/16) |
| GZ-NC50 | 165(61/2) | NC50 | 94～120(311/16~43/4) |
| GZ-NC50 | 165(61/2) | NC50 | 127~165(5~61/2) |
| GZ-NC50 | 165(61/2) | NC50 | 102~140(4~51/2) |
| GZ-NC50 | 165(61/2) | NC50 | 76~114(3~41/2) |
| GZ-NC50 | 165(61/2) | NC50 | 51~89(2~31/2) |
| GZ-6-5/8REG | 203(8) | 6-5/8 REG | 125~170(415/16～611/16) |
| GZ-6-5/8REG | 203(8) | 6-5/8 REG | 170~190(611/16～71/2) |
| GZ-6-5/8REG | 203(8) | 6-5/8 REG | 165~203(61/2~8) |
| GZ-6-5/8REG | 203(8) | 6-5/8 REG | 140~178(51/2~7) |
| GZ-6-5/8REG | 203(8) | 6-5/8 REG | 114~152(41/2~6) |
| GZ-6-5/8REG | 203(8) | 6-5/8REG | 89~127(31/2~5) |
