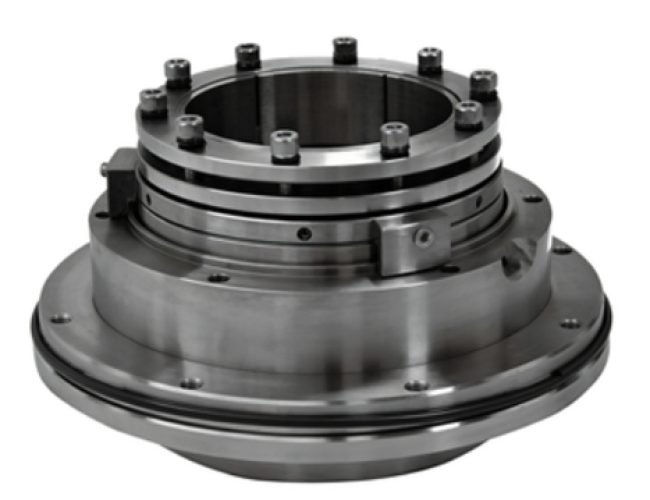

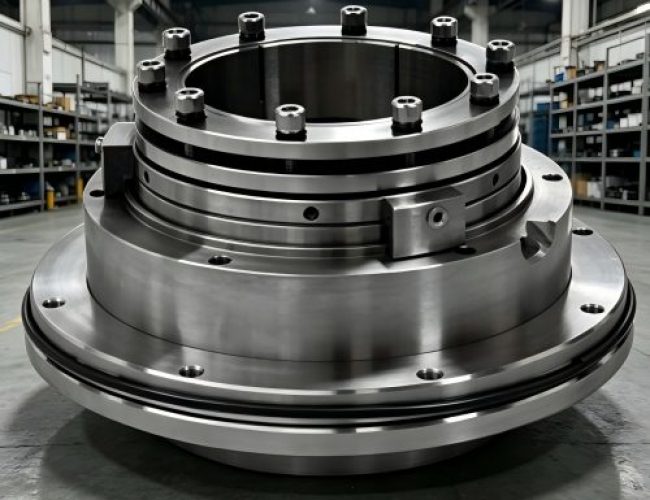

This mechanical seal is specially designed for flue gas desulfurization (FGD) circulation pumps operating under highly corrosive and high-solid-content conditions. It adopts a single or double cartridge seal structure combined with a balanced design, effectively improving sealing stability and service life. With a compact structure and easy installation, the seal ensures reliable long-term performance in demanding environments, and is widely used in power plants, chemical industries, and environmental protection systems.
Structural Features
- Single or double cartridge mechanical seal design to meet different operating requirements
- Balanced structure, allowing rotation in either direction with stable performance
- Short internal working length with compact configuration to reduce vibration and misalignment effects
- Multi-spring design located خارج the medium, preventing direct contact and enhancing corrosion resistance
- Stationary ring with hydraulic compensation improves face contact and sealing reliability
- Easy installation and maintenance, reducing operational costs
Operating Parameters
- Solid content: ≤30%
- Particle size: ≤250 mm
- Pressure: ≤1.6 MPa
- Temperature: ≤120°C
- Linear speed: ≤10 m/s
Material Combinations
- Seal faces: Silicon Carbide (SiC), Tungsten Carbide (WC)
- Secondary seals: Fluororubber (FKM), Polytetrafluoroethylene (PTFE)
- Metal parts: Stainless steel, SUS304, SUS316L, duplex stainless steel
Product Features
- Available in both single and double seal configurations for flexible application
- Balanced design reduces face load and extends service life
- Suitable for high-solid and highly corrosive media
- Maintains stable sealing performance under harsh FGD operating conditions
