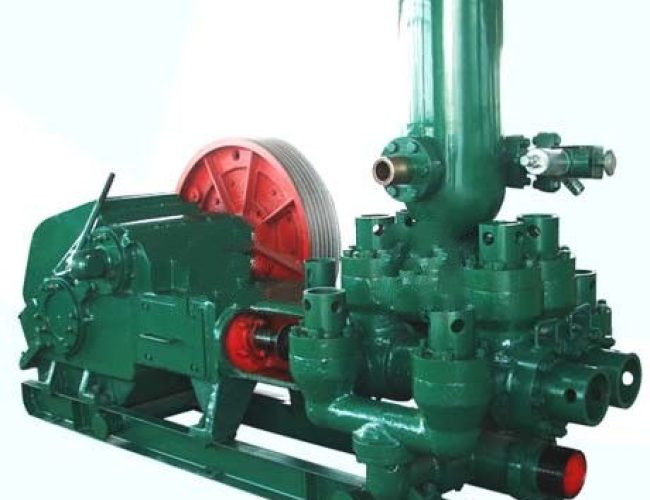

The F-series mud pump is a heavy-duty, high-efficiency pump specifically designed for oil and gas well drilling operations. In this complex and critical engineering field, the performance of the mud pump directly affects the stability, efficiency, and final outcome of drilling operations. With its excellent design and superior performance, the F-series mud pump reliably circulates drilling fluid, providing comprehensive support for drilling operations, ensuring a stable and effective wellbore, and facilitating optimal drilling performance.
Main Functions：
- The F-series mud pumps provide continuous and stable circulation of drilling mud under high pressure, playing a crucial role in maintaining wellbore integrity. They form a stable mud wall to prevent wellbore collapse, efficiently remove cuttings from the bottom of the well to prevent accumulation and ensure effective drill bit operation, and provide excellent cooling and lubrication for the drill bit, thereby extending its service life and improving drilling efficiency.
- In terms of design, this series employs an advanced multi-plunger system, providing stable flow and high-pressure output capabilities, ensuring continuous and uniform mud delivery at various drilling depths and under different operating conditions.
- The overall structure is constructed using high-strength steel and wear-resistant components, possessing excellent pressure resistance, wear resistance, and corrosion resistance. It can operate reliably for extended periods even in high-temperature and high-pressure environments, reducing maintenance frequency and operating costs.
- The equipment also supports flexible adjustment of flow and pressure, allowing operators to quickly adjust parameters according to formation conditions to adapt to diverse drilling needs. Furthermore, an integrated pump set option is available, integrating the motor, base, and control system into a single unit, simplifying installation and operation and improving operational efficiency.
- In terms of standards, the products are designed and manufactured in strict accordance with international drilling equipment specifications, ensuring safety, reliability, and stable performance to meet the requirements of various drilling projects.
Product types and specifications：
A6、Technical Parameter
| Model | F-500 | F-800 | F-1000 | F-1300 |
| Type | Triplex singleacting piston | Triplex singleacting piston | Triplex singleacting piston | Triplex singleacting piston |
| Max.Liner size×stroke | 170×191mm（6 3/4″×7.5″） | 170×229mm（6 3/4″×9″） | 170×254mm（6 3/4″×10″） | 180×305mm（7″×12″） |
| Strokes Rating | 165 r/min | 150 r/min | 140 r/min | 120 r/min |
| Power Rating | 373kW 500HP) | 597kW (800HP) | 746kW (1000HP) | 969kW (1300HP) |
| Gear type | herringbone gear | herringbone gear | herringbone gear | herringbone gear |
| Gear ratio | 4.286:1 | 4.185:1 | 4.207:1 | 4.206:1 |
| Lubricating | Forced and splashing | Forced and splashing | Forced and splashing | Forced and splashing |
| Suction Inlet Flange | 8″Flange (203mm Approx） | 10″Flange（254mm Approx） | 12″Flange（305mm Approx） | 12″Flange（305mm Approx） |
| Discharge Outlet Flange | 4″Flnge, 5000psi | 5″Flnge, 5000 psi | 5″Flnge, 5000 psi | 5″Flnge, 5000 psi |
| Pinion Shaft Dia. | 139.7mm（5 1/2″） | 177.8mm（7″） | 196.9mm（7 3/4″） | 215.9mm（8 1/2″） |
| Key | 31.75×31.75mm(1-1/4″×1 1/4″) | 44.45×44.45mm(1 3/4″×1 3/4″) | 50.8×50.8mm(2″×2″) | 50.8×50.8mm(2″×2″) |
| Valve Pots | Valve-Over-Valve，API #5 | Valve-Over-Valve，API #6 | Valve-Over-Valve，API #6 | Valve-Over-Valve，API #7 |
| Approx Weight | 9770kg (21540lb) | 14500kg (31970lb) | 18790kg (41420lb) | 24572kg (54170lb) |
A7、Specifications
Performance Data of F-500 Pump
| Strokes per minute | Rated Power | Liner size(mm) and Pressure Rating MPa(psi) | ||||||||||||||||
| 170 | 160 | 150 | 140 | 130 | 120 | 110 | 100 | |||||||||||
| 9.4 | 1365 | 10.6 | 1540 | 12.1 | 1750 | 13.9 | 2010 | 16.1 | 2335 | 18.9 | 2740 | 22.5 | 3260 | 27.2 | 3945 | |||
| kW | HP | Displacement L/s (GPM) | ||||||||||||||||
| 170 | 384 | 515 | 36.75(582) | 32.56(516) | 28.61(453) | 24.93(395) | 21.49(340) | 18.31(290) | 15.39(244) | 12.72(201) | ||||||||
| *165 | 373 | 500 | 35.67(565) | 31.60(501) | 27.77(440) | 24.19(383) | 20.86(330) | 17.77(281) | 14.93(236) | 12.34(195) | ||||||||
| 150 | 339 | 455 | 32.43(514) | 28.73(455) | 25.25(400) | 21.99(348) | 18.96(300) | 16.16(256) | 13.58(215) | 11.22(178) | ||||||||
| 140 | 316 | 424 | 30.27(480) | 26.81(425) | 23.56(373) | 20.53(325) | 17.70(280) | 15.08(239) | 12.67(201) | 10.47(166) | ||||||||
| 130 | 294 | 394 | 28.11(445) | 24.90(394) | 21.88(347) | 19.06(302) | 16.44(260) | 14.00(222) | 11.77(186) | 9.73(154) | ||||||||
| 120 | 271 | 364 | 25.94(411) | 22.98(364) | 20.20(320) | 17.60(279) | 15.17(240) | 12.93(205) | 10.86(172) | 8.98(142) | ||||||||
| 110 | 249 | 333 | 23.78(377) | 21.07(334) | 18.52(293) | 16.13(255) | 13.91(220) | 11.85(188) | 9.96(158) | 8.23(130) | ||||||||
| 1 | 0.2162(3.427) | 0.1915(3.036) | 0.1683(2.668) | 0.1466(2.324) | 0.1264(2.004) | 0.1077(1.707) | 0.0905(1.435) | 0.0748(1.186) | ||||||||||
Performance Data of F-800 Pump
| Strokes per minute | Rated Power | Liner size(mm) and Pressure Rating MPa(psi) | ||||||||||||||||
| 170 | 160 | 150 | 140 | 130 | 120 | 110 | 100 | |||||||||||
| 13.8 | 2000 | 15.6 | 2260 | 17.7 | 2570 | 20.3 | 2950 | 23.6 | 3420 | 27.7 | 4015 | 33.0 | 4780 | 34.5 | 5000 | |||
| kW | HP | Displacement L/s (GPM) | ||||||||||||||||
| 160 | 636 | 853 | 41.51(658) | 36.77(583) | 32.32(512) | 28.15(446) | 24.27(385) | 20.68(328) | 17.38(275) | 14.36(227) | ||||||||
| *150 | 596 | 800 | 38.92(617) | 34.47(546) | 30.30(480) | 26.39(418) | 22.76(360) | 19.39(307) | 16.29(258) | 13.47(213) | ||||||||
| 140 | 557 | 747 | 36.32(575) | 32.17(510) | 28.28(448) | 24.63(390) | 21.24(336) | 18.10(287) | 15.21(241) | 12.57(199) | ||||||||
| 130 | 517 | 693 | 33.73(534) | 29.88(473) | 26.26(416) | 22.87(362) | 19.72(312) | 16.81(266) | 14.12(224) | 11.67(185) | ||||||||
| 120 | 477 | 640 | 31.13(493) | 27.58(437) | 24.24(384) | 21.11(334) | 18.21(288) | 15.51(246) | 13.03(206) | 10.77(171) | ||||||||
| 110 | 437 | 587 | 28.54(452) | 25.28(400) | 22.22(352) | 19.35(307) | 16.69(264) | 14.22(225) | 11.95(189) | 9.87(156) | ||||||||
| 1 | 0.2594(4.112) | 0.2298(3.643) | 0.2020(3.202) | 0.1759(2.789) | 0.1517(2.405) | 0.1293(2.049) | 0.1086(1.722) | 0.0898(1.423) | ||||||||||
Performance Data of F-1000 Pump
| Strokes per minute | Rated Power | Liner size(mm) andPressure Rating MPa(psi) | ||||||||||||||
| 170 | 160 | 150 | 140 | 130 | 120 | 110 | ||||||||||
| 16.6 | 2410 | 18.8 | 2725 | 21.4 | 3100 | 24.5 | 3555 | 28.4 | 4125 | 33.4 | 4840 | 34.5 | 5000 | |||
| kW | HP | Displacement L/s (GPM) | ||||||||||||||
| 150 | 799 | 1071 | 43.24(685) | 38.30(607) | 33.66(533) | 29.33(465) | 25.29(401) | 21.55(341) | 18.10(287) | |||||||
| *140 | 746 | 1000 | 40.36(639) | 35.75(566) | 31.42(498) | 27.37(434) | 23.60(374) | 20.11(318) | 16.90(268) | |||||||
| 130 | 692 | 929 | 37.47(594) | 33.20(526) | 29.18(462) | 25.42(403) | 21.91(347) | 18.67(296) | 15.69(248) | |||||||
| 120 | 639 | 857 | 34.59(548) | 30.64(485) | 26.93(427) | 23.46(372) | 20.23(320) | 17.24(273) | 14.48(229) | |||||||
| 110 | 586 | 786 | 31.71(502) | 28.09(445) | 24.69(391) | 21.51(341) | 18.54(294) | 15.80(250) | 13.28(210) | |||||||
| 100 | 533 | 714 | 28.83(457) | 25.53(404) | 22.44(355) | 19.55(310) | 16.86(267) | 14.36(227) | 12.07(191) | |||||||
| 1 | 0.2883(4.569) | 0.2553(4.047) | 0.2244(3.557) | 0.1955(3.099) | 0.1686(2.672) | 0.1436(2.277) | 0.1207(1.913) | |||||||||
Performance Data of F-1300、F-1600 and F-1600L Pump
| Strokes per minute | Liner size(mm) and Pressure Rating MPa(psi) | |||||||||||||||
| 180 | 170 | 160 | 150 | 140 | 130 | |||||||||||
| F-1300 | 18.7 | 2720 | 21.0 | 3050 | 23.7 | 3440 | 27.0 | 3915 | 31.0 | 4495 | 34.5 | 5000 | ||||
| F-1600/1600L | 23.1 | 3345 | 25.9 | 3750 | 29.2 | 4235 | 33.2 | 4820 | 34.5 | 5000 | 34.5 | 5000 | ||||
| Rated Power | Displacement L/s (GPM) | |||||||||||||||
| F-1300 | F-1600/1600L | |||||||||||||||
| kW | HP | kW | HP | |||||||||||||
| 130 | 1050 | 1408 | 1293 | 1733 | 50.42(799) | 44.97(713) | 39.83(631) | 35.01(555) | 30.50(483) | 26.30(417) | ||||||
| *120 | 969 | 1300 | 1193 | 1600 | 46.54(737) | 41.51(658) | 36.77(583) | 32.32(512) | 28.15(446) | 24.27(385) | ||||||
| 110 | 889 | 1192 | 1094 | 1467 | 42.66(676) | 38.05(603) | 33.71(534) | 29.62(469) | 25.81(409) | 22.25(352) | ||||||
| 100 | 808 | 1083 | 994 | 1333 | 38.78(614) | 34.59(548) | 30.64(485) | 26.93(427) | 23.46(372) | 20.23(320) | ||||||
| 90 | 727 | 975 | 895 | 1200 | 34.90(553) | 31.13(493) | 27.58(437) | 24.24(384) | 21.11(334) | 18.21(288) | ||||||
| 1 | 0.3878(6.147) | 0.3459(5.483) | 0.3064(4.857) | 0.2693(4.269) | 0.2346(3.719) | 0.2023(3.206) | ||||||||||
Performance Data of F-1600HL Pump
| Strokes per minute | Rated Power | Liner size(mm) and Pressure Rating MPa(psi) | |||||||||
| 190 | 180 | 170 | 160 | 150 | **140 | **130 | **120 | ||||
| 20.7(3005) | 23.1(3345) | 25.9(3750) | 29.2(4235) | 33.2(4820) | 38.1(5530) | 44.2(6415) | 51.9(7500) | ||||
| kW | HP | ||||||||||
| Displacement L/s (GPM) | |||||||||||
| 130 | 1293 | 1733 | 56.17(890) | 50.42(799) | 44.97(713) | 39.83(631) | 35.01(555) | 30.50(483) | 26.30(417) | 22.41(355) | |
| *120 | *1193 | 1600 | 51.85(822) | 46.54(737) | 41.51(658) | 36.77(583) | 32.32(512) | 28.15(446) | 24.27(385) | 20.68(328) | |
| 110 | 1094 | 1467 | 47.53(753) | 42.66(676) | 38.05(603) | 33.71(534) | 29.62(469) | 25.81(409) | 22.25(352) | 18.96(300) | |
| 100 | 994 | 1333 | 43.21(685) | 38.78(614) | 34.59(548) | 30.64(485) | 26.93(427) | 23.46(372) | 20.23(320) | 17.24(273) | |
| 90 | 895 | 1200 | 38.89(614) | 34.90(553) | 31.13(493) | 27.58(437) | 24.24(384) | 21.11(334) | 18.21(288) | 15.51(246) | |
| 80 | 795 | 1067 | 34.56(548) | 31.02(492) | 27.67(438) | 24.51(388) | 21.54(341) | 18.77(297) | 16.18(256) | 13.79(218) | |
| 1 | 0.4321(6.849) | 0.3878(6.147) | 0.3459(5.483) | 0.3064(4.857) | 0.2693(4.269) | 0.2346(3.719) | 0.2023(3.206) | 0.1724(2.732) | |||
Performance Data of F-2200 Pump
| Strokes per minute | Rated Power | Liner size(mm) and Pressure Rating MPa(psi) | |||||||||||
| 230 | 220 | 210 | 200 | 190 | 180 | 170 | 160 | 150 | 140 | ||||
| 19.0(2760) | 20.8(3015) | 22.8(3310) | 25.1(3645) | 27.9(4040) | 31.0(4505) | 34.5(5000) | 34.5(5000) (最大) | 34.5(5000) (最大) | 34.5(5000) (最大) | ||||
| kW | HP | ||||||||||||
| Displacement L/s (GPM) | |||||||||||||
| *105 | *1640 | 2200 | 77.65(1231) | 71.05(1126) | 64.73(1026) | 58.72(931) | 52.99(840) | 47.56(754) | 42.42(672) | 37.58(596) | 33.03(524) | 28.77(456) | |
| 90 | 1406 | 1886 | 66.56(1055) | 60.90(965) | 55.49(880) | 50.33(798) | 45.42(720) | 40.77(646) | 36.36(576) | 32.21(511) | 28.31(449) | 24.66(391) | |
| 80 | 1250 | 1676 | 59.16(938) | 54.13(858) | 49.32(782) | 44.74(709) | 40.37(640) | 36.24(574) | 32.32(512) | 28.63(454) | 25.16(399) | 21.92(347) | |
| 70 | 1094 | 1467 | 51.76(820) | 47.36(751) | 43.16(684) | 39.14(620) | 35.33(560) | 31.71(503) | 28.28(448) | 25.05(397) | 22.02(349) | 19.18(304) | |
| 60 | 937 | 1257 | 44.37(703) | 40.60(644) | 36.99(586) | 33.55(532) | 30.28(480) | 27.18(431) | 24.24(384) | 21.47(340) | 18.87(299) | 16.44(261) | |
| 50 | 781 | 1048 | 36.97(586) | 33.83(536) | 30.83(489) | 27.96(443) | 25.23(400) | 22.65(359) | 20.20(320) | 17.89(284) | 15.73(249) | 13.70(217) | |
| 1 | 0.7395(11.72) | 0.6766(10.72) | 0.6165(9.772) | 0.5592(8.863) | 0.5047(8.000) | 0.4530(7.180) | 0.4040(6.404) | 0.3579(5.673) | 0.3146(4.986) | 0.2740(4.343) | |||
| 230 | 220 | 210 | 200 | 190 | 180 | 170 | **160 | **150 | **140 | **130 | ||||
| 19.0(2760) | 20.8
(3015)
|
22.8(3310) | 25.1(3645) | 27.9(4040) | 31.0(4505) | 34.8(5050) | 39.3(5700) | 44.7(6485) | 51.3(7445) | 52.0(7500)
(最大) |
||||
| kW | HP | |||||||||||||
| Displacement L/s (GPM) | ||||||||||||||
| *105 | *1640 | 2200 | 77.65(1231) | 71.05(1126) | 64.73(1026) | 58.72(931) | 52.99(840) | 47.56(754) | 42.42(672) | 37.58(596) | 33.03(524) | 28.77(456) | 24.81(393) | |
| 90 | 1406 | 1886 | 66.56(1055) | 60.90(965) | 55.49(880) | 50.33(798) | 45.42(720) | 40.77(646) | 36.36(576) | 32.21(511) | 28.31(449) | 24.66(391) | 21.26(337) | |
| 80 | 1250 | 1676 | 59.16(938) | 54.13(858) | 49.32(782) | 44.74(709) | 40.37(640) | 36.24(574) | 32.32(512) | 28.63(454) | 25.16(399) | 21.92(347) | 18.90(300) | |
| 70 | 1094 | 1467 | 51.76(820) | 47.36(751) | 43.16(684) | 39.14(620) | 35.33(560) | 31.71(503) | 28.28(448) | 25.05(397) | 22.02(349) | 19.18(304) | 16.54(262) | |
| 60 | 937 | 1257 | 44.37(703) | 40.60(644) | 36.99(586) | 33.55(532) | 30.28(480) | 27.18(431) | 24.24(384) | 21.47(340) | 18.87(299) | 16.44(261) | 14.18(225) | |
| 50 | 781 | 1048 | 36.97(586) | 33.83(536) | 30.83(489) | 27.96(443) | 25.23(400) | 22.65(359) | 20.20(320) | 17.89(284) | 15.73(249) | 13.70(217) | 11.81(187) | |
| 1 | 0.7395(11.72) | 0.6766(10.72) | 0.6165(9.772) | 0.5592(8.863) | 0.5047(8.000) | 0.4530(7.180) | 0.4040(6.404) | 0.3579(5.673) | 0.3146(4.986) | 0.2740(4.343) | 0.2363(3.745) | |||
