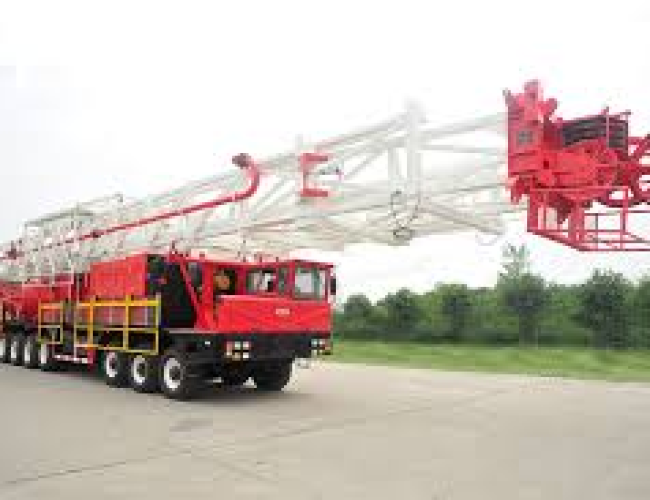

The truck-mounted drilling rig is a highly integrated mobile drilling system designed for fast deployment, efficient operation, and reliable performance in oilfield applications. It combines drilling equipment and transportation vehicle into a single unit, offering excellent mobility, reduced rig-up time, and strong adaptability to complex field conditions.
Drawworks & Braking System
- Available in single-drum or double-drum configurations
- Main drum equipped with disc brake system for reliable braking performance
- Auxiliary braking options include roller brake or water-cooled disc brake
- Ensures stable, safe, and precise braking under heavy-duty working conditions
Telescopic Mast Structure
- Equipped with dual telescopic masts using hydraulic cylinder lifting and extension system
- Optimized mast weight and structural strength for improved load-bearing capacity
- Ensures smooth passage over well sites and stable operation during drilling activities
- High reliability under continuous field operations
Rig Floor Design
- Swing-up or vertical lifting structure available
- Significantly reduces installation and rig-up time
- Improves transportation efficiency and operational flexibility
- Designed for fast deployment in remote drilling sites
Integrated Ramp & Catwalk System
- Fully integrated design for drilling operation requirements
- Enhances safety and efficiency during pipe handling and transportation
- Simplifies on-site installation and improves overall workflow efficiency
Truck Chassis Performance
- Fully compliant with road vehicle regulations for oilfield transportation
- Wide driving visibility and flexible steering performance
- Fast braking response and strong load-carrying capability
- Excellent mobility on oilfield roads and complex terrain
- Suitable for long-distance transportation of heavy drilling equipment
This truck-mounted drilling rig offers a compact, efficient, and highly mobile solution for modern drilling operations, significantly improving transportation efficiency, reducing setup time, and ensuring reliable performance in diverse oilfield environments.
Product types and specifications：
| Drilling rig model | ZJ10/600 | ZJ15/900 | ZJ20/1350 | ZJ30/1800 | ZJ40/2250 | |
| Nominal drilling depth, m | 127mm(5″)drill pipe | 500～800 | 700～1400 | 1100～1800 | 1500～2500 | 2000～3200 |
| 114mm(4 1/2″)drill pipe | 500～1000 | 800～1500 | 1200～2000 | 1600～3000 | 2500～4000 | |
| Max. Load, kN（t） | 600（60） | 900（90） | 1350（135） | 1800（180） | 2250（225） | |
| Draw-works | Type | single/double drum | ||||
| Power，kW | 110-200 | 257-330 | 330-500 | 550 | 735 | |
| speed | 5+1R | |||||
| Brake type | Band brake/Disc Brake+ water brake or pneumatic disk brake | |||||
| Travelling System rope no. | Drilling rope | 6 | 8 | |||
| Max. Rope no. | 8 | 10 | ||||
| Drilling steel ropediameter，mm（in） | 22（7/8），26（1） | 26（1） | 29（1 1/8） | 29（1 1/8） | 32（1 1/4） | |
| Rotary table openingdiameter，mm( in) | 445(17 1/2)，520(20 1/2) | 520(20 1/2)，700(27 1/2) | ||||
| Drilling floor height，m | 3，4，4.5 | 4, 4.5，5 | 4，5 | 5，6 | 6，7 | |
| Derrick Type | Hydraulic lifting | |||||
| Derrick Height，m | 31, 33, 35 | 33，35 | 36，38 | 38，39 | ||
| Max. Transportation speed，km/h | 45 | |||||
| Base driving type | 10×8 | 12×8 | 14×8 | 14×10 | ||
| Remark: according to user requirements, the data in table allow to be changed and must be agreed by both side. | ||||||
