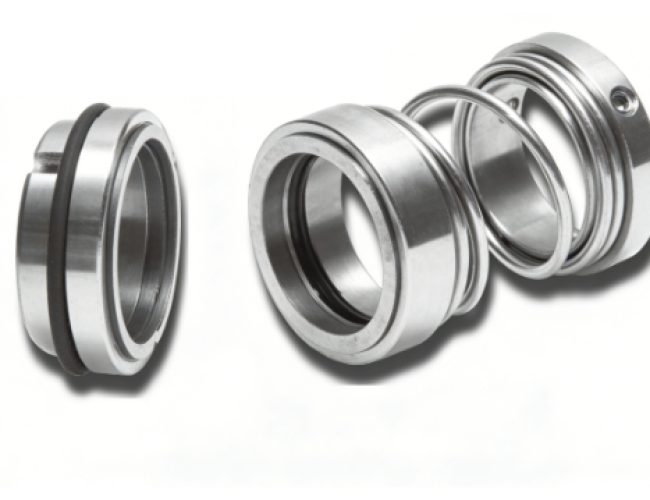

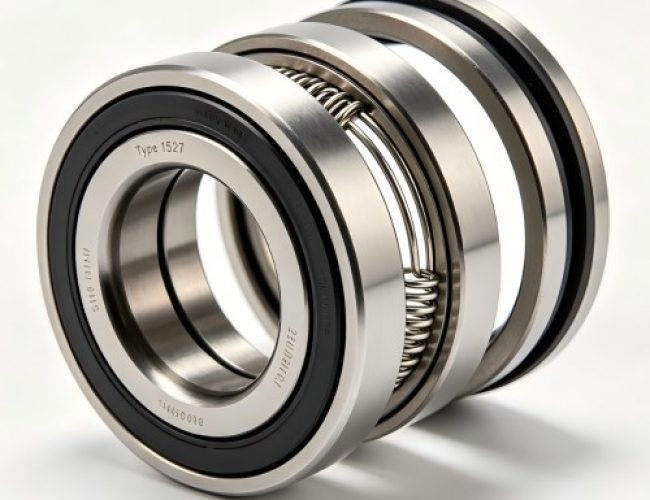

The Type 1527 mechanical seal is a compact and reliable single-end sealing solution designed for low to medium pressure applications. With an internal installation structure and internal circulation flow design, it provides stable sealing performance, easy installation, and long service life in weakly corrosive working environments.
Performance Parameters
- Pressure range: 0 – 1.0 MPa
- Temperature range: -50°C to 150°C
- Linear speed: ≤ 25 m/s
- Shaft diameter range: 18 – 110 mm
Design Features
- Internal installation with internal flow circulation structure
- Single-end face, single-spring, non-balanced design
- Coil spring transmission system ensures stable sealing force
- Fixed rotation direction for reliable operation
- Compact structure for easy installation and maintenance
Applicable Media
- Oil
- Water
- Organic solvents
- Other weakly corrosive media
This mechanical seal is widely used in general industrial equipment, offering stable sealing performance, good adaptability, and reliable operation in low to medium duty working conditions.
