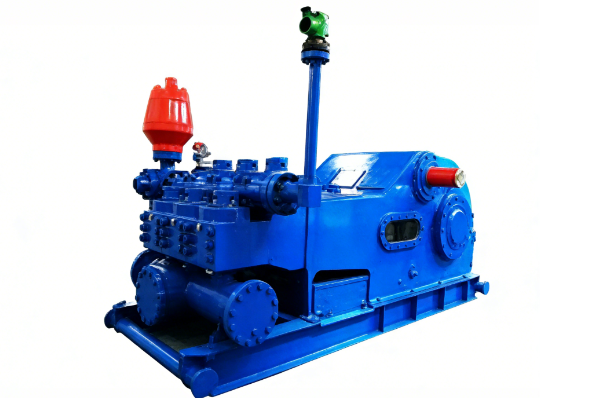

In oil drilling operations, the mud pump, as the core equipment of the drilling circulation system, undertakes critical tasks such as transporting drilling fluid, cooling the drill bit, carrying cuttings, and maintaining wellbore stability. Its performance directly affects drilling efficiency, cost control, and operational safety, making it an indispensable “heart” of the drilling project. From desert oilfields to deep-sea drilling platforms, the mud pump, through a high-pressure circulation system, precisely delivers high-viscosity, high-density drilling fluid to the bottom of the well, providing continuous power for drilling operations. Its technical characteristics and maintenance management have become a focus of industry attention.
The core function of the mud pump revolves around the circulation of drilling fluid. During drilling, the high temperature generated by the friction between the drill bit and the rock needs to be cooled by the drilling fluid. Simultaneously, the drilling fluid needs to carry broken cuttings back to the surface to prevent accumulation at the bottom of the well and accidents such as stuck pipe. Taking a deep well operation in an oilfield as an example, the mud pump injects drilling fluid containing weighting agents into the wellbore at a rate of 1200 liters per minute, forming a stable fluid column pressure. This prevents wellbore collapse and assists the drill bit in breaking rocks through hydraulic impact. Furthermore, mud pumps provide high-pressure hydraulic power for downhole drilling tools, such as turbine drills, which rely on the high pressure of drilling fluid to drive rotation and achieve efficient rock breaking. This versatility makes mud pumps a key hub in the drilling process chain.
Technically, mud pump design integrates mechanical transmission and hydraulic control. On the power end, a crank-connecting rod mechanism converts the rotational motion of the motor into the reciprocating linear motion of the piston, achieving the conversion from low-pressure mud to high-pressure. On the hydraulic end, the precise coordination of cylinder liners, pistons, and valve assemblies completes the intake and discharge of drilling fluid. Taking a certain type of plunger pump as an example, its rated pressure can reach 35 MPa, and the single pump displacement covers 600 to 2500 liters/minute. By changing different sized cylinder liners, it can flexibly adapt to the operational needs of shallow wells with large displacement or deep wells with high pressure. In recent years, direct-drive mud pump technology has gradually become more widespread. It eliminates the belt drive link and uses an electric motor to directly drive the pump shaft, which not only reduces energy consumption and noise but also shortens the maintenance cycle by 40%, becoming an important direction for technological upgrading in the industry.
Routine maintenance is crucial for ensuring the reliability of mud pumps. Operators must check the oil level on the power end, the sealing of the cylinder liner and piston, and the water level in the spray pump tank daily to ensure the normal operation of the lubrication and cooling systems. For example, a drilling team once experienced a mud leak due to failure to replace worn piston lock nuts in a timely manner, resulting in a single-day downtime loss exceeding 200,000 yuan. Furthermore, the valve cover must be disassembled weekly to clean sludge and check the valve guide sleeve clearance. If wear exceeds 3 mm, it must be replaced; otherwise, it will accelerate valve body wear and shorten equipment life. Monthly torque checks of the hydraulic end double-ended bolts are also required to prevent bolt loosening during high-pressure operations and potential safety accidents. These detailed management practices directly determine the continuous operating capability of the mud pump.
As drilling technology expands to deep wells, ultra-deep wells, and complex geological environments, the performance requirements for mud pumps continue to upgrade. For example, in high-temperature geothermal well drilling, special sealing materials with a temperature resistance of over 150℃ are required to prevent corrosive components in the drilling fluid from eroding the hydraulic end. In shale gas horizontal well operations, parallel dual-pump systems achieve precise control of displacement and pressure to meet the rock-carrying requirements of long horizontal sections. In the future, intelligent monitoring technology will be further integrated into mud pump design, using sensors to collect pressure, flow, and vibration data in real time, combined with AI algorithms to predict equipment failures, driving drilling operations towards higher efficiency, safety, and lower consumption.
From driving drilling fluid circulation to supporting complex drilling processes, the technological evolution of mud pumps has always resonated with industry needs. It is not only the “power source” of drilling operations but also an “invisible guardian” ensuring downhole safety and improving operational efficiency. With the integration of materials science, hydraulic control, and intelligent monitoring technologies, mud pumps are breaking through towards higher pressure, larger displacement, and greater intelligence, providing solid technical support for global energy development.
