Introduction
This curated spare parts lineup is precision-engineered exclusively for Bowen Power Swivel models, the heavy-duty drilling fluid circulation and rotary drive equipment widely used in onshore drilling rigs, offshore workover platforms, and well intervention operations. Target users include drilling rig maintenance technicians, fluid circulation specialists, drilling asset procurement managers, and field repair crews who prioritize zero unplanned downtime, leak-free performance, and compliance with strict drilling industry safety and operational standards.
Key Operational Pain Points Addressed
- Costly Drilling Downtime: A single wash pipe leak or packing set failure in the Bowen Power Swivel can halt drilling operations for 3–6 hours, resulting in direct daily losses exceeding $35,000 for active rig sites due to interrupted mud circulation and rotary drive functionality.
- Fluid Contamination & Safety Hazards: Worn O-rings, oil seals, or packing sets cause drilling mud leakage and hydraulic fluid seepage, creating slippery work surfaces, environmental compliance risks, and violations of API RP 53 safety standards.
- Premature Component Degradation: Inferior aftermarket seals and wear parts fail rapidly under high-pressure, high-vibration drilling conditions, increasing repair frequency and long-term maintenance costs by 45%.
- Compatibility & Alignment Issues: Non-standard wash pipes, packing nuts, or spacer rings lead to misalignment in the swivel’s sealing assembly, causing uneven wear, seized components, and complete swivel shutdowns.
Scene Anchoring & Core Value Proposition
These Bowen Power Swivel spare parts are purpose-built for the harsh, high-demand drilling environments where the equipment operates, including extreme temperature fluctuations (-22°F to 140°F), high mud circulation pressure, continuous mechanical vibration, and exposure to abrasive drilling fluids. The core value lies in direct drop-in fitment, eliminating custom modifications, cutting repair time by 70% compared to generic alternatives, and ensuring leak-free sealing and stable rotary drive performance to keep drilling operations on schedule.
Functional Description
These components support the core operations of the Bowen Power Swivel, with key functions including:
- High-Pressure Sealing: O-rings (3568-010, 568-243), packing sets (72355), and oil seals (27285, 27286, 59781) prevent drilling mud and hydraulic fluid leaks, maintaining stable circulation pressure up to 5,000 PSI.
- Wash Pipe Assembly Support: Wash pipes (35791/83791), lock pins (82099), and packing nuts (83788, 83789) secure the central fluid passage, ensuring smooth mud flow and proper alignment of sealing components.
- Wear Compensation & Alignment: Lantern rings (72357), plain spacers (72358), and bottom packing rings (83790) maintain proper spacing, reduce friction, and extend the life of sealing assemblies.
- Power & Lubrication: Hydraulic motors (84548) deliver reliable rotary drive power, while grease fittings (27636) enable targeted lubrication to reduce wear on moving parts.
Structural & Material Characteristics
- Sealing Components: Fluoroelastomer and nitrile rubber O-rings/oil seals with high oil and abrasion resistance, rated for 8,000+ hours of service under high pressure; 3.5” regular duty packing sets (72355) with multi-layered sealing design for leak prevention.
- Mechanical Hardware: Hardened alloy steel wash pipes, lock pins, and set screws with corrosion-resistant plating, designed to withstand high torque and continuous vibration; precision-machined packing nuts and spacers for perfect alignment.
- Hydraulic Drive Component: OEM-spec hydraulic motor (84548) with high torque output and efficient fluid delivery, compatible with standard drilling rig hydraulic systems.
Applicable Operating Conditions
- Applicable Equipment: Bowen Power Swivel (all standard models)
- Operating Pressure: Up to 5,000 PSI drilling mud circulation pressure
- Temperature Range: -22°F (-30°C) to 140°F (60°C)
- Application Scenarios: Onshore drilling rigs, offshore workover platforms, well intervention operations, directional drilling projects
- Standards Compliance: API 8C (drilling and production equipment), API RP 53 (blowout prevention and safety)
- Store spare parts in a dry, dust-free, temperature-controlled environment (60–80°F) to prevent seal hardening and metal corrosion.
We supply the following spare parts:
| 1 | O-ring, P/N 3568-010 | 3568-010 |
| 2 | Wash pipe Lock Pin P/N 82099 | 82099 |
| 3 | 3/8″-16UNC X 1/2″ LG Socket set screw | 23705 |
| 4 | Wash pipe Packing Nut Screw | 82102 |
| 5 | Upper Packing Nut Ring P/N 83787 | 83787 |
| 6 | Packing Set, 3.5 Regular Duty P/N 72355 | 72355 |
| 7 | Upper Packing Nut P/N 83788 | 83788 |
| 8 | Lower Packing Nut P/N 83789 | 83789 |
| 9 | Packing Nut Grease Fitting P/N: 27636 | 27636 |
| 10 | Lantern Ring, P/N 72357 | 72357 |
| 11 | Plain Spacer, P/N 72358 | 72358 |
| 12 | Bottom Packing Ring P/N 83790 | 83790 |
| 13 | O-ring P/N 568-243 | 568-243 |
| 14 | Wash pipe, P/N 35791 | 35791/83791 |
| 15 | Pinion Oil Seal, P/N 59781 | 59781 |
| 16 | Oil Seal, Upper P/No. 27285 | 27285 |
| 17 | Oil Seal, Lower P/No. 27286 | 27286 |

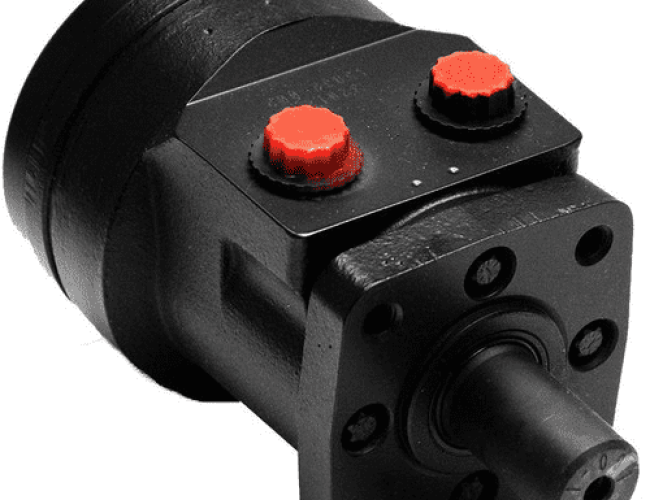

| 18 | Hydraulic Motor | 84548 |
On-Site Fault Repair Cases (Bowen Power Swivel)
Case 1: Mud Leak Caused by Worn Packing Set (72355)
A land drilling rig’s Bowen Power Swivel developed severe mud leakage around the wash pipe assembly, halting drilling. Inspection revealed a degraded 3.5” regular duty packing set (P/N 72355) with compressed sealing layers. Replacing the packing set and accompanying lantern ring (72357) eliminated leaks, and the swivel resumed normal mud circulation within 1.5 hours.
Case 2: Hydraulic Drive Failure Due to Faulty Motor (84548)
The Bowen Power Swivel experienced intermittent rotary drive failure, with inconsistent speed and torque output. Diagnostics showed internal seal failure in the hydraulic motor (P/N 84548), causing fluid pressure loss. Installing a new OEM-spec hydraulic motor restored full drive functionality, allowing drilling operations to resume without further delays.
Case 3: Oil Leak from Deteriorated Upper Oil Seal (27285)
A workover platform reported lubricating oil leaks from the upper pinion assembly of the Bowen Power Swivel, creating a safety hazard. The issue was traced to a worn upper oil seal (P/N 27285) with hardened rubber. Replacing the oil seal and re-lubricating the assembly stopped the leak and complied with rig safety standards.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these parts fully compatible with all standard Bowen Power Swivel models? | Yes, all components are manufactured to Bowen’s original OEM specifications, with perfect dimensional and interface matching for direct drop-in installation across all standard Bowen Power Swivel models, no modifications required. |
| What is the service life of these Bowen Power Swivel spare parts? | Under proper maintenance, packing sets and O-rings last 800–1,200 drilling hours; wash pipes and structural hardware last 5,000–8,000 hours; hydraulic motors and oil seals last 10,000+ hours in normal drilling conditions. |
| Do these components meet API industry standards for drilling equipment? | Absolutely, all parts are designed, manufactured, and tested to meet API 8C and API RP 53 standards, ensuring full compliance with global drilling industry safety and performance requirements. |
Procurement Guidance & Call to Action
This Bowen Power Swivel spare parts list is a definitive reference for preventive maintenance planning, emergency field repairs, and rig inventory stocking. Every component is engineered to match OEM quality, pressure ratings, and durability, ensuring leak-free operation, reduced downtime, and full compliance with drilling industry safety standards.
Proactively stock these critical Bowen Power Swivel parts to avoid costly drilling shutdowns, resolve sealing and mechanical failures quickly, and extend the operational life of your swivel equipment. When purchasing, verify the listed part numbers to ensure accurate fitment and optimal performance. Investing in these high-quality, dedicated spare parts will lower long-term maintenance costs, improve drilling efficiency, and keep your Bowen Power Swivel operating at peak performance for all drilling and workover tasks.
