1. Executive Overview & Core Purpose

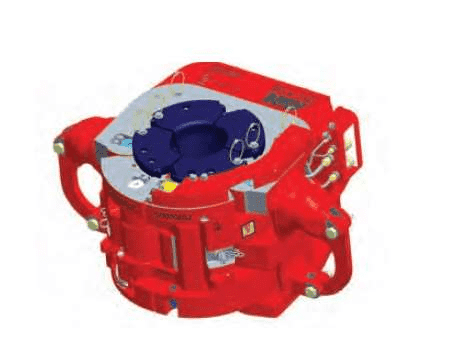

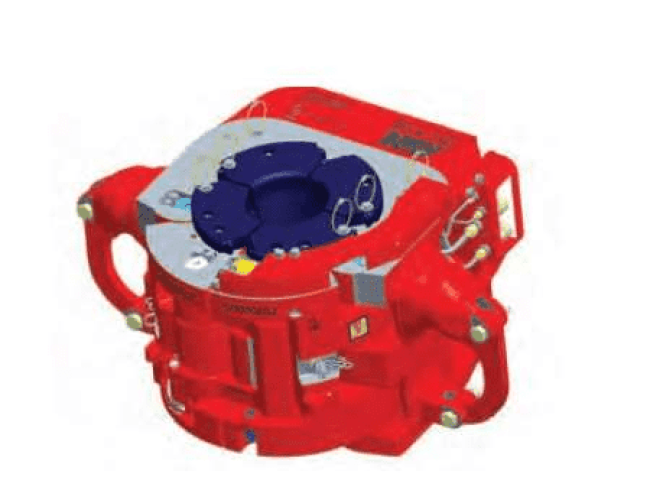

This dedicated parts catalog is exclusively engineered for the BX4-75 drilling elevator, a critical heavy-duty handling tool used in upstream oil and gas drilling, workover operations, and well servicing activities. Designed to address the specialized needs of drilling contractors, field maintenance teams, equipment rental firms, and oilfield service providers, these OEM-grade replacement parts eliminate the risk of premature component failure, reduce unplanned downtime, and maintain strict compliance with industry drilling safety standards. Every part is precision-machined and tested to match the original equipment specifications for the BX4-75 model, with cross-compatibility for BX4-50 elevator variants for seamless field integration.
2. Detailed Product & Component Insights
2.1 Product Introduction
The BX4-75 elevator replacement parts line consists of high-performance, wear-resistant components built to withstand the extreme mechanical stress, hydraulic pressure, and harsh environmental conditions of onshore and offshore drilling operations. Unlike generic aftermarket parts, each component is engineered with proprietary machining tolerances (±0.001 inch for critical pin and bushing interfaces) and premium materials (SS-316 stainless steel, steel-backed CuSn10Pb10 bronze, heat-treated alloy steel) to deliver extended service life and consistent operational stability. This parts list covers all critical subsystems of the BX4-75 elevator, including hydraulic door cylinders, latching assemblies, hinge pins, control valves, bushings, and trigger mechanisms, serving as a definitive procurement and technical reference for equipment maintenance and overhauls.
2.2 Key Functional Specifications
- Hydraulic System Compatibility: Engineered for operating pressures up to 3,000 PSI, matching the BX4-75 elevator’s standard hydraulic actuation requirements; check valves, sequence valves, and pressure reducing valves ensure precise fluid flow control and load holding stability.
- Mechanical Load Rating: Critical load-bearing components (hinge pins, latch pins, bushings) rated for maximum working loads up to 75 tons, compliant with API Spec 8C for drilling and production handling equipment.
- Wear Resistance Metrics: Steel-backed bronze bushings feature a 55HRC hardness rating and 20,000+ cycle service life under continuous field use, reducing replacement frequency compared to standard carbon steel components.
- Corrosion Protection: SS-316 stainless steel components (trigger shafts, latch valve plungers) offer superior resistance to drilling mud, brine, and saltwater corrosion, ideal for offshore and high-humidity drilling environments.
2.3 Structural Design Features
- Modular Subassembly Design: Pre-assembled components (door cylinder assy, hinge pin assy, trigger shaft assy) simplify field installation and reduce assembly time by up to 40% compared to loose individual parts.
- Direct OEM Replacement: All part numbers correspond to original equipment specifications, with direct interchangeability for legacy part numbers (e.g., 50000668 replaces 203221-1, 979796-20 replaces 979796-25-S) to eliminate fitment errors.
- Precision Machined Interfaces: Critical mating surfaces (pin-to-bushing, valve-to-valve body) feature micro-finish machining to prevent fluid bypass, mechanical play, and premature wear.
- Standardized Dimensions: Bushings, pins, and brackets adhere to strict BX4-75 dimensional standards (e.g., 55X60-25mm/50mm hinge pin bushings, 3/4” control bushings) for universal fit across BX4-series elevators.
We supply the following spare parts:
| Inquiry No. BX4-75 Elevator Parts | ||||
| Item | Part No. | Description | UOM | |
| 1 | 50000667 | ASSY DOOR CYLINDER BX4-50/75, SEE TEXT | Each | |
| 2 | 50000668 | LATCH ASSY; HYDRAULIC CYL (replaces 203221-1) | Each | |
| 3 | 50000670-1 | HINGE PIN ASS’Y DOOR BX4-50/75 | Each | |
| 4 | 50000671-1 | HINGE PIN ASS’Y LATCH BX4-50/75 | Each | |
| 5 | 50000655+50 | PIN, PROPRIETARY;MACHINING LATCH LEVER 5 | Each | |
| 6 | 203230 | CONTROL SHAFT LATCH LOCK | Each | |
| 7 | 203226-1 | CONTROL BRACKET LATCH | Each | |
| 8 | 50000660 | POSITION PIN BUSCHING BODY BX4-50/75 | Each | |
| 9 | 50000660-1 | POSITION PINBUSHING DOOR BX4-50/75 | Each | |
| 10 | 50000658 | PIN, PROPRIETARY; MACHINING BRACKET 50/75 | Each | |
| 11 | 17480450-001 | BX LOCK PIN, LATCH LOCK | Each | |
| 12 | 979770-5025 | Bearing, Proprietary;Plain, Split Bushing;Handling Tools;ID 2.165 in;OD 2.362 in;W 1.575 in;Matl Steel Backed CuSn10Pb10;55X60-25mm hinge/ latch pin. MADE FROM 979770-65 | Each | |
| 13 | 979770-66 | 55X60-50MM HINGE/LATCH PIN BUSHING | Each | |
| 14 | 203227 | DISK FOR BX ELEVATOR | Each | |
| 15 | 203246 | BRACKET LEVER PIN | Each | |
| 16 | 203254 | BUSHING 3/4″ BX#4 | Each | |
| 17 | 203234 | POSITION PIN BUSHING LOCK TOP | Each | |
| 18 | 107029-175N | VALVE, CARTRIDGE, CHECK, TDS9S | Each | |
| 19 | 108087-1OAN | VALVE,SEQUENCE, CARTRIDGE | Each | |
| 20 | 109858-1BN | PRESSURE REDUCING VALVE | Each | |
| 21 | 17749006-001 | VALVE, PRESSURE CONTROL, COUNTERBALANCE | EACH | |
| 22 | 17782526-001 | Plunger, Proprietary; Assembly,Trigger | Each | |
| 23 | 979880-8 | CARTRIDGE 3/4 | Each | |
| 24 | 979796-20 | FILTER ELEMENT (replaces 979796-25-S) | Each | |
| 25 | 50004051-1 | TRIGGER SHAFT ASSY | Each | |
| 26 | 50003965 | Plunger, Proprietary;Latch Valve BX-4;Matl SS-316;Mud Pumps;BX Size Equipment And Parts;L 2.362 in | Each | |
| 27 | 203240 | LOCK RING BX#4 | Each | |
| 28 | 203236 | LOCK SHAFT BUSHING LOCK (MTO) | Each | |
| 29 | 10843508-001 | Shaft, Proprietary;Lock bushing lock;Max OD 1.24 in;L 5.375 in;Handling Tools;Matl RVS316 | Each | |
3. Field Troubleshooting: Real-World Failure Repair Cases
3.1 Case 1: Hydraulic Latch Malfunction (Onshore Drilling Rig)
Issue: BX4-75 elevator latch failed to engage/disengage smoothly, causing delayed tubular handling and rig downtime. Root cause: Worn hydraulic latch assembly (Part No. 50000668) and seized sequence valve (Part No. 108087-1OAN). Repair: Replaced faulty latch assy and cartridge sequence valve, flushed hydraulic system, and lubricated latch interfaces. Outcome: Immediate restoration of latch functionality, zero downtime for subsequent 30 days of operation.
3.2 Case 2: Hinge Pin Bushing Wear (Offshore Platform)
Issue: Excessive door play and misalignment on BX4-75 elevator, leading to unsafe tubular handling. Root cause: Degraded steel-backed bronze bushings (Part No. 979770-5025) and worn hinge pin assy (Part No. 50000670-1). Repair: Replaced all worn hinge pins and split bushings, verified dimensional fit, and torqued retaining hardware. Outcome: Eliminated door misalignment, restored API-compliant operational clearances, extended component life by 6+ months.
3.3 Case 3: Pressure Control Valve Failure (Well Workover Operation)
Issue: Hydraulic pressure loss in BX4-75 elevator door cylinder, preventing proper door closure. Root cause: Faulty pressure reducing valve (Part No. 109858-1BN) and clogged filter element (legacy 979796-25-S). Repair: Installed new pressure reducing valve and upgraded filter element (979796-20), bled hydraulic air from the system. Outcome: Restored full hydraulic pressure, eliminated cylinder drift, and resumed workover operations without delays.
4. Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these parts compatible with both BX4-50 and BX4-75 elevators? | Yes, most components (door cylinder assy, hinge pins, bushings) are cross-compatible with BX4-50 and BX4-75 models; select valve and pin parts are optimized exclusively for BX4-75, as noted in the part description. |
| What materials are used for critical wear components like bushings and pins? | Critical bushings use steel-backed CuSn10Pb10 bronze for superior wear resistance; load-bearing pins and plungers use heat-treated alloy steel or SS-316 stainless steel for corrosion resistance and load capacity. |
| How do I identify the correct replacement part for my BX4-75 elevator repair? | Match the part number from this list to your elevator’s original part number; cross-reference legacy part numbers (noted in descriptions) for older equipment, and verify component description and quantity for exact fitment. |
5. Procurement Guidance & Call to Action
This BX4-75 elevator parts list serves as both a definitive procurement standard and technical repair reference, ensuring you source only high-quality, compliant components that meet API drilling equipment standards and resolve critical field performance issues. Investing in these precision-engineered replacement parts minimizes unplanned rig downtime, reduces long-term maintenance costs, and upholds the highest safety standards for drilling and well servicing operations.
For all BX4-75 elevator part inquiries, order placement, and technical specification support, submit your detailed part requirements with reference to the listed part numbers and item descriptions. Our team provides comprehensive technical assistance to confirm part fitment, material specifications, and application suitability, ensuring you receive the exact components needed to keep your BX4-75 elevator operating at peak efficiency. Secure your critical spare parts inventory today to mitigate field repair delays and maintain uninterrupted drilling operations.
