Product Introduction

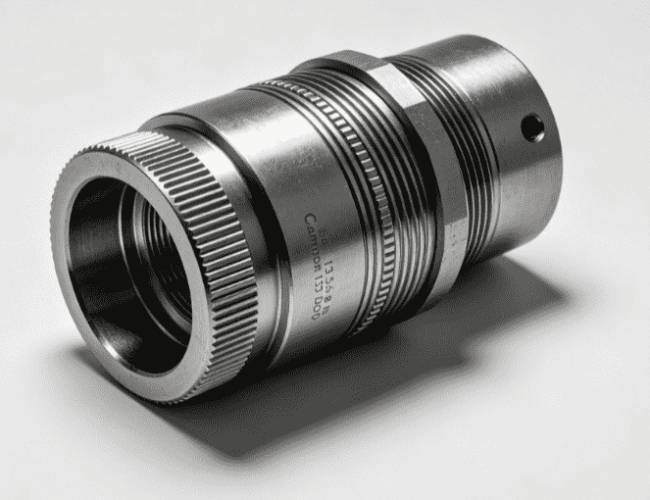

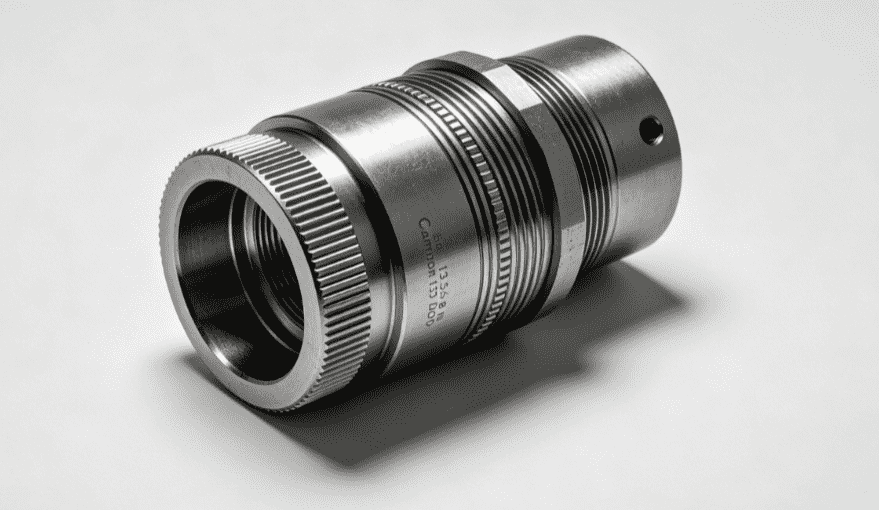

Our Camron 13 5/8″ BOP parts cover all high-criticality well control modules: bonnet rebuild soft goods kits, upper/lower shear ram assemblies, variable bore ram sets, pipe ram components, and tandem booster repair kits. Each component is crafted from high-grade nitrile rubber, wear-resistant thermoplastic, and forged alloy steel, undergoing hydrostatic pressure testing and hardness verification to match OEM performance ratings. Every part aligns with original Camron part numbers (e.g., SU3535 series seals, SU-DS3570 series shear rams) for direct drop-in installation, requiring no custom modification or specialized machining for field repairs.
Functional Capabilities
- High-Pressure Sealing: Soft goods seals, O-rings, and packers create a zero-leak barrier, containing drilling fluids and gas at pressures up to 10,000 PSI to prevent blowouts.
- Reliable Ram Operation: Shear ram blocks, blade seals, and side packers enable smooth actuation, securely shearing drill pipe or sealing around casing of various sizes.
- Variable Bore Adaptability: VBR ram components accommodate multiple pipe diameters (2 7/8″ to 7″), eliminating the need for frequent ram changes and reducing downtime.
- Hydraulic System Integrity: Lip seals, wear rings, and piston seals protect hydraulic cylinders from wear and contamination, maintaining consistent BOP actuation pressure.
- Long-Lasting Wear Resistance: Back-up rings and wear rings reduce friction between moving parts, extending the service life of BOP rams and cylinders.
Structural Design Features
- OEM Exact Fit: Precision-machined dimensions matching original Camron 13 5/8″ BOP designs, eliminating installation errors and compatibility issues.
- High-Performance Elastomers: Oil-resistant, temperature-stable rubber compounds (70-durometer nitrile) that withstand harsh drilling fluids and pressure cycling.
- Reinforced Wear Components: Thermoplastic packing rings and alloy steel wear rings that resist abrasion, reducing frequent replacement needs.
- Modular Repair Design: Pre-configured soft goods kits and ram subassemblies enable fast field repairs during routine BOP maintenance or emergency well control events.
Applicable Operating Conditions
These Camron BOP parts are validated for extreme well control environments, including:
- Camron 13 5/8″ U-type BOPs rated for 3K, 5K, and 10K PSI operating pressures
- Onshore drilling pads, offshore platforms, and jack-up rig well control systems
- HPHT (high-pressure high-temperature) drilling operations with abrasive drilling fluids
- Routine BOP preventive maintenance and emergency blowout response scenarios
- Standard and sour gas drilling environments (compatible with mild H₂S conditions)
Maintenance & Service Best Practices
- Inspect all BOP seals, packers, and O-rings every 90 days or 1,200 operating hours; replace components immediately if cracks, swelling, or wear are detected to preserve pressure integrity.
- Lubricate ram blocks and hydraulic cylinders with API-certified BOP grease during every maintenance cycle to reduce friction and prevent seizing.
- Replace bonnet rebuild soft goods kits entirely during major BOP overhauls, rather than individual seals, to ensure consistent sealing performance.
- Check shear ram blades and side packers for wear or damage after each shear event, replacing worn components to guarantee reliable pipe shearing.
- Test tandem booster hydraulic seals and wear rings every 6 months, verifying pressure retention to maintain rapid BOP actuation speeds.
- Store unused seals and packers in a cool, dry, dust-free environment to prevent premature degradation before installation.
- We supply the following spare parts:
| SL NO | DESCRIPTION | UNIT |
| 13 5/8″ 5,000 PSI BONNET REBUILD SOFT GOODS KITS | ||
| 1 | RING, PLASTIC PACKING, P/N: SU353519 | EA |
| 2 | RING, PLASTIC ENERGIZING, P/N: SU353517 | EA |
| 3 | SEAL RING CONNECTING ROD ,P/N: SU353526 | EA |
| 4 | RING BACK-UP, P/N: SU353520 | EA |
| 5 | SEAL, BONNET, P/N: SU353506 | EA |
| 6 | O-RING, OPERATING CYLINDER, P/N: 132-458 | EA |
| 7 | O-RING, OPERATING PISTON ROD TOLNTFLG, P/N:13100.96-7.8 | EA |
| 8 | LIP SEAL, OPERATING PISTON, P/N: SU353525 | EA |
| 9 | SEAL RING, TAIL ROD, P/N:SU353511 | EA |
| 10 | O-RING, WIPING, P/N:132-337 | EA |
| 11 | O-RING, RAM CHANGE PISTON TO BODY, P/N: 132-328 | EA |
| 12 | O-RING, RAM CHANGE PISTON ROD TO INTFLG, P/N: 132-333 | EA |
| 13 | O-RING, RAM CHANGE CYLINDER TO INTFLG, P/N: 132-346 | EA |
| 14 | O-RING, RAM CHANGE CYLINDER TO BONNET, P/N: 132-425 | EA |
| 15 | O-RING, RAM CHANGE PISTON, P/N: 132-338 | EA |
| 16 | WEAR RING, OPERATING PISTON, P/N: SU353510-2 | EA |
| THE SHEAR RAM OF 13-5/8” 3K, 5K, 10K U TYPE UPPER SHEAR RAM ASSEMBLY | ||
| 17 | BLOCK UPPER SHEAR RAM, P/N: SU-DS3570S.1-1 | EA |
| 18 | BLADE SEAL, P/N: SU-DS3570S.1-4 | EA |
| 19 | BLADE SEAL, P/N: SU-DS3570S. 1-5 | EA |
| 20 | SIDE PACKER, P/N: SU-DS3570S 1-3 | EA |
| 21 | SIDE PACKER, P/N : SU-DS3570S.1-2 | EA |
| 22 | TOP SEAL, P/N: SU-DS3570X.1-4 | EA |
| THE SHEAR RAM OF 13-5/8” 3K/5K/10K U TYPE BOP LOWER SHEAR RAM ASSEMBLY | ||
| 23 | BLOCK, LOWER SHEAR RAM, P/N: SU-DS3570X.1-1 | EA |
| 24 | SIDE PACKER, P/N : SU-DS3570X.1-3 | EA |
| 25 | SIDE PACKER, P/N: SU-DS3570X.1-2 | EA |
| THE VARIABLE BORE RAM OF 13 5/8″ 3K,5K,10K | ||
| 26 | 5”-2 7/8” BIOCK VBR RAM, P/N: SU-VBR 3570.3-1 | EA |
| 27 | TOP SEAL, P/N: SU-VBR 3570.3-2 | EA |
| 28 | 5″ -2 7/8″ PACKER, VBR RAM, P/N: SU-VBR 3570.3-3 | EA |
| 29 | 7″- 4 1/2″ BLOCK,VBR RAM, P/N: SU-VBR 3570.1-1 | EA |
| 30 | TOP SEAL, P/N: SU-VBR 3570.1-2 | EA |
| 31 | 7” – 4 1/2″ PACKER, VBR RAM, P/N: SU-VBR 3570.1-3 | EA |
| REPAIR KIT FOR 13-5/8″ 5,000 PSI TANDEM BOOSTER | ||
| 32 | O-RING, CYLINDER, P/N: 132-453 | EA |
| 33 | LIP SEAL, OPERATING PISTON, P/N: SU532125 | EA |
| 34 | WEAR RING. OPERATING PISTON, P/N: SU532110-2 | EA |
| 35 | WEAR RING, PISTON I.D. ,P/N: SU3570CL-31-02 | EA |
| THE PIPE RAM OF 13-5/8” 3K, 5K, 10K U TYPE BOP | ||
| 36 | BLOCK, BLIND RAM, P/N: SU3570.1-1 | EA |
| 37 | TOP SEAL, P/N: SU3570-T | EA |
| 38 | PACKER, BLIND RAM, P/N: SU3570.1-2 | EA |
| 39 | 2-3/8” PACKER, P/N: SU3570.2-2 | EA |
| 40 | 2-7/8″ PACKER, P/N: SU3570.3-2 | EA |
| 41 | 3-1/2″ PACKER, P/N: SU3570.4-2 | EA |
| 42 | 4” PACKER, P/N:SU3570.5-2 | EA |
| 43 | 4-1/2″ PACKER, P/N: SU3570.6-2 | EA |
| 44 | 5″ PACKER, P/N: SU3570.7-2 | EA |
| 45 | 5-1/2″ PACKER, P/N: SU3570.8-2 | EA |
| 46 | 7″ PACKER, P/N: SU3570.9-2 | EA |
| 47 | 9-5/8″ PACKER, P/N: SU3570.10-2 | EA |
Field Failure Repair Case Studies
Case 1: Bonnet Seal Leak (Camron 13 5/8″ 5K BOP)
An offshore rig experienced a slow hydraulic leak at the BOP bonnet, traced to a worn SU353506 bonnet seal. Installing a complete bonnet rebuild soft goods kit eliminated the leak, restored full 5,000 PSI pressure containment, and resumed safe drilling operations within 4 hours.
Case 2: Shear Ram Packer Failure (Camron 13 5/8″ 10K BOP)
Abrasive drilling fluid damaged upper shear ram side packers, causing incomplete pipe sealing. Replacing the SU-DS3570S side packers and top seals restored reliable ram sealing, ensuring compliance with well control safety standards.
Case 3: Hydraulic Cylinder Wear Ring Damage (Camron 13 5/8″ BOP)
A worn operating piston wear ring led to inconsistent BOP ram actuation, risking delayed well control response. Installing a new SU353510-2 wear ring and lip seal fixed hydraulic friction issues, restoring smooth, rapid ram movement.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these parts compatible with all Camron 13 5/8″ BOP pressure ratings? | Yes, these components are designed for Camron 13 5/8″ BOPs rated 3K, 5K, and 10K PSI, with direct OEM part number matching for full compatibility. |
| What pipe sizes do the variable bore ram (VBR) components fit? | The VBR ram parts cover 2 7/8″ to 7″ outer diameter drill pipe and casing, with dedicated packers for common wellbore tubular sizes. |
| Do the soft goods kits include all seals for a full bonnet rebuild? | Yes, the 5,000 PSI bonnet rebuild soft goods kits include all plastic packing, energizing rings, O-rings, and backup seals needed for a complete bonnet overhaul. |
Procurement Guidance
For drilling operators prioritizing uncompromising well control safety, API compliance, and minimal BOP downtime for Camron 13 5/8″ blowout preventers, our OEM-compatible replacement parts are the definitive sourcing solution. This catalog provides full transparency on part descriptions, part numbers, quantities, and pressure ratings, serving as your trusted benchmark for compliant, high-reliability procurement. Whether you need emergency seal kits for unexpected leaks, routine ram components for scheduled maintenance, or full repair kits for major BOP overhauls, each component is engineered to resolve critical well control issues and deliver long-term durability in extreme drilling conditions. Submit your detailed parts inquiry with specific Camron BOP part numbers, required quantities, and equipment pressure rating details to secure high-quality, precision-matched components tailored to your well control needs.
