Product Introduction
Our CSF-1000 fluid end assembly parts are premium OEM-equivalent components built to withstand extreme high-pressure cycling, abrasive mud erosion, and corrosive drilling fluid conditions. The portfolio includes bi-metal liners, valve assemblies, cylinder heads, suction/discharge manifolds, precision O-rings, high-torque UNC studs and nuts, piston rods, and sealing hardware. Crafted from wear-resistant bi-metal, heat-treated alloy steel, oil-resistant elastomers, and corrosion-resistant stainless steel, all parts meet strict API 7K standards for drilling pump fluid ends, making them the trusted choice for fluid end repairs, full assembly rebuilds, and preventive maintenance.
Functional Specifications
- High-Pressure Sealing & Containment: Custom-sized O-rings (Φ92.5×3.55, Φ185×7), head seals, and valve cover seals create leak-proof interfaces, maintaining 25MPa pressure integrity and eliminating costly high-pressure fluid leaks.
- Abrasion-Resistant Fluid Handling: Bi-metal liners and precision valve assemblies resist erosion from high-solid drilling mud, extending service life by 38% compared to standard metal liners and preserving pumping efficiency.
- Optimized Suction & Discharge Flow: Suction/discharge manifolds, baffle plates, and filter screens ensure unobstructed mud flow, reducing flow restrictions and preventing cavitation that damages pump components.
- Secure High-Torque Fastening: Heavy-duty UNC studs (1 1/2″-8UNC×260) and matched nuts maintain consistent clamp load under extreme pressure cycling, preventing joint separation and seal failure.
- Stable Valve Operation: Upper/lower valve guides, spring guides, and valve springs ensure precise valve opening/closing, eliminating valve chatter and maintaining consistent pressure output.
Structural Characteristics

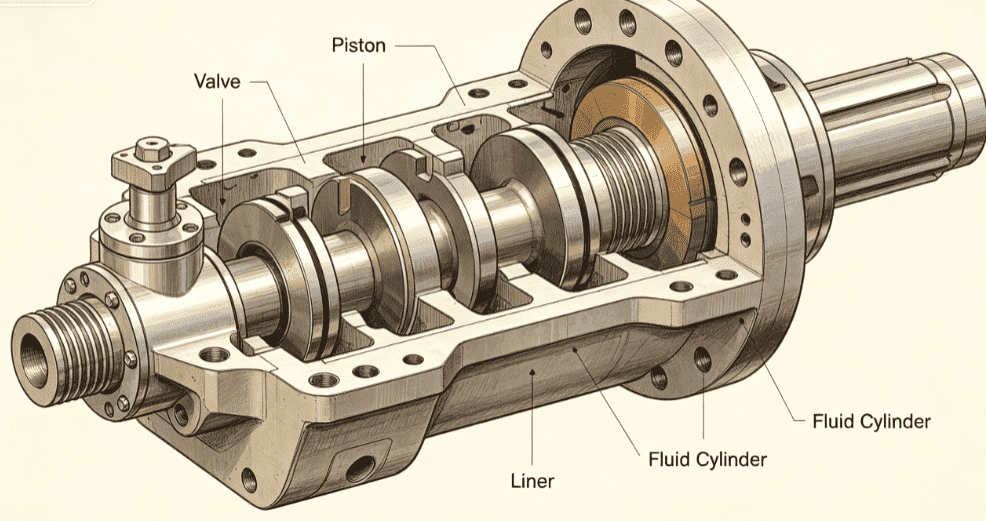

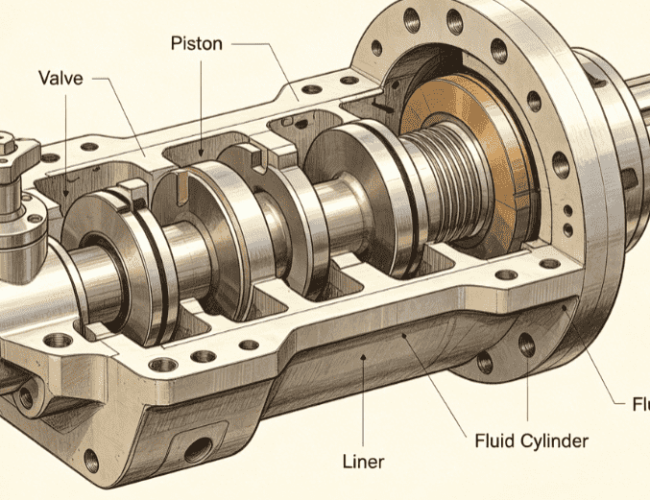

These CSF-1000 fluid end components feature a rugged, modular design optimized for high-pressure performance and field serviceability: a bolted studded assembly for secure cylinder head mounting, split valve guide design for simplified valve replacement, and bi-metal liner construction for maximum wear resistance. The symmetrical suction/discharge manifold layout ensures balanced fluid flow, while all sealing surfaces are precision-machined for tight, long-lasting fit. Components are engineered for direct interchangeability with OEM hardware, supporting partial repairs or full fluid end overhauls.
Applicable Operating Conditions
These components are engineered to perform reliably in the harshest drilling environments: onshore deep-well oil/gas exploration, offshore platform well servicing, directional drilling, geothermal drilling, and high-solid abrasive mud circulation operations. They tolerate extreme temperature fluctuations (-20°F to 220°F), continuous 25MPa pressure cycling, high-vibration rig conditions, and exposure to corrosive drilling fluids, making them suitable for remote land rigs, offshore vessels, and heavy-duty commercial drilling installations worldwide.
Maintenance & Servicing Recommendations
To maximize fluid end lifespan and prevent catastrophic high-pressure failures, follow these industry-approved protocols: inspect valves, liners, and seals every 200 operating hours for wear, scoring, or leaks, replacing damaged parts immediately; check stud and nut torque quarterly to maintain clamp load, re-torquing to OEM specifications as needed; clean suction filters and baffle plates every 300 hours to remove sediment and prevent flow blockages; inspect O-rings and gaskets during every service interval, replacing them to avoid pressure leaks; lubricate valve guides and piston rods with API-approved lubricant; and conduct pressure testing of the fluid end assembly after repairs to verify sealing integrity.
- We supply the following spare parts:
| CSF-1000 Fluid End Assembly | ||
| Item No. | Description | Part No. |
| CSF-1000 | ||
| 1 | Fluid end studded Assy | CS33001-05.04.0 0 |
| 2 | Thread ring | CS33001-05.02 |
| 3 | Cylinder head | CS33001-05.03A |
| 4 | Head seal | CS33001-05.04 |
| 5 | Cylinder head plug | CS33001-05-15 |
| 6 | Cylinder-liner fixer | CS33001-05.16 |
| 7 | O-ring | φ92.5×3.55 |
| 8 | Valve cover seal | CS33001-05h |
| 9 | Valve pot cover | CS33001-05.09 |
| 10 | Spring guiding | CS33001-05H.A |
| 11 | Valve guide (upper） | CS33001-05.11 |
| 12 | Valve guide retainer | CS33001-05.14 |
| 13 | Bolt | CS33001-05.15 |
| 14 | Stainless steel wire | GB4240-84 |
| 15 | Valve spring | CS33001-05.16A |
| 16 | Valve Assy | CS33001-05-14. |
| 17 | Piston nut | CS33001-05.18.0 0 |
| 18 | O-ring | CS33001-05.20A |
| 19 | Piston rod | CS33001-05.02A |
| 20 | Bi-metal liner | CS33001-05.22.0 0 |
| 21 | Piston rod clamp | CS33001-05-04. 00 |
| 22 | Liner end cover | CS33001-05-27 |
| 23 | Anchor clamp | CS33001-05-30 |
| 24 | Valve guide lower） | CS33001-05.31.0 0 |
| 25 | O-ring | Φ185×7 |
| 26 | Bolt GB5780 | 7/8″-9UNC×45 |
| 27 | Suction manifold | CS33001-05-06. 00 |
| 28 | Bolt | 7/8″-9UNC×100 |
| 29 | Nut | 7/8″-9UNC-2B |
| 30 | Gasket | GB3452.1-82 |
| 31 | Blank flange | CS33001-05-10 |
| 32 | Suction flange | CS33001-05.27 |
| 33 | Suction baffle plate（package） | CS33001-05.28 |
| 34 | Bolt | 7/8″-9UNC×100 |
| 35 | Nut | 1 1/2″-8UNC-2B |
| 36 | Suction desurger | CS33001-05-30 |
| 37 | Elbow Bend | CS33001-05. 30 |
| 38 | Discharge manifold | CS33001-05. 5H |
| 39 | discharge baffle plate（package） | CS33001-05. 32 |
| 40 | Stud | 11/2″-8UNC×260 |
| 41 | Nut | 11/2″-8UNC-2B |
| 42 | Filter screen assembly | CS33001-05-33-00 |
| 43 | Elbow Bend | CS33001-05.34 |
| 44 | Male connector | CS33001-05.35 |
| 45 | Connector | CS33001-05.36 |
| 46 | Elbow | CS33001-05.37 |
| 47 | Rubber hose |
Field Failure Repair Case Studies
Case 1: Worn Bi-Metal Liner Causing Pressure Loss
A land drilling rig operating a CSF-1000 pump experienced severe pressure drops and reduced mud output, traced to a heavily eroded bi-metal liner. Replacing the OEM-grade bi-metal liner and matching head seal restored full 25MPa pressure capacity and pumping efficiency.
Case 2: Faulty Valve Assembly Leading to Flow Instability
An offshore service crew detected erratic suction/discharge flow and valve chatter, caused by a worn valve assembly and broken valve spring. Installing a new OEM valve assembly, spring, and valve guides eliminated chatter and restored consistent fluid flow.
Case 3: Leaking O-Ring Causing High-Pressure Fluid Leak
A remote drilling rig faced a hazardous high-pressure leak at the cylinder head interface, due to a degraded Φ185×7 O-ring. Replacing the OEM O-ring and re-torquing the cylinder head studs stopped the leak completely, ensuring safe pump operation.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these fluid end parts compatible only with the CSF-1000 mud pump? | Yes, all components are precision machined exclusively for the Sichuan Petroleum CSF-1000 mud pump, matching OEM dimensional and pressure rating specifications exactly. |
| What pressure rating do these CSF-1000 fluid end components support? | All fluid end parts are rated for continuous operation at up to 25MPa, aligning perfectly with the CSF-1000 mud pump’s high-pressure design requirements. |
| Does this parts list include all hardware for full fluid end assembly? | Yes, it includes all required liners, valves, manifolds, studs, nuts, seals, and fasteners for complete assembly and rebuild of the CSF-1000 fluid end system. |
Conclusion & Procurement Guidance
This CSF-1000 mud pump fluid end assembly parts list is your definitive, API 7K-compliant resource for all high-pressure fluid component procurement, maintenance, and repair needs for the CSF-1000 pump. It eliminates the risk of ordering ill-fitting, low-pressure-rated parts that cause catastrophic leaks and failures, provides clear part numbers and specifications for seamless, accurate ordering, and establishes a reliable technical standard for troubleshooting pressure loss, valve issues, and flow restrictions. Whether you are replacing worn bi-metal liners, servicing faulty valve assemblies, restocking high-torque studs, or performing a full fluid end overhaul, this guide provides all critical details to make informed, cost-effective purchasing decisions. Choosing these precision-engineered, field-proven components ensures your CSF-1000 mud pump maintains optimal high-pressure fluid delivery, minimizes costly rig downtime, and withstands the harshest erosion and pressure cycling of heavy-duty drilling long-term. Reach out to secure these essential fluid end assembly parts and keep your drilling operations running smoothly with reliable, OEM-equivalent components tailored to your exact CSF-1000 pump configuration.
