Product Introduction

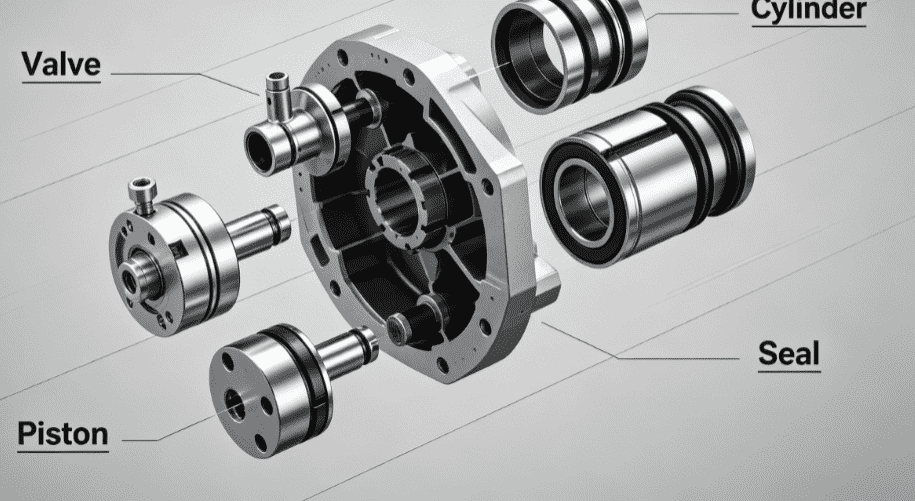

Our CSF-1600 fluid end assembly parts are premium OEM-equivalent components built to withstand the extreme hydraulic pressure and abrasive conditions of heavy-duty drilling, covering every critical element of the pump’s fluid end system. The lineup includes complete fluid cylinder assemblies, precision cylinder liners, valve assemblies, high-performance pistons, multi-size O-rings and seal rings, suction/discharge pipelines, and high-tensile fasteners. Crafted from heat-treated alloy steel, wear-resistant cast iron, oil/abrasion-resistant elastomers, and corrosion-resistant stainless steel, all parts meet strict API 7K standards for drilling pump equipment, ensuring leak-free operation, consistent pressure retention, and long-lasting durability in the harshest field conditions.
Functional Specifications
- High-Pressure Sealing Performance: Engineered to maintain stable 5000 PSI operating pressure with zero fluid bypass or external leakage, eliminating pressure drops that disrupt drilling circulation and wellbore stability.
- Abrasion & Wear Resistance: Hardened cylinder liners and precision valve assemblies resist scoring, pitting, and degradation from high-solid drilling mud, extending service intervals by up to 35%.
- Secure Assembly Retention: High-tensile stud screws (M39×255) and heavy hex nuts resist loosening under extreme vibration, maintaining precise alignment of fluid cylinders and flanges.
- Leak-Free Sealing Interfaces: Precision-machined O-rings, cylinder lid seal rings, and piston seal rings create vibration-resistant seals across all fluid end joints, preventing mud and fluid leaks.
- Modular Compatibility: All parts are designed for direct interchangeability with OEM fluid end hardware, supporting partial repairs or full fluid end overhauls without custom machining.
Structural Characteristics
These CSF-1600 fluid end components feature a heavy-duty, pressure-optimized structural design: thick-walled fluid cylinder assemblies for maximum pressure resistance, precision-lapped valve guide surfaces for smooth valve operation, reinforced suction/discharge flanges to handle high-volume fluid flow, and graded fasteners tailored to specific load-bearing points. The modular assembly design allows individual replacement of worn components (seals, liners, valves) instead of full assembly swaps, reducing material waste and maintenance costs significantly.
Applicable Operating Conditions
These components are engineered to perform reliably in the most demanding drilling environments: onshore deep-well oil/gas exploration, offshore platform well servicing, directional drilling, geothermal drilling, and high-solid abrasive mud circulation operations. They tolerate extreme temperature fluctuations (-20°F to 220°F), acidic drilling fluids, continuous 5000 PSI pressure cycling, high-vibration rig conditions, and prolonged exposure to sand and formation debris, making them suitable for remote land rigs, offshore vessels, and commercial drilling installations alike.
Maintenance & Servicing Recommendations
To maximize component lifespan and prevent fluid end failures, follow these industry-approved maintenance protocols: inspect all seal rings, O-rings, and valve assemblies every 300 operating hours for wear, cracking, or leakage, replacing damaged parts immediately; re-torque all stud screws and nuts to OEM-specified torque values every 450 hours to prevent loosening from vibration; replace cylinder liner seals and piston seals every 600 operating hours, or sooner if leaks are detected; clean valve assemblies and cylinder bores quarterly to remove abrasive sediment; and inspect suction/discharge pipelines and flanges regularly to maintain leak-free connections.
- We supply the following spare parts:
| CSF-1600 driven well pump fluid end assembly(CS36001-05.00) | ||
| S/N | Name | Code |
| 1 | Fluid cylinder assembly | CS36001-05.01A00 |
| 2 | Cylinder lid flange | CS36001-02 |
| 3 | Cylinder lid | CS36001-03 |
| 4 | Plugboard | CS36001-04A |
| 5 | Rod guider(down) | CS36001-05 |
| 6 | Cylinder lid end closer | CS36001-06 |
| 7 | Positioning valve ring | CS36001-07 |
| 8 | Cylinder lid seal ring | CS36001-08 |
| 9 | Discharge pipeline | CS36001-09 |
| 10 | Va l ve s p rin g | CS36001-10 |
| 11 | O ring Ø94.62×Ø5.33 | CS36001-11 |
| 12 | Valve assembly | CS36001-12 |
| 13 | Bonnet seal ring | CS36001-13 |
| 14 | Bonnet | CS36001-14A |
| 15 | Cylinder lid seal ring | CS3600-15 |
| 16 | Wearing disk | CS36001-16 |
| 17 | Cylinder liner flange | CS36001-17 |
| 18 | Cylinder liner gland | CS36001-18.00 |
| 19 | Piston rod | CS36001-19A |
| 20 | Connection pipe Z 3/8 | CS36001-20 |
| 21 | O ring Ø202.5×Ø6.99 | CS36001-21 |
| 22 | Cylinder liner locking ring | CS36001-22 |
| 23 | Cylinder liner | CS36001-23 CS36001-23A00 |
| 24 | Collar clamp assembly | CS36001-24 |
| 25 | Hose adapter Ø13×Ø25 | CS36001-25.00 |
| 26 | Elbow Z 3/8 -M22×1.5 | CS36001-26 |
| 27 | Cylinder liner end cover | CS36001-27 |
| 28 | Piston | CS36001-28.00 |
| 29 | Bolt M22×65 | GB5780-86 |
| 30 | Joint Z 1/2 -M22×1.5 | CS36001-30 |
| 31 | Right-angle joint Z1×Z 1/2 | CS36001-31 |
| 32 | Suction pipeline | CS36001-32 |
| 33 | Spacer group | CS36001-33A.00 |
| 34 | Bracket | CS36001-05.34A.00 |
| 35 | Rod guider (up) | CS36001-05.12 |
| 36 | Stud screw M39×255 | CS36001-05.36 |
| 37 | Nut M39×3 | CS36001-05.01A.06 |
| 38 | Baffle plate | CS36001-05.14 |
| 39 | Bolt M10×20 | CS36001-05.15A |
| 40 | Piston seal ring | CS36001-05.20A |
| 41 | Piston nut | CS36001-05.18.00A |
| 42 | O RING Ø183.52×Ø6.99 | CS36001-05.32 |
| 43 | suction air dome | CS36001-05.35.00 |
| 44 | O RING Ø342.26×Ø6.99 | CS36001-05.38 |
| 45 | Suction flange (Ⅰ) | CS36001-05.39 |
| 46 | Suction flange (Ⅱ) | CS36001-05.40 |
| 47 | Nut M27 | GB82-76 |
| 48 | Bolt M27×130 | GB5780-86 |
| 49 | Steel wire Ø16L=1830 | GB4540-84 |
| 50 | Oil-transmission hose | |
| Ø13×Ø25L=850 |
Field Failure Repair Case Studies
Case 1: Worn Cylinder Lid Seal Ring Causing Pressure Leakage
A land drilling rig operating a CSF-1600 pump experienced external mud leakage around the cylinder lid area, traced to a degraded cylinder lid seal ring (CS36001-08) that failed under 5000 PSI pressure. Replacing the seal ring and re-torquing mounting bolts eliminated leaks, restoring full pressure retention and resuming drilling operations in 90 minutes.
Case 2: Damaged Valve Assembly Leading to Fluid Bypass
An offshore well servicing crew reported reduced pumping output and pressure fluctuations on a CSF-1600 pump, caused by a worn valve assembly (CS36001-12) with damaged sealing surfaces. Installing a new valve assembly and valve spring restored proper fluid flow, eliminating bypass and boosting pumping efficiency by 30%.
Case 3: Worn Cylinder Liner Causing Internal Pressure Loss
A remote drilling rig faced severe internal pressure loss on a CSF-1600 pump, due to a scored and worn cylinder liner (CS36001-23). Replacing the cylinder liner, locking ring, and sealing components restored full pressure integrity, preventing further pump damage and extending fluid end service life.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these fluid end parts compatible only with the CSF-1600 mud pump? | Yes, all components are precision designed exclusively for the Sichuan Petroleum CSF-1600 mud pump, matching OEM fit, form, and API 7K performance specifications for the fluid end assembly exactly. |
| What is the pressure rating of these CSF-1600 fluid end components? | All fluid end parts are rated for a maximum continuous operating pressure of 5000 PSI, aligning perfectly with the CSF-1600 mud pump’s standard working pressure requirements. |
| Do these parts include all fasteners for full fluid end assembly? | Yes, this parts list includes all required high-tensile studs, bolts, nuts, and sealing hardware for assembling fluid cylinders, flanges, pipelines, and valve components. |
Conclusion & Procurement Guidance
This CSF-1600 mud pump fluid end assembly parts list is your definitive, API 7K-compliant resource for all procurement and technical repair needs for the CSF-1600 pump. It eliminates the risk of ordering ill-fitting, low-quality parts, provides clear part numbers and quantity guidance for seamless ordering, and establishes a reliable technical standard for troubleshooting and maintaining your pump’s critical fluid end components. Whether you need to replace worn seals, damaged cylinder liners, faulty valve assemblies, or loose fasteners, this guide provides all critical details to make informed, cost-effective purchasing decisions. Choosing these precision-engineered, field-proven components ensures your CSF-1600 mud pump operates at peak 5000 PSI efficiency, minimizes costly rig downtime, and withstands the harshest drilling conditions long-term. Reach out to secure these essential fluid end parts and keep your drilling operations running smoothly with reliable, OEM-equivalent components tailored to your exact CSF-1600 pump configuration.
