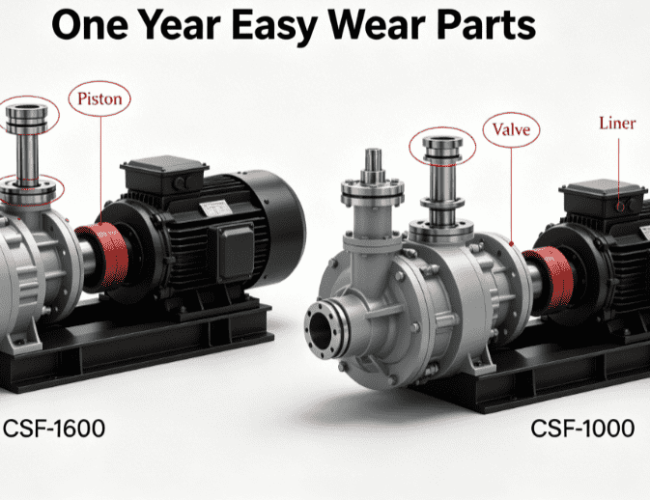

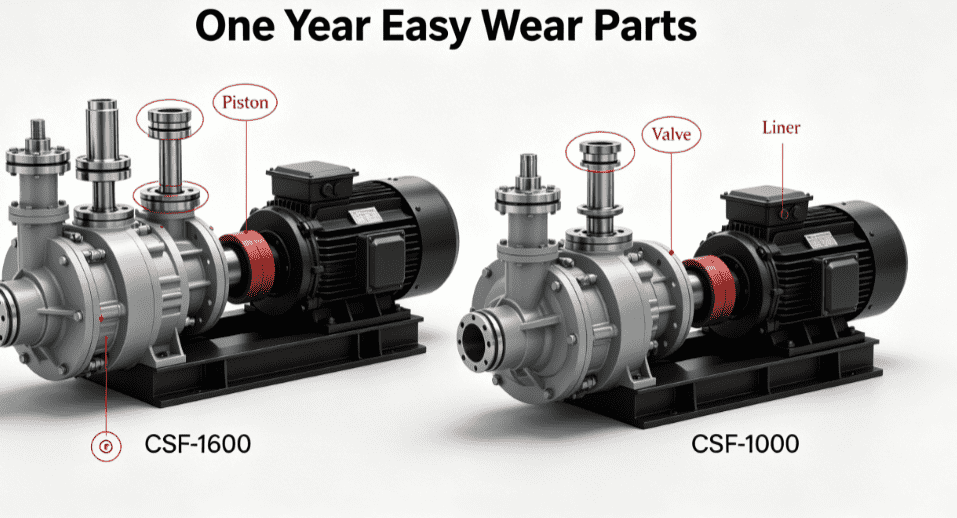

Product Introduction
Our CSF-1600/CSF-1000 one-year easy wear parts are premium OEM-equivalent components curated to cover all high-wear areas of the mud pump for a full 12-month operating cycle. The comprehensive kit includes fluid end wear parts (valve bodies, piston assemblies, cylinder sleeves), precision sealing components, charging pump spares, bearings, oil seals, and drive belts. Crafted from wear-resistant alloy steel, high-grade polyurethane, oil-resistant elastomers, and heat-treated metal alloys, all parts meet strict API 7K standards, making them the trusted choice for scheduled annual maintenance and emergency repairs.
Functional Specifications
- High-Pressure Sealing & Wear Resistance: Piston assemblies (φ140–φ180) and cylinder sleeves maintain stable 5000 PSI operating pressure, resisting abrasion from high-solid drilling mud and extending wear intervals by 30%.
- Reliable Valve Performance: Precision valve body and seat sets eliminate fluid bypass, ensuring consistent mud flow and pressure retention during continuous pumping.
- Leak-Free Sealing System: Multi-size O-rings, oil seals, and specialized sealing rings create vibration-resistant seals across all pump joints, preventing fluid and lubricant leaks.
- Charging Pump Durability: Impellers, wear plates, and mechanical seals for the charging pump maintain consistent lubrication flow, protecting critical pump bearings from dry running.
- Long-Life Drive Components: Heavy-duty bearings and elastic blocks absorb vibration, reducing friction and extending the service life of rotating pump components.
Structural Characteristics
These CSF-series easy wear parts feature a field-optimized, interchangeable structural design: multi-diameter piston and cylinder sleeve kits (φ140–φ180) to match various pump configurations, modular valve assemblies for quick replacement, precision-machined sealing rings for universal fit across pump joints, and standardized bearings/oil seals for easy installation. The parts are designed for direct interchangeability with OEM hardware, supporting quick repairs and minimizing maintenance labor time.
Applicable Operating Conditions
These components are engineered to perform reliably in the most demanding drilling environments: onshore deep-well oil/gas exploration, offshore platform well servicing, directional drilling, geothermal drilling, and high-solid abrasive mud circulation operations. They tolerate extreme temperature fluctuations (-20°F to 220°F), acidic drilling fluids, continuous high-pressure cycling, and high-vibration rig conditions, making them suitable for remote land rigs, offshore vessels, and commercial drilling installations alike.
Maintenance & Servicing Recommendations
To maximize component lifespan and align with the one-year replacement cycle, follow these industry-approved maintenance protocols: inspect piston assemblies, cylinder sleeves, and valve components every 300 operating hours for wear, scoring, or leakage; replace all sealing rings and O-rings annually to prevent leaks; lubricate bearings and charging pump components with API-approved lubricant every 450 hours; inspect drive belts for wear and tension quarterly; clean wear plates and valve springs every 600 hours to remove abrasive sediment; and conduct a full annual inspection to replace all easy wear parts in this kit to prevent unexpected failures.
We supply the following spare parts:
CSF-1600 Pump One Year Easy Wear Parts list
| CSF-1000 Mud pump one year spare parts list | |
| CSF-1000 Mud pump | |
| valve body assembly | CS36001-05.12A.00 |
| valve seat | CS36001-05.12A.01 |
| piston assembly φ140 | CS36001-28.00 |
| piston assembly φ150 | CS36001-28.00 |
| piston assembly φ160 | CS36001-28.00 |
| piston assemblyφ170 | CS36001-28.00 |
| piston assembly φ180 | CS36001-28.00 |
| piston core φ140 | CS36001-28.00 |
| piston rubber φ140 | CS36001-28.00 |
| gland φ140 | CS36001-28.00 |
| clip spring φ140 | CS36001-28.00 |
| piston rod | CS36001-05.19A |
| collar | CS36001-05.24.06 |
| block | CS36001-28.00 |
| valve spring | CS36001-05.16A |
| valve cap | CS36001-05.14A |
| cylinder sleeve φ140 | CS36001-23A.00A |
| cylinder sleeve φ150 | CS36001-23A.00A |
| cylinder sleeve φ160 | CS36001-23A.00A |
| cylinder sleeve φ170 | CS36001-23A.00A |
| cylinder sleeve φ180 | CS36001-23A.00A |
| cylinder lid | CS36001-05.03 |
| wear plate | CS36001-05.16A |
| lower guide plate | CS36001-04.08 |
| seal ring for valve cap | CS36001-05.13 |
| seal ring for piston | CS36001-05.20A |
| seal ring for cylinder lid | CS36001-05.08 |
| seal steel ring R39/R44 | |
| seal ring for cylinder sleeve | CS36001-05.15 |
| suction O ring φ185×7 | GB3452.86 |
| exhaust O ring | CS33001-05.11 |
| surge chamber | CS36001-05.35.09 |
| charging pump | |
| impeller | B240.1-1 |
| rear wear plate | B240.1-2 |
| mechanical seal | B208.1.1 |
| filling | 13×13 |
| oil seal | SD65×90×12 |
| bearing | 313 |
| bearing | 36311 |
| O ring | 140×3.55 |
| Oil seal | SD50×70×12 |
| O ring | 120×3.55 |
| O ring | 65×3.55 |
| O ring | 47.5×1.8 |
| O ring | 50×2.65 |
| Elastic block | B214-3 |
| Belt | 2×25J（5）-8000 |
Field Failure Repair Case Studies
Case 1: Worn Piston Assembly Causing Pressure Loss
A land drilling rig operating a CSF-1600 pump experienced a 1500 PSI pressure drop during shale drilling, traced to a severely worn φ160 piston assembly. Replacing the piston core, rubber, and gland from this easy wear kit restored full pressure retention, putting the rig back online in 90 minutes.
Case 2: Degraded Valve Seal Leading to Fluid Bypass
An offshore well servicing crew reported inconsistent mud flow on a CSF-1000 pump, caused by a worn valve cap seal ring. Installing a new seal ring and valve spring eliminated fluid bypass, restoring steady pumping performance and extending valve service life.
Case 3: Charging Pump Mechanical Seal Failure Causing Lubrication Leaks
A remote drilling rig detected lubricant leaks from the charging pump of a CSF-1600 pump, due to a failed mechanical seal. Replacing the mechanical seal, rear wear plate, and impeller stopped leaks, ensuring consistent lubrication flow to pump bearings and preventing catastrophic failure.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these easy wear parts compatible with both CSF-1600 and CSF-1000 mud pumps? | Yes, this parts kit is precision designed to fit both Sichuan Petroleum CSF-1600 and CSF-1000 mud pumps, matching OEM specifications for all high-wear components. |
| What piston and cylinder sleeve diameters are included in this kit? | The kit includes multi-size components covering φ140, φ150, φ160, φ170, and φ180 diameters for pistons and cylinder sleeves to match various pump setups. |
| Does this one-year kit include all necessary charging pump spares? | Yes, the kit includes impellers, rear wear plates, mechanical seals, and oil seals for the charging pump, covering all high-wear charging pump components for annual replacement. |
Conclusion & Procurement Guidance
This CSF-1600/CSF-1000 one-year easy wear parts list is your definitive, API 7K-compliant resource for planned maintenance and emergency procurement for CSF-series mud pumps. It eliminates the risk of stockouts, ensures you order only high-quality, exact-fit components, and provides a clear technical standard for troubleshooting wear-related pump failures. Whether you are stocking for annual scheduled maintenance or replacing failed parts in the field, this guide provides all critical part numbers, specifications, and usage details to make informed, cost-effective purchasing decisions. Choosing these precision-engineered, field-proven easy wear parts ensures your CSF-1600 or CSF-1000 mud pump operates at peak efficiency, minimizes costly unplanned rig downtime, and withstands the harshest drilling conditions for a full 12-month cycle. Reach out to secure this comprehensive one-year easy wear parts kit and keep your drilling operations running smoothly with reliable, OEM-equivalent components tailored to your exact pump configuration.
