Introduction
This complete spare parts package is precision engineered exclusively for the EMSCO D225 triplex mud pump, a heavy-duty reciprocating pump widely deployed in onshore drilling rigs, offshore workover platforms, and directional drilling operations for high-pressure drilling mud circulation. Target users include drilling rig maintenance technicians, mud pump service specialists, rig asset procurement teams, and drilling operations supervisors who need to eliminate unplanned downtime, maintain leak-free operation, and adhere strictly to API 7K and API 8C industry standards for drilling equipment.
Functional Description
Each component supports the core operation of the EMSCO D225 mud pump with targeted functions:
- High-Pressure Sealing: Stuffing box gaskets, O-rings, liner seals, and flange gaskets contain mud pressure and prevent leaks at critical joints.
- Fluid Flow Control: Modified spherical valves regulate mud intake and discharge, preventing backflow and maintaining efficient pumping.
- Wear Reduction: Bushings, pistons, and piston rings reduce friction between moving parts, while baffles and breathers protect internal components from contamination.
- Power End Protection: Gear case gaskets, oil seals, and springs keep lubrication contained and shield the power end from mud and debris.
Structural & Material Characteristics
- Fluid End Parts: Heat-treated 7-1/4” alloy liners, precision-ground modified spherical valves, and chrome 2600 piston rings for maximum wear resistance.
- Sealing Components: High-temperature nitrile rubber seals rated for 5,000 PSI operating pressure, with braided stuffing box packing for abrasion resistance.
- Power End Parts: Precision-machined steel bushings, heavy-duty springs, and lip-type oil seals to retain lubrication and prevent contamination.
Applicable Operating Conditions
- Compatible Equipment: EMSCO D225 Triplex Mud Pump
- Max Operating Pressure: 5,000 PSI
- Temperature Range: -22°F (-30°C) to 140°F (60°C)
- Use Cases: Onshore drilling, offshore workover, directional drilling, well intervention
- Compliance Standards: API 7K, API 8C, ISO 10423
Maintenance & Service Recommendations
- Inspect all seals, gaskets, and packing every 200 drilling hours for cracks, compression, or abrasion damage.
- Check spherical valves for wear and corrosion monthly, replacing damaged units immediately to preserve pressure stability.
- Replace piston rings, liners, and stuffing box packing every 1,000 operating hours, or sooner if leaks or pressure drops occur.
- Lubricate power end components and inspect oil seals quarterly to prevent contamination and extend gear/crosshead life.
- Retorque flange bolts bi-weekly to maintain leak-free seals under high pressure.
- Store spare parts in a dry, dust-free, temperature-controlled space (60–80°F) to prevent seal hardening and metal corrosion.

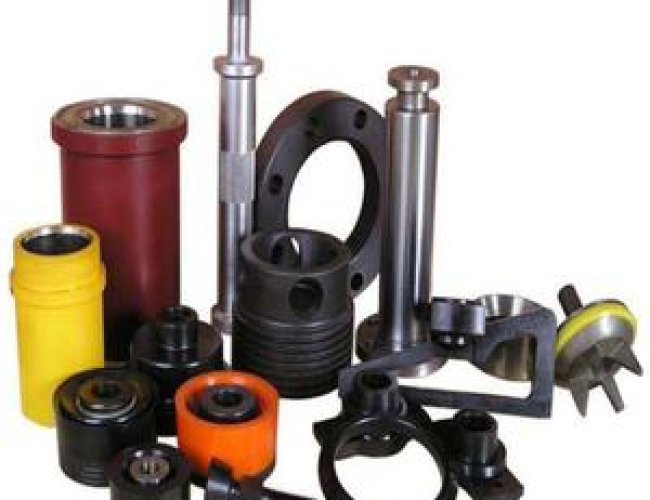

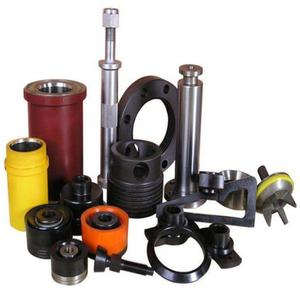

We supply the following spare parts:
| Item | Description | Part Number |
| 3.0 | ||
| 1 | DIAPHRAM STUFFINGBOX GASKET | 07-502-0595-00 |
| 2 | STUFFING BOX GASKET | 07-602-1600-30 |
| 3 | STUFFING BOX BUSHING | 06-397-0012-00 |
| 4 | STUFFING BOX GLAND BUSHING | 06-397-0015-00 |
| 5 | O-RING SEAL | 07-601-1600-25 |
| 6 | CROSSHEAD DOOR GASKET | 06-397-0622-00 |
| 7 | GEAR CASE COVER GASKET | 07-602-059011 |
| 8 | INSPECTION DOOR GASKET | 07-502-0103-00 |
| 9 | Breather | 06-397-0186-00 |
| 10 | C/R OIL SEAL | 07-602-213069 |
| 11 | SPACER SPRING | 06-397-0551-00 |
| 12 | LOCK SPRING | 06-397-0595-00 |
| 13 | VALVE, SPHERICAL SUCTION (Modified) | 179505025WM2 |
| 14 | VALVE, SPHERICAL DISCHARGE(Modified) | 179505025WM |
| 15 | LINER, 7 1/4″INCH | 07-603-3000-72 |
| 16 | ROD, PISTON 1 7/8″, #1551994 | 07-602-208006 |
| 17 | 2600 PISTON RING CHROME 7.25″ | AVC-104124-999 |
| 18 | PISTON 7 1/4″ CI W/RINGS API 4 | 07-602-174057 |
| 19 | SUCTION FLANGE ORING | 07-601-1600-57 |
| 20 | FLUID BAFFLE | 06-397-0159-00 |
| 21 | STUFFING BOX PACKING | 06-397-0741-00 |
| 22 | COVER GASKET | 06-397-0607-00 |
| 23 | LINER SEAL | 06-6397-0649-00 |
| 24 | DISCHARGE FLANGE GASKET | 06-397-0001-01 |
Field Fault Repair Cases (EMSCO D225 Mud Pump)
Case 1: Stuffing Box Mud Leak
A land drilling rig’s EMSCO D225 pump developed heavy mud leaks around the stuffing box, causing pressure fluctuations. Inspection showed worn 06-397-0741-00 stuffing box packing. Replacing the packing and matching gaskets eliminated leaks and restored full pressure in 2 hours.
Case 2: Pressure Loss from Worn Discharge Valves
The EMSCO D225 pump experienced consistent pressure drops during drilling, traced to damaged 179505025WM spherical discharge valves with worn sealing surfaces. Installing 8 new modified discharge valves restored proper mud flow and full pressure output.
Case 3: Liner Seal Failure & Fluid Leakage
An offshore workover rig reported leaks at the liner seal, leading to mud loss and safety hazards. The issue was fixed by replacing worn 06-6397-0649-00 liner seals, re-seating the liner, and retorquing flange bolts to API standards.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these parts fully compatible with the EMSCO D225 mud pump? | Yes, all components are made to EMSCO’s original OEM specifications, with perfect dimensional fit for direct drop-in installation on the EMSCO D225, no modifications needed. |
| What is the service life of these EMSCO D225 spare parts? | With proper maintenance, valves/liners last 1,500–2,000 drilling hours; piston rings/seals last 800–1,200 hours; power end bushings/oil seals last 10,000+ hours in standard drilling conditions. |
| Do these parts meet API drilling equipment standards? | Yes, all components are designed, manufactured, and tested to meet API 7K and API 8C standards, complying with global drilling industry safety and performance rules. |
Procurement Guidance
This EMSCO D225 mud pump spare parts list is a definitive reference for preventive maintenance planning, emergency field repairs, and rig inventory stocking. Every component is engineered to match OEM quality, pressure ratings, and durability, ensuring leak-free operation, stable mud circulation, and minimal downtime for drilling operations.
