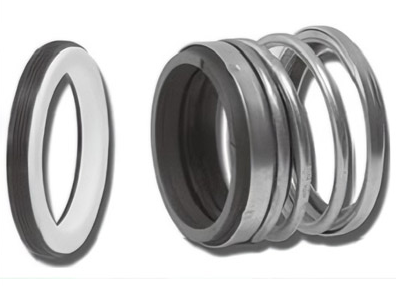

With industrial equipment continuously evolving towards higher reliability, longer lifespan, and standardization, mechanical seals, as indispensable key components in rotating equipment, directly impact operational safety and maintenance costs. Especially in pumps, agitators, and various transmission devices, a mature, widely applicable, and highly stable mechanical seal is often crucial for long-term stable operation. The BIA type mechanical seal is a classic structure developed and widely used in response to this demand. This product is characterized by its compact structure, strong adaptability, and flexible material configuration, meeting sealing requirements under various conventional operating conditions. Through rational structural design and mature material combinations, the BIA type mechanical seal exhibits excellent stability and versatility across key parameter ranges such as pressure, temperature, and linear velocity, making it a reliable choice for oil, water, and general corrosive media conditions.
Stable and Reliable Performance Parameter Configuration
The BIA type mechanical seal’s performance parameter design fully considers the actual operating requirements of general industrial equipment. Its applicable pressure can reach 1MPa, meeting the sealing requirements of most medium and low pressure applications; its operating temperature range covers 30℃ to 150℃, ensuring stability during low-temperature start-up and continuous operation at medium and high temperatures; its linear velocity can reach 10 m/s, suitable for rotating equipment under various speed conditions. Meanwhile, its 14-60mm specification range gives it good adaptability to small and medium-sized equipment. The overall parameter configuration is reasonable, ensuring both sealing performance and product versatility and economy.
Mature Design Features and Advantages
From a design perspective, the BIA type mechanical seal adopts an internal, internal flow structure, which is beneficial for the cooling and lubrication of the sealing end face by the medium, thereby reducing the risk of frictional heat accumulation. The single-end-face, single-spring design makes the structure simpler, reduces the number of parts, and improves operational stability and assembly reliability. The unbalanced structure is more suitable for medium and low pressure applications, with clear force characteristics, helping to maintain stable end-face contact and reducing the probability of abnormal wear. The overall structural design is mature and logically clear, balancing sealing performance and ease of maintenance.
Flexible and Reliable Transmission and Combination Methods
The BIA type mechanical seal employs a transmission method where a rubber bellows drives the rotating ring to rotate coaxially via a fastening ring. This structure not only ensures stable transmission but also effectively compensates for axial displacement and installation misalignment, enhancing the adaptability of the sealing system. Notably, this seal can be configured in pairs, installed back-to-back, forming a double-end-face structure. This combination significantly improves the system’s safety redundancy, giving the sealing system higher reliability during operation, making it particularly suitable for applications with high leakage control requirements.
Diverse Material Combinations to Meet Different Needs
In terms of material selection, the BIA type mechanical seal demonstrates strong flexibility and adaptability. The dynamic ring and static pressure ring can be made of graphite, silicon carbide, or tungsten carbide to meet the requirements for wear resistance, corrosion resistance, and self-lubricating properties under different media conditions. Springs and structural components are uniformly made of stainless steel to ensure overall structural strength and corrosion resistance. The bellows section can be made of nitrile rubber, EPDM rubber, gel rubber, or fluororubber, depending on the actual operating conditions, ensuring good elasticity and sealing performance in different temperature and media environments.
Wide Range of Applicable Media
BIA type mechanical seals are suitable for oil, water, and other general corrosive solutions, covering a wide range of common industrial media applications. Their material configuration and structural design effectively address differences in media lubricity and mildly corrosive environments, ensuring long-term stable operation of the sealing face. This broad media adaptability gives BIA type mechanical seals high application value and significant potential for promotion in general industrial fields.
With its reasonable performance parameters, mature and stable structural design, flexible and reliable transmission methods, and diverse material combinations, the BIA type mechanical seal is a classic sealing product that combines versatility and reliability. It exhibits good stability under medium and low pressure, medium temperature, and normal linear velocity conditions, meeting the sealing requirements of oil, water, and general corrosive media. Whether considering structural compactness, installation adaptability, operational stability, or ease of maintenance, the BIA type mechanical seal offers high overall cost-effectiveness.
