Genuine Replacement Spare Parts for DQ-450DBZ Top Drive Drilling System

Introduction

This specialized spare parts portfolio is exclusively designed for the DQ-450DBZ top drive drilling system, targeting a precise group of end-users: oilfield drilling rig maintenance engineers, offshore drilling procurement specialists, well drilling service supervisors, industrial drilling equipment repair teams, and rig site asset managers. These stakeholders face critical operational pain points: unplanned downtime caused by sudden top drive component failures in remote drilling locations, compatibility issues with generic spare parts that disrupt hydraulic and electrical stability, non-compliance with drilling equipment safety standards, premature wear of hydraulic and braking parts under heavy loads, and logistical challenges in sourcing exact-match OEM-grade spares for routine maintenance and emergency repairs.

Product Overview

This DQ-450DBZ top drive spare parts collection covers all critical system categories: mechanical structural components (pipe handling manipulator assembly, BOP stack, guide rail assembly), hydraulic system parts (tilt cylinders, plunger pump, safety valves, filters), braking and friction components (brake disc, friction mechanism, ABB brake block), sealing parts (oil seals, O-rings), pipe head fittings, and electrical control spares (PLC modules, relays, contactors, sensors, transformers, explosion-proof connectors). All parts are designed for seamless on-site installation without custom modifications, eliminating compatibility risks and reducing repair labor time by up to 40% compared to non-standard aftermarket parts.

Core Functional Specifications

These spare parts support the full operational functionality of the DQ-450DBZ top drive system, including precision pipe handling, stable hydraulic power transmission (rated working pressure up to 25MPa), reliable load balancing, emergency braking with 0.2-second response time, accurate pressure and temperature monitoring, and stable electrical control for drilling speed regulation. The hydraulic components feature 99% filtration efficiency for oil cleanliness, braking parts deliver 120,000N of static braking force, and electrical components meet Ex d IIB T4 explosion-proof standards for hazardous drilling environments, ensuring consistent performance under high-load and high-vibration conditions.

Structural & Material Advantages

• Mechanical & Hydraulic Parts: Forged alloy steel structural assemblies for 300-ton load capacity, high-strength carbon steel hydraulic cylinders with 35MPa pressure resistance, and wear-resistant cast iron friction components with 62HRC hardness rating
• Sealing Components: Fluorine rubber (FKM) oil seals and O-rings for high-temperature oil resistance (up to 150°C) and 5,000-hour leak-proof service life, conforming to GB/T3452.1 sealing standards
• Electrical & Control Parts: Industrial-grade PLC modules with 99.9% operational stability, explosion-proof connectors and cables for Zone 1 hazardous drilling areas, and temperature/humidity sensors with ±0.5°C measurement accuracy

Applicable Operating Conditions

These DQ-450DBZ top drive spare parts are engineered for heavy-duty onshore and offshore drilling scenarios, including oil and gas exploration drilling, geological well drilling, and directional drilling operations. They perform reliably in ambient temperatures ranging from -25°C to 70°C, withstand high dust, high humidity, and corrosive saltwater environments, and operate stably under continuous 24-hour drilling cycles. Fully compliant with global drilling safety regulations, the parts are suitable for both land-based drilling rigs and offshore platform top drive systems.

Professional Maintenance & Troubleshooting Recommendations

To maximize part lifespan and minimize drilling downtime, follow these field-proven maintenance protocols aligned with top drive industry standards: inspect hydraulic filters and oil seals every 300 drilling hours, replacing worn parts immediately to prevent oil contamination; check brake discs and friction mechanisms every 500 hours, replacing when wear thickness exceeds 2mm; test electrical relays, contactors and sensors quarterly to avoid control system failures; lubricate hydraulic cylinders and guide rails every 200 hours with special drilling equipment grease; and conduct a full system spare part inspection every 1,000 hours to identify and replace aging components in advance. This framework serves as a scheduled procurement guide and a quick-reference tool for diagnosing hydraulic leaks, electrical faults, and mechanical wear issues.

We supply the following spare parts:

Item No.	Part number	Spare part name	UOM
1	P/N: DQ004.01.00	Pipe handling manipulator assembly	set

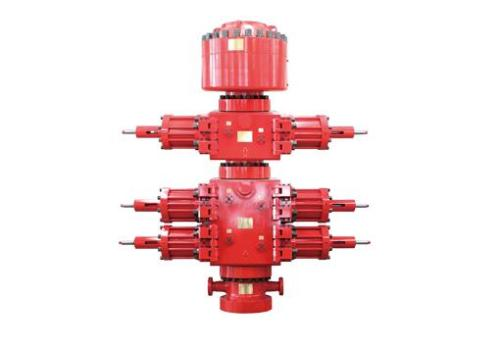

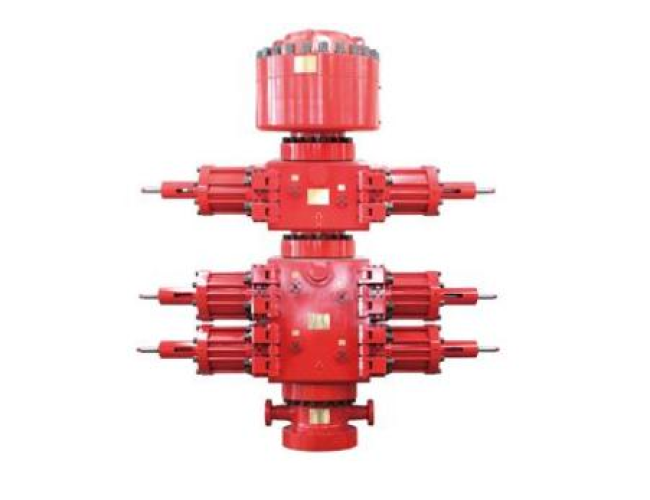

2	P/N: DQ004.02.00	BOP stack	set
3	P/N: HG180	Link tilt cylinder 90/63-660×1000-R/R	set
4	P/N: DQ004.04.00	Feed pipe assembly	set
5	P/N: DQ004.05.00	Balance device assembly	set
6	P/N: DQ004.07.03.00	pressure switch group	set
7	P/N: TF100×100L	Filter	pcs.
8	P/N: A10V028DR/31R-PSC12 K01	Plunger pump	set
9	P/N: 32-720J42D1-F20C9	Hose assembly	set
10	P/N: JCFL-1.45/4.22	Air cooling mechanism	set
11	P/N: SP-10×25	Return filter	pcs.
12	P/N: QUQ1-10×1	Air filter	pcs.
13	P/N: 8-950J22C1-J22C4	Hose assembly	set
14	P/N: DQ004.07.06.00	Two-way safety valve assembly	set
15	P/N: DQ004.07.07.00	Balance valve block assembly	set
16	P/N: DQ004.07.08.00	Safety valve block assembly	set
17	P/N: DQ004.12.10	Brake disc	set
18	P/N: DQ019.13.06.00	Friction mechanism	set
19	P/N: 2K305	Hydraulic motor	set
20	P/N: SKD80	Brake mechanism	set
21	P/N: 2D9-42RN	Pipe head fitting	pcs.
22	P/N: 6D-42LN/RN	Pipe head fitting	pcs.
23	P/N: 2C9-26	Pipe head fitting	pcs.
24	P/N: 1CN-26-12	Pipe head fitting	pcs.
25	P/N: 5N-16-12	Pipe head fitting	pcs.
26	P/N: FL-20	Pipe head fitting	pcs.
27	P/N: 1CG-26-08	Pipe head fitting	pcs.
28	P/N: 3C-26	Pipe head fitting	pcs.
29	P/N: 1DI-42RN	Pipe head fitting	pcs.
30	P/N: 1DT-42-20SP/RN	Pipe head fitting	pcs.
31	P/N: 1DH-42	Pipe head fitting	pcs.
32	P/N: 5DN-36-12	Pipe head fitting	pcs.
33	P/N: BD-42RN	Pipe head fitting	pcs.
34	P/N: 1DN-42-16	Pipe head fitting	pcs.
35	P/N: 3D-42	Pipe head fitting	pcs.
36	P/N: 1DG-42-20RN	Pipe head fitting	pcs.
37	P/N: 1D-42RN	Pipe head fitting	pcs.
38	P/N: 1CH-26-27	Pipe head fitting	pcs.
39	P/N: 1CH-22-18	Pipe head fitting	pcs.
40	P/N: DQ004.12.17	Friction bushing	pcs.
41	P/N: R01-PS	Oil seal Ø360×Ø400×20	pcs.
42	P/N: R01-PS	Oil seal Ø240×Ø270×15	pcs.
43	P/N: R01-PS	Oil seal Ø255×Ø299×20	pcs.
44	P/N: R01-PS	Oil seal Ø200×Ø230×15	pcs.
45	P/N: GTC002100	Oil seal Ø210×Ø240×15	pcs.
46	P/N: GB/T3452.1	O-ring 185×5.3	pcs.
47	P/N: DQ004.09.00	Guide rail assembly	set
48	P/N: DQ004.08.00	The guide rail and all its elements should be checked, unsuitable ones should be replaced.	set
49	1400003792	Temperature and humidity transmitter (Sensor)	pcs.
50	1400010386	Fuse, various	pcs.
51	1400004055	DP bus connector (Connector)	pcs.
52	1400003228	Switch	pcs.
53	1400002836	Intermediate relay	pcs.
54	1400002874	Intermediate relay installers.	pcs.
55	1400002588	Contactor	pcs.
56	1400002103	UPS;TG100:1KVA;AC220V;50Hz	pcs.
57	1400001923	Transformer	pcs.
58	1400009463	Speed control handwheel	pcs.
59	1400003440	potentiometer	pcs.
60	1400002875	Accessories for intermediate relay	pcs.
61	1400025636	Impulse power  source	pcs.
62	1400010729	DC voltage transmitter	pcs.
63	1400004207	Temperature indicator: NPWD-CD55D; 0-10V; 24V DC	pcs.
64	1400002268	Fan- with motor	Set
65	1400030201	Inventor	pcs.
66	1400001731	ABB Brake block	pcs.
67	1400035421	Memory card-programmed	pcs.
68	1400003598	Safety barrier	pcs.
69	1400003402	Base connector	pcs.
70	1400002744	Thermal relay	pcs.
71	1400006048	Network cable	Set
72	1400030070	19-core (socket) explosion-proof cable lug	pcs.
73	1400030063	19-core (plug) explosion-proof cable lug	pcs.
74	1400035878	19-core explosion-proof connector	pcs.
75	1400035879	42-core explosion-proof connector	pcs.
76	1400031750	19-core connector	pcs.
77	1400009354	42-core socket	pcs.
78	DQ005.13.00	Cable: CEURP/DA4×2×1.5P+6XV1830- OPH10	metre
79	DQ005.13.00	Cable: CEURP/DA4×2×1.5P+6XV1830-OPH10	metre
80	DQ005.13.00	Encoder – photoelectric HS35	pcs.
81	1300100755	Electric motor AC	pcs.
82	DQ005.13.00	Converter board BCU-X2	pcs.
83	DQ005.13.00	Power distribution block APBU-44C	pcs.
84	DQ005.13.00	DP-RPBA connector RPBA-01	pcs.
85	DQ005.13.00	SDDCS-RDCO connector RDCO-01	pcs.
86	DQ005.13.00	Power supply UN0-PS/1AC/24DC/240W	pcs.
87	DQ005.13.00	PLC main processor 6ES7；315-2EH14-0AB0	pcs.
88	DQ005.13.00	PLC module-digital input 6ES7 321-1BL00-0AA0+6ES7 392-1AM00-0AA0	pcs.
89	DQ005.13.00	PLC module-digital output 6ES7 322-1BH01-0AA0+6ES7 392-1AJ00-0AA0	pcs.
90	DQ005.13.00	PLC module-digital input 6ES7 331-7KF02-0AB0+6ES7 392-1AJ00-0AA0	pcs.
91	DQ005.13.00	PLC module-digital output 6ES7 332-5HF00-0AB0+6ES7 392-1AM00-0AA0	pcs.

On-Site Fault Repair Case Studies

Case 1: DQ-450DBZ Top Drive Hydraulic Tilt Cylinder Failure

A land drilling rig experienced unresponsive pipe tilting due to a damaged link tilt cylinder (HG180 model). Replacing the faulty cylinder assembly restored full hydraulic tilting function within 2 hours, avoiding a 3-day drilling shutdown and resuming well construction on schedule.

Case 2: Top Drive Brake System Malfunction

An offshore drilling platform reported brake slippage during pipe hoisting, caused by a worn ABB brake block and friction mechanism. Installing new OEM-spec brake components eliminated slippage, restored emergency braking performance, and ensured compliance with offshore drilling safety protocols.

Case 3: DQ-450DBZ Top Drive Electrical Control Fault

A drilling rig faced intermittent speed control failures traced to a faulty PLC main processor (6ES7 315-2EH14-0AB0). Replacing the damaged processor and matching control module restored stable speed regulation, resolving electrical glitches and preventing costly well deviation issues.

Frequently Asked Questions (FAQ)

Question	Answer
Are these parts 100% compatible with the original DQ-450DBZ top drive system?	Yes, all spare parts are manufactured to exact OEM specifications and dimensional standards, ensuring direct fit and seamless compatibility with the DQ-450DBZ top drive without any modifications or adjustments.
What is the typical service life of these DQ-450DBZ top drive spare parts?	Hydraulic cylinders and brake components last 3,000-5,000 drilling hours, sealing parts have a 2,000-hour service life, and electrical control parts maintain stable performance for 8,000+ hours with proper routine maintenance.
Can these parts be used for both planned maintenance and emergency breakdown repairs?	Absolutely, these spare parts are designed for scheduled preventive maintenance and urgent on-site breakdown repairs, making them ideal for minimizing downtime in remote land and offshore drilling locations.

Conclusion & Procurement Guidance

For procurement professionals, maintenance engineers, and drilling supervisors responsible for the DQ-450DBZ top drive system, this parts document is a dual-purpose critical resource: a standardized procurement reference for stocking essential spares and a technical manual for resolving complex on-site equipment failures. Each component is engineered to address the most common top drive pain points—hydraulic leaks, brake wear, electrical faults, and compatibility failures—while delivering long-term durability, cost efficiency, and compliance with API drilling standards.
