1. Introduction

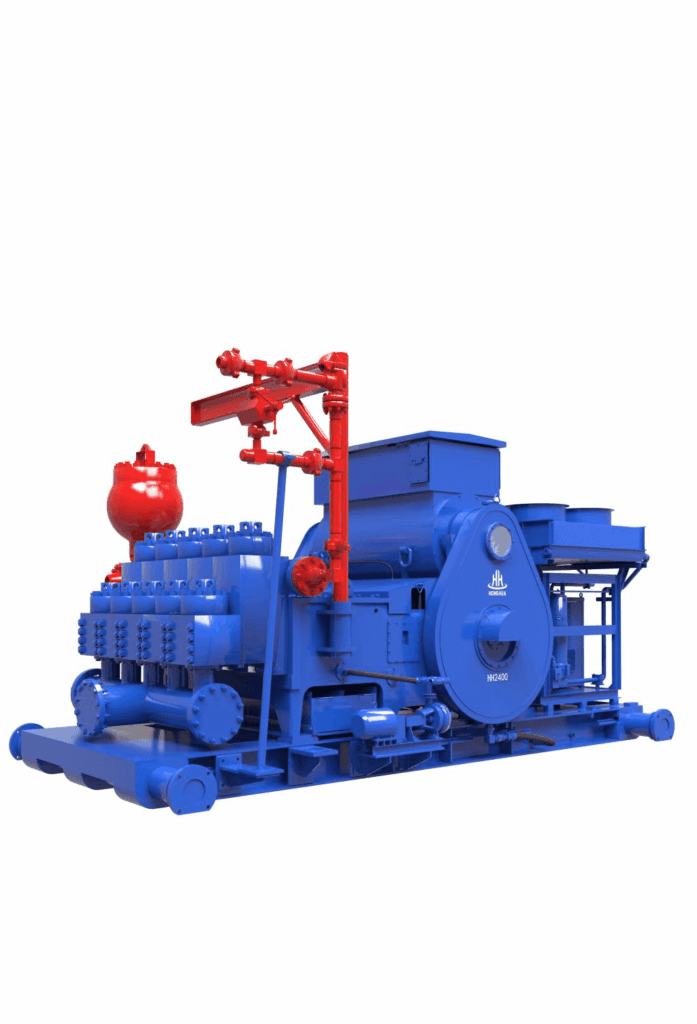

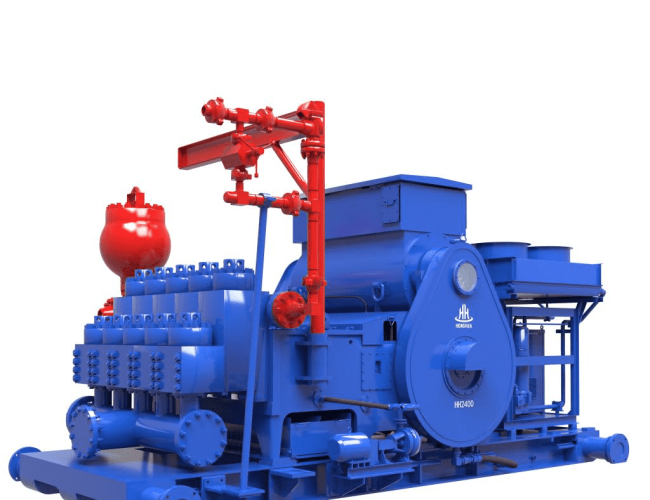

The HHF-1000 mud pump is a vital piece of equipment in oil and gas drilling operations, responsible for circulating drilling fluid (mud) into the wellbore to cool the drill bit, remove cuttings, maintain wellbore pressure, and prevent formation damage. As a high-pressure, continuous-operation pump, its reliability directly impacts drilling efficiency, well safety, and project timelines. Every spare part matched to the HHF-1000 mud pump—from critical components like the hollow crankshaft and connecting rod to small seals, bolts, and washers—plays a crucial role in ensuring the pump’s stable performance and long service life. Our HHF-1000 mud pump spare parts are engineered to perfectly match the original equipment (OEM) specifications, providing a reliable solution for maintenance, repairs, and inventory stocking.
2. Product Features & Technical Details
Our HHF-1000 mud pump spare parts are rated to match the full operational range of the HHF-1000 mud pump, ensuring reliable performance in diverse oilfield environments—from onshore deserts to offshore platforms:
- Temperature Range: Operational range of -40℃ to 120℃ (-40°F to 248°F), suitable for arctic (Alaska, Siberia), desert (Middle East, Texas), and offshore (Gulf of Mexico, North Sea) environments. All parts maintain stable performance across this range, preventing failure due to extreme cold (brittle fracture) or heat (material degradation).
- Pressure Capacity: All pressure-bearing components (cylinder, valve assembly, seals) are rated for operating pressures up to 35 MPa, with a safety margin of 15% (40 MPa) to handle peak loads during drilling operations. Bearings and fasteners are designed to withstand the mechanical stress caused by high pressure.
- Corrosive Environments: Parts are resistant to drilling fluids (oil-based, water-based), saltwater, and H2S (sour gas), meeting NACE MR0175 standards. This is critical for offshore and sour well operations, where corrosion can cause rapid component failure and safety hazards.
- Mechanical Stress: Components can withstand continuous vibration (12g) from the pump’s operation and shock loads (25g) from sudden pressure changes (e.g., well kick, pump startup). Ruggedized design and high-strength materials prevent damage from these stresses.
- Ingress Protection: Seals, oil seals, and double lip seals provide IP65 ingress protection, preventing dust, water spray, and drilling fluid from entering the pump’s internal components (bearings, gears, crankshaft), protecting them from wear and corrosion.
- Fluid Compatibility: Seals and O-rings are compatible with all common drilling fluids, including oil-based mud, water-based mud, and synthetic mud, ensuring no degradation or leakage when in contact with these fluids.
We supply the following spare parts:
| NO. | DESCRIPTION | Specifiction | Part Number | Unit |
| 1 | Seal washer | NB100.08 | 1200358896 | EA |
| 2 | Seal washer | NB101.01.01.30 | 1200378329 | EA |
| 3 | Seal washer | NB101.02.03 | 1200378376 | EA |
| 4 | Large Toothed Ring (Widened) | NB101.02.10 | 1200378364 | EA |
| 5 | Main bearing bolt | NB101.02.18 | 1200378387 | EA |
| 6 | Bolt | NB101.02.11 | 1200378362 | EA |
| 7 | Screw | NB100.02.23 | 1200356506 | EA |
| 8 | Locking Nut | NB101.02.12.00 | 1200378361 | EA |
| 9 | Bolt | NB101.02.16 | 1200378390 | EA |
| 10 | Main bearing sleeve (left) | NB101.02.14 | 1200378357 | EA |
| 11 | Main bearing sleeve (right) | NB101.02.02 | 1200378377 | EA |
| 12 | Eccentric Bearing | NB101.02.20 | 1200378383 | EA |
| 13 | Flat Washer | 16;GB/T97.1;200Hv级 | 1300001444 | EA |
| 14 | Steel Wire | φ3 | 1800000859 | EA |
| 15 | Steel Wire | φ1.5 | 1800000866 | EA |
| 16 | Main Bearing | NB101.02.21 | 1200378382 | EA |
| 17 | Hollow Crankshaft | NB101.02.08.00 | 1200378369 | EA |
| 18 | Connecting Rod | NB101.02.06 | 1200378372 | EA |
| 19 | Key | NB101.03.01 | 1200378397 | EA |
| 20 | Wear Sleeve | NB101.03.03 | 1200378395 | EA |
| 21 | Seal washer | NB101.03.05 | 1200378393 | EA |
| 22 | Seal washer | NB101.03.06 | 1200378398 | EA |
| 23 | Pinion Shaft (Widened) | NB101.03.02 | 1200378396 | EA |
| 24 | Seal washer | NB101.03.09 | 1200378406 | EA |
| 25 | Hexagon head bolt | 7/8″-9×2″;ASME B18.2.1;GR.5 | 1300017824 | EA |
| 26 | Hexagon head bolt | 1/2″-13×1 3/8″;ASME B18.2.1;GR.5 | 1300017809 | EA |
| 27 | Oil Seal | NB101.03.11 | 1200378401 | EA |
| 28 | Cylindrical Roller Bearing | NB101.03.12 | 1200378400 | EA |
| 29 | Spring Washer | 14;GB/T93;65Mn | 1300001135 | EA |
| 30 | Spring Washer | 22;GB/T93;65Mn | 1300001151 | EA |
| 31 | Hexagon head bolt | 5/8″-11×2″;ASME B18.2.1;GR.5 | 1300006071 | EA |
| 32 | Spring Washer | 16;GB/T93;65Mn | 1300001142 | EA |
| 33 | Crosshead | NB101.04.01 | 1200366935 | EA |
| 34 | Top Guide | NB101.04.02 | 1200366954 | EA |
| 35 | Packing Box | NB101.04.04 | 1200367082 | EA |
| 36 | Oil Seal Ring | NB101.04.06 | 1200367084 | EA |
| 37 | O-ring | 140×7-G-N;GB/T3452.1 | 1300000334 | EA |
| 38 | Seal washer | NB101.04.05 | 1200367083 | EA |
| 39 | Double Lip Seal | NB101.04.18 | 1200367130 | EA |
| 40 | Intermediate Link | NB101.04.09 | 1200367087 | EA |
| 41 | Crosshead Pin | NB101.04.10 | 1200367088 | EA |
| 42 | O-ring | 115×5.3-G-N;GB/T3452.1 | 1300000317 | EA |
| 43 | Sealing Washer | NB101.04.15 | 1200367126 | EA |
| 44 | Seal | 114.3×140.5×13.5;CCK1000 | 1300091393 | EA |
| 45 | Bottom Guide | NB101.04.12 | 1200367122 | EA |
| 46 | Crosshead Bearing | NB101.04.17 | 1200367129 | EA |
| 47 | Stainless Steel Wire | φ1.6 | 1800000497 | EA |
| 48 | O-ring | 175×3.55-G-N;GB/T3452.1 | 1300000227 | EA |
| 49 | Screw 1-8UNC-2A×2 3/4\ | 1-8UNC-2A×2 3/4″;NB100.04.22 | 1200673701 | EA |
| 50 | Screw 3/4\ | 3/4″-10×2 1/8″;NB101.04.19 | 1200647361 | EA |
| 51 | Bolt | NB101.04.21 | 1200831313 | EA |
| 52 | Hexagon head bolt | 3/8″-16×1 3/8″;ASME B18.2.1;GR.5 | 1300112816 | EA |
| 53 | Cylinder (Un-nickel plated) | NB101.05.01.01 | 1200378542 | EA |
| 54 | Nut | NB100.05.01.06 | 1200357771 | EA |
| 55 | Stud Bolt | NB101.05.01.02 | 1200378541 | EA |
| 56 | Stud Bolt | NB008.01.01.02 | 1200438606 | EA |
| 57 | Nut | NB100.05.01.08 | 1200357773 | EA |
| 58 | Nut | NB101.05.01.05 | 1200378538 | EA |
| 59 | Stud Bolt | NB101.05.01.04 | 1200378539 | EA |
| 60 | Valve Stem Guide (Bottom) | NB101.05.22.00 | 1200378604 | EA |
| 61 | Valve Cover Gasket | NB101.05.08 | 1200378531 | EA |
| 62 | Discharge Pipeline | NB101.05.07 | 1200378532 | EA |
| 63 | Valve Spring | NB100.05.10 | 1200357787 | EA |
| 64 | O-ring | 97.5×3.55-G-N;GB/T3452.1 | 1300000284 | EA |
| 65 | Valve Cover Gasket | NB101.05.08 | 1200378531 | EA |
| 66 | Piston Rod | NB101.05.16 | 1200378570 | EA |
| 67 | Spray Pipe Assembly | NB101.05.18.00 | 1200378612 | EA |
| 68 | Clamp Assembly | NB101.05.19.00 | 1200378608 | EA |
| 69 | Hexagon head bolt | 7/8″-9×2 1/8″;ASME B18.2.1;GR.5 | 1300006076 | EA |
| 70 | Valve Stem Guide | NB101.05.11 | 1200378528 | EA |
| 71 | Stud Bolt | NB101.05.09 | 1200378530 | EA |
| 72 | Nut | NB100.05.01.06 | 1200357771 | EA |
| 73 | Bolt | NB100.05.30 | 1200357863 | EA |
| 74 | Piston Seal Ring | NB100.05.31 | 1200357864 | EA |
| 75 | Locking Nut | NB100.02.19.00 | 1200356502 | EA |
| 76 | O-ring | 190×7-G-N;GB/T3452.1 | 1300045964 | EA |
| 77 | Intake Air Bag | NB100.05.32.00 | 1200357902 | EA |
| 78 | O-ring | 345×7-G-N;GB/T3452.1 | 1300000262 | EA |
| 79 | Hexagon head bolt | 1″-8×4″;ASME B18.2.1;GR.5 | 1300045645 | EA |
| 80 | Stainless Steel Wire | φ1.6 | 1800000497 | EA |
| 81 | Valve Assembly (API 6#) | （API 6#）;NB101.05.14.00 | 1200378524 | EA |
| 82 | Valve Cover | NB101.05.10 | 1200378529 | EA |
| 83 | Sealing Gasket Ring | R39;API 6A | 1300018749 | EA |
| 84 | Air Bag Capsule | KB-75;NBR | 1300036473 | EA |
| 85 | Housing | HTNB021.04.01 | 1200353508 | EA |
| 86 | Cover | HTNB021.05 | 1200353528 | EA |
| 87 | Oil Pump Gear | 190×7-G-N;GB/T3452.1 | 1200378629 | EA |
| 88 | pressure gauge | NB101.06.03.01 | 1200378629 | EA |
| 89 | Filter Screen | YN-60-Ⅱ;0-1.6MPa;UN9/16″-16 | 1400021624 | EA |
| 90 | Seal washer | GFW1.00/0.250 | 1300005554 | EA |
| 91 | Non-return value | NB100.06.15 | 1200357722 | EA |
| 92 | Foam Rubber Sheet | S20A1.0 | 1300001038 | EA |
| 93 | Filter Screen | t10 | 1300007562 | EA |
| 94 | Shock-resistant Pressure Gauge | NB1600M.02.02.00C | 1200008804 | EA |
| 95 | Key | BZ133.02.04 | 1200029903 | EA |
| 96 | Bearing | 22230CC/W33;SKF | 1300009470 | EA |
| 97 | Key | BZ034.04.01 | 1200013322 | EA |
| 98 | Sealing Washer | BC024.01.02.19 | 1200013294 | EA |
| 99 | Through-type Oil Cup | M10×1;JB/T7940.1 | 1300003055 | EA |
| 100 | Clutch | LT500/250T | 1300005277 | EA |
| 101 | Friction Hub | BZ120.05 | 1200058421 | EA |
| 102 | Key | BZ120.06 | 1200058422 | EA |
| 103 | Battery | OT55-12 | 1300014555 | EA |
| 104 | Discharge Five-way | BZ160.03.01 | 1200072346 | EA |
3. On-Site Fault Repair Case Studies (Real-World HHF-1000 Scenarios)
These real-world case studies demonstrate how our HHF-1000 mud pump spare parts resolve common equipment failures quickly, minimizing downtime and ensuring safe, efficient drilling operations—directly supporting the goal of reducing operational costs and improving productivity:
Case 1: Pump Vibration & Overheating Fixed with 1300009470 22230CC/W33 Bearing
An onshore drilling rig in the Middle East experienced severe vibration and bearing overheating (temperature reaching 90℃) from the HHF-1000 mud pump, forcing a shutdown. Inspection revealed that the 22230CC/W33 bearing (1300009470) was worn and seized due to inadequate lubrication and high-pressure stress. Technicians replaced the bearing with our OEM-compatible part, lubricated the drive system, and tested the pump. The repair was completed in 1.8 hours, restoring full operation and saving $108,000 in onshore downtime costs. The new bearing’s high load-bearing capacity and vibration resistance prevented future overheating and vibration issues.
Case 2: Fluid Leak Resolved with 1200357864 Piston Seal Ring
An offshore rig in the Gulf of Mexico reported a significant fluid leak from the HHF-1000 mud pump’s cylinder, leading to a 30% drop in pumping efficiency and increased maintenance costs. Inspection confirmed that the piston seal ring (1200357864) was worn and damaged, causing fluid to leak between the piston and cylinder. Our replacement piston seal ring was installed, and the cylinder was inspected for wear. The repair took 50 minutes, avoiding 4 hours of unplanned downtime and saving $720,000 in offshore costs. The new seal ring’s wear-resistant material ensured long-term reliability in the harsh saltwater environment.
4. Frequently Asked Questions (FAQ)
| No. | Questions | Answers |
| 1 | Are your spare parts fully compatible with the HHF-1000 mud pump, including all its variants? | Yes. All our HHF-1000 mud pump spare parts are engineered to match the original OEM specifications of the HHF-1000 mud pump, including all its variants. Critical components such as the 1200378369 hollow crankshaft, 1200378382 main bearing, 1200378542 cylinder, and 1200378524 valve assembly are fully compatible, eliminating the need for separate part inventories. We strictly follow the HHF-1000’s design parameters to ensure seamless integration and consistent performance. |
| 2 | Do you provide compliance documentation (API 7K, API 6A, NACE MR0175) for your HHF-1000 spare parts? | Yes. For all critical HHF-1000 mud pump spare parts, we provide comprehensive compliance documentation, including API 7K certification (for drilling equipment), API 6A certification (for valve assemblies and pressure components), NACE MR0175 certification (for sour environments), GB/T 3452.1 (for O-rings), and GB/T 93 (for spring washers). We also provide pressure testing, torque testing, and corrosion resistance testing reports, which are critical for rig audits, regulatory compliance, and ensuring the HHF-1000 mud pump meets industry safety and performance standards. |
| 3 | What is the expected service life of your 1200378542 cylinder in offshore sour gas environments? | In harsh offshore sour gas environments (saltwater, H2S, high pressure), the 1200378542 cylinder has an expected service life of 6,000–8,000 operating hours. Regular maintenance—such as monthly inspection for wear and quarterly cleaning—can extend its service life by 20%. We recommend stocking 2–3 cylinders for offshore rigs to avoid emergency downtime, as cylinder replacement can take 2–3 hours if no spare is available. |
5. Conclusion & Procurement Guidance
The HHF-1000 mud pump is a critical component of oil and gas drilling operations, and the quality of its spare parts directly determines drilling efficiency, well safety, and operational costs. Low-quality, non-compatible spare parts can lead to costly downtime, equipment damage, safety hazards, and project delays—risks that can be completely avoided by choosing our high-quality, OEM-compatible HHF-1000 mud pump spare parts.
Our HHF-1000 mud pump spare parts are engineered to meet or exceed API 7K, API 6A, NACE MR0175, and GB/T standards, as well as the original design requirements of the HHF-1000 mud pump. We supply a comprehensive range of components, from critical crankshafts and cylinders to small seals and fasteners, all designed to withstand the harsh conditions of oil and gas drilling—high pressure, extreme temperatures, vibration, and corrosion. With rigorous quality testing, traceable supply chains, and plug-and-play compatibility, our spare parts ensure that your HHF-1000 mud pump operates at peak efficiency, reducing downtime and lowering maintenance costs.
