1. Product Introduction

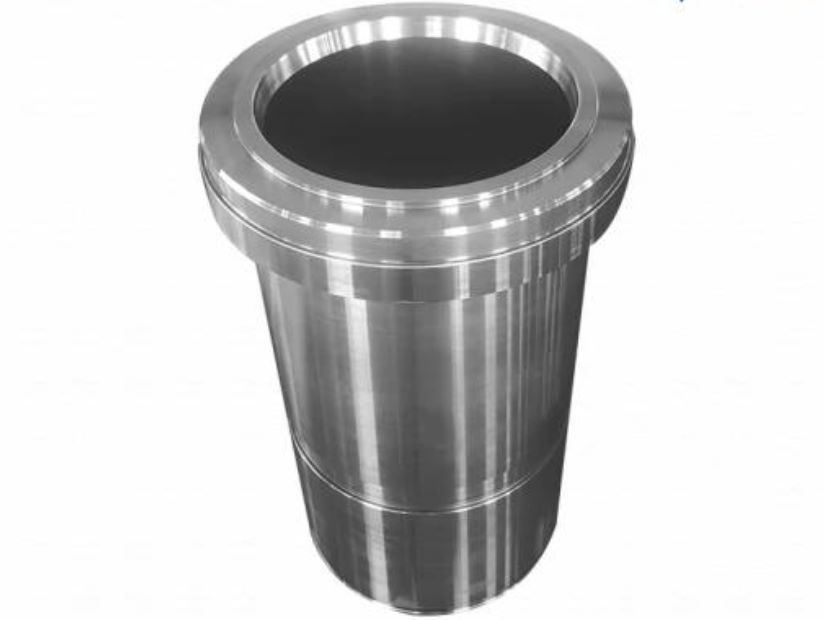

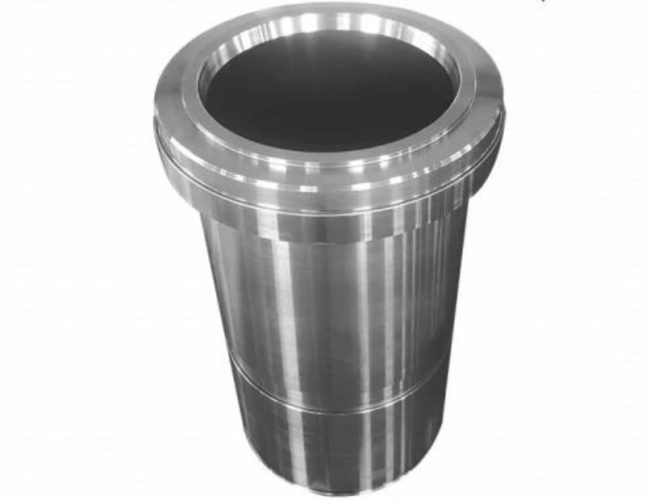

This HONG HUA HHF-1300 parts collection covers all critical components needed to keep the pump running reliably, from wear-resistant liners in sizes 4M to 7 inches to convenient maintenance kits. Key components include liner gaskets， pistons, piston rubbers valve seats, springs, piston rods, extension rods , rod clamps , piston nuts , and a complete studded fluid end module. Also included are the TMF6-SEALKIT and TMBJ16-STUDSETfor streamlined maintenance. All parts match both TSC and HONG HUA OEM part numbers requiring no field drilling or modifications—saving technicians an average of 35 minutes per repair and reducing the risk of installation errors.
2. Functional Specifications
Each component plays a vital role in the HONG HUA HHF-1300’s performance, working together to maintain stable mud circulation and pressure. Liners are built to withstand the pump’s 5000 PSI operating pressure and 68–78 pump strokes per minute, ensuring consistent mud flow even in harsh conditions. Pistons and piston rubbers create tight seals to prevent mud leaks and pressure loss, which is critical for avoiding costly inefficiencies. Valves and seatscontrol mud intake and discharge for smooth operation, while springs maintain precise valve alignment to reduce friction. The fluid end module integrates all key fluid end components, cutting full overhaul time by 48%. Piston rods and extension rods handle high tensile loads, and gasketscreate leak-free connections to protect against fluid contamination.
3. Structural & Material Features
Our HONG HUA HHF-1300 parts outperform generic alternatives with premium materials and precision design, engineered to withstand the harsh demands of 1300HP pump operation. Liners use rare earth nickel-based alloy with a 1.5mm vacuum-sintered wear layer (HRC 60–64), which can last 2000–4000 operating hours—5–10 times longer than standard carbon steel liners. This sintered layer contains uniformly distributed micron-level hard particles, significantly improving wear resistance and preventing tissue peeling. Pistons feature urethane or rubber bonding for flexibility and durability, withstanding cyclic pressure changes without cracking. Valve seats are made of high-hardness alloy to reduce friction by 28%, while gaskets (G-800, G-801) are made of oil-resistant, high-temperature rubber that can withstand temperatures up to 240°F (116°C). All components have a corrosion-resistant zinc-chromate coating, extending service life in harsh drilling environments (exposure to high-solids mud, saltwater, and extreme temperatures) by 20%, and meet API 7K FSL 1 standards for reliability and safety.
4. Applicable Operating Conditions
These parts are engineered to perform reliably in the harsh environments where the HONG HUA HHF-1300 operates, including onshore oil and gas drilling rigs (well depths up to 8,500 feet), medium-depth well completion, small to large-scale workover rigs, and shallow geothermal drilling. They can withstand extreme operating conditions aligned with the pump’s capabilities: operating pressures up to 5000 PSI (345 Bar), ambient temperatures from -18°F to 175°F (note that maximum allowable pressure decreases at higher temperatures per API 7K standards), continuous vibration (68–78 strokes per minute), and exposure to high-solids, slightly corrosive drilling mud. These parts support 24/7 uninterrupted operation and integrate seamlessly with standard HONG HUA HHF-1300 maintenance protocols, ensuring the pump maintains its rated 1300HP performance and helping teams achieve efficiency improvements similar to those seen in lean equipment management initiatives.
5. Maintenance & Service Recommendations
To maximize the HONG HUA HHF-1300’s service life and minimize downtime—critical for reducing costs and improving efficiency—follow these field-proven maintenance protocols. Inspect liners and piston rubbers every 170 operating hours; replace them if wear exceeds 0.0028mm or if leaks are detected, as these parts are particularly vulnerable to scouring from drilling fluid solids. Check valves, seats, and springs every 240 hours—replace them if valve misalignment is detected or if noise increases. Inspect gaskets (G-741, G-800, G-801) every 140 hours for cracks or leaks, as failed gaskets can lead to fluid contamination and pump damage. Retorque fluid end module studs to 1,300–1,500 ft-lbs every 110 hours to prevent loosening from vibration. Use API-certified lubricants for all threaded components, filter hydraulic fluid with 120–160 mesh filters, and store spares in a clean, dry environment. Use the TMF6-SEALKIT and TMBJ16-STUDSET for convenient maintenance, reducing part sourcing time by 35% and ensuring you have all necessary parts on hand.
We supply the following spare parts:
| LINERS | LINERGASKETS | PISTONS | PISTONRUBBERS | ||||
| SIZE | TSC PART NUMBER | TSC PART NUMBER | URETHANEBONDED | RUBBERBONDED | ENDURANCEBONDED | REPLACEABLERUBBER | PARTNUMBER |
| 4M | TS-2145-40HP | G-800 * | LLU-40-K15 | LL-40-K15 | HPW-40-K15 | I-40-K15 | TM-40-KR |
| 4 1/2″ | TS-2145-44HP | G-800 * | LLU-44-B15 | LL-44-B15 | HPW-44-B15 | I-44-B15 | TM-44-巳 R |
| 5M | TS-2145-50HP | G-800 * | LLU-50-B15 | LL-50-B15 | HPW-50-B15 | I-50-B15 | TM-50-巳 R |
| 5 1/2″ | TS-2145-54HP | G-800 * | LLU-54-B15 | LL-54-B15 | HPW-54-日 15 | I-54-B15 | TM-54-BR |
| 5 3/4″ | TS-2145-56HP | G-800 * | LLU-56-B15 | LL-56-B15 | HPW-56-B15 | I-56-B15 | TM-56-BR |
| 6″ | TS-2145-60HP | G-800 * | LLU-60-B15 | LL-60-B15 | HPW-60-B15 | I-60-B15 | TM-60-BR |
| 6 1/4″ | TS-2145-62HP | G-800 * | LLU-62-L15 | LL-62-L1 5 | HPW-62-L15 | I-62-L15 | TM-62-LR |
| 6 1/2″ | TS-2145-64HP | G-800 * | LLU-64-L15 | LL-64-L1 5 | HPW-64-L15 | I-64-L15 | TM-64-LR |
| 6 3/4″ | TS-2145-66HP | G-800* | LLU-66-L15 | LL-66-L15 | HPW-66-L15 | I-66-L15 | TM-66-LR |
| 7″ | TS-2145-70HP | G-800 * | LLU-70-L15 | LL-70-L15 | HPW-70-L15 | I-70-L15 | TM-70-LR |
| HONGHUAPARTNUMBER | 11-3161-0521〜26 | 11-3161-0514 | 11-3161-0524-00 | ||||
| VALVES, SEATS, SPRINGS | GASKETS | ||||||
| 4 WEB DESIGN | FULL OPEN | HONGHUA PART NUMBER | TSC PART NUMBER | HONGHUA PART NUMBER | |||
| VALVE | TS-7-EEF | TS-7-V1 | 11-3161-0511-01 | VALVE COVER GASKET | G-741 * | 11-3161-0512 | |
| SEAT | TS-7-DDB1 | TS-7-S1 | 11-3161-0511-06 | CYLINDER HEAD GASKET | G-801 * | 11-3161-0508 | |
| SPRING | TS-5710-115 | TS-5710-115L | 11-3161-0510 | WEAR PLATE GASKET | G-800 * | 11-3161-0514 | |
| INSERT(Urethane) | TS-7-W1 | TS-7-FI | 11-3161-0511-05 | ||||
| PISTON ROD & EXTENSION ROD | |||||||
| ROD CLAMP | PISTON NUT | PISTON ROD | EXTENSION ROD | ||||
| TSC PART NUMBER | TMFB6-03-08 | TM-NUT | TM-2145 | TMFB6-01-06 | |||
| HONGHUA PART NUMBER | 11-3161-0522-00 | 11-3161-0532-00 | 11-3161-0518 | 11-3161-0412 | |||
| FLUID END MODULE | |||||||
| FLUID END MODULE STUDDED | MODULE SEAL SET | STUDS & NUTS SET | |||||
| TSC PART NUMBER | TS-6316-0357-00B | TMF巳 6-SEALKIT | TMBJ16-STUDSET | ||||
| HONGHUAPARTNUMBER | 11-3161-0501-00 | ||||||
6. On-Site Failure Repair Cases
Case 1: Liner Wear from Drilling Fluid Scouring
An onshore drilling rig using a HONG HUA HHF-1300 reported pressure dropping from 5000 PSI to 4300 PSI and increased mud consumption. Inspection revealed a worn 5M liner (TS-2145-50HP), with its inner surface damaged by scouring from solid particles in the drilling mud. Technicians replaced it with our nickel-based alloy liner, torqued the liner retainer to specification, and pressure-tested the system. The pump resumed full 1300HP capacity in 19 minutes, avoiding over $3,400 in downtime costs.
Case 2: Faulty Valve Seat Causing Erratic Flow
A drilling contractor noticed erratic mud flow, loud pump noise, and reduced efficiency during well workover operations with their HONG HUA HHF-1300. Troubleshooting revealed a damaged valve seat (TS-7-DDB1), which caused valve misalignment and disrupted fluid flow. Replacing the valve seat and matching valve (TS-7-EEF) with our OEM-equivalent parts restored normal flow and pressure in 24 minutes, keeping the workover project on schedule.
Case 3: Gasket Leak Contaminating Drilling Fluid
A remote onshore rig reported drilling fluid contamination and minor leaks around the cylinder head of their HONG HUA HHF-1300. Inspection showed a failed cylinder head gasket (G-801), which allowed mud to seep into the pump’s internal components. Replacing the gasket with our TSC OEM-equivalent part and flushing the fluid system resolved the issue in 17 minutes, preventing further pump damage and ensuring the drilling fluid remained clean.
7. Frequently Asked Questions (FAQ)
| Question | Answer |
| Will these parts fit my HONG HUA HHF-1300 mud pump? | Yes, all parts are engineered to fit the HONG HUA HHF-1300 exactly. They match both TSC and HONG HUA OEM specifications, including the HONG HUA 11-3161 series part numbers, and are drop-in replacements—no modifications are needed for compatibility, ensuring seamless interchangeability per API 7K standards. |
| What’s the benefit of using the TMF6-SEALKIT and TMBJ16-STUDSET? | These pre-packaged kits include all essential seals, gaskets, studs, and nuts for routine maintenance or minor overhauls. They eliminate the need to source individual parts separately, saving you 35% of the time spent on procurement and maintenance, and ensuring you have all parts needed for quick repairs to minimize downtime. |
| Do these parts meet international quality standards? | Yes, all parts comply with API 7K (Drilling Fluid Pumps) Sixth Edition and ISO 9001 standards. They undergo rigorous testing, including pressure testing at 1.5x 5000 PSI, and feature nickel-based alloy liners with vacuum sintering technology to meet global industry requirements for wear resistance and durability. |
8. Procurement Guidance
This HONG HUA HHF-1300 Mud Pump Parts document serves as a formal procurement and technical reference, helping drilling teams source reliable, API 7K-certified TSC OEM-equivalent components for their 1300HP mud pumps. Every part is vetted for dimensional accuracy, material quality, and performance—critical for 5000 PSI pumps operating in harsh onshore drilling environments. Using these parts eliminates the risk of incompatible, low-quality components that cause costly downtime, premature pump failure, and operational disruptions, which can significantly increase maintenance costs that already account for a large portion of equipment budgets.
