Product Overview

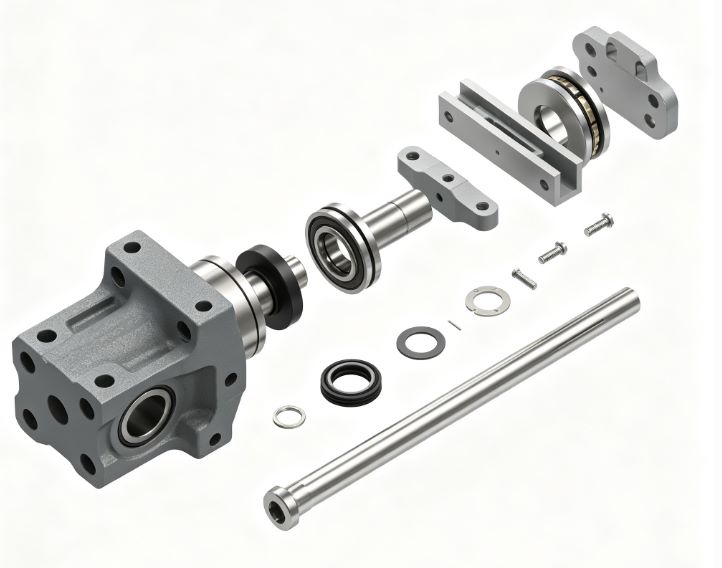

The Honghua HHF 1000 Crosshead Assembly is a precision-engineered system of 31 interrelated components that work together to enable smooth power transmission. Our spare parts cover every critical element of this assembly, including: core power transmission components ; sliding and guiding components; sealing elements; protective components; and fastening hardware. All parts match OEM dimensions exactly, ensuring hassle-free installation and consistent mechanical performance.
Function & Operational Principles
The primary function of the Honghua HHF 1000 Crosshead Assembly is to transfer power from the pump’s crankshaft to the piston rod, converting rotational motion into linear reciprocating motion. The assembly operates through a precise mechanical mechanism: the crosshead pin connects the crosshead to the crankshaft’s connecting rod, which rotates with the crankshaft.
As the crankshaft rotates, the connecting rod pushes and pulls the crosshead, which slides smoothly along the upper and lower slides. The crosshead bearingreduces friction between the crosshead pin and crosshead, ensuring smooth rotation and minimizing wear. The intermediate extension rod connects the crosshead to the piston rod, transferring the linear motion to the fluid end. Sealing elements—including O-rings, oil seals, and seal gaskets—prevent lubricating oil leakage and keep drilling dust and debris out of the assembly. The mudguard provides additional protection against external contaminants, while shim sets adjust the crosshead’s alignment to ensure precise motion.
Maintenance & Care Recommendations
Proper maintenance of the crosshead assembly is critical to ensuring smooth power transmission and preventing costly mechanical failures. Follow these practical, on-site guidelines:
- Inspect all seals (O-rings, oil seals) every 200 operating hours for wear or damage. Replace worn seals with our compatible parts and apply 242 Seal Glue to ensure a tight seal, preventing lubricant leakage.
- Check the crosshead bearing (GH3101-04.17 5G254936Q) every 500 operating hours for noise, overheating, or play. Lubricate the bearing with high-quality gear oil (ISO VG 220) and replace it if it shows signs of wear or damage.
- Inspect the upper and lower slides every 400 operating hours for wear. Clean the sliding surfaces and apply lubricant; replace slides if wear exceeds 0.3mm, and use shim sets (GH3101-04.19.00) to adjust crosshead alignment.
- Tighten all bolts and screws every 200 operating hours to the recommended torque (150 N·m for 1-8UNC bolts, 80 N·m for 3/4-10UNC screws). Replace any worn or damaged fasteners with our compatible parts.
- Clean the mudguard (GH3101-04.08) and end cover (GH3101-04.04) every 300 operating hours to remove dust and debris, preventing contamination of internal components.
- Change the lubricating oil in the crosshead assembly every 1,000 operating hours to ensure proper lubrication. Use clean, high-quality gear oil and inspect for metal particles, which may indicate internal wear.
- Store spare parts in a clean, dry environment (0°C–25°C) to prevent corrosion. Keep bearings and seals in sealed containers to avoid damage from dust or moisture.
We supply the following spare parts:
| 4 GH3101-04.00 Crosshead assembly | ||
| No. | Drawing No. | Name |
| 1 | GH3101.04.01 | Crosshead |
| 2 | GH3101.04.02 | Slide, Upper |
| 3 | American standard (item 3) | Bolt:1-8UNC-2AX55 |
| 4 | GH3101-04.03 | End cover |
| 5 | GB/T3452.1-1992 | O ring:175X3.55G |
| 6 | GH3101-04.04 | Stuffing box |
| 7 | GH3101-04.05 | Seal gasket |
| 8 | GH3101-04.06 | Oil Seal |
| 9 | GH3101-04.07 | Pipe joint:NPT3/8X50.8 |
| 10 | GH3101-04.08 | Mudguard |
| 11 | GH3101-04.09 | intermediate extension rod |
| 12 | GH3101-04.10 | Crosshead Pin |
| 13 | American standard (item 13) | Bolt:1-8UNC-2AX65 |
| 14 | GH3101-04.11 | Adjusting gasket |
| 15 | GH3101-04.12 | Slide, Lower |
| 16 | GH3101-04.13 | Fixing plate |
| 17 | GB/T3452.1-1992 | O ring:140X7.0G |
| 18 | American standard (item 18) | Bolt:3/8-16UNC-2AX35 |
| 19 | GB/T93-1987 | Washer :10 |
| 20 | GH3101-04.14 | Locking Spring |
| 21 | American standard (item 21) | Screw : 3/4-10UNC-2AX55 |
| 22 | GH3101-04.15 | Seal pad |
| 23 | GH3101-04.16 | Crosshead Pin Cap |
| 24 | GH3101-04.17 | Crosshead Bearing:5G254936Q |
| 25 | GH3101-04.18 | Oil Seal:4.5″X5.5″X0.5″ |
| 26 | GB/T4240-1993 | Stainless steel Wire : Φ 1.60 (L=300) |
| 27 | GB/T4240-1993 | Stainless steel Wire : Φ 1.60 (L=500) |
| 28 | GB/T4240-1993 | Stainless steel Wire : Φ 1.60 (L=400) |
| 29 | GH3101-04.19.00 | Shim set |
| 30 | 242 | Seal glue |
| 31 | GB/T3452.1-1992 | O ring:115X5.30G |
On-Site Fault Maintenance Cases
Case 1: Lubricant Leakage & Crosshead Overheating
Scenario: An onshore rig reported excessive overheating of the crosshead assembly (temperature exceeding 110°C) and lubricant leakage. The pump’s reciprocating motion became rough, leading to reduced efficiency.
Root Cause: The GH3101-04.18 Oil Seal (4.5″X5.5″X0.5″) was worn and cracked, causing lubricant leakage. Without sufficient lubrication, the crosshead bearing and slides experienced excessive friction, leading to overheating.
Solution: Replaced the worn oil seal with our compatible part, refilled the assembly with ISO VG 220 gear oil, and cleaned the sliding surfaces. After maintenance, the crosshead temperature dropped to 75°C, lubricant leakage stopped, and the pump’s motion returned to smooth operation.
Case 2: Crosshead Misalignment & Piston Rod Damage
Scenario: A drilling team noticed abnormal wear on the piston rod and increased noise from the crosshead assembly. Inspection revealed the crosshead was misaligned, causing uneven wear on the slides and piston rod.
Root Cause: The GH3101-04.19.00 Shim Set was worn and uneven, leading to crosshead misalignment. The upper slide also had excessive wear (0.4mm), exacerbating the issue.
Solution: Replaced the shim set and upper slide with our compatible parts, adjusted the crosshead alignment to ensure precise motion, and lubricated all sliding surfaces. The piston rod wear stopped, and the crosshead noise was eliminated, restoring normal pump performance.
Case 3: Crosshead Bearing Failure
Scenario: An offshore rig experienced a sudden pump shutdown due to a seized crosshead assembly. Inspection revealed the GH3101-04.17 Crosshead Bearing (5G254936Q) had failed, with significant damage to the bearing rollers and raceway.
Root Cause: The bearing had not been lubricated for 600 operating hours, leading to dry friction and premature failure. Contaminants had also entered the bearing through a worn O-ring, accelerating damage.
Solution: Replaced the crosshead bearing and worn O-ring with our compatible parts, flushed the assembly to remove contaminants, and refilled it with clean lubricating oil. The pump was back online within 3 hours, and the new bearing provided reliable performance for 9,000+ operating hours.
FAQ (Frequently Asked Questions)
| Question | Answer |
| Are your spare parts compatible with the Honghua HHF 1000 mud pump crosshead assembly (GH3101-04.00)? | Yes, all our spare parts are 100% OEM-compatible with the Honghua HHF 1000 mud pump crosshead assembly (GH3101-04.00). They match original dimensions, material specifications, and performance standards, requiring no modifications for installation. |
| What is the recommended service life of the GH3101-04.17 Crosshead Bearing (5G254936Q)? | Under normal operating conditions (regular lubrication, clean environment), the crosshead bearing has a service life of 9,000+ operating hours. We recommend inspecting it every 500 hours and lubricating it with ISO VG 220 gear oil to extend its life. |
| How do I resolve crosshead misalignment issues? | Crosshead misalignment is typically caused by worn shim sets or slides. First, replace the GH3101-04.19.00 Shim Set with our compatible part to adjust alignment. If the slides are worn (exceeding 0.3mm), replace them as well. Clean and lubricate the sliding surfaces to ensure smooth motion, and check the crosshead pin for wear. |
Spare Parts Supply
We specialize in supplying high-quality, OEM-compatible spare parts for the Honghua HHF 1000 Mud Pump Crosshead Assembly (GH3101-04.00), covering all 31 components—from crossheads and bearings to seals, slides, and fastening hardware. Our parts meet API 7K and ISO 9001 standards, with each part tested for load-bearing capacity, wear resistance, and dimensional accuracy, backed by a 12-month quality guarantee against manufacturing defects.
Whether you need a single oil seal, crosshead bearing, shim set, or a complete maintenance kit, we offer flexible procurement options to meet your operational needs. Our parts are designed to reduce maintenance time, lower repair costs, and ensure your Honghua HHF 1000 crosshead assembly operates at peak efficiency, delivering smooth power transmission and minimizing downtime.
