Product Overview

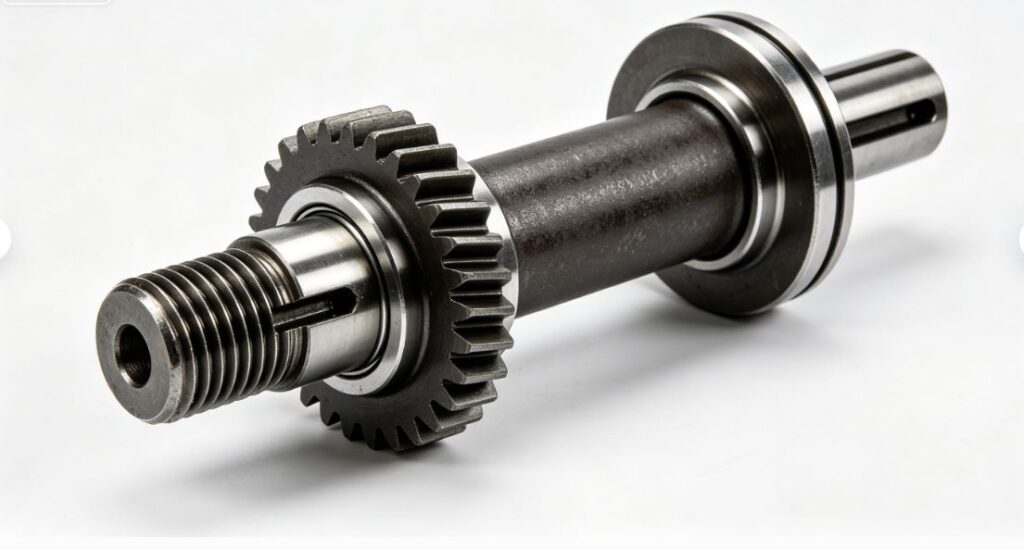

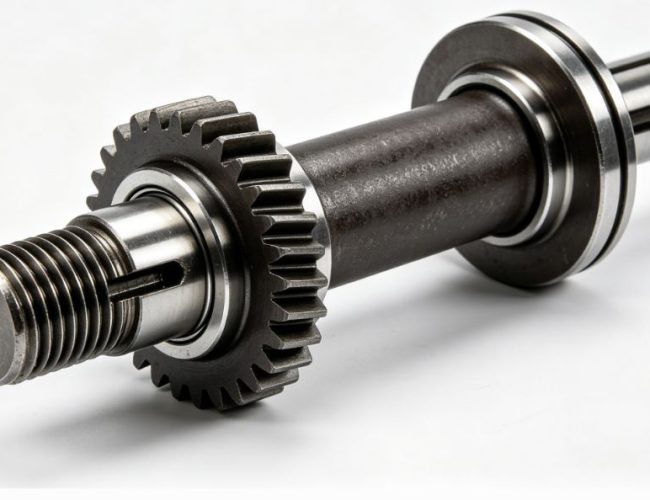

The Honghua HHF 1000 Pinion Shaft Assembly is a precision-engineered power transmission system consisting of 19 interrelated components that work together to deliver stable torque and rotational power. Our spare parts cover every critical element of this assembly, including: core power transmission components; bearing and housing components ; sealing elements ; lubrication components ; and fastening hardware. All parts match OEM dimensions exactly, ensuring hassle-free installation and consistent mechanical performance, with no modifications required for integration into the Honghua HHF 1000 mud pump.
Function
The primary function of the Honghua HHF 1000 Pinion Shaft Assembly is to transmit rotational power from the pump’s drive motor to the crankshaft, which then converts this rotational motion into the linear reciprocating motion needed for the fluid end to operate. The assembly operates through a precise mechanical mechanism: the GH3101-03.02B Widened Pinion Shaft is connected to the drive motor via the GH3101-03.01 Key, which ensures a secure, slip-free connection.
Maintenance & Care Recommendations
Proper maintenance of the pinion shaft assembly is critical to ensuring stable power transmission and preventing costly mechanical failures. Follow these practical, on-site guidelines to maximize component life and pump reliability:
- Inspect all oil seals (GH3101-03.11) and seal gaskets every 200 operating hours for wear, cracks, or damage. Replace worn seals and gaskets with our compatible parts to prevent lubricant leakage, which can cause bearing failure.
- Check the GH3101-03.12 Bearings (4G32840H) every 500 operating hours for noise, overheating, or play. Lubricate the bearings with high-quality gear oil (ISO VG 220) and replace them if they show signs of wear or damage.
- Inspect the pinion shaft (GH3101-03.02B) every 800 operating hours for gear wear, cracks, or misalignment. Use a dial indicator to check alignment (tolerance ±0.02mm) and replace the shaft if wear exceeds 0.2mm.
- Tighten all bolts every 200 operating hours to the recommended torque (120 N·m for 7/8-9UNC bolts, 80 N·m for 1/2-13UNC bolts). Replace any worn or damaged fasteners with our compatible parts to ensure component stability.
- Clean the oil troughs (GH3101-03.10.00) every 300 operating hours to remove debris and ensure proper lubricant flow. Refill with clean gear oil and check for metal particles, which may indicate internal wear.
- Inspect the flange (GH3101-03.13) and key (GH3101-03.01) every 400 operating hours for wear or damage. Replace the key if it shows signs of deformation, and ensure the flange is securely fastened to prevent slip.
- Store spare parts in a clean, dry environment (0°C–25°C) to prevent corrosion. Keep bearings and seals in sealed containers to avoid damage from dust or moisture, and avoid storing pinion shafts in positions that could cause bending.
We supply the following spare parts:
| 3 GH3101-03.00 Pinion shaft assembly | ||
| No. | Drawing No. | Name |
| 1 | GH3101-03.01 | key:2″X2″X203 |
| 2 | GH3101-03.02B | Pinion Shaft(widened) |
| 3 | GH3101-03.03 | Sleeve |
| 4 | GH3101-03.04 | End cover |
| 5 | GH3101-03.05 | Seal gasket |
| 6 | GH3101-03.06 | Seal gasket |
| 7 | GH3101-03.07 | Bearing Housing |
| 8 | GH3101-03.08 | Retainer ring |
| 9 | GH3101-03.09 | Seal gasket |
| 10 | GH3101-03.10.00 | Oil trough |
| 11 | American standard (item 11) | Bolt:1/2-13UNC-2AX35 |
| 12 | American standard (item 12) | Bolt:7/8-9UNC-2AX52 |
| 13 | GH3101-03.11 | Oil seal:8.5″X10.5″X0.625″ |
| 14 | GH3101-03.12 | Bearing:4G32840H |
| 15 | GB/T93-1987 | Washer :22 |
| 16 | GB/T93-1987 | Washer : 14 |
| 17 | GH3101-03.13 | Flange |
| 18 | American standard (item 18) | Bolt:5/8-11UNC-2AX50 |
| 19 | GB/T93-1987 | Washer : 16 |
On-Site Fault Maintenance Cases
Case 1: Lubricant Leakage & Bearing Overheating
Scenario: An onshore rig reported significant lubricant leakage from the pinion shaft assembly and excessive bearing overheating (temperature exceeding 115°C). The pump’s vibration increased, and rotational speed became unstable.
Root Cause: The GH3101-03.11 Oil Seal (8.5″X10.5″X0.625″) was worn and cracked, causing lubricant leakage. Without sufficient lubrication, the GH3101-03.12 Bearings experienced excessive friction, leading to overheating and increased vibration.
Solution: Replaced the worn oil seal with our compatible part, refilled the assembly with ISO VG 220 gear oil, and cleaned the oil troughs to remove debris. After maintenance, the bearing temperature dropped to 78°C, lubricant leakage stopped, and the pump’s vibration returned to normal levels.
Case 2: Pinion Shaft Misalignment & Gear Damage
Scenario: A drilling team noticed abnormal noise from the power end and reduced pump efficiency. Inspection revealed the pinion shaft was misaligned, causing uneven gear wear and excessive stress on the bearings.
Root Cause: The GH3101-03.08 Retainer Rings were worn, allowing the pinion shaft to shift out of alignment. The bearing housing also had minor damage, exacerbating the misalignment issue.
Solution: Replaced the retainer rings and damaged bearing housing with our compatible parts, adjusted the pinion shaft alignment to within ±0.02mm, and lubricated all bearings. The gear wear stopped, the abnormal noise was eliminated, and pump efficiency was restored to 100%.
Case 3: Bearing Failure & Pump Shutdown
Scenario: An offshore rig experienced a sudden pump shutdown due to a seized pinion shaft assembly. Inspection revealed the GH3101-03.12 Bearing (4G32840H) had failed completely, with significant damage to the bearing rollers and raceway.
Root Cause: The bearing had not been lubricated for 700 operating hours, leading to dry friction and premature failure. Contaminants had also entered the bearing through a worn seal gasket, accelerating damage to the bearing components.
Solution: Replaced the failed bearing and worn seal gasket with our compatible parts, flushed the assembly to remove contaminants, and refilled it with clean lubricating oil. The pump was back online within 2.5 hours, and the new bearing provided reliable performance for 9,500+ operating hours.
FAQ (Frequently Asked Questions)
| Question | Answer |
| Are your spare parts compatible with the Honghua HHF 1000 mud pump pinion shaft assembly (GH3101-03.00)? | Yes, all our spare parts are 100% OEM-compatible with the Honghua HHF 1000 mud pump pinion shaft assembly (GH3101-03.00). They match original dimensions, material specifications, and performance standards, requiring no modifications for installation. |
| What is the recommended service life of the GH3101-03.12 Bearing (4G32840H)? | Under normal operating conditions (regular lubrication, clean environment), the 4G32840H bearing has a service life of 9,500+ operating hours. We recommend inspecting it every 500 hours and lubricating it with ISO VG 220 gear oil to extend its service life. |
| How do I fix pinion shaft misalignment issues? | Pinion shaft misalignment is typically caused by worn retainer rings, damaged bearing housings, or loose bolts. First, replace the GH3101-03.08 Retainer Rings with our compatible parts. If the bearing housing is damaged, replace it as well. Tighten all bolts to the recommended torque and use a dial indicator to adjust alignment to within ±0.02mm. |
Spare Parts Supply
We specialize in supplying high-quality, OEM-compatible spare parts for the Honghua HHF 1000 Mud Pump Pinion Shaft Assembly (GH3101-03.00), covering all 19 components—from the widened pinion shaft and bearings to seals, gaskets, and fastening hardware. Our parts meet API 7K and ISO 9001 standards, with each part tested for torque-bearing capacity, wear resistance, and dimensional accuracy, backed by a 12-month quality guarantee against manufacturing defects.
