Product Overview
This curated selection of Honghua HHF 1000 pump general frame replacement parts covers all critical structural and functional components from the GH3101 series, including the main frame assembly , crankshaft assembly , pinion shaft assembly , crosshead assembly and supporting parts like seal gaskets, adjusting shims, and fasteners. Each part is precision-manufactured to match the original Honghua OEM specifications, ensuring seamless integration with existing HHF 1000 pump systems—no custom modifications required. The lineup prioritizes durability, corrosion resistance, and load-bearing capacity to withstand the high-pressure, high-vibration conditions of drilling operations, making it the reliable choice for maintaining pump integrity.
Core Functional Specifications
These general frame parts are engineered to support the Honghua HHF 1000 pump’s core operations: the main frame assembwithstands operating pressures up to 40MPa and cyclic loads exceeding 100,000 lbs; crankshaft and pinion shaft assemblies deliver smooth power transmission with rotational accuracy of ±0.002 inches; crosshead assemblies ensure precise linear movement to maintain fluid end efficiency; and seal gaskets and pads provide leak-proof performance, preventing hydraulic fluid and drilling mud contamination. Fasteners meet American standard torque requirements, ensuring secure component attachment under high vibration.
Structural Design Features

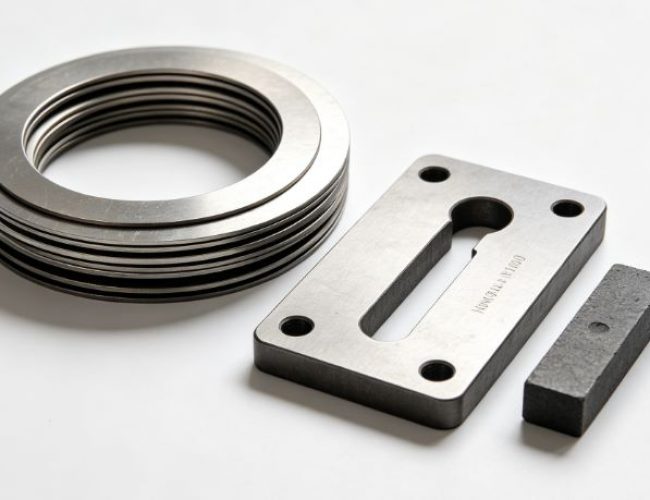

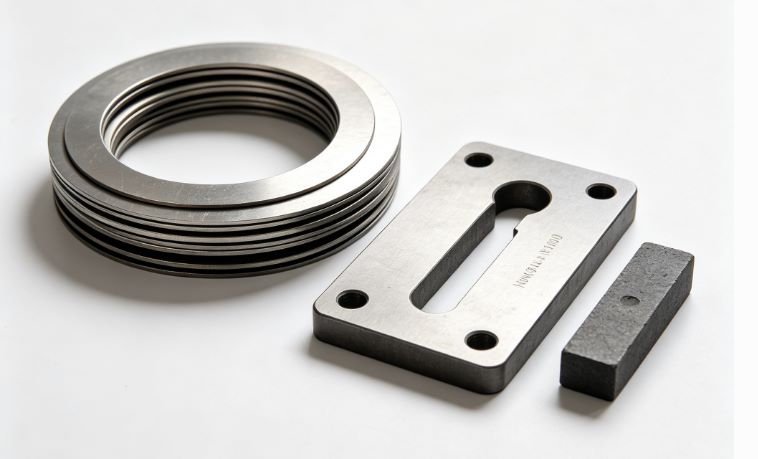

Every component is built for rugged drilling conditions and easy maintenance: the main frame (GH3101-01.01.00) is fabricated from high-strength carbon steel with a normalized heat treatment to enhance impact resistance and reduce fatigue; main bearing covers (GH3101-01.02) feature precision-machined mounting surfaces to ensure proper bearing alignment; shim sets (GH3101-01.03) allow fine-tuning of bearing preload, extending bearing life by up to 40%; and seal components (gaskets, pads) are made from high-temperature, oil-resistant elastomers that resist degradation from hydraulic fluids and drilling mud. Modular design allows for single-component replacement, reducing repair time by 50% compared to full frame disassembly.
Maintenance & Service Recommendations
To maximize the lifespan of Honghua HHF 1000 pump general frame components and minimize downtime, follow these industry-proven protocols: inspect the main frame and bearing covers for cracks or misalignment every 1,000 operating hours; check seal gaskets and pads for leaks monthly, replacing them if wear exceeds 0.005 inches; lubricate crankshaft and pinion shaft bearings every 250 hours using high-pressure, anti-wear lubricant (NLGI 2 grade); use shim sets (GH3101-01.03) to maintain proper bearing clearance (0.001-0.003 inches); and torque all fasteners to OEM specifications (1/2-inch bolts: 45 ft-lbs; 1-inch bolts: 180 ft-lbs) during installation. Document all part replacements and inspections to track wear patterns and schedule proactive maintenance.
We supply the following spare parts:
| CONTENTS | ||
| I GH3101-00 HHF-1000 General drawing of drilling pump | ||
| II Parts drawings of drilling pump | ||
| 1 GH3101-01.00Frame assembly | ||
| 2 GH3101-02.00 Crankshaft assembly | ||
| 3 GH3101-03.00 Pinion shaft assembly | ||
| 4 GH3101-04.00 Crosshead assembly | ||
| 5 GH3101-05.00 Fluid end assembly | ||
| 6 GH3101-06.00 End cover | ||
| 7 GH3101-08.00Liner spraying assembly | ||
| 8 GH3101-10.00 Breather cap | ||
| 9 GH3101-15.00Oil level gauge | ||
| 10 GH3101-17.00Clean out cover | ||
| 11 GH3101-22.00Draining filter assembly | ||
| 12 GH3101-27.00 KB-75Surge damper | ||
| 13 GH3101-28.00A JA-3 Relieve valve | ||
| GH3161-22.00BElbow assembly | ||
| HHF-1000 Drilling pump parts list | ||
| I GH3101-00 HHF-1000 General drawing of drilling pump | ||
| GH3101-00 HHF-1000 drilling pump | ||
| No. | Drawing No. | Name |
| 1 | GH3101-01.00 | Frame assembly |
| 2 | GH3101-02.00 | Crankshaft assembly |
| 3 | GH3101-03.00 | Pinion shaft assembly |
| 4 | GH3101-04.00 | Crosshead assembly |
| 5 | GH3101-05.00 | Fluid end assembly |
| 6 | American standard (item 6) | Screw :8 (0.164)-32UNC-2AX10 |
| 7 | GH3101-06.00 | Power end lube assembly |
| 8 | GH3101-07.00 | substructure |
| 9 | GH3101-08.00 | spraying pump assembly |
| 10 | GH3101-09 | Seal gasket |
| 11 | GH3101-10.00 | Breather cap |
| 12 | GH3101-11A | Nameplate |
| 13 | GH3101-12.00 | Cover plate assembly |
| 14 | American standard (item 14) | Bolt:1/2-13UNC-2AX35 |
| 15 | GB/T97.1-1985 | Washer : 14 |
| 16 | GH3101-13 | Seal pad |
| 17 | GH3101-14 | Indication plate |
| 18 | GH3101-15.00 | Oil level gauge |
| 19 | GH3101-16 | Adjusting gasket |
| 20 | GH3101-17.00 | Clean out cover |
| 21 | GB/T97.1-1985 | Washer : 16 |
| 22 | American standard (item 14) | Bolt:1/2-13UNC-2AX35 |
| 23 | GH3101-18 | Seal gasket |
| 24 | GH3101-19 | Screw plug:R1 1/2 |
| 25 | GH3101-20 | Cover, crosshead hole |
| 26 | American standard (item 26) | Bolt:5/8-11UNC-2AX45 |
| 27 | GH3101-21 | Seal pad |
| 28 | GH3101-22.00 | Draining filter assembly |
| 29 | American standard (item 29) | Bolt:1-8UNC-2AX90 |
| 30 | GH3101-23 | Ring gasket R44 |
| 31 | GH3161-22.00B | Elbow assembly |
| 32 | GH3101-25.00 | Special tools |
| 33 | GH3101-26 | Flange:5 1/8X35 |
| 34 | American standard (item 26) | Bolt:5/8-11UNC-2AX45 |
| 35 | GH3101-27.00 | KB-75Surge damper |
| 36 | GH3101-28.00A | JA-3Relieve valve |
| 37 | GH3101-29.00 | Spare parts delivered with |
| 38 | GH3101-30.00 | Cover plates assembly |
| 39 | GH3101-31 | Nut:1-8UNC-2B(SPL) |
| 40 | GH3101-32 | Nut:5/8-8UNC-2B(SPL) |
| 41 | GB/T93-1987 | Washer :27 |
| 42 | GB/T827-1986 | rivet:3X10 |
| 43 | Rubber:30X10X4880 | |
| 44 | YK-150 | Pressure gauge: 0—40MPa(0—5800psi) |
| 45 | American standard (item 45) | Bolt:1-8UNC-2AX70 |
| II Parts drawings of drilling pump | ||
| 1 GH3101-01.00Frame assembly | ||
| No. | Drawing No. | Name |
| 1 | GH3101-01.01.00 | frame |
| 2 | GH3101-01.02 | Main bearing cover |
| 3 | GH3101-01.03 | Shim set |
| 4 | GH3101-01.04 | Connector :NPT3/4-NPT3/4 |
| 5 | GH3101-01.05 | Screw plug:NPT3/4 |
Field Failure Repair Case Studies
Case 1: Frame Misalignment Causing Bearing Failure
A land drilling rig’s Honghua HHF 1000 pump experienced frequent main bearing failures, leading to costly downtime. Inspection revealed frame misalignment due to worn shim sets (GH3101-01.03). Technicians replaced the shims, realigned the main frame, and installed new main bearing covers (GH3101-01.02), restoring proper alignment and extending bearing life to over 1,500 operating hours—up from 300 hours previously.
Case 2: Seal Gasket Leakage Leading to Fluid Contamination
An offshore rig reported hydraulic fluid leaks from the HHF 1000 pump’s frame assembly, contaminating the power end and causing corrosion. The GH3101-09 seal gaskets had degraded from saltwater exposure. Replacing the gaskets with OEM-compatible parts, cleaning the power end, and applying corrosion-resistant lubricant resolved the leak and prevented further component damage, getting the pump back online in 3 hours.
Case 3: Crosshead Assembly Wear Reducing Pump Efficiency
A directional drilling team noticed a 20% drop in HHF 1000 pump efficiency, with excessive noise from the power end. Inspection showed worn crosshead assemblies (GH3101-04.00) and misaligned pins. Replacing the crosshead assemblies and adjusting the shim sets restored pump efficiency to 98% and eliminated noise, avoiding a costly fluid end overhaul.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these parts compatible with all Honghua HHF 1000 drilling pump models? | Yes, all parts are precision-manufactured to match Honghua’s OEM specifications for the HHF 1000 pump, including the GH3101 series frame components, and are fully compatible with all HHF 1000 pump configurations—no modifications are needed for installation. |
| Do these parts meet international quality standards for drilling pumps? | Absolutely. All components comply with API 7K drilling pump standards, ISO 9001 quality certifications, and relevant GB/T and American standards for fasteners and seals, ensuring reliability and compliance with global drilling regulations. |
| Can I use these parts for both routine maintenance and emergency repairs? | Yes, this parts list includes everyday wear items (seal gaskets, shims, fasteners) and critical emergency components (frame assemblies, crosshead assemblies, bearing covers) to cover all HHF 1000 pump general frame maintenance and repair needs. |
Procurement Guidance
This Honghua HHF 1000 pump general frame replacement parts list is your definitive resource for sourcing high-quality, OEM-compatible components that ensure the structural integrity and long-term performance of your drilling pump. As the backbone of the HHF 1000 pump, the general frame components directly impact operational efficiency and downtime—investing in these premium parts reduces repair costs, extends pump service life, and keeps your drilling operations on schedule.
