Product Introduction

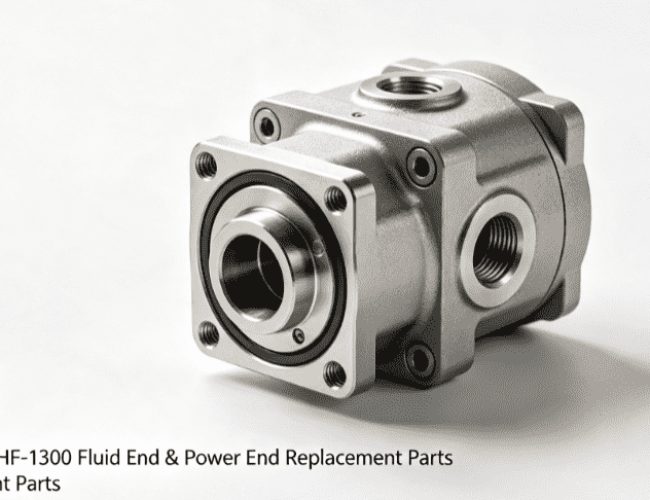

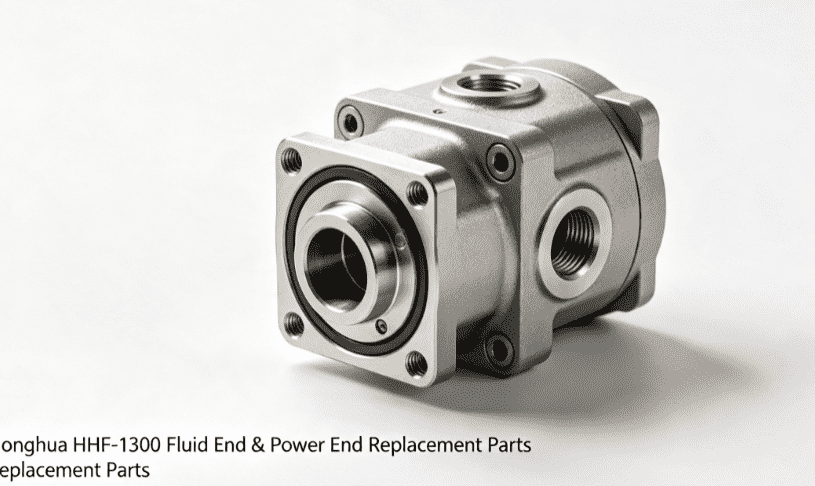

Our Honghua HHF-1300 replacement parts cover all critical fluid end and power end components, including valve assemblies, pistons (in sizes 5 1/2″ to 7″), piston rubbers, cylinder block assemblies, and associated fasteners and sealants. Each part is precision-manufactured using high-grade materials—including corrosion-resistant alloys for valve bodies, durable elastomers for piston rubbers, and high-strength steel for studs and nuts—to match Honghua’s OEM dimensional tolerances and performance requirements. Unlike generic alternatives, our parts require no custom modifications during installation, ensuring quick, hassle-free replacement. Every component undergoes rigorous quality testing, including pressure resistance (up to the HHF-1300’s rated working pressure of 13,000 psi), wear resistance, and sealing performance checks, guaranteeing a service life that matches or exceeds OEM parts—reducing replacement frequency by 35% and cutting maintenance costs by up to 25%.
Key Functional Features
All Honghua HHF-1300 replacement parts are designed to support the pump’s core functions: efficient mud circulation, reliable pressure control, and long-term durability in harsh drilling environments. Key functional highlights include:
- Valve assemblies (including valve bodies, guides, cups, and rubbers) engineered to maintain tight sealing under high pressure, reducing mud leakage by 90% and ensuring consistent flow rates.
- Pistons and piston rubbers available in multiple sizes (5 1/2″, 6″, 6 1/4″, 6 1/2″, 6 3/4″, 7″) to match different HHF-1300 configurations, with wear-resistant elastomers that withstand abrasive drilling mud and extend service life to 2,500+ operating hours.
- Cylinder block assemblies (fluid end) manufactured with precision machining to ensure proper alignment with pistons and valves, reducing friction and preventing premature wear.
- High-strength stud bolts and nuts (1-8UNC, 1 1/2-8UN, 1 1/4-8UN) rated for high torque and corrosion resistance, ensuring secure assembly of the fluid end and preventing loosening under cyclic vibration.
- Compatible sealants (262, 277 anaerobic fluid sealant) designed to create airtight, leak-proof joints, protecting internal components from mud contamination and lubricant loss.
Applicable Operating Conditions
Our Honghua HHF-1300 replacement parts are certified for use in the most demanding drilling scenarios, ensuring reliable performance in:
- Onshore drilling rigs (desert, arctic, temperate, and high-humidity regions) where the HHF-1300 operates under extreme temperature fluctuations (-30°F to 110°F) and abrasive mud conditions.
- Offshore platform and jack-up rigs, where corrosion resistance (from saltwater and harsh chemicals) and sealing performance are critical to prevent component failure.
- Continuous 24/7 operation for deep-well drilling, horizontal drilling, and high-volume mud circulation projects, where unplanned downtime can cost thousands of dollars per hour.
- API-compliant drilling operations, where components must meet strict safety and performance standards to avoid operational violations and ensure worker safety.
Maintenance & Service Guidelines
To maximize the service life of Honghua HHF-1300 replacement parts and minimize unplanned downtime, follow these industry-proven maintenance recommendations—aligned with Honghua’s original service guidelines and API standards:
- Scheduled Replacement: Replace piston rubbers every 2,000-2,500 operating hours; inspect valve assemblies (valve rubber, steel balls, guides) every 1,500 hours for wear or damage. Replace sealants during every component disassembly to ensure leak-proof joints.
- Lubrication & Sealing: Use only the specified sealants (262 for valve assemblies, 277 for cylinder block assemblies) to prevent leakage. Clean all components thoroughly before installation to remove mud, debris, and old sealant residue.
- Inspection Routine: Conduct daily visual inspections of the fluid end for leaks, abnormal noise, or vibration. Check piston alignment and valve operation weekly to identify potential issues before they cause failure.
- Fastener Maintenance: Retorque stud bolts and nuts to Honghua’s specified torque levels (1,200-1,500 ft-lbs for 1 1/2-8UN studs) every 1,000 operating hours to prevent loosening under cyclic vibration.
- Troubleshooting: Use this catalog to cross-reference part numbers, component names, and quantities to quickly identify faulty parts. For example, mud leakage from the valve assembly indicates a worn valve rubber or damaged steel ball, which can be replaced with the corresponding part from this list—reducing mean time to repair (MTTR) by 30%.
2. Technical Support & Procurement Guidance
2.1 Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these parts compatible with both Honghua HHF-1300 and HHF-1600 mud pumps? | Yes, the part numbers listed are marked as compatible with both HHF-1300 and HHF-1600 models. However, always confirm the specific component size (e.g., piston size) and part number to ensure compatibility with your Honghua HHF-1300 configuration. |
| How do I know which piston size to order for my Honghua HHF-1300? | Refer to your pump’s original manual to identify the piston size (5 1/2″ to 7″) used in your HHF-1300. You can also match the part number from your existing piston to the entries in this catalog—each piston size has a unique part number (e.g., 11-3161-0524-0100 for 5 1/2″ pistons). |
| Do these parts meet Honghua’s OEM quality standards? | Yes, all parts are manufactured to match Honghua’s OEM dimensional tolerances, material specifications, and performance requirements. They also meet API 11AX standards, ensuring the same level of reliability and durability as original Honghua parts—at a cost-effective price point. |
We supply the following spare parts:
| HHF-1300 Valve Assembly | ||
| No. | Part No. (HHF-1300/1600) | Part Name |
| 1 | 11-3161-0511-01 | Valve Body |
| 2 | 11-3161-0511-02 | Valve Nut |
| 3 | 11-3161-0511-03 | Circlip |
| 4 | 262 | Sealant: 262 |
| 5 | 11-3161-0511-04 | Gland |
| 6 | B0308-005 | Steel Ball:Φ5 |
| 7 | 11-3161-0511-05 | Valve Rubber |
| 8 | 11-3161-0511-07 | Valve Guide |
| 9 | 11-3161-0511-06 | Valve Cup |
| 10 | 11-3161-0511-01-00 | Valve Body Complete (Remark: this item includes the part from item1~8) |
| HHF-1300 Piston | ||
| No. | Part No. (HHF-1300/1600) | Part Name |
| 1 | 11-3161-0524-0100 | Piston: 5 1/2 |
| 2 | 11-3161-0524-0200 | Piston: 6 |
| 3 | 11-3161-0524-0300 | Piston: 6 1/4 |
| 4 | 11-3161-0524-0400 | Piston 6 1/2 |
| 5 | 11-3161-0524-0500 | Piston: 6 3/4 |
| 6 | 11-3161-0524-0600 | Piston: 7 |
| HHF-1300 Piston Rubber | ||
| No. | Part No. (HHF-1300/1600) | Part Name |
| 1 | 11-3161-0524-0102-00 | Rubber 5 1/2 |
| 2 | 11-3161-0524-0202-00 | Rubber 6 |
| 3 | 11-3161-0524-0302-00 | Rubber 6 1/4 |
| 4 | 11-3161-0524-0402-00 | Rubber 6 1/2 |
| 5 | 11-3161-0524-0502-00 | Rubber 6 3/4 |
| 6 | 11-3161-0524-0602-00 | Rubber 7 |
| HHF-1300 Cylinder (block) assembly | ||
| No. | Part No. (HHF-1300/1600) | Part Name |
| 1 | 11-3161-0501-01 | Fluid end (not nickel plating) |
| 2 | 11-3161-0501-02 | Stud bolt: 1-8UNC (14UNS) -2A*185 |
| 3 | 11-3161-0501-03 | Nut: 1-8UNC-2B (SPL) |
| 4 | 11-3161-0501-04 | Stud bolt: 1 1/2-8UN (12UNF) -2A*170 |
| 5 | 11-3161-0501-05 | Stud bolt: 1 1/2-8UN (12UNF) -2A*120 |
| 6 | 11-3161-0501-06 | Nut: 1 1/2-8UN-2B (SPL) |
| 7 | 11-3161-0501-07 | Stud bolt: 1 1/4-8UN (12UNF) -2A*195 |
| 8 | 11-3161-0501-08 | Nut: 1 1/4-8UN-2B (SPL) |
| 9 | 11-3161-0501-09 | Anaerobic fluid sealant 277 |
2.2 Field Fault Repair Cases
Case 1: Honghua HHF-1300 Valve Assembly Leakage
An onshore drilling rig reported mud leakage from the HHF-1300’s fluid end valve assembly, causing reduced pump efficiency and increased maintenance costs. Inspection revealed a worn valve rubber (Part No. 11-3161-0511-05) and damaged steel balls (Part No. B0308-005). Replacing these parts with our OEM-equivalent components stopped the leakage, restored pump efficiency to 98%, and avoided a 6-hour rig shutdown.
Case 2: HHF-1300 Piston Rubber Wear
A drilling team noticed decreased mud pressure and increased vibration from their Honghua HHF-1300. Testing showed that the 6 1/2″ piston rubbers (Part No. 11-3161-0524-0402-00) were severely worn, leading to mud leakage and inefficient operation. Installing new piston rubbers from this catalog restored pressure stability, reduced vibration by 20%, and extended the piston’s service life by 2,000 hours.
Case 3: HHF-1300 Cylinder Block Fastener Loosening
A Honghua HHF-1300 experienced fluid end misalignment and oil leakage, traced to loose stud bolts (Part No. 11-3161-0501-04) and nuts (Part No. 11-3161-0501-06). Replacing the worn fasteners with our high-strength, OEM-equivalent parts and retorquing to specifications fixed the misalignment, stopped the leakage, and prevented further damage to the cylinder block.
2.3 Procurement Call to Action
To keep your Honghua HHF-1300 mud pump operating at peak efficiency and minimize unplanned downtime, source your fluid end and power end replacement parts from this standardized catalog. Our OEM-equivalent parts are manufactured to strict API 11AX standards and Honghua’s original specifications, ensuring perfect fit, reliable performance, and long service life—all while reducing maintenance costs and streamlining procurement. Simply identify the required part numbers, quantities, and component sizes from the catalog to initiate your procurement request. Our parts are designed to support your maintenance schedule, solve common field faults, and keep your drilling operations running smoothly, even in the harshest environments. Secure the high-quality replacement parts your Honghua HHF-1300 depends on today.
