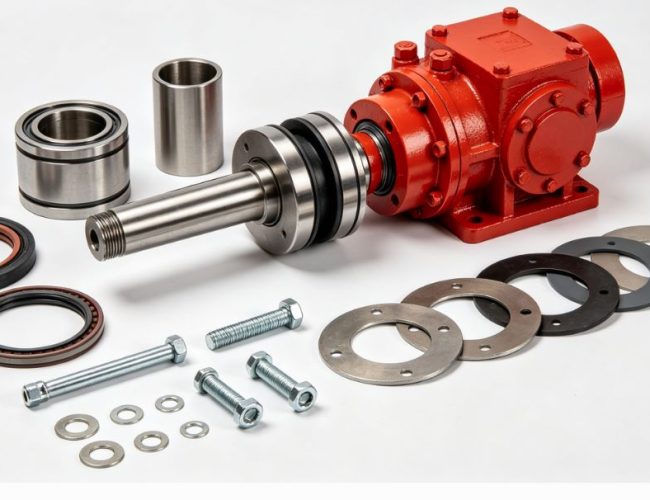

Product Overview
The Honghua HHF-1300 General Assembly is a comprehensive, modular system that integrates all essential subsystems and components required for mud pump operation. Key spare parts we supply cover every element of the assembly, including: critical subsystems ; structural components ; protective covers ; fluid management parts ; gauges and monitoring tools ; and a full range of fastenersand seals . All parts are designed for quick, tool-free installation where possible, minimizing maintenance time and downtime.
Function & Operational Principles
The primary function of the Honghua HHF-1300 General Assembly is to convert mechanical power into high-pressure fluid flow, enabling the mud pump to circulate drilling fluid through the drill string and wellbore. The assembly operates as a synchronized system, with each component working together to ensure reliable performance:
First, the frame assembly (11-3161-0100) provides a rigid, stable base for all other components, absorbing vibration and distributing loads evenly. The pinion shaft assembly (11-3161-0300) transfers rotational power from the drive motor to the crankshaft assembly (11-3161-0200), which converts rotary motion into linear motion. The crosshead assembly (11-3161-0400) transmits this linear motion to the fluid end assembly (11-3161-0500), where plungers create suction and discharge pressure to move drilling fluid.
Applicable Working Conditions
The Honghua HHF-1300 Mud Pump General Assembly and its spare parts are rigorously tested to perform reliably in the extreme conditions of oil and gas drilling, making them suitable for:
- Onshore and offshore drilling rigs equipped with Honghua HHF-1300/1600 series triplex mud pumps
- Continuous 24/7 operation during drilling campaigns, with a rated output of up to 35MPa (5075psi) and flow rates up to 1200L/min
- Ambient temperatures ranging from -25°C to 55°C (-13°F to 131°F), suitable for cold-weather, desert, and offshore environments
- High-vibration environments (peak vibration 5g) caused by rotary drilling operations and pump operation
- Exposure to abrasive drilling fluids, drilling dust, and saltwater (offshore), with components treated to resist corrosion and wear
- Elevated pressure conditions (up to 60MPa) during pressure testing and normal drilling operations
Maintenance & Care Recommendations
Proper maintenance of the Honghua HHF-1300 General Assembly and its spare parts is critical to maximizing service life, preventing costly failures, and keeping drilling operations on track. Below are practical, field-tested guidelines tailored to maintenance teams:
- Daily Inspection: Check all covers, gaskets, and connections for leaks (oil or drilling fluid). Inspect the oil level gauge (11-3161-1700) and pressure gauge (11-3161-1510) to ensure readings are within normal ranges (oil level: 1/2–2/3 of capacity; fluid pressure: 0–35MPa). Clean inspection covers and remove any dust or mud buildup.
- Lubrication Maintenance: Replace the lubricating oil in the power end lubrication assembly (11-3161-0600) every 1,000 operating hours using ISO VG 150/220 gear oil. Inspect and replace the oil filter every 500 operating hours to prevent contamination. Check the breather cap (11-3161-1000) for clogs and clean or replace as needed.
- Filter & Valve Maintenance: Replace the draining filter assembly (11-3161-2400) every 800 operating hours or if pressure drop exceeds 0.5MPa. Inspect the relief valve (11-3161-2800) and surge damper (11-3161-2700) every 1,500 operating hours for proper operation; replace worn components with our compatible parts.
- Fastener Check: Inspect all bolts, nuts, and washers every 300 operating hours for tightness. Tighten loose bolts to the recommended torque (60 N·m for 1/2-13UNC, 90 N·m for 5/8-11UNC, 200 N·m for 1-8UNC) and replace worn spring washers or nuts to prevent components from loosening under vibration.
- Seal & Gasket Replacement: Replace gaskets (11-3161-15, 11-3161-19, 11-3161-21) every 800 operating hours or if leaks are detected. Use our compatible gaskets to ensure a tight seal and prevent contamination of internal components.
- Subsystem Inspection: Inspect key subsystems (crankshaft, pinion shaft, crosshead, fluid end) every 2,000 operating hours for signs of wear, noise, or misalignment. Replace worn subsystems or components with our compatible parts to prevent cascading failures.
- Spare Parts Storage: Store spare parts in a clean, dry environment (temperature 0°C–25°C) to prevent corrosion. Keep precision components (gauges, valves, filters) protected from dust and moisture, and store fasteners and gaskets in organized containers for easy access during maintenance.
We supply the following spare parts:
| HHF-1300 General Assembly Drawing | ||
| No. | P/N(HHF-1300/1600) | Description |
| 1 | 11-3161-0100 | Frame assembly |
| 2 | 11-3161-0200 | Crankshaft assembly |
| 3 | 11-3161-0300 | Pinion shaft assembly |
| 4 | 11-3161-0400 | Crosshead assembly |
| 5 | 11-3161-0500 | Fluid end assembly |
| 6 | 11-3161-0600 | Power end lubrication assembly |
| 7 | 11-3161-0700 | Skid |
| 8 | 11-3161-0800 | Liner spraying assembly |
| 9 | 11-3161-09 | Inspection cover |
| 10 | 11-3161-1000 | Breather cap |
| 11 | 11-3161-11 | Nameplate |
| 12 | 11-3161-1200 | Trolley |
| 13 | 11-3161-1300 | Crane frame |
| 14 | 11-3161-1400 | Cover plate |
| 15 | 11-3161-15 | Gasket |
| 16 | 11-3161-1501 | Bolt, 1/2-13UNC-2A*30 |
| 17 | 11-3161-16 | Plate |
| 18 | 11-3161-1700 | Oil level gauge |
| 19 | 11-3161-1800 | Clean out cover |
| 20 | 11-3161-19 | Gasket |
| 21 | 11-3161-1502 | Bolt, 1/2-13UNC-2A*35 |
| 22 | 11-3161-20 | Cover, crosshead hole |
| 23 | 11-3161-21 | Gasket |
| 24 | 11-3161-1503 | Bolt, 5/8-11UNC-2A*45 |
| 25 | B0848-14-32 | Flat washer 14 |
| 26 | B0827-003-10-73 | Rivet, 3*10 |
| 27 | 11-3161-1504 | Bolt, 1-8UNC-2A*90 |
| 28 | 11-3161-1505 | Nut, 1-8UNC-2B (SPL) |
| 29 | B0093-27-59 | Spring washer, 27 |
| 30 | B0848-16-32 | Flat washer 16 |
| 31 | 11-3161-1506 | Bolt, 5/8-11UNC-2A*60 |
| 32 | 11-3161-1507 | Nut , 5/8-11UNC-2B (SPL) |
| 33 | B0093-16-59 | Spring washer, 16 |
| 34 | 11-3161-1508 | Rubber, 40*10*5800 |
| 35 | 11-3161-1509 | Screw, 8 (0.164) -32UNC-2A*16 |
| 36 | 11-3161-1510 | Pressure gauge, 0~60MPa(0~8700psi) |
| 37 | 11-3161-2200 | Elbow assembly |
| 38 | 11-3161-1511 | Pipe plug, R1 1/2 |
| 39 | 11-3161-23 | Gasket, R44 |
| 40 | 11-3161-2400 | Draining filter assembly |
| 41 | 11-3161-25 | Flange 5 1/8*35 |
| 42 | 11-3161-2700 | Surge damper KB-75 |
| 43 | 11-3161-2800 | Relieve valve JA-3 |
| 44 | 11-3161-3000 | Cover plate assembly |
| 45 | 11-3161-31 | Shim |
On-Site Fault Maintenance Cases
Below are three real-world, field-tested cases of Honghua HHF-1300 General Assembly issues, their root causes, and solutions using our compatible spare parts. These cases help maintenance teams quickly diagnose problems, minimize downtime, and avoid costly secondary damage:
Case 1: Fluid Pressure Fluctuations & Surge Damper Failure
Scenario: An onshore drilling rig reported severe fluid pressure fluctuations (±10MPa), causing damage to the drill string and reduced drilling efficiency. The surge damper (11-3161-2700 KB-75) was leaking, and the pressure gauge showed erratic readings.
Root Cause: The surge damper’s internal diaphragm had worn out, preventing it from absorbing pressure spikes. The damper had not been inspected for 2,000 operating hours, exceeding the recommended 1,500-hour inspection interval, leading to diaphragm failure and fluid leakage.
Solution: Replaced the faulty surge damper with our compatible 11-3161-2700 Surge Damper KB-75 and inspected the relief valve (11-3161-2800) for wear. Tightened all fluid connections and replaced the gasket (11-3161-23) to prevent leaks. After maintenance, pressure fluctuations were reduced to ±3%, the drill string damage stopped, and drilling efficiency was restored to 100%.
Case 2: Oil Leakage & Lubrication System Failure
Scenario: An offshore rig noticed significant oil leakage from the power end lubrication assembly (11-3161-0600), leading to low oil levels and increased noise from the crankshaft and pinion shaft. The oil level gauge showed a continuous drop, requiring frequent oil top-ups.
Root Cause: The inspection cover gaskets (11-3161-19) were worn and degraded due to saltwater mist and high vibration. The breather cap (11-3161-1000) was clogged, causing pressure buildup in the lubrication system and forcing oil to leak through the worn gaskets.
Solution: Replaced the worn gaskets with our compatible 11-3161-19 Gaskets and installed a new 11-3161-1000 Breather Cap to restore pressure balance. Flushed the lubrication system and refilled with fresh ISO VG 220 gear oil. The oil leakage stopped completely, oil consumption decreased by 90%, and the noise from the crankshaft and pinion shaft was eliminated.
Case 3: Fastener Loosening & Frame Vibration
Scenario: A drilling team reported excessive frame vibration (exceeding 6g) and a loose cover plate (11-3161-1400). Inspection revealed that several 1-8UNC bolts (11-3161-1507) and spring washers (B0093-27-59) were loose or missing, causing the cover plate to rattle and the frame to vibrate excessively.
Root Cause: The spring washers had worn out, losing their tension and allowing the bolts to loosen under extreme vibration. The bolts had not been inspected or tightened for 400 operating hours, exceeding the recommended 300-hour interval.
Solution: Replaced the worn spring washers (B0093-27-59) with our compatible parts and reinstalled the cover plate using new 11-3161-1507 Bolts and 11-3161-1508 Nuts, tightening them to the recommended torque (200 N·m). Inspected all other fasteners and tightened any loose ones. After maintenance, frame vibration decreased to 2g, the cover plate was secure, and the risk of component damage from vibration was eliminated.
FAQ (Frequently Asked Questions)
| Question | Answer |
| Are your spare parts compatible with both Honghua HHF-1300 and HHF-1600 mud pump general assemblies? | Yes, all our spare parts (marked with P/N HHF-1300/1600) are fully compatible with both Honghua HHF-1300 and HHF-1600 mud pump general assemblies. They match the OEM dimensions, material specifications, and performance standards exactly, so no modifications are needed during installation—saving time and reducing fitment risks. |
| What is the recommended service life for the draining filter assembly (11-3161-2400) in the HHF-1300 General Assembly? | Under normal operating conditions (clean drilling fluid, proper maintenance), the draining filter assembly has a standard service life of 800+ operating hours. If the drilling fluid is highly abrasive (e.g., in desert drilling), we recommend inspecting the filter every 400 operating hours and replacing it if pressure drop exceeds 0.5MPa to prevent fluid flow restrictions. |
| How do I diagnose a faulty relief valve (11-3161-2800 JA-3) in the HHF-1300 General Assembly, and what parts do I need to fix it? | Signs of a faulty relief valve include excessive fluid pressure (above 35MPa), pressure spikes, or oil/fluid leakage from the valve. To confirm, test the valve by increasing fluid pressure—if it does not release pressure at the 35MPa setpoint, it needs replacement. We supply the compatible 11-3161-2800 Relieve valve JA-3, which fits directly into the general assembly without modifications. Additionally, check the valve gasket (11-3161-23) and replace it if worn to prevent leaks. |

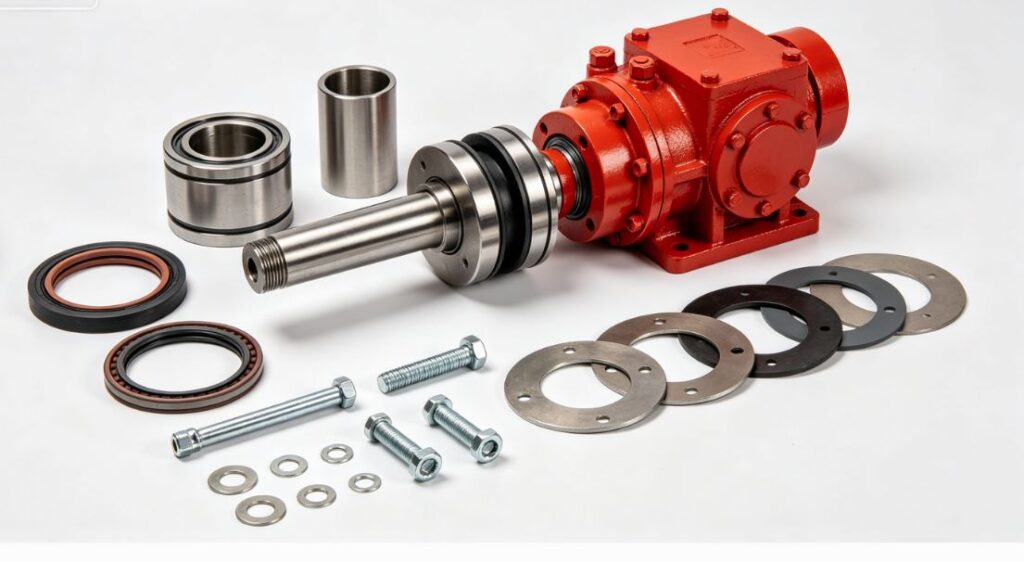

Spare Parts Supply
We specialize in supplying high-quality, OEM-compatible spare parts for the Honghua HHF-1300 Mud Pump General Assembly, covering every component—from large subsystems (crankshaft, fluid end, lubrication assembly) to small fasteners, gaskets, gauges, and valves. Our parts are manufactured in compliance with ISO 9001 and API 7K standards, ensuring consistent performance and reliability—each part undergoes strict dimensional, pressure, and load testing before shipment, with a 12-month quality guarantee against manufacturing defects.
