Product Introduction
This complete HHF-1600 power end parts collection covers four critical fluid end component groups: full valve assemblies (complete kits and individual spares), multi-diameter pistons, compatible piston rubbers, and heavy-duty cylinder block assemblies with fastening hardware. Every part is forged, molded, or precision-machined to directly replace original factory components, eliminating compatibility gaps and reducing repair complexity. Designed for routine preventive maintenance, emergency leak repairs, and full fluid end overhauls, this kit provides a one-stop sourcing solution for durable, high-performance power end parts built to withstand continuous abrasive mud circulation and high-pressure operation.
Functional Description
- Precision Fluid Control: Valve assemblies regulate mud suction and discharge cycles, ensuring one-way flow stability and preventing pressure backflow that causes pump inefficiency.
- High-Pressure Sealing: Pistons and premium piston rubbers create a tight, friction-resistant seal between the piston rod and cylinder liner, maintaining consistent pressure and eliminating mud bypass leakage.
- Structural Load Bearing: Cylinder block assemblies form the rigid housing for all fluid end components, with high-strength stud bolts and nuts securing the structure under extreme operational vibration.
- Abrasion Resistance: Wear-resistant valve rubbers, steel balls, and piston rubbers withstand sand and shale particle erosion, extending replacement cycles and reducing maintenance frequency.
- Leak Prevention: Specialized anaerobic sealants and precision-machined sealing surfaces block external mud leakage and internal fluid cross-contamination.
Structural Characteristics
- High-Strength Valve Construction: Valve bodies are machined from forged alloy steel with precision-ground sealing surfaces; valve rubbers use oil- and abrasion-resistant nitrile rubber for a 12,000+ hour service life.
- Multi-Size Piston Compatibility: Pistons are available in 5 1/2″ to 7″ diameters, paired with custom-molded piston rubbers for exact liner fit, reducing friction and wear by up to 50%.
- Heavy-Duty Fastening System: Grade 12.9 UNC/UN stud bolts and self-locking nuts resist vibration-induced loosening, with torque retention rated for 150+ tons of clamping force.
- Precision Sealing Chemistry: Anaerobic sealant 277 and thread sealant 262 create permanent, pressure-resistant seals on fastener threads, eliminating leak paths at high operating pressures.
- Modular Valve Assembly Design: Complete valve body kits include all internal spares (steel balls, gland, circlip) for quick drop-in replacement, cutting repair time by 60% compared to individual part assembly.
Applicable Operating Conditions
These HHF-1600 power end parts are engineered for reliable performance in extreme drilling scenarios, fully compatible with:
- Honghua HHF-1600 and HHF-1300 quintuple mud pumps used in onshore deep well, shale gas, horizontal well, and conventional oil/gas drilling operations
- High-pressure mud circulation systems with operating pressures up to 70MPa (10,150PSI)
- Abrasive water-based drilling fluids with high sand, shale, and mineral content
- Continuous high-load reciprocating pump operation and high-vibration rig environments
- Ambient temperatures ranging from -30°C (-22°F) to 85°C (185°F), suitable for desert, tropical, and cold-region drilling sites
Maintenance & Care Recommendations
Follow these industry-standard protocols to maximize component lifespan and prevent fluid end failures:
- Daily Inspection: Check for mud leaks around pistons, valves, and cylinder block fasteners; monitor pump pressure for fluctuations indicating seal wear.
- Weekly Maintenance: Tighten stud bolts and nuts to OEM torque specifications, clean valve seats of debris, and inspect piston rubbers for cracking or abrasion.
- Monthly Service: Disassemble valve assemblies to inspect steel balls and valve guides for wear, replace damaged piston rubbers, and reapply anaerobic sealant to loose fasteners.
- Quarterly Overhaul: Inspect cylinder block sealing surfaces for pitting, replace worn valve complete assemblies, and torque all fasteners to OEM standards.
- Storage Guidelines: Store piston rubbers and valve seals in a cool, dry area away from UV light; coat metal components with anti-corrosive oil to prevent rust.
- We supply the following spare parts:
| HHF-1600 Valve Assembly | ||
| No. | Part No. (HHF-1300/1600) | Part Name |
| 1 | 11-3161-0511-01 | Valve Body |
| 2 | 11-3161-0511-02 | Valve Nut |
| 3 | 11-3161-0511-03 | Circlip |
| 4 | 262 | Sealant: 262 |
| 5 | 11-3161-0511-04 | Gland |
| 6 | B0308-005 | Steel Ball:Φ5 |
| 7 | 11-3161-0511-05 | Valve Rubber |
| 8 | 11-3161-0511-07 | Valve Guide |
| 9 | 11-3161-0511-06 | Valve Cup |
| 10 | 11-3161-0511-01-00 | Valve Body Complete (Remark: this item includes the part from item1~8) |
| HHF-1600 Piston | ||
| No. | Part No. (HHF-1300/1600) | Part Name |
| 1 | 11-3161-0524-0100 | Piston: 5 1/2 |
| 2 | 11-3161-0524-0200 | Piston: 6 |
| 3 | 11-3161-0524-0300 | Piston: 6 1/4 |
| 4 | 11-3161-0524-0400 | Piston 6 1/2 |
| 5 | 11-3161-0524-0500 | Piston: 6 3/4 |
| 6 | 11-3161-0524-0600 | Piston: 7 |
| HHF-1600 Piston Rubber | ||
| No. | Part No. (HHF-1300/1600) | Part Name |
| 1 | 11-3161-0524-0102-00 | Rubber 5 1/2 |
| 2 | 11-3161-0524-0202-00 | Rubber 6 |
| 3 | 11-3161-0524-0302-00 | Rubber 6 1/4 |
| 4 | 11-3161-0524-0402-00 | Rubber 6 1/2 |
| 5 | 11-3161-0524-0502-00 | Rubber 6 3/4 |
| 6 | 11-3161-0524-0602-00 | Rubber 7 |

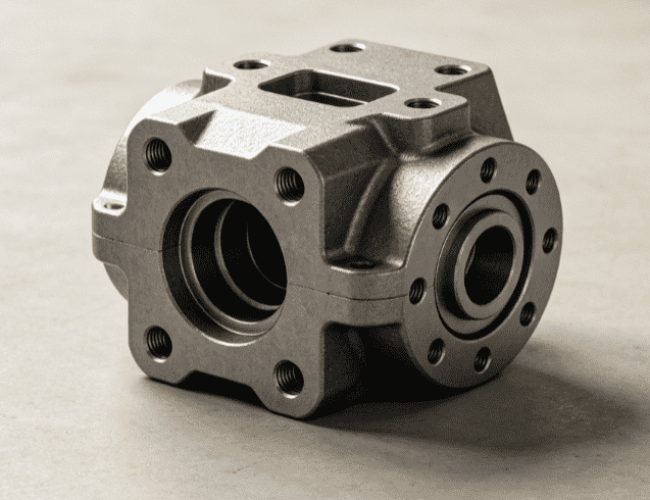

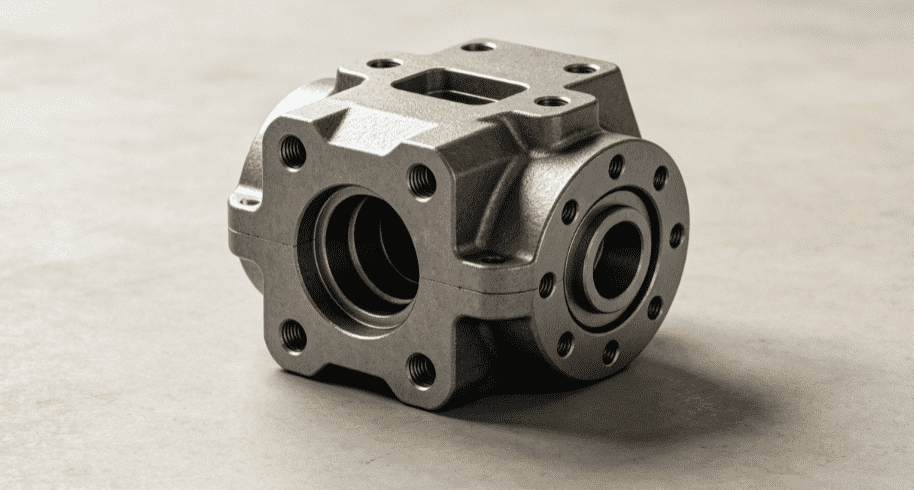

| HHF-1600 Cylinder (block) assembly | ||
| No. | Part No. (HHF-1300/1600) | Part Name |
| 1 | 11-3161-0501-01 | Fluid end (not nickel plating) |
| 2 | 11-3161-0501-02 | Stud bolt: 1-8UNC (14UNS) -2A*185 |
| 3 | 11-3161-0501-03 | Nut: 1-8UNC-2B (SPL) |
| 4 | 11-3161-0501-04 | Stud bolt: 1 1/2-8UN (12UNF) -2A*170 |
| 5 | 11-3161-0501-05 | Stud bolt: 1 1/2-8UN (12UNF) -2A*120 |
| 6 | 11-3161-0501-06 | Nut: 1 1/2-8UN-2B (SPL) |
| 7 | 11-3161-0501-07 | Stud bolt: 1 1/4-8UN (12UNF) -2A*195 |
| 8 | 11-3161-0501-08 | Nut: 1 1/4-8UN-2B (SPL) |
| 9 | 11-3161-0501-09 | Anaerobic fluid sealant 277 |
Field Fault Repair Cases
Case 1: Valve Assembly Leakage & Pressure Loss
Fault Symptom: Sudden drop in mud pump discharge pressure, with mud seepage from the valve assembly and inconsistent flow output.
Root Cause: Worn valve rubber and damaged steel balls causing incomplete sealing, leading to pressure backflow and leakage.
Repair Solution: Install a complete replacement valve body assembly (11-3161-0511-01-00), re-seal mounting threads, and torque fasteners. Full pressure output was restored, and leakage eliminated.
Case 2: Piston Rubber Wear & Mud Bypass
Fault Symptom: Excessive mud bypass around the piston, reduced pumping efficiency, and elevated fluid end temperatures.
Root Cause: Abrasive mud erosion damaged the 6 1/2″ piston rubber, breaking the pressure seal between piston and liner.
Repair Solution: Replace the worn piston rubber (11-3161-0524-0402-00) with a new OEM-matched unit, clean the piston surface, and reinstall. Bypass leakage stopped, and efficiency returned to normal.
Case 3: Cylinder Block Fastener Loosening
Fault Symptom: Persistent mud leakage from cylinder block joints, with loose stud bolts and damaged sealing surfaces.
Root Cause: High vibration caused stud bolts to loosen, breaking the seal and creating leak paths.
Repair Solution: Re-torque all stud bolts, apply anaerobic sealant 277 to threads, and replace damaged nuts. Joint sealing was restored, and leakage fully resolved.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these power end parts compatible with both HHF-1600 and HHF-1300 mud pumps? | Yes, all parts are engineered to OEM specifications for full cross-compatibility with HHF-1600 and HHF-1300 mud pump fluid ends, with no modifications required. |
| Do piston rubbers come pre-sized to match the corresponding pistons? | Absolutely, each piston rubber is precision-molded to fit its matching piston diameter (5 1/2″ to 7″), ensuring perfect sealing and easy installation. |
| Can I purchase individual valve components instead of the complete valve assembly? | Yes, individual valve parts (valve body, steel balls, valve rubber, etc.) are available for separate purchase, alongside complete drop-in valve assemblies for faster repairs. |
Procurement Guidance
Investing in these Honghua HHF-1600 mud pump power end parts ensures reliable high-pressure sealing, consistent mud flow, and extended service intervals, minimizing costly unplanned downtime from fluid end failures and reducing long-term maintenance expenditures. Each component undergoes strict pressure, wear, and fit testing to meet API 7K drilling standards, delivering OEM-equivalent performance and durability at a cost-effective price point.
