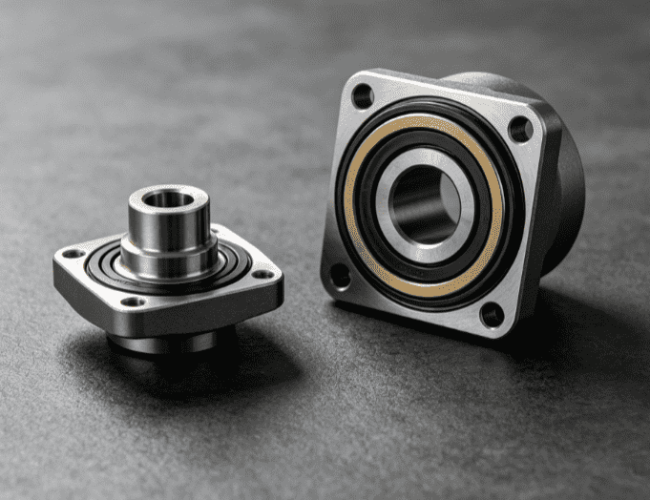

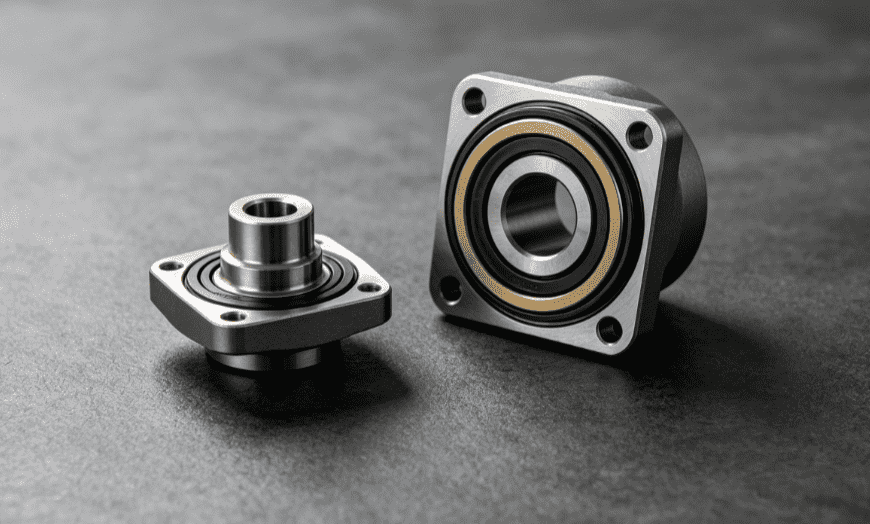

Product Introduction
This full HHF-2400 fluid end parts collection includes the main fluid end assembly and hydraulic cylinder/liner sub-assembly, featuring multi-size wearable components, high-strength fasteners, precision sealing elements, and valve modules that directly replace original factory parts. Covering 4-inch, 4.5-inch, 5-inch, and 6-inch liner/piston configurations, bi-metal wear components, valve assemblies, and sealing rings, every part is engineered for seamless integration with the HHF-2400 mud pump’s fluid end, eliminating compatibility issues and ensuring consistent high-pressure performance. Designed for major overhauls, preventive maintenance, and emergency high-pressure failure repairs, this kit provides a one-stop sourcing solution for durable, long-lasting fluid end components.
Functional Description
- High-Pressure Fluid Delivery: Suction and discharge hydraulic cylinders create the reciprocating pressure chamber, driving drilling mud pressurization and stable discharge to the wellbore.
- Wear Resistance & Sealing: Bi-metal liners and precision pistons form a tight friction pair, with O-rings and sealing rings preventing high-pressure fluid leakage and resisting abrasive mud wear.
- Valve Control & Pressure Regulation: 6# valve assemblies and springs regulate one-way mud flow, preventing backflow and maintaining consistent discharge pressure during operation.
- Component Locking & Stability: High-strength studs, nuts, and locking rings secure liners and cylinders, absorbing pressure pulsation and vibration to prevent component shifting.
- Contamination Protection: Mud guard clamps and water retaining devices block abrasive debris and contain coolant runoff, protecting internal friction components from premature damage.
Maintenance & Care Recommendations
Follow these industry-standard maintenance protocols to maximize fluid end lifespan and prevent costly high-pressure failures:
- Daily Inspection: Check for high-pressure fluid leaks at sealing joints, monitor valve operation for abnormal noise, and inspect piston rod surfaces for scoring.
- Weekly Maintenance: Tighten all studs and nuts to specified torque values, clean mud guard assemblies, and check sealing rings for wear or deformation.
- Monthly Service: Inspect bi-metal liners for wear depth, check valve springs for fatigue, and replace worn O-rings and sealing rings.
- Quarterly Overhaul: Disassemble hydraulic cylinders to inspect internal wear, replace pistons and liners as needed, re-seal all flange joints, and calibrate valve assemblies.
- Long-Term Storage: Drain all drilling fluid, coat metal wear surfaces with anti-corrosive lubricant, and seal all openings to block dust and moisture contamination.
- We supply the following spare parts:
| Fluid end assembly NB005.06.00 | ||
| No. | Description | Drawing No. (code) |
| 1 | Hydraulic cylinder and liner assembly | |
| 2 | Suction pipeline assembly | |
| 3 | Bolt 7/8 9UNCx2.5 | ASME B18.2.1 |
| 4 | O-ring 190×7-G-S | GB/T 3452.1 |
| 5 | Valve cap locker | NB001.42.21.00 |
| 6 | Stud 1 5/8-8UN(12UN)-2Ax175 | NB1600M.01.06.02H |
| 7 | Nut 1 5/8-8UN-2B (SPL) | NB005.06.02.03 |
| Hydraulic cylinder and liner assembly | ||
| No. | Description | Drawing No. (code) |
| 1 | Liner water retaining device 1 | NB004.06.12.00 |
| 2 | Mud guard clamp assembly | NB004.06.11.00 |
| 3 | Piston rod 4″ | NB005.06.07 |
| 3 | Piston rod 4 1/2″/5″/6″ | NB005.06.09 |
| 4 | Hexagon bolt | ASME B18.2.1 |
| 5 | Gland locking disc | NB005.06.13 |
| 6 | Bi-metal liner 4″ | NB005.06.36 |
| 6 | Bimetallic liner 4 1/2″ | NB005.06.41 |
| 6 | Bi-metal liner 5″ | NB005.06.09 |
| 6 | Bi-metal liner 6″ | NB005.06.38 |
| 7 | O-ring 195×7-G-S | GB/T 3452.1 |
| 8 | Liner gland | NB005.06.14 |
| 9 | Chamfered pin | NB005.06.22 |
| 10 | Square nut | NB005.06.02.06 |
| 11 | Stud | NB005.06.02.05 |
| 12 | Hydraulic cylinder sealing ring Φ125 | NB005.06.17 |
| 13 | Discharge hydraulic cylinder | NB005.06.02.01 |
| 14 | Screw | ANSI B18.3 |
| 15 | Clamp plate | NB005.06.39 |
| 16 | Stud | NB005.06.02.04 |
| 17 | Suction hydraulic cylinder | NB005.06.01 |
| 18 | Nut | NB005.06.02.04 |
| 19 | Lengthened nut | NB005.06.15 |
| 20 | Gasket | Nb005.06.18 |
| 21 | Liner locking ring | NB004.06.15 |
| 22 | Liner flange | Nb005.06.06 |
| 23 | Stud | NB005.06.04 |
| 24 | Liner sealing ring Φ133 (4″) | NB005.06.16 |
| 24 | Liner sealing ring Φ146 (4 1/2″) | NB005.06.42 |
| 24 | Liner sealing ring Φ160 (5″) | NB004.06.16 |
| 24 | Liner sealing ring Φ183 (6″) | NB005.06.24 |
| 25 | Wearable disc | NB005.06.05 |
| 26 | Nut | Nb005.06.02.03 |
| 27 | Gasket | NB004.06.02.05 |
| 28 | Stud | NB005.06.02.07 |
| 29 | Cylindrical pin with internal thread | GB/T 120.2 |
| 30 | 90° elbow | NB2200G.06.16 |
| 31 | Valve assembly 6# | NB800M.05.17.00 |
| 32 | Valve spring | NB800M.05.16 |
| 33 | Bolt | NB100.05.30 |
| 34 | Baffle | NB800G.05.14 |
| 35 | Valve rod guider | NB100.05.27 |
| 36 | Spring guide | NB800M.05.13.00 |
| 37 | Valve cap sealing ring | NB800G.05.10 |
| 38 | Valve cap 6# | NB005.06.03 |
| 39 | O-ring 25×3.55-G-S (4″) | GB/T3452.1 |
| 39 | O-ring 38.7×3.55 (4 1/2″/5″/6″) | GB/T 3452.1 |
| 40 | Piston (4″) | NB005.06.19.01.0 |
| 40 | Piston (4 1/2″) | NB005.06.19.02.00 |
| 40 | Piston (5″) | NB005.06.19.03.00 |
| 40 | Piston (6″) | NB005.06.19.04.00 |
| 41 | Piston nut 4″ | NB500M.05.19.00 |
| 41 | Piston nut 4 1/2″/5″/6″ | NB800M.05.18.00 |
Field Fault Repair Cases
Case 1: High-Pressure Liner Leakage
Fault Symptom: Visible high-pressure mud leakage at the liner sealing joint, accompanied by fluctuating discharge pressure.
Root Cause: Worn Φ133 liner sealing ring and loose liner locking ring, breaking the high-pressure seal.
Repair Solution: Replace the damaged sealing ring, clean the liner mating surface, re-torque the locking ring and studs. Leakage was fully eliminated, and pressure stability was restored.
Case 2: Valve Assembly Failure & Mud Backflow
Fault Symptom: Reduced mud discharge volume, erratic pressure readings, and audible backflow noise from the fluid end.
Root Cause: Fatigued valve spring and worn 6# valve assembly, leading to improper valve seating and reverse fluid flow.
Repair Solution: Replace the valve spring and complete valve assembly, re-seat the valve cap, and test pressure. Normal one-way flow and discharge efficiency were restored.
Case 3: Piston & Liner Wear Scoring
Fault Symptom: Increased pump noise, reduced discharge pressure, and visible scoring on piston rods and bi-metal liners.
Root Cause: Severe abrasive wear from unfiltered mud debris, damaging the piston-liner friction pair.
Repair Solution: Replace the worn 6-inch bi-metal liner and matching piston, install new sealing rings, and reinstall the mud guard assembly. Friction performance and pressure output returned to OEM standards.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these fluid end parts fully compatible with original Honghua HHF-2400 mud pumps? | Yes, all components are manufactured to OEM dimensional, material, and pressure-rated standards, ensuring direct fitment with HHF-2400 quintuple mud pumps without modifications. |
| Do these parts cover all standard liner/piston sizes for the HHF-2400? | Absolutely, this kit includes 4″, 4.5″, 5″, and 6″ bi-metal liners, pistons, and matching sealing components to fit all OEM-approved HHF-2400 configurations. |
| Can I purchase individual fluid end components instead of the full kit? | Yes, every part (liners, pistons, valves, fasteners, seals, etc.) is available for separate purchase with matching drawing numbers for targeted repairs and partial replacements. |
Procurement Guidance
Investing in theseHonghua HHF-2400 mud pump fluid end parts ensures reliable high-pressure mud delivery, minimizes costly unplanned downtime from wear and leakage failures, and reduces long-term mud pump maintenance expenditures. Each component undergoes strict pressure and wear testing to meet API and ASME drilling standards, delivering consistent performance in the harshest abrasive drilling environments and serving as a cost-effective, high-quality alternative to OEM parts.
