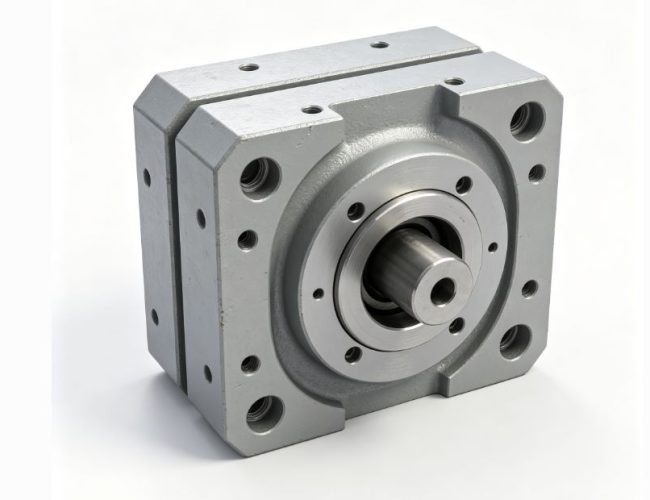

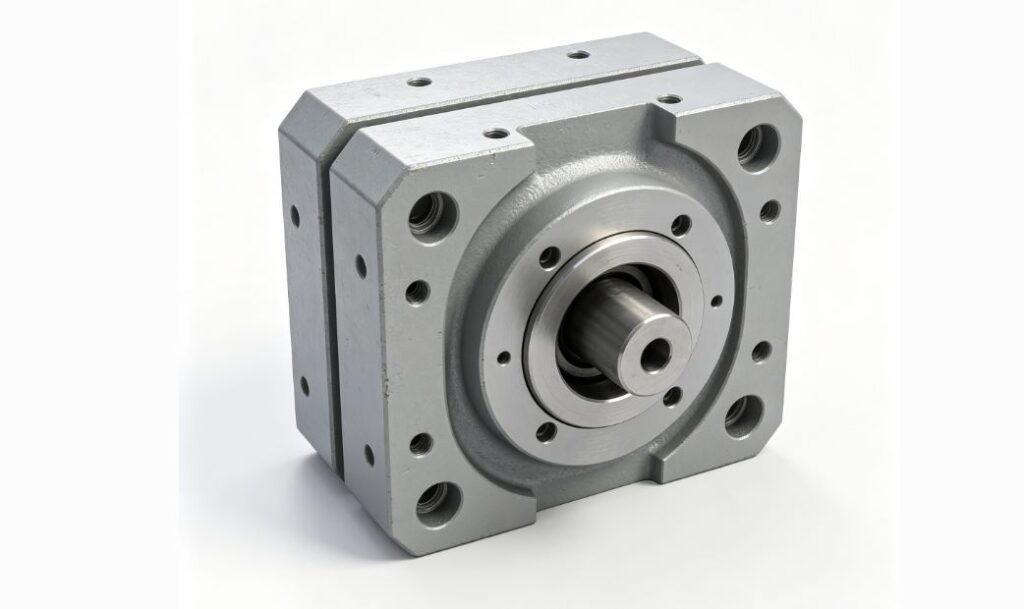

Product Overview
This curated selection of replacement parts covers every critical component of the Honghua HHF 800 mud pump’s crosshead assembly (NB800M.04.00), the system that enables seamless motion transfer between the pump’s power end and fluid end. The lineup includes the crosshead (NB800M.04.01), upper and lower slides (NB800M.04.02, NB800M.04.13), crosshead bearing (NB800M.04.17), crosshead pin (NB800M.04.18), double lip oil seals (NB800M.04.04), O-rings (GB/T3452.1-2005), seal gaskets, fasteners (ANSI/ASME bolts and nuts), shim sets (NB800M.04.19.00), and all supporting hardware. Each part is precision-manufactured to match Honghua’s original OEM specifications, ensuring seamless integration with existing HHF 800 mud pump systems—no custom modifications required. These parts are built to withstand the extreme mechanical stress, vibration, and exposure to drilling fluids and lubricants that define harsh drilling environments, making them the reliable choice for maintaining crosshead integrity and pump performance.
Core Functional Specifications
Every component in this collection is engineered to deliver the critical performance required for the Honghua HHF 800’s crosshead assembly, with key metrics aligned to industry standards and the pump’s operational needs:
- Crosshead & Bearing System: The crosshead (NB800M.04.01) and crosshead bearing (NB800M.04.17, NNAL 6/177.8-1 Q4/W33XYA2) are designed to handle a maximum load of 120,000 lbs, ensuring smooth motion transfer with minimal friction—critical for the pump’s 800 GPM rated flow rate.
- Oil Sealing System: Double lip oil seals (NB800M.04.04, 4″x5″x0.5″) and O-rings (GB/T3452.1-2005, 160×3.55-G-S, 128×7-G-S, 103×5.3-G-S) create a leak-proof barrier that retains lubricating oil and prevents drilling mud contamination, with a service life of 3,000+ operating hours.
- Slides (Upper & Lower): The upper (NB800M.04.02) and lower (NB800M.04.13) slides feature a hardened surface (HRC 58-62) for superior wear resistance, reducing friction and ensuring precise alignment of the crosshead during linear motion.
- Fasteners: ANSI/ASME B18.2.1-1996 and B18.3-2002 bolts (3/4-10UNC-2A, 3/8-16, 5/8-11) are heat-treated to a tensile strength of 110,000-120,000 PSI, ensuring secure fastening under extreme vibration and mechanical stress.
- Shim Sets & Adjustments: Shim sets (NB800M.04.19.00) and adjusting shims (NB800M.04.21) allow precise alignment of the crosshead, with a thickness range of 0.005-0.05 inches, ensuring optimal motion transfer and reducing wear on adjacent components.
Maintenance & Service Recommendations
To maximize the lifespan of the Honghua HHF 800’s crosshead assembly and minimize downtime, follow these industry-proven maintenance protocols, aligned with API 7K and ISO 9001 standards:
- Daily Inspections: Check for oil leaks around the end cover (NB800M.04.08) and stuffing box (NB800M.04.06); listen for unusual noise or vibration (indicators of bearing wear or misalignment); verify that the mud guard plate (NB800M.04.10) is intact to prevent debris ingress.
- Weekly Maintenance: Inspect upper and lower slides (NB800M.04.02, NB800M.04.13) for wear or scoring; check all fasteners for tightness, torquing to specification (3/4-10UNC bolts: 120 ft-lbs; 5/8-11 bolts: 75 ft-lbs); apply anaerobic adhesive (242) to loose thread connections.
- Monthly Maintenance: Inspect oil seals (NB800M.04.04) and O-rings for wear or damage—replace if cracks or hardening are detected; check the crosshead bearing (NB800M.04.17) for play or excessive heat (operating temperature should not exceed 140°F).
- Quarterly Maintenance: Adjust shim sets (NB800M.04.19.00) to maintain crosshead alignment; clean the stuffing box (NB800M.04.06) and replace the seal gasket (NB800M.04.07); lubricate the crosshead bearing with NLGI 2 lithium-based grease.
- Storage Recommendations: Store replacement parts in a clean, dry environment (temperature 40-80°F, humidity ≤60%); apply a light coat of anti-corrosion oil to metal components (crosshead, slides, bearing) to prevent rust during storage.
- We supply the following spare parts:
| 4、NB800M.04.00 Crosshead assembly | ||
| S.N | Drawing no. | Item |
| 1 | NB800M.04.01 | crosshead |
| 2 | NB800M.04.02 | Slide, upper |
| 3 | GB/T4240-1993 | Stainless steel wire: (p1.60(L=300) |
| 4 | NB800M.04.03 | bolt: 3/4-10UNC-2Ax 1 1/2 |
| 5 | NB800M.04.04 | Double lip oil seal: 4″x5″x0.5″ |
| 6 | NB800M.04.05 | oil seal ring |
| 7 | NB800M.04.06 | stuffing box |
| 8 | GB/T3452.1-2005 | O ring: 160×3.55-G-S |
| 9 | NB800M.04.07 | Seal gasket |
| 10 | NB800M.04.08 | End cover |
| 11 | NB800M.04.09 | rod |
| 12 | NB800M.04.10 | Mud guard plate |
| 13 | NB800M.04.11 | Lock spring |
| 14 | ANSI/ASME B18.2.1-1996 | bolt: 3/8-16×1 3/8 |
| 15 | GB/T93-1987 | washer: 10 |
| 16 | GB/T3452.1-2005 | O ring: 128×7-G-S |
| 17 | GB/T3452.1-2005 | O ring: 103×5.3-G-S |
| 18 | NB800M.04.12 | Lockup plate |
| 19 | NB800M.04.13 | Slide, lower |
| 20 | GB/T4240-1993 | Stainless steel wire: (Φ1.60(L=500) |
| 21 | NB800M.04.14 | bolt: 3/4-10UNC-2Ax2 |
| 22 | NB800M.04.15 | Crosshead pin baffler |
| 23 | NB800M.04.16 | gasket |
| 24 | NB800M.04.17 | Bearing, crosshead: |
| NNAL 6/177.8-1 Q4/W33XYA2 | ||
| 25 | NB800M.04.18 | Crosshead pin |
| 26 | NB800M.04.19.00 | shim set |
| 27 | NB800M.04.20 | pipe connector: NPT3/8×50.8 |
| 28 | NB800M.04.21 | adjusting shim |
| 29 | GB/T4240-1993 | Stainless steel wire: (p1.60(L=400) |
| 30 | ASMEB 18.3-2002 | bolt: 5/8-11×2 |
| 31 | 242 | anaerobic adhesive for thread locking and sealing |
Field Failure Repair Case Studies
Case 1: Crosshead Bearing Wear Causing Vibration & Noise
A land drilling rig’s Honghua HHF 800 mud pump began producing excessive noise and vibration, leading to reduced pump efficiency. Inspection revealed the crosshead bearing (NB800M.04.17) was worn, with excessive play in the crosshead pin (NB800M.04.18). Technicians replaced the bearing and crosshead pin, adjusted the shim set (NB800M.04.19.00) for proper alignment, and torqued the fasteners to specification. The vibration and noise were eliminated, and the pump returned to full operation in 3 hours.
Case 2: Oil Seal Leak Leading to Lubricant Loss
An offshore rig’s HHF 800 mud pump experienced a lubricant leak from the crosshead assembly, leading to low oil levels and increased bearing temperature. Investigation found the double lip oil seal (NB800M.04.04) was worn, allowing oil to escape and drilling mud to enter the bearing housing. Crews replaced the oil seal, cleaned the stuffing box (NB800M.04.06), and replaced the O-ring (GB/T3452.1-2005, 160×3.55-G-S)—resolving the leak and preventing further bearing damage.
Case 3: Crosshead Misalignment Due to Worn Shims
A directional drilling team noticed uneven wear on the upper slide (NB800M.04.02) and excessive piston rod wear, indicating crosshead misalignment. The shim set (NB800M.04.19.00) had worn down over time, causing the crosshead to shift. Technicians replaced the shim set, adjusted the crosshead alignment using adjusting shims (NB800M.04.21), and inspected the slides for further damage. The misalignment was corrected, and piston rod wear was eliminated, extending component life by an estimated 2,000 hours.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these parts compatible with the Honghua HHF 800 mud pump’s NB800M.04.00 crosshead assembly? | Yes, all parts are precision-manufactured to match Honghua’s OEM specifications for the HHF 800’s NB800M.04.00 crosshead assembly, including the crosshead, bearing, slides, and fasteners—ensuring a perfect fit with no modifications needed. |
| What is the service life of the crosshead bearing (NB800M.04.17) under standard operating conditions? | Under standard drilling conditions, the crosshead bearing (NB800M.04.17, NNAL 6/177.8-1 Q4/W33XYA2) has a service life of 8,000+ operating hours. In high-vibration environments, we recommend inspecting it every 6,000 hours and replacing it if wear is detected. |
| Which lubricant should I use for the crosshead bearing and slides? | We recommend using NLGI 2 lithium-based grease, which meets API GL-4 standards. This grease provides superior lubrication, resists high temperatures (up to 250°F), and protects against wear and corrosion in harsh drilling environments. |
Procurement Guidance
This Honghua HHF 800 mud pump crosshead assembly parts list is your definitive resource for sourcing high-quality, OEM-compatible replacement parts that ensure the reliability and longevity of your drilling pump. The crosshead assembly is critical to the HHF 800’s motion transfer system—investing in these premium parts reduces unplanned downtime, avoids costly component failures (such as bearing or crosshead damage), and maintains the pump’s rated performance, directly impacting drilling productivity.
