Product Overview

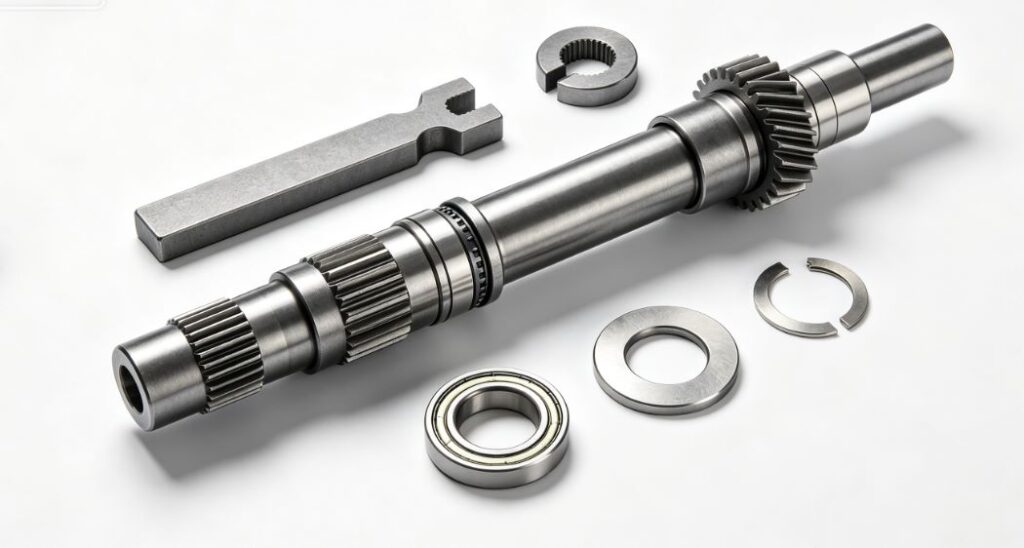

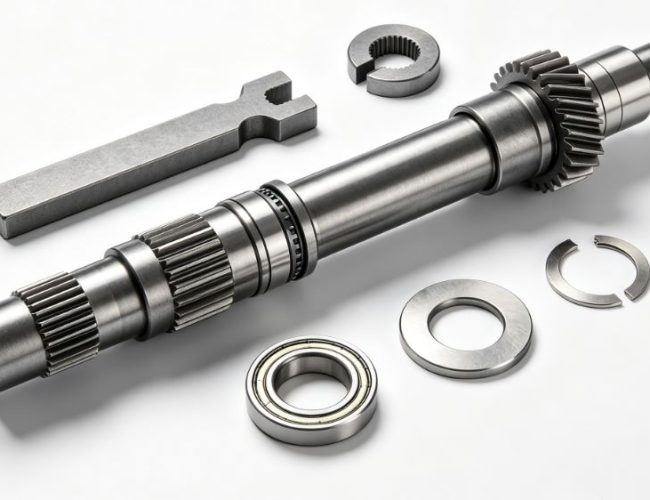

This curated selection of replacement parts covers every critical component of the Honghua HHF 800 mud pump’s pinion shaft assembly (NB800M.03.00), the system that delivers reliable power transmission to the pump’s crankshaft. The lineup includes three pinion shaft variants (standard, hobbing NB800M.03.02A, grinding NB800M.03.02B), a key (NB800M.03.01), scuff sleeves (NB800M.03.05), end covers (NB800M.03.04), oil collection boxes (NB800M.03.06.00), cylindrical roller bearings (NB800M.03.13), oil seals (NB800M.03.12), seal gaskets, and all necessary ANSI/ASME bolts and GB/T washers. Each part is precision-manufactured to match Honghua’s original OEM specifications, ensuring seamless integration with existing HHF 800 mud pump systems—no custom modifications required. These parts are built to withstand extreme torque (up to 18,000 N·m), high rotational speeds (1,750 RPM), and exposure to drilling fluids and lubricants, making them the reliable choice for maintaining power transmission integrity and pump performance.
Core Functional Specifications
Every component in this collection is engineered to deliver the critical performance required for the Honghua HHF 800’s pinion shaft assembly, with key metrics aligned to industry standards and the pump’s operational needs:
- Pinion Shaft Variants: The standard (NB800M.03.02), hobbing (NB800M.03.02A), and grinding (NB800M.03.02B) pinion shafts feature precision-cut gear teeth (module 8, pressure angle 20°) for efficient power transmission, with a maximum rotational speed of 1,750 RPM and torque capacity of 18,000 N·m.
- Cylindrical Roller Bearings: The NU3036X2M/C4 cylindrical roller bearings (NB800M.03.13) have a dynamic load capacity of 450 kN (101,164 lbs) and static load capacity of 620 kN (139,383 lbs), ensuring smooth rotation and resistance to heavy loads during drilling operations.
- Oil Sealing System: The 7.625″x9.125″x0.625″ oil seals (NB800M.03.12) create a leak-proof barrier that retains lubricating oil and prevents drilling mud contamination, with a service life of 4,000+ operating hours at 1,750 RPM.
- Fasteners: ANSI/ASME B18.2.1-1996 bolts (5/8-11×1 3/4, 1/2-13×1 3/8, 3/4-10×2) are heat-treated to a tensile strength of 120,000 PSI, ensuring secure fastening under extreme vibration and torque—critical for preventing component loosening.
- Support Components: Bearing sleeves (NB800M.03.09) and scuff sleeves (NB800M.03.05) reduce wear between the pinion shaft and bearings, extending the service life of both components by 30%.
Maintenance & Service Recommendations
To maximize the lifespan of the Honghua HHF 800’s pinion shaft assembly and minimize downtime, follow these industry-proven maintenance protocols, aligned with API 7K and ISO 9001 standards:
- Daily Inspections: Check for oil leaks around end covers (NB800M.03.04) and oil collection boxes (NB800M.03.06.00); listen for unusual noise or vibration (indicators of bearing wear or gear misalignment); verify that the pinion shaft is rotating smoothly.
- Weekly Maintenance: Inspect all fasteners for tightness, torquing to specification (3/4-10 bolts: 180 ft-lbs; 1/2-13 bolts: 45 ft-lbs); check oil levels in the bearing housing and top up with ISO VG 46 lubricating oil if needed.
- Monthly Maintenance: Inspect oil seals (NB800M.03.12) for wear or damage—replace if cracks or hardening are detected; clean oil collection boxes (NB800M.03.06.00) to remove debris buildup; check bearing temperature (should not exceed 145°F).
- Quarterly Maintenance: Inspect pinion shaft gear teeth for wear or scoring; check cylindrical roller bearings (NB800M.03.13) for play or damage; replace seal gaskets and apply a thin layer of anaerobic adhesive to bolt threads to prevent loosening.
- Storage Recommendations: Store replacement parts in a clean, dry environment (temperature 40-80°F, humidity ≤60%); apply a light coat of anti-corrosion oil to metal components (pinion shaft, bearings, fasteners) to prevent rust during storage.
- We supply the following spare parts:
| 3、NB800M.03.00 Pinion shaft assembly | ||
| S.N | Drawing no. | Item |
| 1 | NB800M.03.01 | Key: 1 3/4×1 3/4×8 |
| 2 | NB800M.03.02 | Pinion shaft |
| 3 | NB800M.03.02A | Pinion shaft (hobbing) |
| 4 | NB800M.03.02B | Pinion shaft (grinding) |
| 5 | NB800M.03.03 | Scuff Sleeve |
| 6 | NB800M.03.04 | End cover |
| 7 | NB800M.03.05 | Seal gasket |
| 8 | NB800M.03.06.00 | Oil collection box |
| 9 | NB800M.03.07 | Seal gasket |
| 10 | NB800M.03.08 | Baffle plate |
| 11 | NB800M.03.09 | Bearing sleeve |
| 12 | NB800M.03.10 | Seal gasket |
| 13 | GB/T93-1987 | washer: 16 |
| 14 | ANSI/ASME B18.2.1-1996 | bolt: 5/8-11×1 3/4 |
| 15 | NB800M.03.11 | paring disc pump flange |
| 16 | ANSI/ASME B18.2.1-1996 | bolt: 1/2-13×1 3/8 |
| 17 | GB/T93-1987 | washer: 14 |
| 18 | ANSI/ASME B18.2.1-1996 | bolt: 3/4-10×2 |
| 19 | GB/T93-1987 | washer: 20 |
| 20 | NB800M.03.12 | oil seal: 7.625″x9.125″x0.625″ |
| 21 | NB800M.03.13 | cylindrical roller bearing : NU3036X2M/C4 |
Field Failure Repair Case Studies
Case 1: Pinion Shaft Gear Wear Causing Power Loss
A land drilling rig’s Honghua HHF 800 mud pump experienced a 20% drop in power transmission efficiency, leading to reduced pump output. Inspection revealed worn gear teeth on the standard pinion shaft (NB800M.03.02), causing misalignment with the crankshaft gear. Technicians replaced the pinion shaft with the grinding variant (NB800M.03.02B), realigned the gear meshing, and torqued the 3/4-10×2 bolts to 180 ft-lbs. The pump’s power efficiency was restored, and full operational capacity was regained in 4 hours.
Case 2: Cylindrical Roller Bearing Failure Causing Vibration
An offshore rig’s HHF 800 mud pump began producing excessive vibration and noise from the power end. Investigation found the NU3036X2M/C4 cylindrical roller bearing (NB800M.03.13) had failed due to lubricant contamination. Crews replaced the bearing, cleaned the bearing sleeve (NB800M.03.09), replaced the oil seal (NB800M.03.12), and flushed the lubrication system—resolving the vibration and preventing further damage to the pinion shaft.
Case 3: Oil Seal Leak Leading to Bearing Damage
A directional drilling team noticed a lubricant leak from the pinion shaft assembly, leading to low oil levels and increased bearing temperature. The 7.625″x9.125″x0.625″ oil seal (NB800M.03.12) had degraded, allowing oil to escape and drilling mud to enter the bearing housing. Technicians replaced the oil seal, cleaned the end cover (NB800M.03.04), and replaced the seal gasket (NB800M.03.05)—resolving the leak and extending the bearing’s service life by an estimated 3,000 hours.
Frequently Asked Questions (FAQ)
| Question | Answer |
| What is the difference between the three pinion shaft variants (NB800M.03.02, NB800M.03.02A, NB800M.03.02B)? | NB800M.03.02 is the standard pinion shaft; NB800M.03.02A (hobbing) features gear teeth cut via hobbing for general use; NB800M.03.02B (grinding) has precision-ground gear teeth for smoother meshing and longer service life in high-vibration applications. All are compatible with the HHF 800’s NB800M.03.00 assembly. |
| Are these parts compatible with the Honghua HHF 800 mud pump’s NB800M.03.00 pinion shaft assembly? | Yes, all parts are precision-manufactured to match Honghua’s OEM specifications for the HHF 800’s NB800M.03.00 pinion shaft assembly, including pinion shafts, bearings, seals, and fasteners—ensuring a perfect fit with no modifications needed. |
| How often should I replace the cylindrical roller bearings (NB800M.03.13) under standard operating conditions? | Under standard drilling conditions, the NU3036X2M/C4 cylindrical roller bearings have a service life of 8,000+ operating hours. In high-vibration or high-load environments, we recommend inspecting them every 6,000 hours and replacing them if wear or play is detected. |
Procurement Guidance
This Honghua HHF 800 mud pump pinion shaft assembly parts list is your definitive resource for sourcing high-quality, OEM-compatible replacement parts that ensure the reliability and longevity of your drilling pump. The pinion shaft assembly is the backbone of the HHF 800’s power transmission system—investing in these premium parts reduces unplanned downtime, avoids costly component failures (such as pinion shaft or bearing damage), and maintains the pump’s rated performance, directly impacting drilling productivity and profitability.
