In oil drilling operations, the drill bit is the core tool that directly “confronts” the rock, and its condition has a decisive impact on drilling efficiency, cost, and safety. Accurately determining whether a drill bit needs replacement can prevent unplanned drilling stoppages due to drill bit failure and avoid overuse leading to complex downhole conditions. Below, we provide drilling engineers with practical decision-making basis from three aspects: visual indicators, changes in performance parameters, and comprehensive judgment methods.
Visual indicators of drill bit wear are important clues for determining when to replace it. When the drill bit teeth show significant changes, its ability to break rocks is greatly reduced. Taking roller cone bits as an example, when drilling into hard formations, if the tooth tips are worn flat, the tooth body is broken, or the alloy layer is peeling off, the drilling pressure cannot be effectively transmitted, and the drilling speed will slow down significantly. If the cutting teeth of a PDC drill bit experience chipping, enlarged wear surfaces, or diamond layer peeling off, it will create an “uneven wear” phenomenon, resulting in uneven force on the drill bit and increased downhole vibration. In addition, wear on the drill bit bearings should not be ignored. If the bearings of a roller cone drill bit become stuck or have excessive clearance, the roller cone will rotate inflexibly, causing “drill slippage” or “drill jump,” and in severe cases, even leading to drill bit detachment and serious accidents. These obvious signs can be detected through visual inspection during tripping in and out of the well, measurement and analysis after the drill bit is brought out of the well, and vibration monitoring during the drilling process.

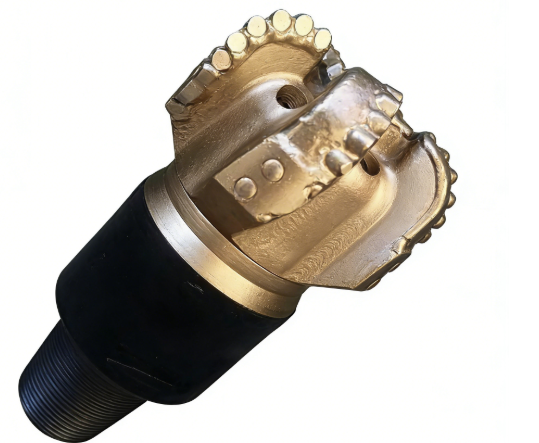

Changes in performance parameters are key to quantitatively judging the condition of the drill bit. Drilling speed is the most direct indicator of drill bit efficiency. Under the same formation conditions, if the drilling speed decreases by more than 30% from its initial value, and adjusting parameters such as drilling pressure and rotation speed does not improve the situation, it indicates that the drill bit is likely in a stage of severe wear. For example, in sandstone formations, a new drill bit may achieve a daily footage of 50 meters. If the daily footage is less than 35 meters for three consecutive days, and torque fluctuations increase, it can be preliminarily judged that the drill bit needs to be replaced. The matching degree between torque and drilling pressure is also very important. If drilling pressure increases but the torque increases abnormally, or if drilling pressure remains unchanged but torque continues to fluctuate, it often means that the drill bit teeth are worn, and its ability to penetrate the formation has decreased. In addition, changes in drilling fluid return can also provide clues. When a large amount of metal fragments or drill bit alloy particles are mixed in with the cuttings, it indicates that the drill bit has experienced severe wear or breakage.
Determining whether a drill bit needs replacement requires considering formation characteristics and the stage of operation. In soft formations, drill bit wear is usually characterized by tooth dulling, and the replacement cycle is relatively long. In hard or abrasive formations, tooth breakage and bearing wear occur more rapidly, requiring more frequent inspections. For example, in granite formations, the cutting teeth of a PDC drill bit may show significant wear after drilling 100 meters, while in mudstone formations, the same drill bit may be able to drill continuously for over 500 meters without problems. In directional drilling or horizontal well operations, drill bit wear has a more significant impact on trajectory control. If uneven drill bit wear makes it difficult to maintain wellbore inclination, the drill bit needs to be replaced prematurely, even if it has not reached its theoretical lifespan. In this case, it is necessary to use measurement-while-drilling (MWD) tools to monitor parameters such as wellbore inclination and azimuth in real time, and then conduct dynamic evaluation using a drill bit wear model.
Determining the right time to replace drill bits is crucial for optimizing drilling efficiency. A systematic decision-making process can be established by visually inspecting for wear signs, analyzing performance parameters to quantify changes in condition, and comprehensively evaluating formation characteristics. In practice, drill bit usage records should be created, documenting the formation type, drilling parameters, wear characteristics, and reasons for replacement for each bit, providing data support for subsequent selection and use. Only by combining experience-based judgment with data analysis can drill bit lifespan be maximized, drilling costs reduced, operational safety improved, and a solid foundation laid for the efficient development of oil and gas resources. This refined management model represents an important direction in the development of modern drilling technology.
