In oil drilling operations, drill pipe, as the core component connecting the drill bit and drilling rig, directly impacts drilling efficiency and safety due to the quality of its threads. Thread wear, deformation, or dimensional deviations can lead to loosening, leakage, or even breakage of the drill pipe connection, causing downhole accidents. Thread gauges are crucial tools for inspecting the accuracy of drill pipe threads. Proper use of thread gauges allows for the early detection of thread defects, preventing drilling stoppages, rework, or equipment damage caused by thread problems. This article systematically explains the use of thread gauges from four dimensions: pre-inspection preparation, operating procedures, result interpretation, and maintenance, helping oilfield professionals master thread inspection skills and ensure safe and efficient drilling operations.
Pre-inspection Preparation: Dual Protection of Tools and Environment

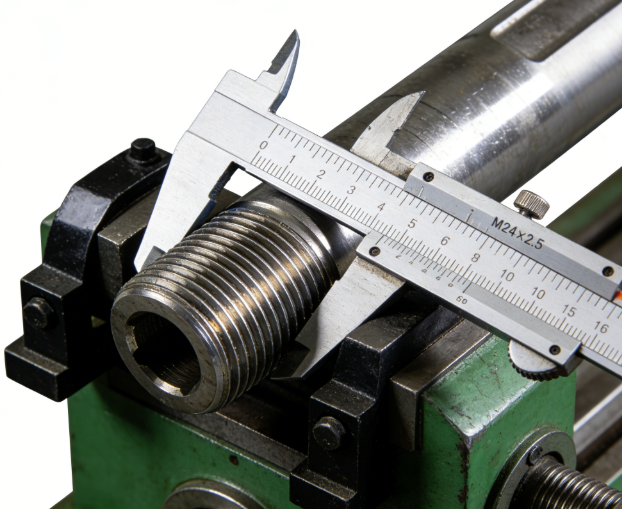

Adequate preparation is essential before using thread gauges to ensure accurate and reliable inspection results. First, select the appropriate thread gauge based on the type of drill pipe thread. Commonly used threads in oil drill pipes include API standard threads (such as NC38, NC46, NC50) and special threads (such as VAM, FOX, etc.). Different threads have different tooth profiles, pitches, and tapers, requiring the selection of thread gauges of the corresponding specifications. For example, to test NC50 threads, a thread gauge marked “NC50” must be used; using other specifications will lead to measurement errors. Secondly, check the appearance and accuracy of the thread gauge, confirming that the gauge surface is free of scratches, rust, or deformation, and that the scale lines are clearly readable. If necessary, use a micrometer to calibrate the thread gauge’s pitch and taper to ensure it meets standard requirements. In addition, the drill pipe thread surface must be cleaned to remove oil, iron filings, or cement residue to avoid impurities affecting the test results—the thread can be wiped with a wire brush or cleaning cloth; if necessary, solvent cleaning can be used. Test only after the thread is dry.
Operating Procedures: Standardized Actions Ensure Accuracy
Thread testing must follow a standardized process, focusing on key steps. First, gently screw the go end (GO end) of the thread gauge into the drill pipe thread, keeping the thread gauge parallel to the drill pipe axis during rotation to avoid tilting and jamming. If the go end can be smoothly screwed into the bottom of the thread (usually 2-3 turns), the thread pitch, tooth profile, and taper meet the standards; if it is difficult to screw in or jams midway, there may be thread deformation, pitch deviation, or tooth wear problems. Secondly, use a no-go end to inspect the thread. The no-go end should not be able to fully screw into the thread (usually 1-2 turns are allowed). If the no-go end can screw in easily or screws in more turns than the standard, it indicates that the thread size is too large or the taper is insufficient, requiring further inspection or repair. For special threads (such as VAM threads), the sealing surface and torque shoulder of the thread also need to be inspected. Use a special gauge to check the width of the sealing surface and the angle of the torque shoulder to ensure that they meet the design requirements—for example, the sealing surface width of a VAM thread is usually 3.5±0.5 mm, and the torque shoulder angle needs to be -3° to -7°.
Result Judgment: Combining Data and Experience
The thread inspection results need to be judged comprehensively by combining gauge readings and practical experience. If the go end passes smoothly but the no-go end cannot be fully screwed in, and the sealing surface and torque shoulder of the special thread meet the standards, the thread can be considered合格 (qualified). If the go end cannot be screwed in or the no-go end is screwed in too much, the specific problems (such as pitch deviation, thread wear, insufficient taper, etc.) need to be recorded, and the thread parameters should be further measured using tools such as a micrometer and projector to clarify the location and extent of the defects. For example, if the pitch deviation exceeds ±0.1 mm, the thread needs to be repaired by turning or rolling; if the thread wear causes the thread height to be less than 80% of the original height, the drill rod needs to be replaced or the thread repaired. In addition, the surface quality of the thread needs to be monitored. If there are defects such as cracks, folds, or overheating, even if the dimensions are qualified, it should be judged as不合格 (unqualified)—these defects may expand due to the alternating load on the drill rod, leading to thread connection failure.
Maintenance: Extending Tool Life
Maintenance of thread gauges is crucial to ensuring inspection accuracy. After each use, clean the surface of the thread gauge to remove oil and impurities. Wipe with a soft cloth and apply rust-preventive oil to prevent rust and corrosion. For long-term storage, place the thread gauge in a dedicated box to avoid collisions with other tools that could cause deformation. Regularly calibrate the thread gauge’s accuracy; it is recommended to calibrate it every 6 months using a standard thread sample to ensure that its pitch, taper, and thread profile meet standard requirements. If the calibration reveals deviations exceeding the allowable range, the thread gauge must be replaced or repaired promptly. Furthermore, a thread gauge usage record should be established, documenting the drill pipe model tested, the test results, and the maintenance time for each test, providing a reference for subsequent tests. For example, if a thread gauge frequently shows testing deviations, it may be due to wear leading to decreased accuracy and requires earlier replacement.
The thread gauge is the “eye” for inspecting the quality of drill pipe threads, and its proper use directly affects the safety and efficiency of drilling operations. From tool selection and environmental preparation before testing, to standardized procedures and result judgment during operation, and finally to post-use maintenance, every step must be strictly controlled. Only by integrating thread inspection into daily drill pipe management can thread defects be detected in a timely manner, avoiding downhole accidents caused by thread problems and providing a solid guarantee for the smooth operation of oil drilling.
