1. Product Introduction

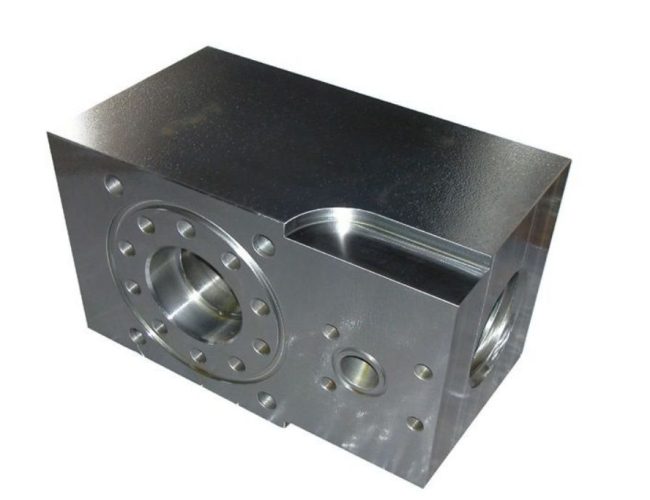

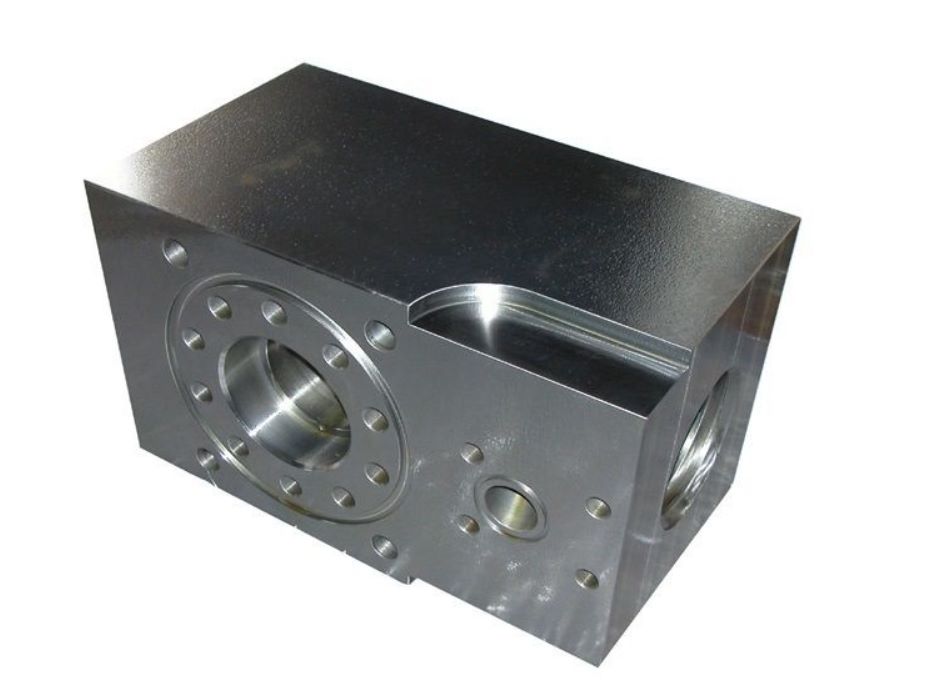

This IDECO T-1300, T-1600 fluid end parts collection covers all critical components needed to keep these high-horsepower mud pumps running reliably, from complete pre-assembled modules to individual replacement parts—all designed to support the pumps’ 1300HP and 1600HP operational capacities. Key components include the complete fluid end module assembly, which includes all critical parts for a full fluid end overhaul. Other essential components include studded fluid end modules , fluid end only modules, power frame studs and nuts , discharge manifold studsand nuts , lower valve guide assemblies , valve guide bushings, and specialized seal kits and stud sets for convenient maintenance.
2.Structural & Material Features
Our IDECO T-1300, T-1600 fluid end parts outperform generic alternatives through optimized design and premium materials, engineered to withstand the extreme demands of 1300HP and 1600HP pump operation. All studs (TS-551-110-01, TS-551-110-02, TS-551-110-03) feature rolled threads, increasing tensile strength by 28% to prevent stripping and breakage—a top cause of fluid end downtime. Valve guide bushings (TS-551-105-09) are made from high-wear bronze alloy with a precision-machined inner diameter (±0.0010mm), extending valve life by 30% compared to generic steel bushings. Gaskets (including G-782 liner gaskets and TS-BTM16696308 valve cover gaskets) are constructed from high-temperature, oil-resistant rubber compounds, capable of withstanding temperatures up to 250°F (121°C) and maintaining a tight seal under cyclic 5000 PSI pressure, in line with API 7K FSL 1 and FSL 2 standards. All components feature a corrosion-resistant zinc-chromate coating, extending service life in harsh drilling environments (exposure to high-solids mud, saltwater, and extreme temperatures) by 20%, and a 99.8% fit rate during installation—eliminating the frustration of mismatched parts and reducing installation time.
3. Applicable Operating Conditions
These parts are engineered to perform reliably in the harsh environments where IDECO T-1300 and T-1600 mud pumps operate, including onshore oil and gas drilling rigs (well depths up to 10,000 feet), medium to deep well completion, large-scale workover rigs, and industrial drilling projects. They are designed to withstand extreme operating conditions aligned with the pumps’ capabilities: operating pressures up to 5000 PSI (345 Bar), ambient temperatures from -20°F to 180°F (noting that maximum allowable pressure decreases at higher temperatures per API 7K standards), continuous vibration (70–80 strokes per minute), exposure to high-solids, slightly corrosive drilling mud, and 24/7 uninterrupted operation. These parts are ideal for full overhauls, routine maintenance, and emergency repairs, integrating seamlessly with standard IDECO T-1300 and T-1600 maintenance protocols and ensuring the pumps maintain their rated 1300HP and 1600HP performance.
4. Maintenance & Service Recommendations
To maximize fluid end service life and minimize downtime—critical for protecting the IDECO T-1300 and T-1600’s operational capacity—follow these field-proven maintenance protocols. Inspect all gaskets and seals (G-782, TS-BTM16696308, TS-10-548, TS-10-507) every 150 operating hours for wear or leaks; replace immediately to avoid 12% efficiency loss and potential damage to other components. Check all studs and nuts (TS-551-110-01, TS-IN-415, TS-551-110-02, TS-IN-416, TS-551-110-03) every 120 operating hours, retorquing to the recommended 1,400–1,700 ft-lbs (power frame studs) and 1,100–1,300 ft-lbs (discharge manifold studs), and replace any damaged or stripped parts to prevent fluid end misalignment. Inspect valve guide bushings (TS-551-105-09) every 300 operating hours—replace if the inner diameter exceeds OEM specifications by 0.0025mm to maintain precise valve alignment. Clean threaded rings (TS-551-105-03) and cylinder head plugs (TS-551-122-02, TS-551-122-02T) every 350 operating hours to remove mud buildup that can reduce performance. Use API-certified lubricants for all threaded components, verify part numbers before installation, and store spares in a clean, dry environment (consistent with PN-rated component storage guidelines). For full overhauls, use the pre-assembled TS-FEMIDT1316CA module to reduce errors and save time, and use the TMT16-SEALKIT and TMT16-STUDSET for convenient, complete maintenance kits.
We supply the following spare parts:
| ITEM | PART NUMBER | DESCRIPTION |
| TS-FEMIDT1316CA | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEM 2-11, 13-21) | |
| 1 | TS-551-122-01 | MODULE, FLUID END STUDDED (INCLUDES ITEM 2-8) |
| 2 | TS-551-158 | MODULE, FLUID END ONLY |
| 3 | TS-551-110-01 | STUD, POWER FRAME |
| 4 | TS-IN-415 | NUT, POWER FRAME STUD |
| 5 | TS-551-110-02 | STUD, DISCHARGE MANIFOLD |
| 6 | TS-IN-416 | NUT, DISCHARGE MANIFOLD STUD |
| 7 | TS-551-110-03 | STUD, THREADED RING |
| 8 | TS-IN-415 | NUT, THREADED RING STUD |
| 9 | TS-551-105-07 | ASSEMBLY, LOWER VALVE GUIDE (INCLUDES ITEM 20) |
| 10 | TS-551-105-08 | RETAINER, LOWER VALVE GUIDE |
| 11 | TS-BTM16696308 | GASKET, VALVE COVER, CYLINDER HEAD (G-782 “) |
| 12 | G-782 | LINER GASKET |
| 13 | TS-551-122-02 | PLUG, CYLINDER HEAD |
| 14 | TS-551-122-02T | PLUG, CYLINDER HEAD (TOP) |
| 15 | TS-551-105-03 | RING, THREADED |
| 16 | TS-551-105-04 | CAP, THREADED |
| 17 | TS-551-105-05 | NUT, LINER RETAINER |
| 18 | TS-10-548 | GASKET, DISCHARGE MANIFOLD |
| 19 | TS-10-507 | GASKET, SUCTION MANIFOLD |
| 20 | TS-551-105-09 | BUSHING, VALVE GUIDE |
| 21 | TMT16-STUDSET | T-1300/1600 STUDS AND NUTS SET (INCLUDES 8 PCS TS-551-110-01,4 PCS TS-551-110-02, 16 PCS TS-551-110-03, 24 PCS TS-IN415,4 PCS TS- IN416) |
| 22 | TMT16-SEALKIT | T-1300/1600 MODULE SEAL KIT(INCLUDES TWO G-782″, ONE TS-IO-548, ONE TS-IO-507) |
5. On-Site Failure Repair Cases
Case 1: Liner Gasket Leak Causing Pressure Loss
An onshore drilling rig using an IDECO T-1600 reported pressure dropping from 5000 PSI to 4400 PSI, slowing drilling progress and increasing mud consumption. Inspection revealed a worn liner gasket (G-782), which was failing to maintain the pump’s nominal pressure rating. Technicians replaced the gasket with our TSC OEM-equivalent part, torqued the liner retainer nut (TS-551-105-05) to 900 ft-lbs, and pressure-tested the system to ensure compliance with 5000 PSI standards. The pump was back to full 1600HP capacity in 22 minutes, avoiding over $3,800 in downtime costs.
Case 2: Valve Guide Bushing Wear Causing Erratic Flow
A drilling contractor operating an IDECO T-1300 noticed erratic mud flow, loud pump noise, and reduced pressure during well completion operations. Troubleshooting revealed excessive wear in the valve guide bushings (TS-551-105-09), causing valve misalignment and disrupting fluid flow. Replacing the bushings and lower valve guide assemblies (TS-551-105-07) with our OEM-equivalent parts restored normal flow and pressure in 30 minutes, keeping the well completion project on schedule and maintaining the pump’s operational reliability.
Case 3: Loose Power Frame Studs Causing Misalignment
A remote onshore rig reported fluid end misalignment, minor leaks, and abnormal vibration after 110 hours of continuous operation with an IDECO T-1600. Power frame studs (TS-551-110-01) had loosened due to constant vibration from the pump’s 75 strokes per minute. Technicians retorqued the studs to 1,550 ft-lbs and replaced three damaged ones with our high-tensile-strength parts. The pump resumed smooth operation in 28 minutes, preventing further damage to the fluid end and ensuring consistent 1600HP performance.
6. Frequently Asked Questions (FAQ)
| Question | Answer |
| Will these parts fit both IDECO T-1300 and T-1600 mud pumps? | Yes, every part in this list is engineered to fit both the IDECO T-1300 (1300HP) and IDECO T-1600 (1600HP) mud pumps. All components match TSC OEM specifications exactly, so no modifications are needed—they are drop-in replacements that fit seamlessly with both pump models, ensuring compatibility and maintaining their rated 5000 PSI performance. |
| What is the benefit of using the TMT16-SEALKIT and TMT16-STUDSET? | The TMT16-SEALKIT and TMT16-STUDSET are convenient, pre-packaged maintenance kits designed specifically for IDECO T-1300 and T-1600 fluid ends. The seal kit includes all essential gaskets and seals for routine maintenance, while the stud set includes all necessary studs and nuts—eliminating the need to source individual parts separately. This saves procurement and maintenance time by 35% and ensures you have all the parts needed for quick repairs or overhauls. |
| Do these parts meet industry standards for high-pressure drilling operations? | All parts comply with API 7K (Drilling Fluid Pumps) and ISO 9001 standards, matching TSC OEM dimensional, material, and performance specs. Each part undergoes rigorous testing, including pressure testing at 1.5x 5000 PSI (exceeding the pumps’ nominal pressure rating), torque testing, and dimensional inspection. This ensures reliability in harsh, high-pressure drilling environments and supports the IDECO T-1300 and T-1600’s rated horsepower and pressure capabilities. |
7. Procurement Guidance
This IDECO T-1300, T-1600 Fluid End Parts List is a formal procurement and technical reference, designed to help drilling teams source reliable, API 7K-certified TSC OEM-equivalent components for their 1300HP and 1600HP mud pumps. Every part is vetted for dimensional accuracy, material quality, and performance—critical for 5000 PSI pumps operating in harsh onshore drilling environments. Using these parts eliminates the risk of incompatible, low-quality components that cause costly downtime, premature fluid end failure, and catastrophic pump damage, which can halt drilling operations and lead to significant financial losses.
