Product Introduction

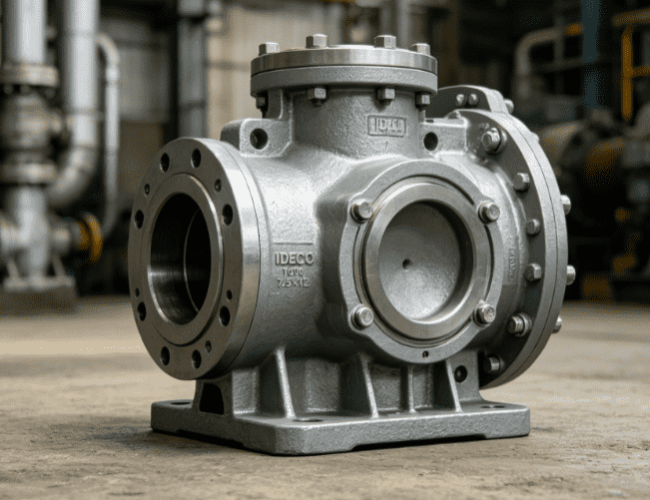

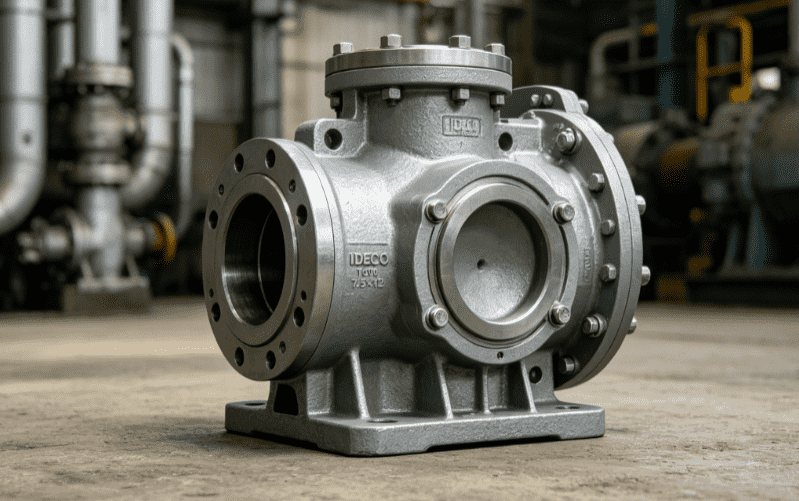

Our IDECO T1300 mud pump parts line includes precision-machined threading liner retainers, liner rings, extension rods, valve guides, high-performance pistons/liners, sealing components, and heavy-duty fluid end studs/nuts. Crafted from hardened alloy steel, wear-resistant chrome-plated iron, oil-resistant synthetic rubber, and high-tensile fastener materials, each part undergoes hydrostatic pressure testing and dimensional verification to match OEM performance specifications. Designed for direct interchangeability with original IDECO T1300 pump components, these parts cover all critical wear points and emergency replacement needs for 7.5×12 size triplex mud pumps.
Functional Capabilities
- Fluid End Sealing & Retention: Liner retainers, threading rings, and O-rings create a pressure-tight seal for 6” and 7” pump liners, preventing mud leaks and maintaining consistent pumping pressure up to 5,000 PSI.
- Piston & Liner Performance: Precision-sized pistons and chrome-plated liners deliver efficient mud displacement, reducing friction and wear during high-cycle pumping operations.
- Valve & Flow Control: Lower valve guides and valve discs ensure proper valve alignment, enabling smooth mud flow and preventing pressure drops in the pump fluid end.
- Structural Stability: High-tensile fluid end and manifold studs/nuts secure critical pump assemblies, withstanding extreme vibration and pressure cycling during continuous drilling.
- Wear Protection: Mud baffle discs, stripper box packing, and lantern rings shield internal components from abrasive drilling mud, extending part lifespan and reducing maintenance frequency.
Structural Design Features
- Exact OEM Fit: Precision-machined mounting profiles and dimensional matching eliminate installation errors, ensuring seamless replacement with original IDECO T1300 pump parts.
- High-Wear Resistance: Chrome-plated liners, hardened valve guides, and reinforced rubber seals resist abrasion from drilling mud solids, extending service intervals to 900+ operating hours.
- High-Tensile Durability: Heat-treated alloy steel studs and nuts meet ASTM A193 standards, preventing breakage under extreme pressure and vibration loads.
- Modular Repair Design: Pre-sized sealing sets and individual wear components enable targeted repairs, reducing waste and lowering long-term maintenance costs.
Applicable Operating Conditions
These IDECO T1300 mud pump parts are engineered to perform reliably in rigorous drilling scenarios, including:
- IDECO T1300 triplex mud pumps (7.5 × 12 size) – exclusive compatibility
- 24/7 continuous mud pumping operations with high-cycle mechanical stress
- High-pressure applications up to 5,000 PSI for drilling mud circulation
- Harsh environments with abrasive drilling mud, high solids content, and heavy vibration
- Onshore and offshore drilling rigs operating IDECO T1300 pump units
Maintenance & Service Recommendations
- Inspect pump liners (6”/7”) and pistons every 600 operating hours for scoring, wear, or leaks; replace worn components immediately to prevent pressure loss and mud bypass.
- Replace stripper box packing (IP-804) and lantern rings every 450 operating hours, ensuring proper sealing to keep abrasive mud out of internal pump components.
- Torque fluid end and manifold studs/nuts to OEM specifications quarterly, checking for loosening or wear to maintain structural integrity of the pump fluid end.
- Inspect valve guides and valve discs every 750 operating hours for wear or misalignment, replacing damaged parts to preserve consistent mud flow control.
- Lubricate extension rods and sliding components with API-certified extreme-pressure grease during routine maintenance to reduce friction and wear.
- Store rubber seals and packing in a cool, dry, dust-free environment to prevent premature hardening or degradation prior to installation.
- We supply the following spare parts:
| Item No. | Description | Unit |
| 1 | THREADING LINER RETAINER (IDT 1316LAN) # 551-105-05 | EA |
| 2 | THREADING RING (IOT 1316FLG) # 55-105-03 | EA |
| 3 | EXTENSION ROD# 551-106-06 | EA |
| 4 | SHIM SET F/IDCO T-1300 # 551-106-18 | EA |
| 5 | STRIPPER BOX PACKING (TM98800027) 3PCS/SET # IP-804 | EA |
| 6 | LANTERN RING# 551-106-12 | EA |
| 7 | MUD BAFFLE DISC# 450-06-12 | EA |
| 8 | VALVE GUIDE; LOWER# 551-105-07 | EA |
| 9 | O RING# 10-507 | EA |
| 10 | CYLINDER HEAD PLUG TOP #551-122-02 | EA |
| 11 | STUD-FLUID BLOCK 2.5″ X 1.5″ X 12.1/4″ # 551-110-01 | EA |
| 12 | STUD-DISCHARGE MANIFOLD 2.5″ X 1.5″X 10.25 # 551-110-02 | EA |
| 13 | NUT-FLUID END BLOCK# IN-415 | EA |
| 14 | NUT-DISCHARGE FLANGE# IN-416 | EA |
| 15 | VALVE DISC ( # HARRISBURG 4 – DD-7B ) | EA |
| 16 | PISTON 6X 1-5/8″ BORE #012180394 | EA |
| 17 | LINER 6” #05507600HP | EA |
| 18 | LINER 7″ #05507700HP | EA |
| 19 | STEM RUBBER SEAL F/LTV RELIEF VALVE | EA |
Field Failure Repair Case Studies
Case 1: Liner Seal Leakage
An IDECO T1300 mud pump experienced severe mud leakage from the liner retainer assembly, causing pressure drops and drilling delays. Replacing the threading liner retainer (#551-105-05) and worn O-rings (#10-507) restored a pressure-tight seal, eliminating leaks and resuming full pumping capacity within 1.5 hours.
Case 2: Piston Wear & Mud Bypass
Heavy piston wear led to significant mud bypass in the pump cylinder, reducing mud delivery volume and disrupting drilling circulation. Installing new 6×1-5/8” bore pistons (#012180394) restored proper displacement, extending piston service life to over 900 operating hours.
Case 3: Fluid End Stud Breakage
A cracked fluid end block stud caused misalignment of the pump fluid end, leading to uneven pressure and component damage. Replacing the broken stud (#551-110-01) and torquing all fasteners to OEM specs stabilized the assembly, preventing further structural issues.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these parts compatible only with IDECO T1300 7.5×12 mud pumps? | Yes, all components are precision-designed exclusively for IDECO T1300 triplex mud pumps (7.5 × 12 size), matching OEM part numbers for direct drop-in fit. |
| What pressure ratings do these mud pump parts support? | All fluid end components are rated for up to 5,000 PSI operating pressure, meeting strict API 7K standards for heavy-duty drilling mud pumping. |
| How do I match the correct liner size for my T1300 pump? | Select 6” liners (#05507600HP) or 7” liners (#05507700HP) based on your pump’s original cylinder configuration; both sizes are engineered for exact IDECO T1300 fit. |
Procurement Guidance
For drilling operators and maintenance teams running IDECO T1300 7.5×12 mud pumps, this catalog is your definitive sourcing solution for high-quality, OEM-matched spare parts. It provides full transparency on part descriptions, OEM cross-references, material specs, quantity requirements, and pressure ratings, serving as both a formal procurement compliance standard and a practical troubleshooting reference. Whether you need emergency liner/piston replacements for unexpected breakdowns, routine sealing kits for scheduled maintenance, or high-tensile studs/nuts for structural repairs, every part is engineered to resolve common T1300 pump failures and deliver long-lasting performance in harsh drilling conditions. Submit your detailed inquiry with specific OEM part numbers, required quantities, and pump configuration details to secure precision-matched components tailored to your IDECO T1300 mud pump needs. Our technical team provides full compatibility verification, API compliance documentation, and expert field support to streamline your procurement process and ensure seamless, efficient installation.
