Core Product Overview
This comprehensive sealing parts catalog features ASME B16.20/API 6A compliant gaskets, seal rings, O-rings, and flange gasketing kits engineered for critical fluid sealing applications across oil and gas production, water treatment packages, industrial pumps, pressure safety valves, and wellhead equipment. Target users include maintenance engineers, pipeline technicians, industrial pump repair specialists, oilfield asset managers, and procurement teams focused on eliminating flange leaks, preventing system downtime, and complying with strict pressure vessel standards. The core purpose of this catalog is to supply precision-manufactured, code-compliant sealing components that deliver zero-leak performance, withstand extreme pressure and temperature fluctuations, and extend the service life of flanged connections, valves, pumps, and wellhead assemblies.
Key Pain Points Addressed
- Costly Fluid Leak Incidents: Improper or worn gaskets cause hazardous fluid leaks, leading to regulatory fines, environmental cleanup costs, and unplanned shutdowns averaging $30,000+ per industrial system failure
- Premature Seal Failure: Non-compliant or low-grade gaskets degrade under high pressure (up to 1500 LB) and high temperature (up to 800°F), requiring frequent replacements and inflating maintenance costs
- Code Non-Compliance Risks: Using non-ASME/API certified sealing parts violates industry safety standards, risking equipment certification revocation and operational halts
- Mismatched Sealing Fit: Ill-sized gaskets and rings cause uneven compression, seal distortion, and chronic leakage in flanged joints, pump housings, and valve assemblies
2. Detailed Product & Technical Specifications
Functional Description
These sealing components perform critical roles in industrial and oilfield systems, with key functions including:
- Creating leak-proof flanged connections for pipelines, pumps, and wellheads across Class 150 to Class 1500 pressure ratings
- Sealing rotating pump shafts and bearing housings to prevent lubricant loss and fluid intrusion
- Maintaining pressure integrity in pressure safety valves and strainers to protect system equipment
- Sealing static joints in produced water treatment packages and industrial agitators
- Withstanding chemical exposure from crude oil, produced water, and industrial process fluids
Structural Characteristics
- Spiral-Wound Gaskets (33UAUB/33CACB): Layered metal winding (Inconel 625/304 SS) with flexible graphite filler, 4.5mm thickness, and carbon steel outer ring for compression control; designed for raised face (RF) flanges
- RTJ Octagonal Gaskets: Solid soft iron/316 SS construction, precision-machined to API 6A/ASME B16.20 specs, for RTJ flanges in high-pressure Class 900/1500 systems

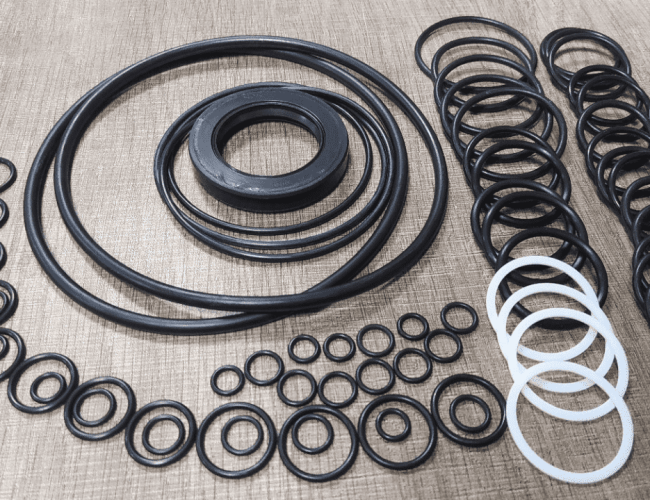

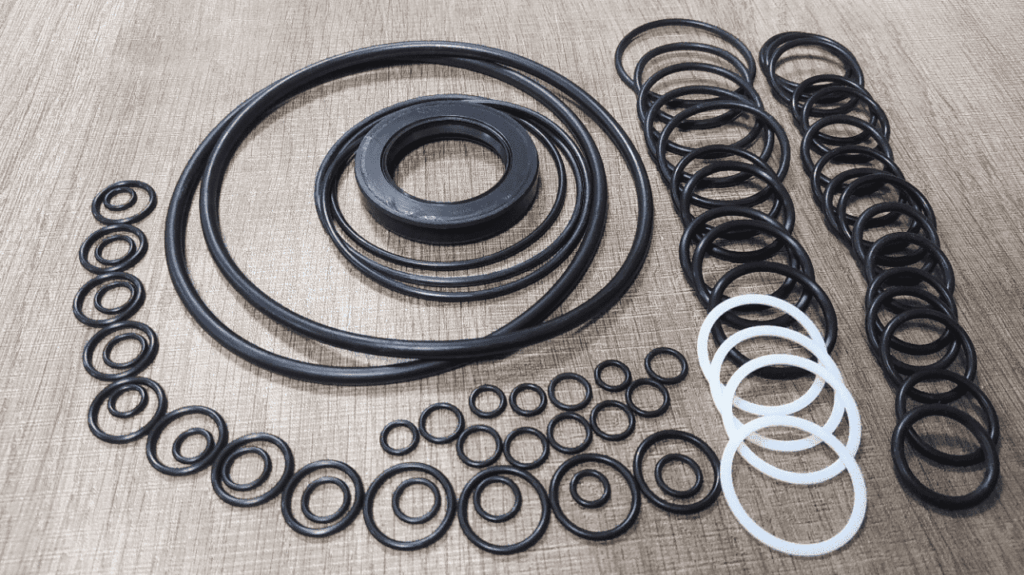

- O-Rings: Molded Viton/NBR elastomers with consistent cross-sectional diameter, JIS B 2401/AS568 standard sizing, for static and dynamic sealing
- Mechanical Seals: Carbon/ceramic sealing faces with Viton secondary seals, engineered for centrifugal pump shaft sealing to reduce friction and leakage
Applicable Operating Conditions
- Pressure ratings: ASME Class 150, 300, 600, 900, 1500 LB
- Temperature range: -20°F (-29°C) to 800°F (427°C) for spiral-wound gaskets; -40°F (-40°C) to 450°F (232°C) for Viton O-rings
- Applications: Oilfield wellheads, Christmas trees, pipeline flanges, industrial pumps (ALLWEILER, EBSRAY), pressure safety valves, produced water treatment packages
- Fluid compatibility: Crude oil, produced water, industrial chemicals, lubricating oils, and process fluids
- Standards compliance: ASME B16.5, ASME B16.20, API 6A, JIS B 2401, NACE MR-0175
Maintenance & Service Recommendations
- Inspect all gaskets and O-rings for cracks, compression set, or corrosion prior to installation; discard damaged components immediately
- Clean flange faces thoroughly to remove debris, old seal residue, and rust to ensure even compression
- Torque flange bolts to manufacturer specifications in a cross-pattern to avoid uneven gasket compression and leakage
- Replace spiral-wound and RTJ gaskets every 24 months or after system pressure testing; replace O-rings annually or at the first sign of hardening
- Store sealing components in a cool, dry environment away from UV light and chemicals to preserve material integrity
We supply the following spare parts:
| № | Required Item | Full Description | Unit |
| 1 | GSKT,SPRL-WND,33UAUB,CLS150,20″ | GASKET 33UAUB : SPIRAL-WOUND (B/INCONEL625+F.GRA.,I/INCONEL625, O/C.S) ASME CLASS 150 4.5MM RF. SIZE (IN) 20″ | EA |
| 2 | GSKT,SPRL-WND,33CACB,CLS150,12″ | GASKET 33CACB : SPIRAL-WOUND (B/TYPE304+F.GRA.,I/TYPE304, O/CS) ASME CLASS 150 4.5MM. SIZE (IN) 12″ | EA |
| 3 | GSKT,T3,746-610,CLS3,ASTM,JIC6000,JEIL | GASKET.-SIZE t3x?(746-610).-MATERIAL SPEC: ARAMID FIBER+NBR; ITEM; JIC 6000, AS PER CATALOG JEIL E&S CO.LTD. DATE:SEP.30.2013. REV. №:2 | EA |
| 4 | GSKT,SPRL-WND,33CACB,CLS150,2″ | GASKET 33CACB : SPIRAL-WOUND (B/TYPE304+F.GRA.,I/TYPE304, O/CS) ASME CLASS 150 4.5MM. SIZE (IN) 2″ | EA |
| 5 | GSKT,SPRL-WND,33CACB,CLS150,1″ | GASKET 33CACB : SPIRAL-WOUND (B/TYPE304+F.GRA.,I/TYPE304, O/CS) ASME CLASS 150 4.5MM. SIZE (IN) 1″ | EA |
| 6 | GSKT,SPRL-WND,33CACB,CLS150,1-1/2″ | GASKET 33CACB : SPIRAL-WOUND (B/TYPE304+F.GRA.,I/TYPE304, O/CS) ASME CLASS 150 4.5MM. SIZE (IN) 1.1/2″ | EA |
| 7 | GSKT,SPRL-WND,33CACB,CLS150,10″ | GASKET 33CACB : SPIRAL-WOUND (B/TYPE304+F.GRA.,I/TYPE304, O/CS) ASME CLASS 150 4.5MM. SIZE (IN) 10″ | EA |
| 8 | GSKT,SPRL-WND,33CACB,CLS150,14″ | GASKET 33CACB : SPIRAL-WOUND (B/TYPE304+F.GRA.,I/TYPE304, O/CS) ASME CLASS 150 4.5MM. SIZE (IN) 14″ | EA |
| 9 | GSKT,SPRL-WND,33CACB,CLS150,16″ | GASKET 33CACB : SPIRAL-WOUND (B/TYPE304+F.GRA.,I/TYPE304, O/CS) ASME CLASS 150 4.5MM. SIZE (IN) 16″ | EA |
| 10 | GSKT,SPRL-WND,33CACB,CLS150,36″ | GASKET 33CACB : SPIRAL-WOUND (B/TYPE304+F.GRA.,I/TYPE304, O/CS) ASME B16.47 SER.A CLASS 150 4.5MM RF. SIZE (IN) 36″ | EA |
| 11 | GSKT,SPRL-WND,33CACB,CLS150,4″ | GASKET 33CACB : SPIRAL-WOUND (B/TYPE304+F.GRA.,I/TYPE304, O/CS) ASME CLASS 150 4.5MM. SIZE (IN) 4″ | EA |
| 12 | GSKT,SPRL-WND,33CACB,CLS150,6″ | GASKET 33CACB : SPIRAL-WOUND (B/TYPE304+F.GRA.,I/TYPE304, O/CS) ASME CLASS 150 4.5MM. SIZE (IN) 6″ | EA |
| 13 | GSKT,SPRL-WND,33CACB,CLS150,8″ | GASKET 33CACB : SPIRAL-WOUND (B/TYPE304+F.GRA.,I/TYPE304, O/CS) ASME CLASS 150 4.5MM. SIZE (IN) 8″ | EA |
| 14 | GSKT,SPRL-WND,33CACB,CLS300,4″ | GASKET 33CACB : SPIRAL-WOUND (B/TYPE304+F.GRA.,I/TYPE304, O/CS)ASME CLASS 300 4.5MM RF. SIZE (IN) 4″ | EA |
| 15 | GSKT,SPRL-WND,33CACB,CLS300,8″ | GASKET 33CACB : SPIRAL-WOUND (B/TYPE304+F.GRA.,I/TYPE304, O/CS)ASME CLASS 300 4.5MM RF. SIZE (IN) 8″ | EA |
| 16 | GSKT,SPRL-WND,33UAUB,CLS150,3″ | GASKET 33UAUB : SPIRAL-WOUND (B/INCONEL625+F.GRA.,I/INCONEL625, O/C.S) ASME CLASS 150 4.5MM RF. SIZE (IN) 3″ | EA |
| 17 | GSKT,SPRL-WND,33CACB,CLS300,10″ | GASKET 33CACB : SPIRAL-WOUND (B/TYPE304+F.GRA.,I/TYPE304, O/CS)ASME CLASS 300 4.5MM RF. SIZE (IN) 10″ | EA |
| 18 | GSKT,SPRL-WND,33CACB,CLS150,34″ | GASKET 33CACB : SPIRAL-WOUND (B/TYPE304+F.GRA.,I/TYPE304, O/CS) ASME B16.47 SER.A CLASS 150 4.5MM RF. SIZE (IN) 34″ | EA |
| 19 | GSKT,SPRL-WND,33CACB,CLS300,1/2″ | GASKET 33CACB : SPIRAL-WOUND (B/TYPE304+F.GRA.,I/TYPE304, O/CS)ASME CLASS 300 4.5MM RF. SIZE (IN) 1/2″ | EA |
| 20 | GSKT,SPRL-WND,33UAUB,CLS150,24″ | GASKET 33UAUB : SPIRAL-WOUND (B/INCONEL625+F.GRA.,I/INCONEL625, O/C.S) ASME CLASS 150. SIZE (IN) 24″ | EA |
| 21 | GSKT,SPRL-WND,33UAUB,CLS300,2″ | GASKET 33UAUB : SPIRAL-WOUND (B/INCONEL625+F.GRA.,I/INCONEL625, O/C.S) ASME CLASS 300, 4.5MM RF. SIZE (IN) 2″ | EA |
| 22 | GSKT,SPRL-WND,33CACB,CLS150,1/2″ | GASKET 33CACB : SPIRAL-WOUND (B/TYPE304+F.GRA.,I/TYPE304, O/CS) ASME CLASS 150 4.5MM. SIZE (IN) 1/2″ | EA |
| 23 | GSKT SET,5CGKKIT010,AST | GASKET SET FOR TSV SMU?7000/LIQ INLET FLANGE RF 1″ CLASS 150; OUTLET FLANGE RF 1 1/2” CLASS 150; SERIAL NUMBERS 1204532; PRESSURE SET POINT 9 BAR; Manufacturer PN 5CGKKIT010 | SET |
| 24 | GSKT,RTJ,OCTGL,53CA,CLS900,8″ | ITEM: RING TYPE JOINT GASKET. TYPE: 53CA OCTAGONAL. SIZE/CLASS: 8″”/ASME CLASS 900 LBS. MATERIAL: SOFT IRON. STANDARD: ASME B16.20. | EA |
| 25 | GSKT,SPRL-WND,33CACB,CLS150,20″ | GASKET 33CACB : SPIRAL-WOUND (B/TYPE304+F.GRA.,I/TYPE304, O/CS) ASME CLASS 150 4.5MM. SIZE (IN) 20″ | EA |
| 26 | GSKT,SPRL-WND,33CACB,CLS150,20″ | GASKET 33CACB : SPIRAL-WOUND (B/TYPE304+F.GRA.,I/TYPE304, O/CS) ASME CLASS 150 4.5MM. SIZE (IN) 20″ | EA |
| 27 | GSKT,SPRL-WND,33CACB,CLS150,3″ | GASKET 33CACB : SPIRAL-WOUND (B/TYPE304+F.GRA.,I/TYPE304, O/CS) ASME CLASS 150 4.5MM. SIZE (IN) 3″ | EA |
| 28 | GSKT,SPRL-WND,33CACB,CLS150,3″ | GASKET 33CACB : SPIRAL-WOUND (B/TYPE304+F.GRA.,I/TYPE304, O/CS) ASME CLASS 150 4.5MM. SIZE (IN) 3″ | EA |
| 29 | GSKT,SPRL-WND,33CACB,CLS300,1-1/2″ | GASKET 33CACB : SPIRAL-WOUND (B/TYPE304+F.GRA.,I/TYPE304, O/CS)ASME CLASS 300 4.5MM RF. SIZE (IN) 1.1/2″ | EA |
| 30 | GSKT,SPRL-WND,33CACB,CLS300,1-1/2″ | GASKET 33CACB : SPIRAL-WOUND (B/TYPE304+F.GRA.,I/TYPE304, O/CS)ASME CLASS 300 4.5MM RF. SIZE (IN) 1.1/2″ | EA |
| 31 | GSKT,SPRL-WND,33UAUB,CLS150,18″ | GASKET 33UAUB : SPIRAL-WOUND (B/INCONEL625+F.GRA.,I/INCONEL625, O/C.S) ASME CLASS 150 4.5MM RF. SIZE (IN) 18″ | EA |
| 32 | GSKT,SPRL-WND,33UAUB,CLS150,18″ | GASKET 33UAUB : SPIRAL-WOUND (B/INCONEL625+F.GRA.,I/INCONEL625, O/C.S) ASME CLASS 150 4.5MM RF. SIZE (IN) 18″ | EA |
| 33 | TIG GSKT,14BK,CLS150,2″ | GASKET 14BK : TANGED INSERTED TYPE316+GRA.(EUROSEAL211 OR EQ.) ASME CLASS 150 3.0MM RF. SIZE (IN) 2″ | EA |
| 34 | TIG GSKT,14BK,CLS150,2″ | GASKET 14BK : TANGED INSERTED TYPE316+GRA.(EUROSEAL211 OR EQ.) ASME CLASS 150 3.0MM RF. SIZE (IN) 2″ | EA |
| 35 | FLNG A105 CLS150 WN RF SCH80,2″ | FLANGE A105 ASME Class 150 WN RF SCH80, Note 1)2″ | EA |
| 36 | FLNG A105 CLS150 WN RF SCH80,2″ | FLANGE A105 ASME Class 150 WN RF SCH80, Note 1)2″ | EA |
| 37 | FLNG,A105,CL150,SW,RF,SCH160,1/2″ | ITEM: CARBON STEEL FLANGE. SIZE (NPS): 1/2. PRESSURE RATING: ASME CLASS 150LB. ENDS: SOCKET WELD. SCHEDULE NO.: 160. FLANGE FACING: RAISED FACE. MATERIAL SPECIFICATION: ASTM A105. DIMENSIONS CONFORM TO STANDARD: ASME B16.5. | EA |
| 38 | FLNG,A105,CL150,SW,RF,SCH160,1/2″ | ITEM: CARBON STEEL FLANGE. SIZE (NPS): 1/2. PRESSURE RATING: ASME CLASS 150LB. ENDS: SOCKET WELD. SCHEDULE NO.: 160. FLANGE FACING: RAISED FACE. MATERIAL SPECIFICATION: ASTM A105. DIMENSIONS CONFORM TO STANDARD: ASME B16.5. | EA |
| 39 | GSKT,SPRL-WND,33CACB,CLS150,24″ | GASKET 33CACB : SPIRAL-WOUND (B/TYPE304+F.GRA.,I/TYPE304, O/CS) ASME CLASS 150 4.5MM. SIZE (IN) 24″ | EA |
| 40 | GSKT,SPRL-WND,33CACB,CLS300,2″ | GASKET 33CACB : SPIRAL-WOUND (B/TYPE304+F.GRA.,I/TYPE304, O/CS)ASME CLASS 300 4.5MM RF. SIZE (IN) 2″ | EA |
| 41 | GSKT,SPRL-WND,33UAUB,CLS300,16″ | GASKET 33UAUB : SPIRAL-WOUND (B/INCONEL625+F.GRA.,I/INCONEL625, O/C.S) ASME CLASS 300, 4.5MM RF. SIZE (IN) 16″ | EA |
| 42 | GSKT,SPRL-WND,33UAUB,CLS300,4″ | GASKET 33UAUB : SPIRAL-WOUND (B/INCONEL625+F.GRA.,I/INCONEL625, O/C.S) ASME CLASS 300, 4.5MM RF. SIZE (IN) 4″ | EA |
| 43 | GSKT,RTJ,OCTGL,R49,CL900,8″ | ITEM: RING TYPE JOINT GASKET. TYPE: R49 OCTAGONAL. SIZE/CLASS: 8″/ASME CLASS 900 LBS. MATERIAL: 316 STAINLESS STEEL. STANDARD: ASME B16.20. | EA |
| 44 | SEAL RING AS PER API TYPE R-57,SS | ITEM: SEAL RING AS PER API TYPE R-57 OCTAGONAL; RING DIMENSIONS ACCORDING TO STANDARDS: API-6A / ASME B16.20; RING MATERIAL SPEC.: SS316 STAINLESS STEEL; API NOMOGRAM /MARKING ON SEAL RING IS REQUIRED; SPTA FOR X-MAS TREE, WELLHEAD; | EA |
| 45 | GSKT,SPRL-WND,33CACB,CLS600,12″ | GASKET 33CACB : SPIRAL-WOUND (B/TYPE304+F.GRA.,I/TYPE304, O/CS)ASME CLASS 600 4.5MM RF. SIZE (IN) 12″ | EA |
| 46 | O-RING,P170,169 IDX8.4 CS,VITON | O-RING P170. Position number in the drawing: R01. Size: P170, Standard: JIS B 2401. Inner Diameter: 169.50 mmm. Cross Sectional Diameter : 8.4 mm. MATERIAL: VITON. EQUIPMENT: IGF AGITATOR. Unit: PRODUCED WATER TREATMENT PACKAGE. Unit Manufacturer DWG NO. : 12- 057-IGF-ROT-ADD-01, TITLE: BEARING HOUSING DWG. FOR IGF ROTOR (2 / 2 ). | EA |
| 47 | FLNGA182F316/316LCLS150SCH80S1/2″ | FLANGE A182 GR.F316/316L ASME Class 150 SW RF SCH80S, Note 1,2)1/2″ | EA |
| 48 | O-RING,P125,124.6 IDX5.7 CS,VITON | O-RING P125. Position number in the drawing: R02. Size: P125, Standard: JIS B 2401. Inner Diameter: 124.60 mm. Cross Sectional Diameter: 5.70 mm. MATERIAL: VITON. EQUIPMENT: IGF AGITATOR. Unit: PRODUCED WATER TREATMENT PACKAGE. Unit Manufacturer DWG NO. : 12- 057-IGF-ROT-ADD-01, TITLE: BEARING HOUSING DWG. FOR IGF ROTOR (2 / 2 ). | EA |
| 49 | FLNGA182F316/316LCLS150RFSCH80S3/4″ | FLANGE A182 GR.F316/316L ASME Class 150 SW RF SCH80S, Note 1,2)3/4″ | EA |
| 50 | O-RING,P120,119.6 IDX5.7 CS,VITON | O-RING P120. Position number in the drawing: R03. Size: P120, Standard: JIS B 2401. Cross Sectional Diameter: 5.70 MM. Inner Diameter: 119.60 MM. MATERIAL: VITON. EQUIPMENT: IGF AGITATOR. Unit: PRODUCED WATER TREATMENT PACKAGE. Unit Manufacturer DWG NO. : 12-057-IGF-ROT-ADD-01, TITLE: BEARING HOUSING DWG. FOR IGF ROTOR (2 / 2 ). | EA |
| 51 | GSKT SET,F_114656,FINDER | GASKET SET, F_114656, FINDER; P/N: F_114656; MANUFACTURER: FINDER POMPE; PUMP MODEL: HCV50-315B; PUMP S/N: 121002/M/4; CONSISTS OF: FLAT GASKETS, POS. 9, 9.1, 9.2, 9.3, 9.4, 9.5, 43, 43.1; SEAL RING, POS. 43, 43.1; DRAWING: S090075602, REV. 0; | SET |
| 52 | SCREEN & MESH,12″CL.900,T(1)B,FASECO | ITEM: SCREEN AND MESH FOR 12″ ASME CLASS 900 BW T-ANGLE TYPE STRAINER. ELEMENT DIMENSIONS (D1XD2XH1): 230 X 135 X 920 MM. SCREEN MESH: 20 MESH. ITEM MATERIAL: SS316. OEM DRAWING NO.: FSC-T(1)B-900-12-BW-1. ITEM POSITION NO.: 7 & 8. EQUIPMENT TAG NO.: 22-484-00- STR-701. MANUFACTURER: FASECO. | EA |
| 53 | GSKT,12″CL.900,T(1)B,FASECO | ITEM: RTJ GASKET FOR 12″ ASME CLASS 900 BW T-ANGLE TYPE STRAINER. ITEM MATERIAL: OCTAGONAL, SS316. OEM DRAWING NO.: FSC-T(1)B-900- 12-BW-1. ITEM POSITION NO.: 4. EQUIPMENT TAG NO.: 22-484-00-STR-701. MANUFACTURER: FASECO. | EA |
| 54 | MECH.SEAL,33999,ALLWEILER | MECHANICAL SEAL, 33999, U3D-M32N/30R-BVEGG, ALLWEILER. PART NO: 33999. MODEL: U3D-M32N/30R-BVEGG, PUMP MODEL: CLT-40-160/11U3D-W20, PUMP AND MECH.SEAL MANUFACTURE: ALLWEILER | EA |
| 55 | GSKT 10″,#1500,RTJ | ITEM: RING TYPE JOINT GASKET. TYPE: R54 OCTAGONAL. SIZE/CLASS: 10″ #1500 MATERIAL: 316 STAINLESS STEEL. STANDARD: ASME B16.20. | EA |
| 56 | MECH SEAL HOUSING,D653070040A01,FLUITEN | Item: MECHANICAL SEAL HOUSING. Part Number: D653070040A01. Material: AISI 316 . Single mechanical seal with quench Q0K9 – Seal Type and size D040-8K2. Position in drawing: 200. Manufacturer: FLUITEN ITALIA Spa. | EA |
| 57 | DISC,02-0004-37,TECHNICAL | ITEM: DISC FOR PRESSURE SAFETY VALVE; MANUFACTURER/MODEL: TECHNICAL S.r.l./4000 SERIES; OEM PART NUMBER: 02-0004-37; VALVE SERIAL NO.: 274041_TO_274046; | EA |
| 58 | NOZZLE,42-0145-37,TECHNICAL | ITEM: NOZZLE FOR PRESSURE SAFETY VALVE; MANUFACTURER/MODEL: TECHNICAL S.r.l./4000 SERIES; OEM PART NUMBER: 42-0145-37; VALVE SERIAL NO.: 274041_TO_274046; | EA |
| 59 | GSKT KIT,50-0077-1K,TECHNICAL | ITEM: GASKETS KIT FOR PRESSURE SAFETY VALVE; MANUFACTURER/MODEL: TECHNICAL S.r.l./4000 SERIES; OEM PART NUMBER: 50-0077-1K; VALVE SERIAL NO.: 274041_TO_274046; | SET |
| 60 | DISC,02-0004-8C,TECHNICAL | ITEM: DISC FOR PRESSURE SAFETY VALVE; MANUFACTURER/MODEL: TECHNICAL S.r.l./4000 SERIES; OEM PART NUMBER: 02-0004-8C; VALVE SERIAL NO.: 274047,274048; | EA |
| 61 | NOZZLE,42-0145-8C,TECHNICAL | ITEM: NOZZLE FOR PRESSURE SAFETY VALVE; MANUFACTURER/MODEL: TECHNICAL S.r.l./4000 SERIES; OEM PART NUMBER: 42-0145-8C; VALVE SERIAL NO.: 274047,274048; | EA |
| 62 | GSKT KIT,50-0077-1K,TECHNICAL | ITEM: GASKETS KIT FOR PRESSURE SAFETY VALVE; MANUFACTURER/MODEL: TECHNICAL S.r.l./4000 SERIES; OEM PART NUMBER: 50-0077-1K; VALVE SERIAL NO.: 274047,274048; | SET |
| 63 | COMPLETE MECH SEAL,BIA-24,EBSRAY | COMPLETE MECHANICAL SEAL,BIA-24,EBSRAY. MANUFACTURER: EBSRAY STREAMLINE. P/N: BIA-24. MATERIAL: CARBON / CERAMICS – VITON. PUMP MFR. : EBSRAY STREAMLINE. PUMP MODEL: 32-26 (CBSM). | SET |
| 64 | O-RING,32/26-CBSM-8.1,EBSRAY | O-RING,32/26-CBSM-8.1,EBSRAY. MANUFACTURER: EBSRAY STREAMLINE. P/N: 32/26-CBSM-8.1. MATERIAL: VITON. PUMP MFR.: EBSRAY STREAMLINE. PUMP MODEL: 32-26 (CBSM). | EA |
| 65 | RUBBER SLINGER,32/26-CBSM-9,EBSRAY | RUBBER SLINGER,32/26-CBSM-9,EBSRAY. MANUFACTURER: EBSRAY STREAMLINE. P/N: 32/26-CBSM-9. MATERIAL: NITRILE RUBBER. PUMP MFR.: EBSRAY STREAMLINE. PUMP MODEL: 32-26 (CBSM). | EA |
| 66 | CASING GASKET,32/26-CBSM-19,EBSRAY | CASING GASKET,32/26-CBSM-19,EBSRAY. MANUFACTURER: EBSRAY STREAMLINE. P/N: 32/26-CBSM-19. MATERIAL: PAPER. PUMP MFR.: EBSRAY STREAMLINE. PUMP MODEL: 32-26 (CBSM). | EA |
| 67 | OIL SEAL,32/26-CBSM-27,EBSRAY | OIL SEAL,32/26-CBSM-27,EBSRAY. MANUFACTURER: EBSRAY STREAMLINE. P/N: 32/26-CBSM-27. MATERIAL: NITRILE RUBBER. PUMP MFR.: EBSRAY STREAMLINE. PUMP MODEL: 32-26 (CBSM). | EA |
| 68 | OIL SCALE,32/26-CBSM-31,EBSRAY | OIL SCALE,32/26-CBSM-31,EBSRAY. MANUFACTURER: EBSRAY STREAMLINE. P/N: 32/26-CBSM-31. MATERIAL: PLASTIC. PUMP MFR.: EBSRAY STREAMLINE. PUMP MODEL: 32-26 (CBSM). | EA |
| 69 | OIL COVER,32/26-CBSM-32,EBSRAY | OIL COVER,32/26-CBSM-32,EBSRAY. MANUFACTURER: EBSRAY STREAMLINE. P/N: 32/26-CBSM-32. MATERIAL: PLASTIC. PUMP MFR.: EBSRAY STREAMLINE. PUMP MODEL: 32-26 (CBSM). | EA |
| 70 | BUSHING GASKET,32/26-CBSM-33,EBSRAY | THROAT BUSHING GASKET,32/26-CBSM-33,EBSRAY. MANUFACTURER: EBSRAY STREAMLINE. P/N: 32/26-CBSM-33. MATERIAL: PAPER. PUMP MFR.: EBSRAY STREAMLINE. PUMP MODEL: 32-26 (CBSM). | EA |
| 71 | GSKT,400.1,ALLWEIL | GASKET FOR CASING COVER PART NUMBER 400.1 MATERIAL GRAPHITE MANUFACTURER: ALLWEILER PUMP MODEL CLT 40-160/11 U3D-W20 PUMP MATERIAL DESIGN-W20 PUMP SERIAL NUMBER: 12039437 | EA |
| 72 | FLNG,A105,CL150,SW,RF,SCH80,3/4″ | ITEM: CARBON STEEL FLANGE. SIZE (NPS): 3/4. PRESSURE RATING: ASME CLASS 150LB. ENDS: SOCKET WELD. SCHEDULE NO.:80. FLANGE FACING: RAISED FACE. MATERIAL SPECIFICATION: ASTM A105. DIMENSIONS CONFORM TO STANDARD: ASME B16.5. | EA |
| 73 | GSKT,RTJ,OCTGL,53CA,CLS1500,8″ | GASKET RING-JOINT OCTAGONAL TYPE (SOFT IRON). RING NUMBER: 53CA. FLANGE FACE: RTJ. FLANGE SIZE: NPS 8. PRESSURE RATING: ASME CLASS 1500LB. FLANGE STANDARD: ASME B16.5. GASKET STANDARD: ASME B16.20. | EA |
| 74 | FLNG 8″,SCH.XXS,A105N,CL1500,WN,RTJ | FLANGE 8″, SCH.XXS, A105N, ASME B16.5 CLASS 1500, WN, RTJ , NACE MR-0175 | EA |
| 75 | O-RING,428,ID-4.850″,CS-0.275″ | O-Ring, Size – 428 (as per AS568 standard). ID: nominal – 4-7/8″, actual 4.850″. Cross-section: nominal – 1/4″, actual – 0.275″. Material: NBR (Nitrile/Buna-N). Hardness: 70-75 Durometer. | EA |
| 76 | BACK-UP RING FOR O-RING – 428 | Back-up Ring for O-Ring Size – 428 (as per AS568 standard). ID actual: 4.926″”. Width: 0.236″”. Material: NBR (Nitrile/Buna-N). Hardness: 70-75 Durometer. | EA |
| 77 | O-RING,349,ID-4.475″,CS-0.210″ | O-Ring, Size – 349 (as per AS568 standard). ID: nominal – 4 1/2″, actual 4.475″. Cross-section: nominal – 3/16″, actual – 0.210″. Material: NBR (Nitrile/Buna-N). Hardness: 85-90 Durometer. | EA |
| 78 | GSKT,RTJ,OCTGL,53CA,CLS900,8″ | ITEM: RING TYPE JOINT GASKET. TYPE: 53CA OCTAGONAL. SIZE/CLASS: 8″”/ASME CLASS 900 LBS. MATERIAL: SOFT IRON. STANDARD: ASME B16.20. | EA |
| 79 | GSKT,RTJ,OCTGL,53CA,CLS900,8″ | ITEM: RING TYPE JOINT GASKET. TYPE: 53CA OCTAGONAL. SIZE/CLASS: 8″”/ASME CLASS 900 LBS. MATERIAL: SOFT IRON. STANDARD: ASME B16.20. |
3. Field Failure Repair Cases
Case 1: Flange Leak on Class 150 Pipeline (Spiral-Wound Gasket Failure)
A production facility experienced persistent fluid leakage on a 20” Class 150 pipeline flange. Inspection revealed a degraded non-compliant spiral-wound gasket with broken windings. Replacing the faulty gasket with a 33CACB ASME-compliant spiral-wound gasket eliminated leaks and restored system pressure integrity.
Case 2: Pump Shaft Leak From Worn Viton O-Ring
An IGF agitator in a produced water treatment package suffered lubricant leakage from the bearing housing. The issue was a hardened P170 Viton O-ring that lost elasticity. Installing a new JIS B 2401 compliant Viton O-ring stopped leakage and extended pump service life.
Case 3: Wellhead RTJ Gasket Leak (High-Pressure Failure)
An offshore wellhead with an 8” Class 900 RTJ flange developed a pressure leak due to a damaged soft iron RTJ gasket. Replacing the gasket with an ASME B16.20 certified 53CA octagonal RTJ gasket sealed the joint and restored wellhead pressure control.
4. Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these gaskets compatible with ASME Class 150/300/900 flanges? | Yes, all spiral-wound and RTJ gaskets are manufactured to ASME B16.20 standards for direct fitment with Class 150 to Class 1500 raised face and RTJ flanges. |
| What materials are available for high-corrosion oilfield environments? | We offer Inconel 625 (33UAUB) and 316 stainless steel sealing components, along with Viton O-rings, for superior corrosion resistance in harsh oilfield and offshore conditions. |
| Do these O-rings meet standard sizing for industrial pumps? | All O-rings comply with JIS B 2401 and AS568 standard sizing, ensuring perfect fitment for ALLWEILER, EBSRAY, and other industrial centrifugal pumps and agitators. |
5. Procurement Guidance & Call to Action
This gasket and seal ring catalog serves as a definitive reference for planned maintenance stocking, emergency seal replacements, and code-compliant system upgrades. Every component is manufactured to meet strict ASME, API, and JIS industry standards, ensuring reliable leak-proof performance, reduced maintenance downtime, and full regulatory compliance for your industrial and oilfield sealing needs. Whether you’re replacing a single RTJ gasket for a high-pressure wellhead, stocking spiral-wound gaskets for pipeline flanges, or sourcing O-rings for pump repairs, these precision-engineered parts deliver consistent quality and fit to protect your critical fluid systems.
Secure your supply of ASME/API compliant gaskets, seal rings, and O-rings today to maintain operational readiness, eliminate costly leaks, and protect your equipment investment. Reference the listed part descriptions and specifications for accurate ordering, and use the technical guidelines provided to streamline installation and troubleshooting for all your sealing applications.
