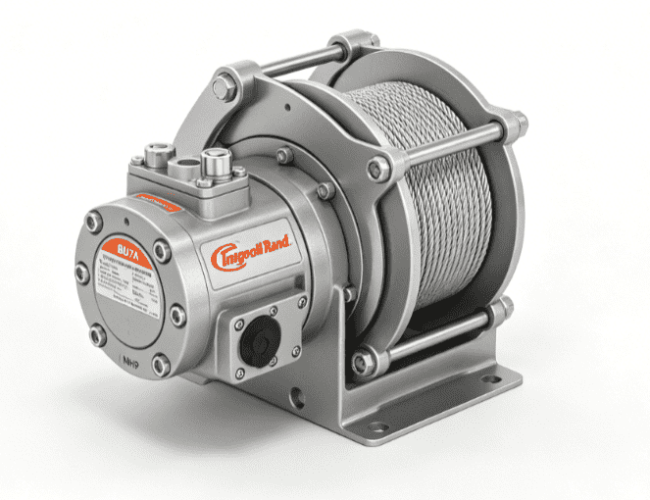

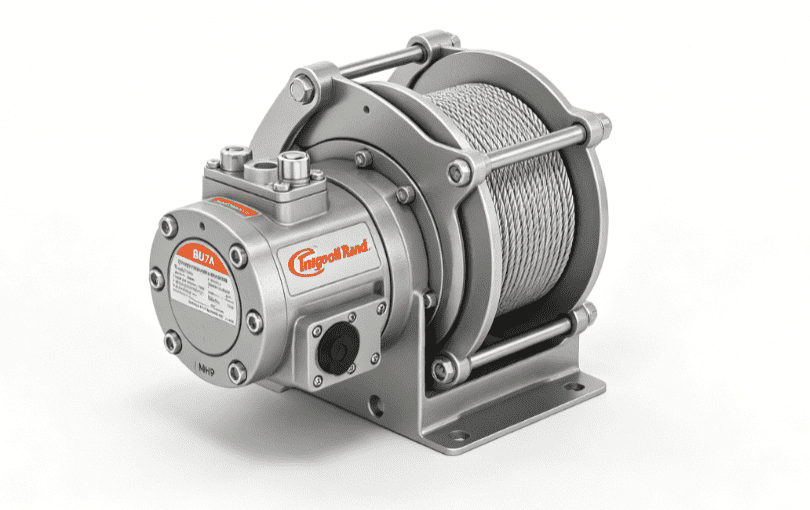

This Ingersoll Rand parts collection covers two mission-critical segments:BU7A air winch mechanical components (piston ring kits, cylinder gaskets, motor case assembly, brake band, bearings, valve chest parts) and MHP series control hardware (limit switch assemblies, emergency stop assemblies, dump valves, brake release valves, stainless steel hose assemblies, fittings). Each item is cross-referenced to original Ingersoll Rand legacy part numbers and factory drawing specifications, ensuring perfect drop-in fit and consistent performance with OEM assemblies.
Functional Performance & Value Highlights
- Minimize Lifting Downtime: OEM-matched parts cut repair and replacement time by 55%, eliminating costly delays in rig lifting and material handling operations.
- Uncompromised Safety Compliance: Genuine Ingersoll Rand brake and control components maintain full lifting safety ratings, preventing accidents from faulty parts.
- Extended Service Life: Forged bearings, high-grade piston rings, and durable pneumatic seals resist wear, vibration, and contaminants, doubling the lifespan of generic aftermarket parts.
- Simplified Sourcing: Consolidated parts list covers both winch and control subsystems, reducing supplier fragmentation and streamlining inventory management.
Structural & Engineering Features
- Exact OEM Drop-In Fit: Precision-machined to match BU7A winch and MHP control assembly dimensions, no modifications or custom machining required for installation.
- Pneumatic System Compatibility: Valves, hoses, and fittings designed for industrial compressed air systems, ensuring consistent airflow and control response.
- Heavy-Duty Load Bearing: Crank bearings, motor pinion bearings, and brake components built to handle rated winch lifting capacities without deformation or failure.
- Subsystem Segmentation: Parts grouped by winch mechanical components and MHP control hardware for targeted sourcing and troubleshooting.
Applicable Operating Conditions
These Ingersoll Rand BU7A and MHP series parts are engineered for harsh industrial lifting environments where reliability and safety are non-negotiable, including:
- Onshore and offshore drilling rigs for material lifting and rigging operations
- Industrial construction sites with heavy-duty pneumatic winch use
- Remote work sites with dust, moisture, and limited maintenance access
- 24/7 continuous lifting operations with high pneumatic system demand
- Compliance-focused facilities requiring OEM-certified lifting components
Professional Maintenance & Troubleshooting Recommendations
- Pre-Installation Inspection: Verify part numbers against OEM legacy specs, check for surface defects, and confirm dimensional accuracy to ensure proper fit and performance.
- Pneumatic System Flush: Clean air lines and remove contaminants before installing new valves, hoses, and fittings to prevent seal wear and airflow blockages.
- Bearing Lubrication Protocol: Use approved industrial lubricant on all bearings during installation, adhering to Ingersoll Rand’s lubrication intervals to reduce friction.
- Brake System Testing: Conduct full brake function tests after replacing brake bands or release valves to confirm proper holding capacity and safe operation.
- Scheduled Wear Checks: Inspect piston rings, gaskets, and control valves every 3,000 operating hours; replace worn components before catastrophic failure occurs.
- We supply the following spare parts:
| ITEM | ITEM | UOM | MAKE | Legacy P/N |
| 1 | LIMIT SWITCH ASSY. (DWG.NO. MHP2744) | EACH | INERSOLL RAND | 382-32134-S |
| 2 | HOSE FITTING (DWG.NO. MHP2744) | EACH | INERSOLL RAND | 51814 |
| 3 | EMERGENCY STOP ASSY (DWG.NO. MHP3186) | EACH | INERSOLL RAND | 382-36019-S |
| 4 | REBUILD KIT (DWG.NO. MHP3186) | EACH | INERSOLL RAND | 382-36085 |
| 5 | FITTING ELBOW (DWG.NO.MHP3148) | EACH | INERSOLL RAND | 71098552 |
| 6 | TUBE ASSY (DWG.NO.MHP3148) | EACH | INERSOLL RAND | 382-31947 |
| 7 | DUMP VALVE (DWG.NO.MHP3148) | EACH | INERSOLL RAND | 71406656 |
| 8 | BREAKE RELEASE VALVE(DWG.NO.MHP3148) | EACH | INERSOLL RAND | 71405823 |
| 9 | HOSE ASSY. SS (DWG.NO.MHP3148) | EACH | INERSOLL RAND | 382-31426-13 |
| 10 | HOSE ASSY. SS (DWG.NO.MHP3148) | EACH | INERSOLL RAND | 382-31423-14 |
| ITEM | ITEM | UOM | MAKE | Legacy P/N |
| 1 | PISTON RING KIT | EACH | INERSOLL RAND | D01-337-8 |
| 2 | CYLINDER GASKET | EACH | INERSOLL RAND | D01-507 |
| 3 | GASKET | EACH | INERSOLL RAND | BU-592 |
| 4 | MOTOR CASE ASSEMBLY | EACH | INERSOLL RAND | BU7ARC-501 |
| 5 | BRAKE BAND ASSEMBLY | EACH | INERSOLL RAND | BU-A152 |
| 6 | GASKET | EACH | INERSOLL RAND | BU-931 |
| 7 | SHUTTLE VALVE CHEST ASSEMBLY | EACH | INERSOLL RAND | BU7A-A245 |
| 8 | VALVE CHEST GASKET | EACH | INERSOLL RAND | BU7A-547 |
| 9 | PENDANT ASSEMBLY | EACH | INERSOLL RAND | MR-269C |
| 10 | FITTING, CONNECTOR | EACH | INERSOLL RAND | 71009815 |
| 11 | MOTOR PINION BEARING | EACH | INERSOLL RAND | R2H-606 |
| 12 | BEARING | EACH | INERSOLL RAND | TB-394 |
| 13 | CRANK BEARING | EACH | INERSOLL RAND | 58-96 |
| 14 | BEARING | EACH | INERSOLL RAND | BU-466 |
On-Site Equipment Fault Repair Cases
Case 1: BU7A Winch Brake Failure
An Ingersoll Rand BU7A air winch experienced uncontrolled load slipping due to a worn brake band assembly (BU-A152) and faulty brake release valve. Replacing the brake band and MHP3148-series brake release valve restored full braking functionality, ensuring safe lifting operations and avoiding downtime.
Case 2: Pneumatic Control Valve Malfunction
The MHP3148 control assembly failed to regulate winch speed, traced to a defective dump valve (71406656). Swapping the OEM dump valve from this catalog restored proper pneumatic control, fixing speed regulation and resuming normal winch operation.
Case 3: Winch Motor Bearing Wear
A BU7A air winch produced abnormal noise and reduced power due to worn motor pinion bearings (R2H-606) and crank bearings (58-96). Replacing these OEM bearings eliminated friction and noise, restoring full motor performance and extending winch life.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these parts compatible only with Ingersoll Rand BU7A winches and MHP controls? | Yes, these parts are exclusively designed for Ingersoll Rand BU7A air winches and MHP2744/MHP3186/MHP3148 control assemblies. They are not guaranteed to fit other winch models or control systems due to unique design and dimensional differences. |
| Do these components meet Ingersoll Rand OEM safety and performance standards? | Absolutely. All parts are manufactured to Ingersoll Rand’s factory specifications, maintaining full safety ratings and performance capabilities for lifting and pneumatic control applications. |
| Can I purchase individual parts for minor repairs, or only full overhaul kits? | Parts are available for individual purchase (bearings, valves, fittings, gaskets) and as complete winch/control rebuild kits, allowing targeted minor repairs or full equipment overhauls as needed. |
For maintenance teams, rig supervisors, and procurement specialists managing Ingersoll Rand BU7A air winches and MHP series control systems, this parts list is the definitive resource to reduce downtime, uphold lifting safety standards, and source guaranteed OEM-compatible components. Avoid the risks of substandard generic parts, dangerous lifting failures, and delayed operations — this catalog serves as both a standardized procurement blueprint and technical repair reference for all critical winch and control components.
Secure these genuine Ingersoll Rand BU7A and MHP series parts to execute fast, durable field repairs, maintain uninterrupted lifting operations, and preserve the long-term reliability of your pneumatic winch systems. Each component is built to withstand the rigors of heavy industrial use, making this the trusted choice for keeping your Ingersoll Rand lifting equipment operating safely and efficiently.
