1. Core Overview & Target Application Brief
This comprehensive spare parts catalog is precision engineered exclusively for the IRI-160D workover rig, covering 1996-2002 NOV-manufactured units and 1998 IRI-160D specific models, including compatible components for Drawworks 1287/2042, pneumatic systems, hydraulic systems, crownblock, swivel S200, rotor drive, and transfer case subsystems. Tailored to meet the specialized needs of workover rig maintenance teams, oilfield service contractors, drilling operators, and equipment rental firms, these parts target the most disruptive field pain points: brake system failure, pneumatic valve leaks, hydraulic control malfunctions, gearbox wear, seal degradation, and cardan shaft damage that cause costly unplanned downtime and safety hazards during well workover, well servicing, and remedial drilling operations.
2. Detailed Product & Component Specifications
The IRI-160D workover rig replacement parts line features high-durability, field-proven components built to withstand the extreme mechanical stress, pressure fluctuations, and harsh environmental conditions of onshore well workover operations. Each part is crafted from premium materials—heat-treated alloy steel for shafts and gears, oil-resistant nitrile rubber for seals, corrosion-resistant brass for pneumatic valves, and high-tensile components for brake systems—with strict dimensional tolerances (±0.002 inches for critical mating surfaces) to ensure perfect fitment with original NOV IRI-160D rig hardware. This catalog covers all critical subsystems of the IRI-160D, eliminating the risk of fitment errors and performance gaps common with generic aftermarket parts, and includes direct cross-references for legacy and new part numbers for simplified sourcing.
3. Key Functional Specifications
- System Compatibility: Engineered for IRI-160D rig pneumatic (operating pressure 90-120 PSI) and hydraulic (operating pressure up to 3000 PSI) systems, with full compatibility for Drawworks 1287/2042 and swivel S200 assemblies.
- Wear Life Metrics: Heat-treated gear and shaft components offer a 25,000+ operating hour service life; industrial-grade oil seals resist fluid degradation for 2,000+ hours; pneumatic valve components maintain tight sealing for 15,000+ actuation cycles.
- Load Rating Compliance: Load-bearing components (cardan shafts, drive flanges, brake parts) meet the IRI-160D’s rated workover load capacity, adhering to API 4F structural safety standards.
- Legacy Part Cross-Compatibility: All parts include direct replacements for legacy NOV codes, ensuring seamless upgrades for 1996-2002 IRI-160D rigs without modification.
We supply the following spare parts:
| Code | New Code | Description | UoM | |
| 1 | 112 001 02 | 11200102 | Upper bracket for fixing the brake band 112 001 02 or equivalent for Drawworks mod. 1287 (for IRI workover rig, 1996-2002 years, manufacturer NOV) | pc |
| 2 | B113 127 21 | 11312721 | Side cover B113 127 21 or equivalent for Drawworks mod. 1287 HDB (for IRI workover rig, 1996-2002 years, manufacturer NOV) | pc |
| 3 | D 109 312 02 | 10931202 | Spring break cylinder D 10931202 or equivalent for Drawworks mod. 1287 HDB (for IRI workover rig,1996-2002 years, manufacturer NOV) | pc |
| 4 | 60-600S | 952318 | Bellows 60-600S or equivalent for the Pneumatic system (for IRI workover rig, 1996-2002, manufacturer NOV) | pc |
| 5 | R8 #286 370 (Bendix) | IA347 | Valve R8 # 286370 (Bendix) or IA347 or equivalent for Pneumatic system (for IRI workover rig, 1996- 2002, manufactured by NOV) | pc |
| 6 | A 908 762 23 | 90876223 | Pneumatic motor speed cut-off А 908 762 23 or equivalent for the Pneumatic system (for IRI workover rig, 1996-2002, manufactured by NOV) | pc |
| 7 | D 109 304 35 | 10930435 | Hydraulic control panel assembly D 109 304 35 or equivalent for the Hydraulic system (for IRI workover rig, 1996-2002, manufactured by NOV) | pc |
| 8 | D109 304 45 | 10930445 | Hydraulic control panel assembly D 109 304 45 or equivalent for the Hydraulic system (for IRI workover rig, 1996-2002, manufactured by NOV) | pc |
| 9 | 111 765 05 (30″) | 6094D113C | Pulley 111 756 05 (30″) or equivalent for crownblock (for IRI workover rig, 1996-2002, manufactured by NOV) | pc |
| 10 | C 112 228 09 | 11222809 | Clutch brake drum C 112 228 09 or equivalent for the rotor drive reduction gear (for IRI workover rig, 1996-2002, manufactured by NOV) | pc |
| 11 | CA-02-3M | 90918543 (REPLACES 929904) | CA-02-3M valve or equivalent for the Hydraulic system (for IRI workover rig type IDECO, 1989- 2002, manufactured by NOV) | pc |
| 12 | 200092 F1 | GD200092F1 / 17828344-001 | Stem 200092 F1 or equivalent for Swivel S200 (for IRI workover rig, 1996-2002, manufactured by NOV) | pc |
| 13 | 502 11 30 | GD5021130 / 10274056-001 | Middle packing ring 502 11 30 or equivalent for Swivel S200 (for IRI workover rig, 1996-2002, manufactured by NOV) | pc |
| 14 | C112 272 00 | 18318592-001 | Drawworks drive shaft C112 272 00 shaft / 18318592-001 or equivalent ( for the IRI workover rig, 1996-2002, manufactured by NOV) | pc |
| 15 | B 121 409 47 / 10245512-001 | 12140947 | Drawworks drive shaft flange B121 409 47/10245512-001 or equivalent ( for the IRI workover rig, 1996-2002, manufactured by NOV) | pc |
| 16 | B123 903 03 | 946059 | Cardan shaft drive B123 903 03 END YOKE or equivalent (for the IRI workover rig, 1996-2002, manufactured by NOV) | pc |
| 17 | C108 744 08 | 18317959-001 | Belt cooling tank C108 744 08 or equivalent (for IRI workover rig, 1996-2002, manufactured by NOV) | pc |
| 18 | C123 424 60 | 18318641-001 | Cardan shaft C123 424 60 or equivalent (for IRI workover rig, 1996-2002, manufactured by NOV) | pc |
| 19 | B130 558 15 | B130 558 15 | Control panel B130 558 15 or equivalent (for IRI workover rig, 1996-2002, manufactured by NOV) | pc |
| 20 | C13000114 | 13000114 | Control panel with instruments C13000114 or equivalent (for IRI workover rig, 1996-2002, manufactured by NOV) | pc |
| 21 | 123-904-06 | 946107 | Rotor drive cardan shaft bolt 123- 904-06 or equivalent (for IRI workover rig, 1996-2002, manufactured by NOV) | pc |
| 22 | D127 087 95 | 18318224-001 | Drawworks brake system kit D127 087 95 or equivalent (for IRI workover rig, 1996-2002, manufactured by NOV) | pc |
| 23 | 49998 | 916263 | Oil seal 49998 or equivalent for Bevel gear (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 24 | А91000001 | 91000001 | Bevel pair A91000001 or equivalent for Bevel gear (for IRI- 160D workover rig, 1998, manufacturer NOV) | pc |
| 25 | 455183 | 916402 | Oil seal 455183 or equivalent for Bevel gear (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 26 | A 11022000 | 11022000 | Bushing A 11022000 or equivalent for Bevel gear (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 27 | A 11021900 | 11021900 | Bushing A 11021900 or equivalent for Bevel gear (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 28 | 37413 | 916024 | Oil seal 37413 or equivalent for Bevel gear (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 29 | 112-005-02 | 11200502 | Brake tape 112-005-02 or equivalent for Drawworks mod. 2042 (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 30 | 128-562-01 | 12856201 | Roller 128-562-01 or equivalent for Drawworks mod. 2042 (for IRI- 160D workover rig, 1998, manufacturer NOV) | pc |
| 31 | 128-562-00 | 12856200 | Roller 128-562-00 or equivalent for Drawworks mod. 2042 (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 32 | 128-589-00 | 12858900 | Roller 128-589-00 or equivalent for Drawworks mod. 2042 (for IRI- 160D workover rig, 1998, manufacturer NOV) | pc |
| 33 | 128-589-00 | 12858900 | Spring 128-589-00 or equivalent for Drawworks mod. 2042 (for IRI- 160D workover rig, 1998, manufacturer NOV) | pc |
| 34 | 113-180-00 | 11318000 | Brake mechanism 113-180-00 or equivalent for Drawworks mod. 2042 (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 35 | 115-136-00 | 11513600 | Brake mechanism 115-136-00 or equivalent for Drawworks mod. 2042 (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 36 | 115-135-00 | 11513500 | Brake mechanism 115-135-00 or equivalent for Drawworks mod. 2042 (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 37 | 24827-L | 24827-L | Brake mechanism 24827-L or equivalent for Drawworks mod. 2042 (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 38 | 24827-R | 113237+76 | Brake mechanism 24827-R or equivalent for Drawworks mod. 2042 (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 39 | 11218893 | 10269440-001 | Brake pulley 11218893 or equivalent for Drawworks mod. 2042 (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 40 | 414-22 D | 41422D | Oil seal 414-22 D or equivalent for crownblock (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 41 | D 10930423 | 10930423 | Control panel assembly D 10930423 or equivalent for the Hydraulic system (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 42 | А10979072 | 10979072 | Valve A10979072 or equivalent for the Hydraulic system (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 43 | А 90918500 | 90918500 | Valve A 90918500 or equivalent for the Hydraulic system (for IRI- 160D workover rig, 1998, manufacturer NOV) | pc |
| 44 | ІО-363 | 115890 | Oil seal IO-363 or equivalent for the rotor drive (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 45 | ІО-365 | IO365 | Oil seal IO-365 or equivalent for the rotor drive (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 46 | 1-554-157-08 | 55415708 | Oil seal 1-554-157-08 or equivalent for the rotor drive (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 47 | ASA 120-2 (1 1/2 Р CHAIN DBL)х244 | 120-2 | Chain ASA 120-2 (1 1/2 Р CHAIN DBL)x244 or equivalent for the Rotor Drive (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |

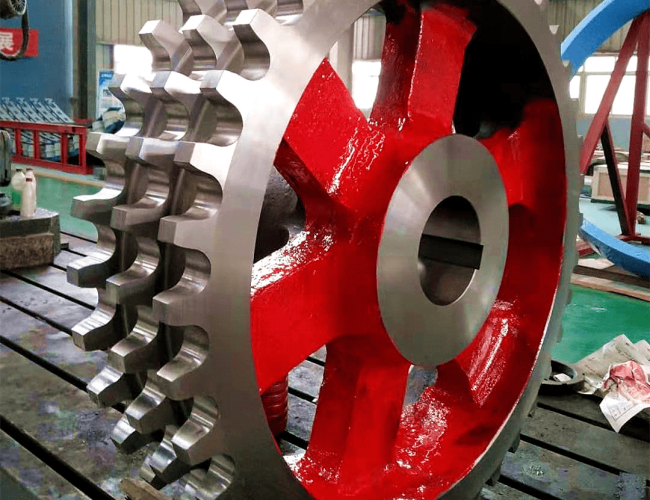

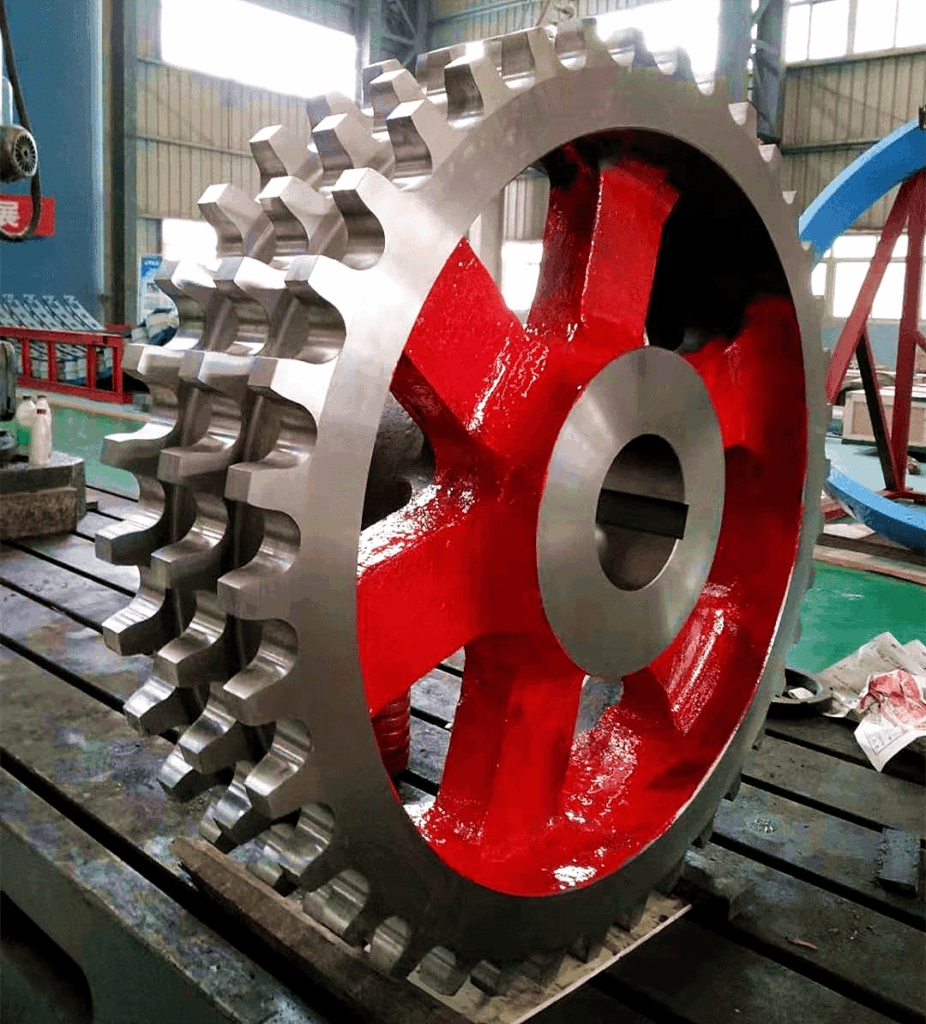

| 48 | 2-554-320-02 | 55432002 | Sprocket 2-554-320-02 or equivalent for the Rotor Drive (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 49 | В 12324800 | 12324800 | Oil seal B 12324800 or equivalent for the Summatory gearbox (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 50 | MGCOC C12302700 | 12302700 | Device for pumping fluid MGCOC C12302700 or equivalent for Summatory gearbox (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 51 | С 11024701 | 11024701 | Shaft C 11024701 or equivalent for the Transfer case (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 52 | С 12140940 | 12140940 | Flange C 12140940 or equivalent for the Transfer case (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 53 | В 12140901 | 12140901 | Flange B 12140901 or equivalent for the Transfer case (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 54 | А 12307393 | IP900 | Shaft A 12307393 or the equivalent for the Transfer case (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 55 | А 12390001 | 945714+76 | Crosspiece A 12390001 or equivalent for the Transfer case (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 56 | А 12390104 | 946129+76 | Crosspiece A 12390104 or equivalent for the Transfer case (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 57 | А 12390202 | 946014 | Crosspiece A 12390202 or equivalent for the Transfer case (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 58 | А 92300309 | 92300309 | Cup A 92300309 or equivalent for the Transfer case (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 59 | 123902-03 | 946274 | Flange 123902-03 or equivalent for the Transfer case (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 60 | А 90876247 | 90876247 | Crane A 90876247 or equivalent for Pneumatical system (for IRI- 160D workover rig, 1998, manufacturer NOV) | pc |
| 61 | А 90876248 | 90876248 | Crane A 90876248 or equivalent for Pneumatical system (for IRI- 160D workover rig, 1998, manufacturer NOV) | pc |
| 62 | R 8 IA 347 | IA347 | Crane R 8 IA 347 or equivalent for Pneumatical system (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 63 | WM-453-C / 917424 | 917424 | Pedal WM-453-C or 917424 or equivalent for Pneumatical system (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 64 | 108-762-90 | 108-762-90 | Pilot valve 108-762-90 or equivalent for the Pneumatical system (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 65 | ХА 4255 / IA391 | IA391 | Valve XA 4255 or IA391 or equivalent for Pneumatical system (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 66 | А 6597 | 947257 | Coupling A 6597 or equivalent for Pneumatical system (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 67 | 1290-0100 | 90876235 (SAME AS ABOVE?) | Relay air valve 1290-0100 or equivalent for Pneumatical system (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 68 | 1760-1400 | 1760-1400 | Retractable toggle valve 1760- 1400 or equivalent for Pneumatical system (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 69 | 812416 | 1-40130 | Pneumatic cylinder assembly 812416 or equivalent for the Pneumatical system (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 70 | 287370 | 287370 | Accelerator valve 287370 or equivalent for Pneumatical system (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 71 | 229615 | 90876217 | Control valve 229615 or equivalent for Pneumatical system (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 72 | 229636 | 936926 | Two-way control valve 229636 or equivalent for Pneumatical system (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 73 | 275176 | 980609 | Control valve 275176 or equivalent for Pneumatical system (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 74 | IJ-152 | IJ152 | Chassis hydraulic jack IJ-152 or equivalent for chassis (for IRI-160D workover rig, 1998, manufacturer NOV) | pc |
| 75 | C123 424 85 | 10246229-001 | Cardan shaft C123 424 85 or equivalent for Chassis (for IRI- 160D workover rig, 1998, manufacturer NOV) | pc |
| 76 | A123 901 04 | 946129+76 | Cardan cross A123 901 04 or equivalent for Chassis (for IRI- 160D workover rig, 1998, manufacturer NOV) |
4. Field Fault Repair Cases (Real-World Scenarios)
3.1 Case 1: Drawworks Brake System Failure (Onshore Workover Site)
Issue: IRI-160D rig drawworks brake failed to hold load, creating a safety hazard during tubing pulling. Root cause: Worn brake tape (11200502) and faulty brake mechanism (11318000) for Drawworks 2042. Repair: Replaced brake tape, brake mechanism, and related rollers; adjusted brake clearance and tested load holding. Outcome: Restored full brake functionality, met API safety standards, and resumed workover operations without delays.
3.2 Case 2: Pneumatic Valve Leak (Remote Well Servicing)
Issue: Air pressure loss in the IRI-160D pneumatic system, causing slow valve actuation and rig control issues. Root cause: Degraded Bendix R8 valve (IA347) and faulty pilot valve (108-762-90). Repair: Replaced faulty pneumatic valves, pressure-tested the air system, and cleared air line blockages. Outcome: Eliminated air leaks, restored consistent pneumatic pressure, and regained full rig control responsiveness.
3.3 Case 3: Hydraulic Control Panel Malfunction (Workover Rig Overhaul)
Issue: IRI-160D hydraulic control panel failed to regulate fluid flow, disrupting drawworks operation. Root cause: Faulty hydraulic control panel assembly (10930423) and worn control valve (10979072). Repair: Swapped damaged control panel and valve, bled air from the hydraulic system, and calibrated pressure settings. Outcome: Restored stable hydraulic flow, resumed normal drawworks operation, and completed rig overhaul on schedule.
5. Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these parts compatible with all IRI-160D workover rig model years? | Yes, these parts fit 1996-2002 NOV-manufactured IRI-160D rigs, with dedicated components for the 1998 IRI-160D specific model; legacy part cross-references ensure full backward compatibility. |
| How do I match legacy part numbers to the new codes in this catalog? | Each entry lists both original legacy codes and new replacement part numbers, so you can cross-reference your faulty part’s stamped code directly to the correct replacement item. |
| Are these components genuine NOV parts or OEM-equivalent alternatives? | These are OEM-equivalent replacement parts manufactured to match NOV’s original specifications, materials, and performance standards, offering reliable quality at a cost-effective value. |
6. Procurement Guidance & Call to Action
This IRI-160D workover rig parts list serves as a dual-purpose resource: a definitive procurement standard to ensure part compatibility, quality compliance, and reliable performance, and a practical technical reference to resolve field failures quickly and safely. Choosing these OEM-equivalent replacement parts minimizes unplanned rig downtime, reduces long-term maintenance expenses, and upholds strict API safety standards for all well workover and servicing operations.
For all IRI-160D spare part inquiries, order placement, and technical support, submit your detailed requirements using the listed legacy and new part numbers, along with item descriptions. Our team provides specialized technical assistance to verify part fitment, material specifications, and subsystem compatibility, ensuring you receive the exact components needed to keep your IRI-160D workover rig operating at peak efficiency. Build your critical spare parts inventory today to mitigate repair delays and maintain uninterrupted well workover and rig servicing workflows.
