Product Introduction

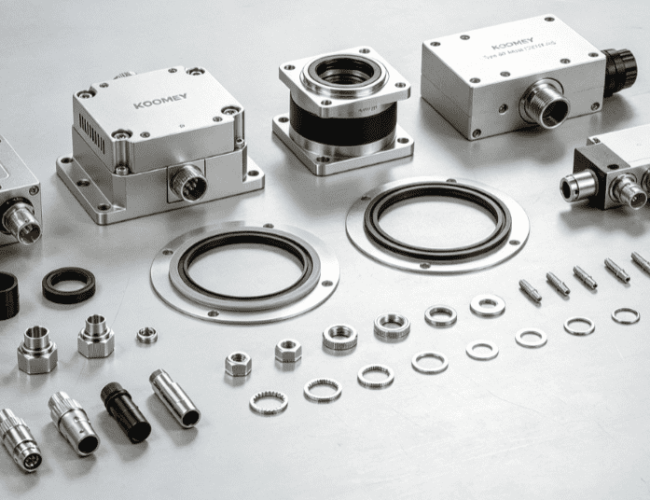

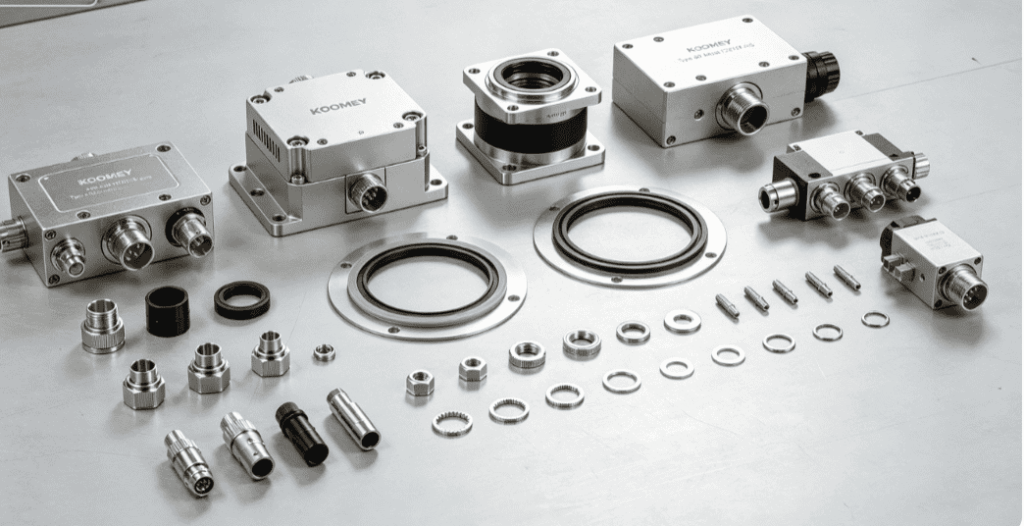

This curated collection of KOOMEY Type 80 Model T20150-3S spare parts includes over 100 critical components, ranging from high-pressure control valves, pressure regulators, and gauges to complete pump repair kits, cylinder assemblies, and bladder accumulator parts. Every item matches original OEM part numbers, dimensional tolerances, and pressure-rated specifications, ensuring perfect fitment and reliable performance. All parts are manufactured to withstand extreme hydraulic-pneumatic operating conditions, with rigorous quality testing to meet ANSI high-pressure fluid power standards and support 24/7 field utilization.
Functional Performance Specifications
These spare parts are engineered to maintain the KOOMEY T20150-3S unit’s core operational capabilities: precise pressure regulation across 150 PSI to 10,000 PSI ranges, leak-free high-pressure fluid transfer, reliable pneumatic control actuation, and accurate pressure monitoring via calibrated gauges. Valves and regulators deliver consistent flow control with zero leakage at full rated pressure; pump repair kits restore triplex pump efficiency to 95%+ of OEM output; and accumulator components maintain stable pressure retention for continuous duty cycles. Each part is calibrated to support the unit’s 60:1 air motor ratio and high-pressure hydraulic output.
Structural & Design Features
- OEM-Certified Fitment: Precision-machined to exact KOOMEY Type 80 T20150-3S dimensions, requiring no field modification for installation
- High-Pressure Durability: Forged steel construction for pressure-containing parts, reinforced seals for 10,000 PSI duty, and corrosion-resistant coatings for harsh field exposure
- Modular Repair Kit Design: Pre-assembled repair kits for valves, pumps, and cylinders reduce repair time by up to 70% compared to loose part replacements
- Standardized Interface: Compatible with industry-standard hammer unions, swivel joints, and high-pressure hoses for seamless system integration
- Traceable Part Numbering: Direct cross-reference to original KOOMEY part numbers for simplified inventory management and warranty compliance
Applicable Operating Conditions
These KOOMEY Type 80 T20150-3S spares are built for harsh onshore drilling and field service environments, including well pressure testing, hydraulic charging, well control operations, and high-pressure fluid transfer. They perform reliably in extreme ambient temperatures (-10°F to 130°F), high-dust locations, high-vibration rig sites, and remote field locations with limited maintenance resources. Components are rated for continuous heavy-duty operation, frequent pressure cycling, and exposure to oilfield fluids, hydraulic oil, and compressed air.
Maintenance & Service Recommendations
- Inspect high-pressure valves, gauges, and seals every 50 operating hours to detect early wear or leakage
- Replace pump packing, valve seals, and accumulator bladders preventatively every 300 operating hours to avoid catastrophic failure
- Calibrate pressure transmitters and gauges quarterly to ensure accurate PSI readings and regulatory compliance
- Lubricate pneumatic valves and air motor components with approved oilfield lubricant to prevent sticking and premature wear
- Store spare parts in sealed, moisture-proof containers to preserve seal integrity and prevent corrosion in humid environments
We supply the following spare parts:
| Sr# | Description | Part # |
| 1 | AKR VALVE ASSY. (VALVE PRESSURE REDUCING REGULATING 3/4″ FULL FLOW) | 1111-2100 |
| 2 | KIT REPAIR AKR VALVE ( VALVE PRESSURE REDUCING REGULATING 3/4″ FULL FLOW) | 1110-2199 |
| 3 | 4 WAY 1/4” CONTROL VALVE (AIR 150PSI) | 13-01250, 018-2100, 1240-0100 |
| 4 | KIT REPAIR VALVE | 1240-0199 |
| 5 | 3 WAY 1” BYPASS VALVE | 1390-1100, 001-0931, 010-5200 |
| 6 | 4 WAY 1/4” MANIPULATOR VALVE (250PSI) | 018-1000, 11-00293 |
| 7 | KIT REPAIR | 99-11010 |
| 8 | 1/4” AIR LUBRICATOR | 023-1000, 2700-0100,0010-0072 |
| 9 | 1” AIR OPERATED REGULATOR (3000 PSI) | 012-4300 |
| 10 | 4 WAY 3 POSITION VALVE SELECTOR TYPE (1″) | 010-5100, 11-00193, 1330-4100, 012-3000 |
| 11 | REGULATOR AIR VALVE, 1”, 4 WAY | 011-5100 |
| 12 | VALVE BY PASS 1” , 6000 PSI | 010-5500,11-02000, 1331-0100 |
| 13 | VALVE, AIR REGULATOR | 0011-3511 |
| 14 | AIR OPERATED REGULATOR 3K AIR PILOT | 0011-3511, 012-4200, 1111-2100 |
| 15 | HAMMER UNION 1” (6000 PSI) | 8082-1600, 7732023 |
| 16 | STRAINER 1/2” – Y TYPE | 05-10001, 024-1000 |
| 17 | HYD RELIEF VALVE 3/4” (5500 PSI 3/4”) MANIFOLD | 013-5100, 1700-2100 |
| 18 | CHECK VALVE 1/2” 5000 PSI | 1601-1100, 013-1120 |
| 19 | JOINT 1”, SWIVEL 6000 | 993523, 073-1100 |
| 20 | HOSE 1” X 25 FT W/ COMPLETE COUPLING FITTING, 6000 PSI | 5010-4100-25, 1508-16 |
| 21 | TRANSMITTER PRESSURE 3000 PSI | 0100-0012, 026-1000, 2100-0100, 45-00050 |
| 22 | TRANSMITTER PRESSURE 6000 PSI | 0011-0012, 2100-1100, 026-1100, 45-0051 |
| 23 | TRANSMITTER PRESSURE 10000 PSI | 0012-0012, 026-1200, 2100-0142 |
| 24 | PRSSURE SWITCH 3000 PSI | 2200-0100, 61-00005 |
| 25 | STARTER EM, NEMAS 3 | 6003-2201 |
| 26 | AIR REGULATOR VALVE 1/2″, 125 PSI | 021-7030, 1173-3100 |
| 27 | CHARGING & GAUGING ASSY | 0902-0100 (17-2100, 99-30006), 001-1000 |
| 28 | KIT REPAIR, 3/4” PLUNGER TRIPLEX PUMP | 3001-3199, 931-2100, 99-30006 |
| 29 | GAUGE, AIR 2-1/2″ 0 – 300 PSI | 041-3000, 018-0010,4020-1100 |
| 30 | ANNULAR PRESSURE GAUGE 4 1/2″, AIR 0 – 3000 PSI | 041-3100, 4060-1100, 0011-0604, |
| 31 | ACCUMULATOR PRESSURE GAUGE 4 1/2″ GAUGE , AIR 0 – 6000 PSI | 041-3200, 0012-0604 |
| 32 | MANIFOLD PRESSURE GAUGE 4-1/2″ GAUGE, AIR 0 – 10000 PSI | 041-3300, 0013-0604 |
| 33 | CONTROL VALVE 1/4” , 4 WAY | 0100-2421, 018-2100 |
| 34 | AIR REGULATOR 1/4” | 012-7115 , 12-00060,1153-1100 |
| 35 | 3 – WAY CONTROL VALVE 1/4” | 018-0010, 13-01150,0010-2221 |
| 36 | FLUID PRESSURE GAUGE 0-3000 PSI | 042-1100,4070-0100 |
| 37 | FLUID PRESSURE GAUGE 0-6000 PSI | 042-1200, 4070-1100 |
| 38 | FLUID PRESSURE GAUGE 0-10000 PSI | 042-1300, 4070-2100 |
| 39 | KR VALVE 3/4” FULL FLOW REG | 10-00130 |
| 40 | REGULATOR HYD MANUAL 3/4” 3000 PSI | 012-3300, 1110-2100, 1110-3100 |
| 41 | AIR REMOTE CONTROL CABLE NO# 19 QTY. 150FT | 5020-3100 |
| 42 | VAVLE BLEEDER 1/2” | 0012-2251 |
| 43 | CHAIN 3 – ROW 10 FT | 0011-0053 |
| 44 | CYLINDER AIR 3″ BORE X 2″ STOKE | 0011-0002, 2000-0100 |
| 45 | VALVE PLUG, 3-WAY 1/4”, 150 PSI | 11-11008, 018-5010, 1560-0100 |
| 46 | SWITCH 3-POSITION (STARTER) | 050-2119 |
| 47 | HYDRO-PNEUMATIC PRESSURE SWITCH, 1″, 3000 PSI | 027-0100, 2250-0100, 45-20001 |
| 48 | TR-5 REGULATOR VALVE | 1111-8500 |
| 49 | CONTACT BLOCK | 61-00245 |
| 50 | VALVE SHUTTLE 1/4” | 014-2010, 10-50205, 1291-0100 |
| 51 | GAUGE PRESSURE, 6” FACE,0- 6000 PSI | 040-8200,4033-3100 |
| 52 | GAUGE 6” FACE, 0-3000 PSI | 040-8100, 4032-3100 |
| 53 | HYDRULIC PUMP AIR OPERATED 8” DIA AIR MOTOR, KOOMEY | 3300151, 030-4100, 3012-0100 |
| 54 | GAUGE 6” FACE , 0-10,000 PSI | 040-8300, 4014-2100, 4034-3100 |
| 55 | GAUGE AIR | 2700-0200 |
| 56 | HIGH PRESSURE PIPE SEAMLESS STEEL PIPE 1” ID X 1-1/4” OD X 20FT | 9051-0300 |
| 57 | REPAIR KIT, FLUID END, HUDRAULIC PNUEMATIC PUMP | 930-4300, 99-31007 |
| 58 | REPAIR KIT , COMPLETE, AIR OPERATED MOTOR PUMP | 930-1100, 3012-1199 |
| 59 | ADAPTER ASSY FOR 8” DIA AIR MOTOR 60:1 | 630-4328, 3031-0130 |
| 60 | TRIPLEX PUMP 7/8” PLUNGER 1″ CYLINDER | 031-2200, 3001-4100 |
| 61 | KIT REPAIR-TRIPLEX PUMP | 931-2200, 3001-4199 |
| 62 | VALVE NEEDLE 1/2”, 10,000 PSI | 017-3160, 017-2030, 1522-2100 |
| 63 | HYD RELIEF VALVE (3500 PSI 3/4”) ACCUMULATOR | 013-5080, 15-50007 |
| 64 | REPAIR KIT, 4 WAY VALVE 1” | 9914-0331, 910-5100,1330-4199 |
| 65 | KIT REPAIR CYLINDER 3″ BORE X 2″ STOKE | 9911-0002, 2000-1199, 2001-1199 |
| 66 | 11 GALLON BLADDER FOR UPPER LOADING ACCUMULATOR (BAG & VALVE ASSY) | 001-0160, 1000-3463,00-00378 |
| 67 | REPAIR KIT HYD-PNUEMATIC PRESSURE SWITCH | 927-0100, 2250-0191 |
| 68 | KIT REPAIR MANUAL REGULATOR 3/4″ | 1110-2199/ 99-10001 |
| 69 | AIR OPERATED MOTOR PUMP 7-3/8” 60:1 | 3012-1100, 030-1100 |
| 70 | VALVE NEEDLE 1/4″, 10,000 PSI | 1522-2100 |
| 71 | GAUGE AIR 0-6000 PSI | 040-00074 |
| 72 | GAUGE AIR 0-300 PSI, 4 1/2″ DUAL FACE | 040-01202, 041-3000 |
| 73 | GAUGE AIR 0-3000 PSI | 040-00073 |
| 74 | PACKING PLUNGER 7/8 INCH | 4014-0003 (3001-4104) |
| 75 | GAUGE ACCUMULATOR PRESSURE (40-056-03) (199-63-06) | 4070-2100, 4060-2100 |
| 76 | GAUGE PRESSURE MANIFOLD 6”, 0-10000 PSI | 4060-3100 |
| 77 | SEAL KIT, AKR VALVE (3/4″) | 1110-2197, 99-10050,1110-3197 |
| 78 | VALVE RELIEF 5500 PSI | 0078-0071, 013-5100, 1700-8700 |
| 79 | SEAK KIT 1” FOUR WAY VALVE, SELECTOR TYPE | 99-11050, 1330-4100 |
| 80 | VALVE KR 3/4″ (3000 PSI) | 10-00130 |
| 81 | STUFFING BOX GLAND | 631-1202, 3000-3102 |
| 82 | STUFFING BOX TRIPLEX PUMP | 3000-657 |
| 83 | DIAPHRAGM 3/4 ” AIR OPERATED REGULATOR ANNULAR VALVE | 612-4201, 1111-2101, |
| 84 | KIT REPAIR TRIPLEX PUMP (ELECTRICAL) | 4199-3007, 99-30007 |
| 85 | KIT REPAIR, RELIEF VALVE 3500PSI | 1700-2199, 99-15064, 9958-0071 |
| 86 | KIT REPAIR AIR PUMP | 930-1200 |
| 87 | KIT REPAIR, RELIEF VALVE 5500 PSI | 99-15065 |
| 88 | TUBING KIT REPAIR | 2100-0142, 826-1000, 99-45006 |
| 89 | KIT REPAIR, PUMP HYD END (AIR OPERATED) | 930-3300, 3030-0199 |
| 90 | KIT REPAIR, AIR MOTOR (HYDRAULIC PUMP) | 3022-0199, 930-3200, 99-3200 |
| 91 | ACCUMULATOR (UPPER LOADING) 3000 PSI | 001-3200, 1011-2312 |
| 92 | PULL ROD SERVICE TOOL ”KOOMEY” TO REPLACE ACCUMULATOR BLADDERS | 0902-0300, 90-01001, 001-1000 |
| 93 | REPAIR KIT VALVE RELIEF | 913-5100, 1700-8799 |
| 94 | VALVE RELIEF 3500 PSI | 0058-0071,013-5080, 1700-8500 |
| 95 | GAUGE 6″ FACE 0-3000 PSI | 040-8100, 01015, 4032-3100 |
| 96 | GASKET STUFFING BOX | 30-00649, 631-1202 |
| 97 | VALVE CHECK, 1″, DISCHARGE | 013-1140, 1601-3100 |
| 98 | REPAIR KIT, 4 WAY VALVE 1” | 911-5100, 1320-4199 |
| 99 | REPAIR KIT 1″ BYPASS VALVE | 1390-1199 |
| 100 | REPAIR KIT VALVE RELIEF | 913-5080, 1700-8799 |
| 101 | CHECK VALVE 3/4” 5000 PSI | 1601-2100, 15-00254 |
| 102 | AIR PUMP, 6″ DIA, AIR MOTOR | 3011-0100, 030-3100 |
| 103 | REPAIR KIT (1″ 4 WAY 3 POSITION VALVE) | 1330-4199, 910-5100 |
| 104 | AIR RELAY VALVE | 5010-4100-25 |
| 105 | AIR REMOTE CONTROL CABLE NO# 12 QTY. 150FT | 5020-1100,060-2000 |
Field Failure Repair Case Studies
Case 1: AKR Pressure Regulator Valve Failure
A drilling crew experienced unstable 3/4” AKR valve pressure regulation (Part #1111-2100) causing fluctuating system pressure and unsafe operating conditions. Installing a new AKR valve assembly and corresponding repair kit (Part #1110-2199) restored consistent 3000 PSI pressure control, eliminating downtime and resuming safe pressure testing operations.
Case 2: Triplex Pump Fluid End Wear
A KOOMEY Type 80 T20150-3S unit lost hydraulic pressure due to worn triplex pump plunger packing and fluid end seals. Replacing the damaged components with the OEM repair kit (Part #3001-3199) restored pump discharge pressure, reduced internal leakage by 90%, and extended the pump’s service life by 400+ operating hours.
Case 3: Accumulator Bladder Degradation
A well servicing unit faced pressure loss from a failed 11-gallon accumulator bladder (Part #001-0160). Swapping in a replacement bladder and valve assembly resolved pressure retention issues, stabilized system performance during cyclic operation, and avoided a full accumulator replacement.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these parts compatible only with KOOMEY Type 80 Model T20150-3S units? | Yes, all parts are engineered specifically for the KOOMEY Type 80 T20150-3S unit, matching OEM part numbers, dimensions, and pressure ratings for perfect drop-in fitment. |
| What pressure ranges do these high-pressure components support? | Parts cover low-pressure pneumatic (150 PSI) up to extreme high-pressure hydraulic (10,000 PSI) applications, aligning with the T20150-3S unit’s full operating spectrum. |
| Can I purchase individual parts or only full repair kits? | Both individual replacement components and complete OEM repair kits are available, allowing targeted small repairs or full system overhauls as needed. |
Procurement Guidance & Value Closing
This KOOMEY Type 80 Model T20150-3S spare parts list serves as both a definitive procurement standard and a technical reference for resolving field failures, minimizing downtime, and maintaining peak equipment performance. Every part is a reliable, OEM-compliant solution that eliminates the risks of substandard aftermarket components, reduces long-term maintenance costs, and ensures compliance with field safety and operational standards.
Whether you need to stock critical spares for routine maintenance, replace failed components to get your unit back online, or complete a full system overhaul, this parts lineup delivers the quality, fitment, and durability your operation demands. Secure your supply of authentic KOOMEY Type 80 T20150-3S spare parts today to protect your equipment investment, reduce unplanned downtime, and keep your high-pressure hydraulic-pneumatic system running reliably in the field.
