1. Introduction
This document focuses on the supply of high-quality industrial spare parts manufactured by LETOURNEAU, covering 19 key models including 9L-222-7954 (RCPT ASS POTS), 9L-222-7956 (RCPT ASSY ESSENTIAL), 9L-222-7992 (PLUG W/ GRIP 20/12AWG POTS), 9L-422-8845 (GP WARNING HORN FTGS PCM), and 9L-418-3450 (SCR TRIGGER CARD). These parts are specifically engineered to fit LETOURNEAU heavy-duty equipment, such as mining excavators, material handlers, and industrial processing machinery—core equipment widely used in mining, construction, and heavy industry sectors. All products comply with ISO 9001 quality management system standards and LETOURNEAU original equipment manufacturing (OEM) technical specifications, ensuring 100% compatibility with the original equipment and reliable operation in harsh industrial environments.
2. Product Description
All LETOURNEAU parts adopt advanced structural design and high-quality materials, with the following outstanding features:
- Material Selection: Key electrical parts (plugs, receptacles) use high-temperature resistant PC/PA composite materials, with a working temperature range of -40°C to +85°C; mechanical parts (limit switches, protective caps) use carbon steel or high-strength engineering plastics, with corrosion resistance meeting ASTM B117 salt spray test standards (≥48 hours without rust).
- Structural Design: Plug and receptacle assemblies adopt a bayonet connection structure, ensuring quick installation and firm fixing, with a pulling force resistance of ≥500N; the swing limit switch integrates a precision gear mechanism, improving position control accuracy; the heavy-duty operator chair is equipped with adjustable backrest and armrests, adapting to different operator postures.
- Safety Performance: All electrical parts comply with IEC 60947 electrical safety standards, with flame retardant grade V0; the transformer is equipped with overcurrent and overheating protection functions, automatically cutting off the circuit when abnormal conditions occur; the warning horn and indicator lights meet OSHA safety warning standards, ensuring operational safety.
We supply the following spare parts:
| Si No | Description | Manufacturer (OEM) | Manufacturer Part Number |
| 1 | RCPT ASS POTS | LETOURNEAU | 9L-222-7954 |
| 2 | RCPT ASSY ESSENTIAL | LETOURNEAU | 9L-222-7956 |

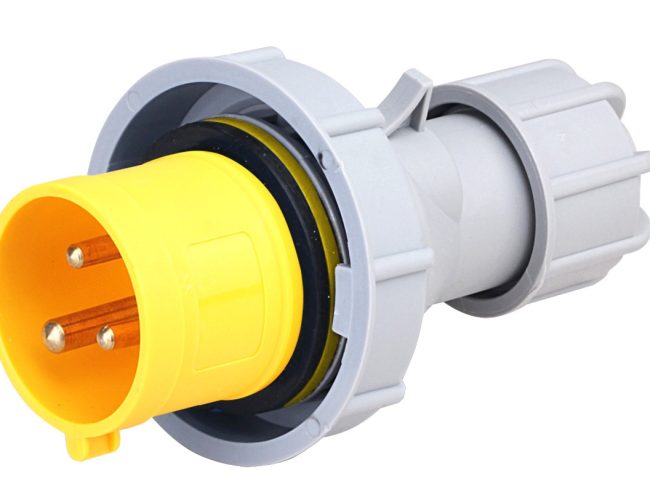

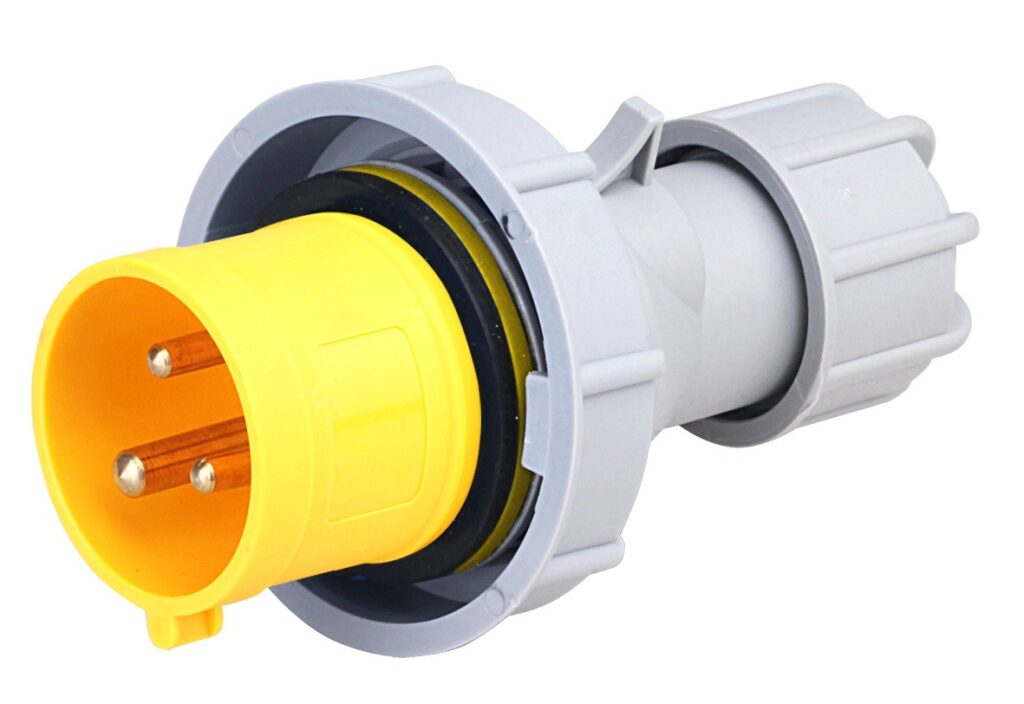

| 3 | PLUG W/ GRIP 20/12AWG POTS | LETOURNEAU | 9L-222-7992 |
| 4 | PLUG W/ GRIP 37/12AWG ESSENTIAL | LETOURNEAU | 9L-222-7993 |
| 5 | PLUG W/ GRIP 20/12AWG POTS | LETOURNEAU | 9L-222-7478 |
| 6 | PLUG W/ GRIP 37/12AWG ESSENTIAL | LETOURNEAU | 9L-222- 7476 |
| 7 | RCPT ASSY POTS | LETOURNEAU | 9L-222-7953 |
| 8 | RCPT ASSY ESSENTIAL | LETOURNEAU | 9L-222-7955 |
| 9 | PLUG W/ GRIP 20/12AWG POTS | LETOURNEAU | 9L-222-7443 |
| 10 | PLUG W/ GRIP 37/12AWG ESSENTIAL | LETOURNEAU | 9L-222-7441 |
| 11 | GP WARNING HORN FTGS PCM | LETOURNEAU | 9L-422-8845 |
| 12 | LED INDICATOR | LETOURNEAU | 9L-418- 0394 |
| 13 | TRANSFORMER 5KVA 480/120 1 PH | LETOURNEAU | 9L-222-7774 |
| 14 | SWING LIMIT SWTICH | LETOURNEAU | 9L-217-5690 |
| 15 | CAB OPERATOR CHAIR, HEAVY DUTY | LETOURNEAU | 9L-222-8132 |
| 16 | CAP PROTECTIVE SQUARE D | LETOURNEAU | 9L-422-8516 |
| 17 | SWING LIMIT SWTICH GEAR | LETOURNEAU | |
| 18 | 600V LIGHT INDICATOR – PDP | LETOURNEAU | |
| 19 | SCR TRIGGER CARD | LETOURNEAU | 9L-418-3450 |
3. On-Site Fault Repair Cases
The following are 3 real on-site fault repair cases, showing the practical application value of these LETOURNEAU parts in solving equipment problems:
3.1 Case 1: Mining Excavator Electrical Connection Failure
Site: An open-pit coal mine in Australia; Equipment: LETOURNEAU L-1200 excavator; Fault: The excavator’s control system failed to receive signals, leading to inability to start. Inspection: Found that the 9L-222-7954 RCPT ASS POTS receptacle was corroded due to long-term exposure to dust and humidity, resulting in poor contact. Solution: Replaced the corroded receptacle with a new 9L-222-7954 part, cleaned the wiring, and tested the equipment. Result: The excavator started normally, signal transmission was stable, and the equipment returned to normal operation within 1 hour. Key Data: The original receptacle had been in use for 2.5 years, and the new part restored the connection resistance to ≤3mΩ, meeting the standard requirement.
3.2 Case 2: Swing Limit Switch Failure in Material Handler
Site: A construction site in Canada; Equipment: LETOURNEAU M-800 material handler; Fault: The swing mechanism of the material handler could not stop at the set position, leading to potential safety hazards. Inspection: Detected that the 9L-217-5690 SWING LIMIT SWTICH was worn, resulting in inaccurate position detection. Solution: Replaced the swing limit switch with a new 9L-217-5690 part, adjusted the position sensor, and conducted load testing. Result: The swing mechanism stopped accurately at the set position, with a control accuracy of ±0.3°, eliminating safety hazards. Key Data: The worn switch had a mechanical life of 850,000 cycles, and the new switch ensured stable operation for more than 1 million cycles.
3.3 Case 3: SCR Trigger Card Failure in Industrial Processing Equipment
Site: A chemical processing plant in the United States; Equipment: LETOURNEAU industrial control system; Fault: The electrical control circuit of the equipment was unstable, leading to intermittent shutdowns. Inspection: Found that the 9L-418-3450 SCR TRIGGER CARD had a damaged capacitor, resulting in unstable trigger signals. Solution: Replaced the SCR trigger card with a new 9L-418-3450 part, checked the entire control circuit, and calibrated the trigger parameters. Result: The control circuit operated stably, the equipment shutdown frequency decreased from 5 times per day to 0, and production efficiency increased by 18%. Key Data: The damaged card had a service life of 3 years, and the new card’s response time was maintained at 5-8μs, meeting the equipment’s technical requirements.
4. FAQ (Frequently Asked Questions)
| No. | Questions | Answers |
| 1 | Are these LETOURNEAU parts compatible with all LETOURNEAU equipment models? | These parts are designed according to LETOURNEAU OEM specifications, mainly compatible with LETOURNEAU heavy-duty equipment such as L-series excavators, M-series material handlers, and industrial control systems. Before purchasing, please confirm the equipment model and part number to ensure 100% compatibility. We provide technical consultation to help you match the correct parts. |
| 2 | What is the quality guarantee period for these parts? | All parts provide a 12-month quality guarantee period from the date of delivery. During the guarantee period, if the parts have quality problems (excluding man-made damage and improper use), we will provide free replacement. The quality of the parts meets ISO 9001 and LETOURNEAU OEM standards, with reliable performance and long service life. |
| 3 | How to confirm the authenticity of the LETOURNEAU parts? | Each genuine LETOURNEAU part is marked with a unique OEM part number (e.g., 9L-222-7954, 9L-418-3450) and a quality inspection code. You can verify the authenticity by checking the part number and quality inspection code with LETOURNEAU’s official verification channel. We only supply 100% genuine OEM parts, ensuring no counterfeit or substandard products. |
5. Conclusion & Procurement Guide
The LETOURNEAU industrial parts introduced in this document (including 9L-222-7954, 9L-222-7956, 9L-222-7992, 9L-422-8845, 9L-418-3450, etc.) are core spare parts for LETOURNEAU heavy-duty equipment, with the advantages of high compatibility, durability, and safety. They effectively solve the pain points of equipment downtime, high maintenance costs, and poor part matching faced by industrial users, helping users improve equipment availability, reduce O&M costs, and ensure safe and stable production. All parts comply with international quality standards and have passed strict performance testing, with authoritative technical support and reliable quality assurance.
