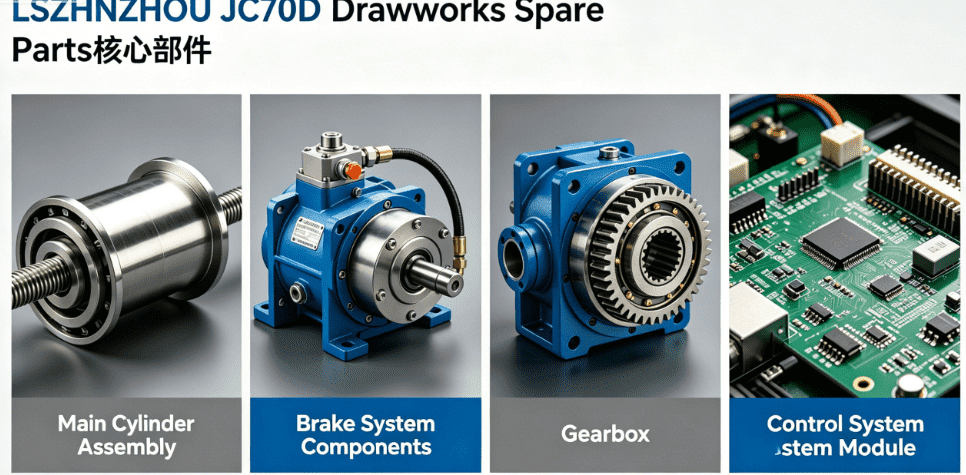

1. Product Introduction
This complete portfolio featuresOEM-matched spare parts exclusively engineered for the LS LANZHOU JC70D drawworks, a heavy-duty core component for land drilling rigs that handles hoisting, lowering, and pipe tripping operations. Every part is cross-referenced to the original factory part numbers, national petroleum industry standards (SY/T, GB, CB series), and dimensional specifications, ensuring zero-modification drop-in fitment and full compliance with API 4F and API 7K drilling equipment standards. This parts catalog covers all critical subassemblies of the JC70D drawworks: drive chains, shafts, sprockets, clutches (high/low/breakout), bearings, bearing boxes, seals, brake systems, air control valves, and gear assemblies.
2. Core Purpose
Core Purpose: These LS LANZHOU JC70D drawworks spare parts serve two critical roles: restoring full operational performance to worn or damaged drawworks assemblies, and supporting scheduled preventive maintenance to extend the service life of the JC70D hoisting system. They provide a standardized, reliable procurement and technical reference for maintaining the drawworks’s torque output, power transmission, braking efficiency, and air control stability under heavy drilling loads.
3. Key Functional Specifications
- Power Transmission: Heavy-duty roller chains (160-2, 160-4, 120-6 series) meet SY/T5595 standards, handling tensile loads up to 120,000 lbs for reliable torque transfer between drawworks components.
- Bearing Durability: Precision tapered roller and spherical roller bearings (32238, 33538, 53536) operate at temperatures from -20°F to 220°F, with service life exceeding 8,000 operating hours under continuous load.
- Clutch Performance: High/low/breakout clutch assemblies (115 series) deliver smooth engagement/disengagement, with friction linings supporting 3,000+ engagement cycles before replacement.
- Brake System Reliability: DBS75 series brake calipers and pads generate static braking torque up to 150,000 ft-lbs, meeting strict rig safety standards for load holding.
- Air Control Efficiency: Quick release and pressure relay valves (QF526D, QY series) provide air response time under 0.2 seconds for precise clutch and brake actuation.
4. Structural & Material Features
All LS LANZHOU JC70D drawworks parts are constructed with field-proven, industrial-grade materials to withstand harsh drilling environments: drive chains use heat-treated alloy steel with anti-wear surface coating; shafts and sprockets feature forged carbon steel with precision machined tolerances (±0.002 inches); bearings utilize high-carbon chromium steel for maximum load capacity; clutch diaphragms and seals use oil-resistant nitrile rubber (NBR) for chemical compatibility with gear oil; brake pads employ interwoven friction material for high heat resistance; air valves and cylinders use corrosion-resistant aluminum alloy. The modular design aligns perfectly with the original JC70D drawworks assembly layout, enabling quick on-site replacement and alignment.
5. Applicable Operating Conditions
These spare parts are optimized for heavy-duty land drilling rigs equipped with the LS LANZHOU JC70D drawworks, performing reliably in high-vibration hoisting operations, ambient temperatures ranging from -10°F to 180°F, continuous 24/7 operation under maximum load, and exposure to drilling mud, gear lubricants, and dust. They are suitable for conventional drilling, workover operations, and deep well drilling rig setups.
6. Maintenance & Care Recommendations
- Scheduled Inspections: Inspect drive chains and sprockets for wear every 200 operating hours; check clutch friction plates and diaphragms every 300 hours; inspect bearings and bearing boxes for lubrication leaks every 400 hours; test air control valves and brake systems monthly for response time.
- Lubrication Protocol: Use extreme-pressure (EP) gear oil (ISO VG 220) for chain and bearing lubrication, replenishing oil every 500 hours; grease clutch and brake pivot points with high-temperature lithium grease every 250 hours.
- Wear Replacement Thresholds: Replace drive chains when elongation exceeds 2%; replace bearings when radial clearance exceeds 0.010 inches; swap brake pads when friction material wears below 3mm; replace clutch diaphragms at the first sign of cracking or air leakage.
- Installation Standards: Torque all bolts and nuts to GB/T5783 standard values; align chains and sprockets to within 0.5mm of parallelism; ensure air valve connections are sealed with O-rings to prevent air loss.
- Storage Guidelines: Store rubber seals and clutch diaphragms in dry, cool conditions away from direct sunlight to prevent degradation; coat metal bearings and shafts with anti-rust oil during long-term storage.
We supply the following spare parts:
| Item | Description of Items | Part No. |
| 01 | CHAIN 160-2X88 | YS/T5595-1997 |
| 02 | CHAIN 160-4X106 | SY/T5595-1997 |
| 03 | CHAIN 160-4X124 | SY/T5595-1997 |
| 04 | CHAIN 120-6X78 | SY/T5595-1997 |
| 05 | CHAIN 120-6X68 | SY/T5595-1997 |
| 06 | CHAIN 120-6X86 | SY/T5595-1998 |
| 07 | SHAFT | 106.11.20.01 |
| 08 | GASKET RETAINER | 106.02.20.37 |
| 09 | SEAL | 106.02.20.41 |
| 10 | END PLATE | 106.02.20.42 |
| 11 | SPROCKET | 106.33.20.04 |
| 12 | CLUTCH DRUM | 106.33.20.05 |
| 13 | CLUTCH DRIVE PLATE | 106.33.20.06 |
| 14 | SPACER | 106.06.20.07 |
| 15 | BEARING BOX COVER | 106.06.20.09 |
| 16 | SPROCKET BODY | 106.33.20.07 |
| 17 | CLUTCH END DRIVE PLATE | 106.33.20.08 |
| 18 | CONNECTING PLATE | 106.33.20.09 |
| 19 | SPACER | 106.06.20.17 |
| 20 | SPACER | 106.06.20.18 |
| 21 | BEARING BOX COVER | 106.06.20.19 |
| 22 | SPACER | 106.06.20.20 |
| 23 | BEARING BOX COVER | 196.06.20.21 |
| 24 | BEARING BOX LEFT | 106.06.20.22 |
| 25 | SPACER | 106.06.20.23 |
| 26 | BEARING BOX RIGHT | 106.06.20.26 |
| 27 | SPACER | 106.06.20.27 |
| 28 | SPACER | 106.06.20.28 |
| 29 | SPROCKET | 106.06.20.29 |
| 30 | CLUTCH DRUM | 106.06.20.32-1 |
| 31 | CLUTCH DRIVE PLATE | 106.06.20.34 |
| 32 | RETAINING RING | 106.06.20.36 |
| 33 | CONNECTION | 106.06.20.45 |
| 34 | CONNECTION | 106.06.20.46 |
| 35 | KEY | C-4-957 |
| 36 | O-RING SEAL | D-4-664 |
| 37 | SEAL | D-8-735 |
| 38 | GASKET RETAINER | D-7-737 |
| 39 | KEY 63X220 | CB1096-79 |
| 40 | BEARING 32238 | GB283-87 |
| 41 | BEARING 33538 | GB238-37 |
| 42 | BEARING 3640 | CB286-64 |
| 43 | DRUM ASSY. | 106.30.21.00 |
| 44 | GROOVED DRUM ASSY. | 106.30.22.00 |
| 45 | HIGH CLUTCH | 115.33.00 |
| 46 | LEFT DIAPHRAGM | 115.33.01 |
| 47 | SHOE ASSY. | 115.33.01.00 |
| 48 | FLANGER HOSING ASSY. | 115.33/12.00 |
| 49 | TUBE ASSY. | 115.33.03.00 |
| 50 | TORQUE ARM | 115.33.02 |
| 51 | FLAT SPRING | 115.33.01 |
| 52 | RIGHT DIAPHRAGM | 115.33.04 |
| 53 | RETAINING RING | GU894 76 |
| 54 | QUICK RELEASE VALVE 3/4″ | 116.34.0000 |
| 55 | LOW CLUTCH | 115.34.00 |
| 56 | LEFT DIAPHRAGM | 115.4.01 |
| 57 | FLANGER HOSING ASSY. | 115.34.02.00 |
| 58 | TUBE ASSY. | 115.14.03.00 |
| 59 | SHOE ASSY. | 115.34.01.00 |
| 60 | RIGHT DIAPHRAGM | 115.34.02 |
| 61 | BEARING COVER LEFT | 106.52.21.01 |
| 62 | OIL SEAL 60X85X10 | D7-1-67 |
| 63 | BEARING 55X90X18 | 111 |
| 64 | BEARING SPACER LEFT | 106.52.21.03 |
| 65 | SEAL 60X85X12 | D5-8-73 |
| 66 | SEAL SLEEVE | 21.04.106.52 |
| 67 | SEAL SPACER | 106.52.21.05 |
| 68 | BEARING SPACER RIGHT | 106.52.21.06 |
| 69 | BEARING 65X100X18 | 113 |
| 70 | BEARING COV ER RIGHT | 106.52.21.07 |
| 71 | OIL SEAL 70X95X12 | D7-1-67 |
| 72 | O-RING 85X5.7 | D4-4-66 |
| 73 | SEAL HOUSING | 106.52.21.09 |
| 74 | BEARING COVER LEFT | 116.18.01 |
| 75 | BEARING 55X100X23 | 7211 |
| 76 | BRACKET COVER | 116.18.05 |
| 77 | BEARING HOUSING | 116.18.06 |
| 78 | HOUSING | 116.18.08 |
| 79 | SEAL 55X80X12 | D5-8-73 |
| 80 | BEARING BOX COVER RIGHT | 116.18.09 |
| 81 | SPACER | 116.17.05 |
| 82 | ROLLER ASSY. | 106.02.172.00 |
| 83 | BEARING 35X72X17 | 1207 |
| 84 | SHAFT | 106.02.170.02 |
| 85 | FELT SEAL | D3-1-67 |
| 86 | OIL SEAL 180X220X15 | D7-1-67 |
| 87 | SPACER | 106.06.10.01 |
| 88 | BEARING 160X290X80 | 53532 |
| 89 | BEARING BOX | 106.06.10.05 |
| 90 | SPACER | 106.06.10.06 |
| 91 | SPROCKET Z=53, P=50.8 | 106.06.10.07 |
| 92 | KEY | C7-4-95 |
| 93 | BEARING 180X280X74 | 3053136 |
| 94 | BEARING BOX COVER | 106.06.10.13 |
| 95 | BEARING BOX | 106.06.10.16 |
| 96 | SPACER L=75 | 106-06-10-17 |
| 97 | O-RING 34X3.5 | D4-D-66 |
| 98 | QUICK RELEASE VALVE | 116.20.00 |
| 99 | BEARING SPACER L=65.5 | 106.06.10.21 |
| 100 | OIL SEAL 200X240X18 | D7-1-67 |
| 101 | BEARING BOX COVER | 106.06.10.25 |
| 102 | BEARKOUT SPOOL | 116.12.01.1 |
| 103 | BUSHING | 116.12.02 |
| 104 | DRUM ASSY. | 116.12.10.00 |
| 105 | CLUTCH FRICTION PLATE RETAINER | 116.12.03 |
| 106 | BEARING SPACER | 116.12.04 |
| 107 | BEARING SPACER | 116.12.05 |
| 108 | BEARING 105X146X66 | 124721 |
| 109 | SPRING | 116.12.06 |
| 110 | RETAINER ASSY. | 116.12.40.00 |
| 111 | BEARING SPACER | 116.12.07 |
| 112 | PISTON | 116.12.11 |
| 113 | O-RING 28X3.5 | D4-4-66 |
| 114 | BEARING 130X190X45 | 8226 |
| 115 | BEARING SPACER | 116.12.14 |
| 116 | BEARING BOX COVER | 116.12.15 |
| 117 | BEARING 170X215X34 | 8134 |
| 118 | DRUM RETURN RING | 116.12.16 |
| 119 | DIAPHRAGM RETAINER | 116.12.18 |
| 120 | DIAPHRAGM | 116.12.19 |
| 121 | SLEEVE ASSY. | 116.12.50.00 |
| 122 | BEARING SPACER | 116.12.21 |
| 123 | SEAL SPACER | 116.12.22 |
| 124 | OIL SEAL | D5-8-67 |
| 125 | RETAINING RING 150 | GB893-67 |
| 126 | LINING DISC ASSY. | 116.12.60.00 |
| 127 | SPIRNG | 116.12.25 |
| 128 | BACKUP PLATE | 116.12.27 |
| 129 | FRICTION LINING | 116.12.28 |
| 130 | BEARKOUT CLUTCH PLATE | 116.12.29 |
| 131 | CLUTCH PLATE RETAINER | 116.12.30 |
| 132 | KEY 24X24X10 | 116.12.33 |
| 133 | SPRING | 116.12.08 |
| 134 | ANCHOR STOP | 116.12.10 |
| 135 | BEARING 130*190*45 8226 | GB301-84 |
| 136 | SHOE ASSY. | 115.35.02 |
| 137 | DIAPHRAGM | 115.35.01 |
| 138 | TORQUE ARM | 115.31.04 |
| 139 | FLAT SPRING | 115.31.05 |
| 140 | BREAK LINING INTERWOVEN | 106.06.244.02 |
| 141 | ROLLER 89X10 | 106.02.160.02-1 |
| 142 | SHAFT | 106.02.160.03 |
| 143 | LONG SHAFT 89X10 | 106.02.160.04-1 |
| 144 | SHAFT | 106.02.160.08 |
| 145 | RETAINING RING | 106.02.160.08 |
| 146 | INERTIAL BRAKE | 106.06.32.00 |
| 147 | O-RING 390X8.6 | D4-4-66 |
| 148 | MAIN DRIVE SHAFT | 106.59.32.00 |
| 149 | OIL SEAL RING | D4-4-66 |
| 150 | O-RING 280X5.7 | 106.16.30.05 |
| 151 | EXTERNAL GEAR RING | 106.06.30.05 |
| 152 | SPANNER S=19 | 106.06.30.25 |
| 153 | O-RING 230X5.7 | D4-4-66 |
| 154 | INTERNAL GEAR RING | 106.16.36.01 |
| 155 | EXTERNAL GEAR RING | 106.06.36.02 |
| 156 | SQ. KEY A32X140 | C7-4-80 |
| 157 | SHAFT | 106.06.36.02 |
| 158 | O-RING 195X8.6 | D4-4-66 |
| 159 | THRUST RING | 106.06.36.04 |
| 160 | SPACER | 106.06.36.07 |
| 161 | OIL SEAL RING | 106.16.36.04 |
| 162 | INTERNAL GEAR RING | 106.16.36.05 |
| 163 | EXTERNAL GEAR RING | 106.06.36.09 |
| 164 | FLANGE | 106.06.37.01 |
| 165 | SPROCKET 61T. P=12.7 | 106.06.37.02 |
| 166 | SQ. KEY A32X160 | C7-4-95 |
| 167 | SPACER L=132 | 106.06.37.03 |
| 168 | BEARING BOX COVER LEFT | 106.06.37.04 |
| 169 | BEARING BOX COVER | 106.59.32.01 |
| 170 | SPACER L=97 | 106.06.37.07 |
| 171 | SPROCKET 22T. P=38.1 | 106.16.37.01 |
| 172 | SHAFT | 106.06.37.09 |
| 173 | SPROCKET 26T. P=38.1 | 106.16.37.02 |
| 174 | BEARING 320X180X86 (22236CDE4) | NSK |
| 175 | BEARING BOX COVER RIGHT | 106.06.37.11 |
| 176 | EXTERNAL SHIFT RING ASSY. | 106.16.37.04 |
| 177 | INTERNAL GEAR RING | 106.16.37.03 |
| 178 | SQ. KEY A36X140 | C7-4-95 |
| 179 | SEAL RING 180 | D3-1-67 |
| 180 | SPACER | 106.06.37.14 |
| 181 | SEAL RING 200 | D3-1-67 |
| 182 | CLUTCH ASSY. | 115.105.00 |
| 183 | TUBE ASSY. DIA. 600 | 115.105.01.00 |
| 184 | SHOE ASSY. | 115.105.02.00 |
| 185 | SPACER L=45.5 | 106.06.40.06 |
| 186 | BEARING BOX | 106.06.40.07 |
| 187 | SHAFT | 106.06.40.09 |
| 188 | RETAIN RING | 106.06.40.10 |
| 189 | BEARING BOX COVER | 106.06.40.11 |
| 190 | SPROCKET 47T. P=38.1 | 106.16.40.10 |
| 191 | THRUST RING | 106.16.40.13 |
| 192 | EXTERNAL SHIFT RING | 106.16.40.15 |
| 193 | BEARING 32144 | GB283-87 |
| 194 | BEARING SPACER | 106.06.40.16 |
| 195 | BEARING SPACER | 106.06.40.17 |
| 196 | SPROCKET 66T. P=38.1 | 106.16.40.05 |
| 197 | BEARING 3053144 | GB288-87 |
| 198 | SPACER | 106.06.40.19 |
| 199 | BEARING 53536 | GB288-87 |
| 200 | BEARING BOX | 106.06.40.20 |
| 201 | BEARING BOX COVER | 106.59.40.04 |
| 202 | SQ. KEY | C7-4-95 |
| 203 | EXTERNAL SHIFT RING | 106.59.40.05 |
| 204 | CLUTCH SHIFTER RING ASSY. | 106.02.31.00 |
| 205 | INTERNAL GEAR RING | 106.33.40.03 |
| 206 | SPROCKET 20T. P=50.8 | 106.33.40.05 |
| 207 | SPACER | 106.59.40.06 |
| 208 | BEARING BOX | 106.06.40.26 |
| 209 | SHAFT | 106.59.40.27 |
| 210 | SPROCKET 19T. P=50.8 | 106.06.40.28 |
| 211 | BEARING BOX | 106.06.40.29 |
| 212 | RETAIN RING | 106.06.40.30 |
| 213 | BEARING BOX COVER | 106.06.40.31 |
| 214 | SPACER | 106.59.40.08 |
| 215 | SQ. KEY A45X180 | C7-4-80 |
| 216 | OIL SEAL RING | 106.33.40.06 |
| 217 | SPACER | 106.59.40.09 |
| 218 | INTERNAL GEAR RING | 106.59.40.10 |
| 219 | DUAL POSITION CYLINDER | QF526D-00 |
| 220 | SHAFT YOKE ASSY. | 106.59.72.00 |
| 221 | SHAFT BOX ASSY. | 106.06.91.00 |
| 222 | OIL RETAINER | 106.16.70.03 |
| 223 | BALL VAVLE Q11F-16P-DN40 | LNB/G7 |
| 224 | AIR FILTER | LF-1-D-MAX1 |
| 225 | QUICK RELEASE VAVLE | QY444 |
| 226 | PRESSURE RELAY VALVE | QY411 |
| 227 | CROWN-O-MATIE VALVE | QY434 |
| 228 | VALVE | QY425 |
| 229 | FILTER | 106.02.295.00 |
| 230 | PUMP | CWZ2-100 |
| 231 | FELIEF VAVLE | P-B63 |
| 232 | SPACER | 126.11.05.01 |
| 233 | BEARING BOX | 106.51.301.02 |
| 234 | SHAFT | 106.51.301.03 |
| 235 | SPACER | 106.51.301.04 |
| 236 | BEARING BOX | 106.51.301.05 |
| 237 | BEARING BOX COVER | 126.11.05.02 |
| 238 | OIL SEAL 140X170X15 | D7-1-67 |
| 239 | TURNTABLE D | 106.51.301.09 |
| 240 | KEY A32X140 | C7-4-95 |
| 241 | BEARING 53524H | GB288-87 |
| 242 | SPACER | 106.51.301.11 |
| 243 | RING 300X8.6 | D4-4-66 |
| 244 | RING 400X8.6 | D4-4-66 |
| 245 | CLUTCH ASSY. | 115.22.00 |
| 246 | FLAT SPRING | 115.22.03 |
| 247 | TUBE ASSY. | 112.22.01.00 |
| 248 | FRICTION DISC | DBS75-70D-LS-4-2.0 |
| 249 | BOLT M30 | GB/T5783-1986 |
| 250 | WASHER 30 | GB93-87 |
| 251 | NUT M30 | GB6175-86 |
| 252 | EMERGENCY CALIPERS | DBS75-2-00 |
| 253 | SERVICE CALIPERS | DBS75-3-00 |
| 254 | BRAKE PAD | DBS75-2-01 |
| 255 | STEEL BACKING | DBS75-2-02 |
| 256 | SLEEVE | DBS75-2-15 |
| 257 | CLEVIS PIN WITH HEAD | DBS75-2-16 |
| 258 | SLEEVE | DBS75-2-14 |
| 259 | CLEVIS PIN WITH HEAD | DBS75-2-09 |
| 260 | SLEEVE | DBS75-2-08 |
| 261 | CYLINDER | DBS75-2-07.0 |
| 262 | SLEEVE | DBS75-2-13 |
| 263 | SLEEVE | DBS75-2-12 |
| 264 | CLEVIS PIN WITH HEAD | DBS75-2-11 |
| 265 | SUPPORT ARM | DBS75-2-06 |
| 266 | SLEEVE | DBS75-2-15 |
| 267 | CLEVIS PIN WITH HEAD | DBS75-3-05 |
| 268 | CYLINDER | DBS75-3-02.0 |
| 269 | SPRING | DBS75-3-03 |
| 270 | MAIN CALIPER ASSY. | KQ-00 |
| 271 | EMERGENCY CALIPER ASSY. | BQ-00 |
| 272 | DISC | P-04 |
| 273 | MAIN SERVICE CYLINDER ASSY. | KG-00 |
| 274 | SPRING CLIPPER RETURN | KQ-48 |
| 275 | PIN AMERGENCY SUPPORT | KQ-12 |
| 276 | PIN CYLINDER | KQ-08 |
| 277 | PIN CALIPER PIVOT | KQ-10 |
| 278 | PIN, BRAKE PAD | KQ-11 |
| 279 | BRAKE BLOCK (PAD OR SHOE) | KQ-21 |
| 280 | BUSH | KQ-32 |
| 281 | BUSH | KQ-34 |
| 282 | SPACER | KQ-16 |
| 283 | BUSH | KB-36 |
| 284 | BUSH | KB-35 |
| 285 | BUSH | KB-37 |
| 286 | BUSH | KB-38 |
| 287 | PIN, EMERGENCY SUPPORT | BG-13 |
| 288 | BUSH | BQ-34 |
| 289 | EMERGENCY CYLINDER ASSEMBLY | BG-00 |
| 290 | PIN, CYLINDER | BQ-09 |
| 291 | PIN, CALIPER PIVOT | BQ-10 |
| 292 | PIN, BRAKE PAD | BQ-11 |
| 293 | BUSH | BQ-33 |
| 294 | BRAKE BLOCK (PAD OR SHOE) | BQ-22 |
| 295 | BUSH | BQ-32 |
| 296 | SPACER | BQ-17 |
| 297 | BUSH | BB-36 |
| 298 | BUSH | BB-35 |
| 299 | BUSH | BB-37 |
Field Fault Repair Cases (LS LANZHOU JC70D Drawworks)
Case 1: Drive Chain Breakage & Hoisting Failure
A JC70D drawworks experienced sudden hoisting failure due to a broken 160-4X124 drive chain, caused by excessive wear and inadequate lubrication. Installing a new SY/T5595-standard chain and realigning the drive sprockets restored full torque transfer and hoisting functionality.
Case 2: Clutch Diaphragm Air Leak
The high clutch (115.33.00) failed to engage properly, traced to a cracked left diaphragm (115.33.01) causing air pressure loss. Replacing the damaged diaphragm and sealing the connection resolved the air leak, restoring smooth clutch engagement.
Case 3: Bearing Seizing & Shaft Binding
A main drive shaft (106.59.32.00) bound up during operation due to a seized 32238 tapered roller bearing, caused by contaminated lubricant. Replacing the bearing, flushing the bearing box, and refilling with fresh EP gear oil eliminated shaft binding and restored smooth rotation.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these parts 100% compatible with the original LS LANZHOU JC70D drawworks? | Yes, every part is manufactured to match OEM part numbers, GB/SY/T industry standards, and dimensional specs for the JC70D drawworks, ensuring direct drop-in replacement with no modifications required. |
| Do you offer replacement bearings for all JC70D drawworks bearing positions? | Yes, this catalog includes all OEM-matched bearings (32238, 33538, 53536, 7211 series) and bearing boxes for the main shaft, clutch, and drive sprocket assemblies of the JC70D drawworks. |
| What is the service life of the DBS75 brake pads for the JC70D drawworks? | Under normal drilling conditions and proper maintenance, DBS75 brake pads last 4,000–5,000 operating hours, withstanding high heat from repeated braking cycles without premature wear. |
Closing Section: Procurement Guidance & Technical Reference
This comprehensive catalog of LS LANZHOU JC70D drawworks spare parts serves as your definitive procurement and technical reference standard for maintaining, repairing, and overhauling your JC70D hoisting system. Each component is clearly labeled with its original OEM part number, required quantity, and industry standard to eliminate ordering errors and guarantee full compatibility with your drawworks’s drive, clutch, brake, and air control systems.
Whether you need to replace worn drive chains and sprockets to restore power transmission, fix faulty clutch diaphragms and air valves for smooth engagement, swap seized bearings and bearing boxes, or refresh brake components for safe load holding, these high-quality, durable parts deliver reliable performance to minimize rig downtime and uphold safe, efficient hoisting operations.
