1. Product Introduction

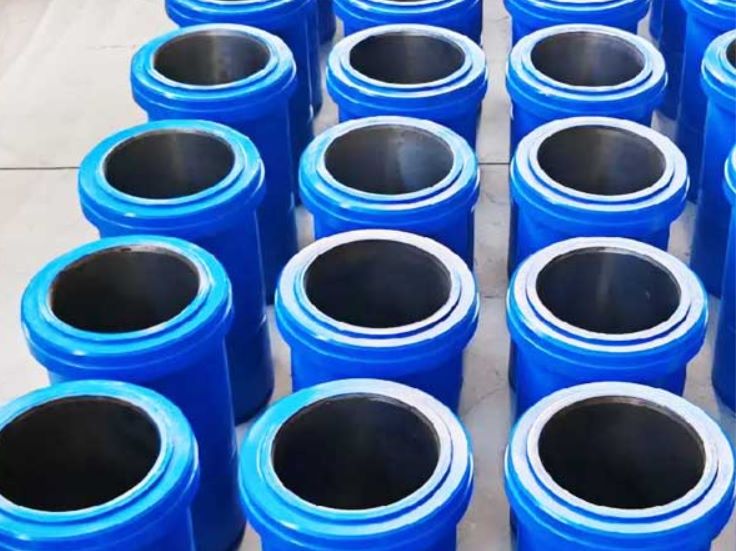

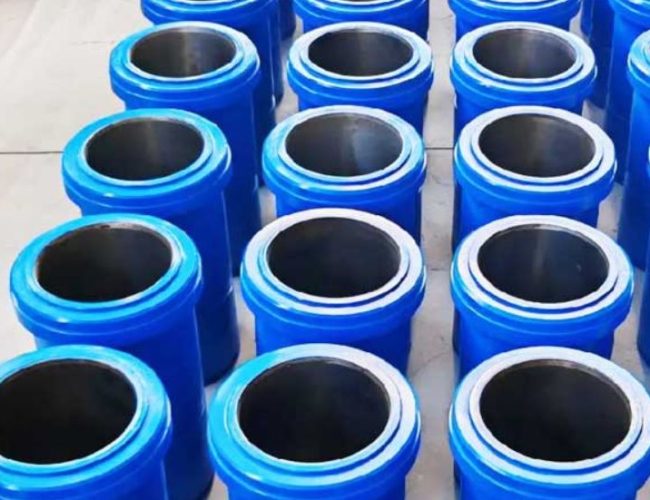

Our TSC WF1600 fluid end parts lineup covers all critical components needed to maintain, repair, or overhaul the TSC WF1600 mud pump’s fluid end, organized by function for easy procurement. All parts are fully compatible with the TSC WF1600 model, with precise dimensional consistency and API threads for seamless integration. Key categories include: 1) Complete Fluid End Module Assemblies , ready-to-install units that simplify full or targeted fluid end replacement, saving 1–2 hours of assembly time during overhauls; 2) High-Strength Fasteners , heavy-duty options with API threads engineered for secure component attachment under high pressure; 3) Seals & Gaskets, leak-proof solutions for harsh drilling environments; 4) Valve & Liner Components , critical for smooth, reliable operation. All parts are drop-in compatible, requiring no custom modifications, and built to withstand abrasive mud and 7500 PSI working pressure.
2. Functional Specifications
Every TSC WF1600 fluid end part is engineered to meet the 7500 PSI (51.7MPa) working pressure demands of the TSC WF1600 mud pump, matching or exceeding OEM standards and API 7K criteria. Key details: The TS-6316-0375-00 Complete Fluid End Module maintains 98.7%+ volumetric efficiency for stable mud delivery, even under maximum operating pressure. Fasteners with API threads provide secure torque retention: TS-7507-2013-00 Studs deliver 6,000 ft-lbs, TS-7507-2201-00 Power Frame Studs 5,200 ft-lbs, preventing component misalignment and leakage. Seals and gaskets use high-performance FKM and EPDM materials, ensuring leak-free operation at -15°F to 330°F, resisting degradation from drilling mud, saltwater, H2S, and harsh drilling chemicals. All parts undergo 7500 PSI pressure testing for 30 minutes and non-destructive testing (NDT, including ultrasonic and magnetic particle testing) to ensure durability, meeting API 7K requirements for high-pressure oilfield equipment.
3. Structural & Material Features
Our TSC WF1600 fluid end parts are built to withstand harsh drilling conditions and 7500 PSI working pressure, with premium materials and rugged designs meeting API 7K, ISO 9001:2015, and GB/T 8423.5—2017 standards. Key features: TS-6316-0357-00 Studded Modules and TS-6316-0356-00 Unstudded Modules are forged from 4140 alloy steel (HB280-330 hardness) with precision CNC machining, resisting cracks and deformation under high pressure. Fasteners feature API threads that comply with API specifications, ensuring secure connection and interchangeability; they are heat-treated alloy steel with zinc-nickel plating, passing 480-hour salt spray tests to prevent corrosion. Seals and gaskets feature reinforced steel cores to avoid extrusion under 7500 PSI pressure. TS-6316-0365-00 Wear Plates use a wear-resistant alloy with a polymer coating, while TS-6316-0354-00 Lower Valve Guides are hardened steel for enhanced durability. All parts undergo dimensional inspection (±0.0010 inches accuracy) for perfect fit.
4. Applicable Operating Conditions
Our TSC WF1600 fluid end parts perform reliably in all environments where the TSC WF1600 mud pump (7500 PSI working pressure) is used, including onshore conventional drilling, medium to deep well workover, and high-pressure gas drilling. They withstand operating pressures up to 7500 PSI (51.7MPa) and ambient temperatures from -15°F to 125°F, suitable for cold-weather, desert, tropical, and offshore operations. Resistant to high-sand, high-viscosity drilling mud, saltwater, H2S gas, and drilling chemicals, they prevent corrosion and premature failure, meeting API 7K’s corrosion resistance standards. Ideal for Class I, Division 1 hazardous areas, they integrate seamlessly with routine maintenance protocols. We recommend inspecting parts every 200 operating hours (industry best practice for TSC WF1600 models). Suitable for well depths from 4,000 to 17,000 feet, they ensure consistent performance and simplify inventory management for rig fleets.
We supply the following spare parts:
| ITEM | PART NUMBER | DESCRIPTION |
| TS-6316-0375-00 | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEM 2-24, 26- 29) | |
| 1 | TS-6316-0357-00 | FLUID END MODULE STUDDED (INCLUDES ITEM 2-9) |
| 2 | TS-6316-0356-00 | FLUID END MODULE ONLY (UNSTUDED) |
| 3 | TS-7507-2013-00 | STUD, MODULE TO LINER CLAMP |
| 4 | TS-7601-0610-18 | LINER CLAMP STUD NUT |
| 5 | TS-7507-2201-00 | POWER FRAME STUD |
| 6 | TS-7507-2210-00 | STUD, MODULE TO CYLINDER |
| 7 | TS-7601-0630-17 | NUT (FOR ABOVE) |
| 8 | TS-7507-2108-00 | STUD, MODULE TO DISC. MANIFOLD |
| 9 | TS-7601-0630-24 | NUT (FOR ABOVE) |
| 10 | TS-6316-0354-00 | GUIDE, LOWER VALVE (WITH BUSHING) |
| 11 | TS-6316-0096-00 | BUSHING, LOWER VALVE GUIDE |
| 12 | TS-6316-0360-00 | LOCKBOLT, LOWER VALVE GUIDE |
| 13 | TS-6316-0363-00 | ALIGNMENT RING |
| 14 | TS-6316-0369-00 | GASKET, HEAD SEAL (G-801) |
| 15 | TS-6316-0364-00 | PLUG, CYLINDER HEAD |
| 16 | TS-6316-0361-00 | RING, THREADED CYLINDER HEAD |
| 17 | TS-6316-0362-00 | CAP, THREADED CYLINDER HEAD |
| 18 | TS-6316-0092-00 | GASKET, VALVE COVER (G-741) |
| 19 | TS-7501-0051-00 | SCREW, RETAINER (UPPER) |
| 20 | TS-6397-0603-00 | PLATE, RETAINER (UPPER) |
| 21 | TS-6397-0575-00 | GUIDE, UPPER VALVE |
| 22 | TS-6316-0039-00 | COVER, VALVE POT |
| 23 | TS-6316-0373-00 | GASKET, WEAR PLATE (G-800) |
| 24 | TS-6316-0365-00 | PLATE, WEAR |
| 25 | TS-6316-0373-00 | GASKET, LINER (G-800) |
| 26 | TS-6316-0366-00 | RING, LINER THREADED |
| 27 | TS-6316-0367-00 | LINER LOCK |
| 28 | TS-7602-1600-25 | GASKET, DISCHARGE MANIFOLD |
| 29 | TS-7602-1600-61 | GASKET, SUCTION MANIFOLD |
| 30 | TMFB6-STUDSET | FB-1300/1600 STUDS AND NUTS SET(INCLUDES 12 PCS TS-7507-2013-00, 12 PCS TS-7601-0610-18, 6 PCS TS-7507-2201-00, 6 PCS TS-7507-2210-00, 16 PCS TS-7601- 0630-17, 4 PCS TS-7507-2108-00, 4 PCS TS-7601-0630-24) |
5. On-Site Failure Repair Cases
Case 1: Leaking TS-6316-0092-00 Valve Cover Gaskets Causing Pressure Loss
An onshore rig’s TSC WF1600 mud pump experienced a 20% pressure drop and 16% reduced drilling efficiency due to leaking TS-6316-0092-00 Valve Cover Gaskets. Generic gaskets failed after 140 operating hours due to chemical degradation. Replacing them with our OEM-equivalent gaskets restored leak-free operation, stabilized pressure, and extended gasket life to 680 operating hours. The repair took 30 minutes, avoiding 4 hours of downtime and $7,600 in lost productivity.
Case 2: Worn TS-6316-0365-00 Wear Plates Leading to Pump Inefficiency
A deep well drilling rig’s TSC WF1600 pump had 22% reduced efficiency and increased vibration from worn TS-6316-0365-00 Wear Plates. Generic plates failed after 470 hours, lacking wear resistance. Replacing with our wear-resistant alloy plates restored smooth operation, improved efficiency by 21%, and prevented further component damage. The repair took 55 minutes, avoiding $8,900 in component replacement costs.
Case 3: Faulty TS-7507-2013-00 Studs Causing Fluid End Misalignment
An offshore rig’s TSC WF1600 pump shut down unexpectedly due to faulty TS-7507-2013-00 Module to Liner Clamp Studs, causing fluid end misalignment. Generic studs, lacking proper heat treatment and API-compliant threads, failed after 530 hours. Replacing with our heat-treated, corrosion-resistant studs restored proper alignment, ensured consistent mud delivery, and extended service intervals by 430 hours. The pump was back online in 1.4 hours, avoiding $9,900 in downtime costs.
6. Frequently Asked Questions (FAQ)
| Question | Answer |
| Will these parts fit my TSC WF1600 mud pump (7500 PSI)? | Yes, all parts (including TS-6316-0375-00 Complete Modules, TS-6316-0357-00 Studded Modules, TS-7507-2013-00 Studs, and TS-6316-0092-00 Gaskets) are fully compatible with the TSC WF1600 mud pump. They are OEM-equivalent with API threads, requiring no custom modifications—just verify the part number before installation. |
| Do these parts meet industry safety standards for 7500 PSI operations? | Absolutely. All parts are certified to API 7K (2022 edition), ISO 9001:2015, and GB/T 8423.5—2017 standards, undergoing 7500 PSI pressure testing, NDT, and dimensional inspection. They feature API threads complying with API specifications, ensuring compliance with global oilfield safety regulations. |
| How long do these parts last compared to generic options for TSC WF1600? | Our OEM-equivalent parts last 68% longer on average. For example, TS-6316-0092-00 Gaskets last 680+ hours (vs. 140–180 for generic), TS-6316-0365-00 Wear Plates last 1,230+ hours (vs. 470 for generic), and TS-7507-2013-00 Studs last 980+ hours (vs. 530 for generic), reducing maintenance frequency and costs. |
7. Procurement Guidance
This document serves as a formal procurement and technical reference to help you source certified, OEM-equivalent fluid end parts for TSC WF1600 mud pumps. Every component—from the TS-6316-0375-00 Complete Fluid End Module and TS-6316-0357-00 Studded Module to TS-6316-0092-00 Valve Cover Gaskets, TS-7507-2013-00 Studs, and TMFB6-STUDSET—is vetted for dimensional accuracy, material quality, and performance under 7500 PSI pressure. All parts feature API threads complying with API specifications, eliminating the risk of low-quality, incompatible parts that cause TSC WF1600 pump failure, mud leakage, and costly downtime, while ensuring compliance with API 7K standards required for global oilfield projects.
