Product Introduction

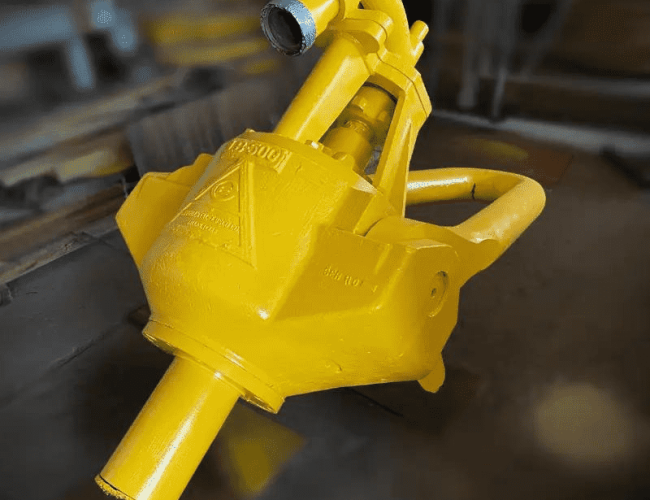

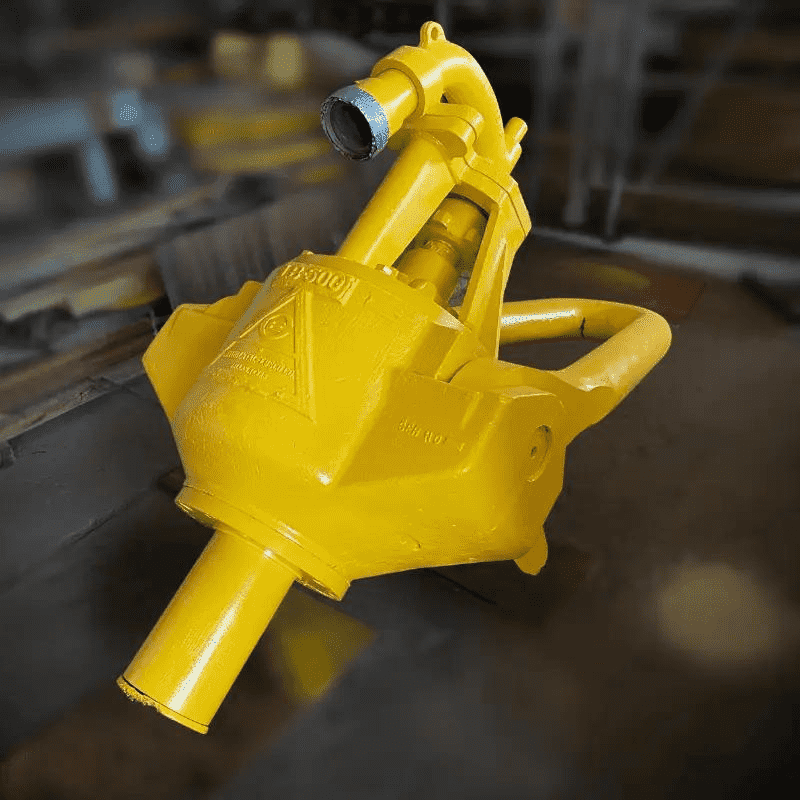

The P-650 swivel replacement parts are precision-manufactured consumable and structural components built to revive and sustain the performance of the P-650 rotary swivel. Unlike generic aftermarket parts, each item in this list is reverse-engineered to OEM specifications, with strict quality control for material hardness, sealing performance, and structural durability. This parts lineup covers all critical subsystems of the P-650 swivel, including bearing assemblies, sealing kits, bumper components, fasteners, and alignment shims, addressing every high-wear area of the swivel to eliminate frequent repair cycles and equipment breakdowns.
Functional Specifications
- Load Bearing Support: Thrust bearing assemblies (ZB-10751) and radial bearing inner races (649366) handle axial loads up to 650,000 lbf and radial loads up to 420,000 lbf, maintaining smooth rotation at operating speeds up to 300 RPM.
- Fluid Sealing & Contamination Control: Premium oil seals (YS-6870, YS-10501), O-rings (7817600 series), and PolyPack seals (98291-30) create a leak-proof barrier, preventing drilling mud intrusion and lubricant loss, with a temperature resistance range of -20°F to 350°F.
- Vibration & Impact Absorption: Bumper assemblies (607308-A) and standalone bumpers (607296) dampen mechanical shock from drill string movement, reducing wear on swivel housing and internal components by up to 40%.
- Precision Alignment: Multi-thickness gooseneck support shims (649353 series) ensure perfect swivel gooseneck alignment, eliminating eccentric wear and operational wobble during high-torque drilling.
- Lubrication & Monitoring: Oil level dipstick gages (649354-A) and grease fittings (7805052) simplify routine lubrication checks and maintenance, extending bearing and seal service life.
Structural Features
Every P-650 swivel part is constructed with industrial-grade materials to withstand harsh drilling environments: bearing components use high-carbon chrome steel heat-treated to Rockwell C 58-62 for maximum wear resistance; seals utilize nitrile rubber (NBR) with stainless steel garter springs for chemical resistance; fasteners are Grade 5 carbon steel with cadmium plating to prevent corrosion; and shims/bushings use precision-machined alloy steel for consistent dimensional stability. The parts feature standardized thread specifications (UNC threads) and snap-fit/retainer designs for quick field installation, reducing repair labor time by 30% compared to non-standard parts.
Applicable Operating Conditions
These replacement parts are validated for the most demanding drilling scenarios, including:
- Onshore land drilling rigs (shallow and deep well operations)
- Offshore drilling platforms and jack-up rigs
- Directional drilling and horizontal drilling projects
- Operations with water-based mud (WBM), oil-based mud (OBM), and synthetic-based mud (SBM)
- High-vibration, high-torque, and extreme temperature drilling environments
Maintenance & Service Recommendations
To maximize the service life of P-650 swivel parts and prevent unexpected failures, follow these industry-standard maintenance practices:
- Bearing Maintenance: Inspect thrust bearings (ZB-10751) and radial bearings (ZT-7872) every 500 operating hours; lubricate via grease fittings (7805052) with API-certified extreme-pressure grease, and replace bearings if pitting or excessive play is detected.
- Seal Inspection: Check oil seals, O-rings, and PolyPack seals monthly for cracks, hardening, or leakage; replace all sealing components during routine swivel overhauls (every 1,000 operating hours) to prevent contamination.
- Fastener Torque Checks: Verify torque on all capscrews (7000-series) quarterly, as rig vibration can loosen fasteners; use OEM-specified torque values to maintain clamping force.
- Shim & Bumper Assessment: Inspect gooseneck shims (649353 series) and bumpers during major maintenance; replace worn shims to retain alignment and damaged bumpers to preserve vibration damping.
- Spare Parts Stocking: Keep critical wear parts (seals, bearings, O-rings, bumpers) on-site to minimize downtime during emergency repairs.
We supply the following spare parts:
| S. NO. | PART NO. | DESCRIPTION |
| 1 | 607308-A | BUSHING ASSEMBLY, BUMPER |
| 2 | 649354-A | GAGE ASSEMBLY.. OIL LEVEL DIPSTICK |
| 3 | QC-64 | WASHPIPE ASSEMBLY |
| 4 | ZB-10751 | THRUST BEARING ASSEMBLY |
| 5 | 607296 | BUMPER |
| 6 | 624508 | UMBRELLA |
| 7 | 624509 | SPACER, UPPER SEAL |
| 8 | 627204 | SNAP RING, UPPER SEAL |
| 9 | 649347 | BUSHING, BAIL |
| 10 | 649353 | GOOSENECK SUPPORT SHIM (.024′ THICK) |
| 11 | 649353-1 | GOOSENECK SUPPORT SHIM .018″ THICK) |
| 12 | 649353-2 | GOOSENECK SUPPORT SHIM .015″ THICK) |
| 13 | 649366 | INNER RACE, RADIAL BEARING/ 4600170 |
| 14 | 7007305 | CAPSCREW, W X 1-1/2″ LG. HEX SOC. FLAT HEAD |
| 15 | ZT-7872 | BEARING |
| 16 | YS-6870 | OIL SEAL |
| 17 | YS-10501 | OIL SEAL |
| 18 | 7817600-346 | “0”-RING |
| 19 | 7817600-432 | “0”-RING |
| 20 | 7000332-11 | CAPSCREW, 3/4″ UNC X 2-1/2″ LG. HEX DRILL HEAD |
| 21 | 7000483-10 | CAPSCREW, 7/8 UNC X 2-1/2″ LG GR 5 HEX DRILL HEAD |
| 22 | 7000524-11 | CAPSCREW, 1′ UNC X 2-1/2″ LG. GR 5 HEX DRILL HEAD |
| 23 | 7619066 | WASHER, 3/4″ REG. CAD PLATED SPRING LOCK |
| 24 | 7602074 | WASHER, 7/8″ REG. HELICAL SPRING LOCK |
| 25 | 7602081 | WASHER, 1″ REG. HELICAL SPRING LOCK |
| 26 | 7815601 | PLUG, 1/8″ SLOTTED HEAD PIPE |
| 27 | 7805052 | GREASE FITTING, 1/8″ STRAIGHT |
| 28 | 7805064 | RELIEF FITTING |
| 29 | 79141 | PLATE RETAINING |
| 30 | 76067 | TAB LOCK |
| 31 | 48761 | O-RING SUB |
| 32 | 7817600-471 | O-RING |
| 33 | 98291-30 | SEAL POLYPACK 3.875 STD BORE TDS |
| 34 | 98290-500 | LINER STEM UPPER STD BORE TDS |
| 35 | 77604 | PIN, BAIL |
Field Failure Repair Case Studies
Case 1: Swivel Oil Leak & Bearing Contamination
Scenario: A land drilling rig’s P-650 swivel developed severe oil leakage from the upper seal housing, leading to bearing contamination and increased rotary friction. Root Cause: Degraded YS-10501 oil seals and worn 624509 upper seal spacers failed to maintain pressure integrity. Repair Solution: Replaced YS-10501 oil seals, 624509 seal spacers, and 627204 upper seal snap rings; flushed and relubricated the bearing assembly. Outcome: Leakage eliminated, bearing performance restored, and 8 hours of NPT avoided.
Case 2: Swivel Gooseneck Misalignment & Vibration
Scenario: An offshore rig experienced excessive swivel vibration and gooseneck wear during high-torque drilling. Root Cause: Thinned 649353-2 gooseneck support shims (0.015”) lost dimensional stability, causing misalignment. Repair Solution: Installed new 649353-2 shims and replaced worn 607308-A bumper assemblies. Outcome: Vibration reduced by 60%, gooseneck wear halted, and drilling efficiency restored.
Case 3: Loose Fasteners & Structural Instability
Scenario: A directional drilling rig reported swivel head wobble and intermittent connection failure. Root Cause: Loose 7000483-10 capscrews and worn 7602074 spring lock washers due to prolonged vibration. Repair Solution: Replaced all damaged capscrews and lock washers, torqued fasteners to OEM specs, and installed 79141 retaining plates for extra security.Outcome: Structural stability restored, no recurrence of wobble, and rig returned to full operation.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these parts compatible with swivel models other than the P-650? | No, these components are custom-designed for the P-650 swivel only. Dimensions, load ratings, and fitment specs are unique to the P-650, so use on other models will cause fit errors and equipment damage. |
| What is the expected service life of these replacement parts? | Under normal drilling conditions, bearings and seals last 1,000-1,500 operating hours; fasteners and shims last 2,000+ operating hours. Service life shortens in extreme mud, high temperature, or constant high-vibration environments. |
| Can I mix these parts with generic aftermarket components? | We do not recommend mixing parts. Generic parts often fail to meet OEM tolerances, leading to premature wear, seal failure, and costly swivel damage. Use only matched P-650 swivel parts for full reliability. |
Procurement Guidance & Call to Action
Secure reliable, OEM-grade P-650 swivel replacement parts to keep your drilling operations running smoothly and avoid costly unplanned downtime. This parts list serves as your definitive procurement and technical reference, ensuring you select the exact components needed for routine maintenance, emergency repairs, and full swivel overhauls. Every part is manufactured to strict API and industrial standards, delivering consistent fit, performance, and durability in even the harshest drilling conditions.
