PCT-621 A Cementing Complex Replacement Parts

1. Core Overview & Target Application

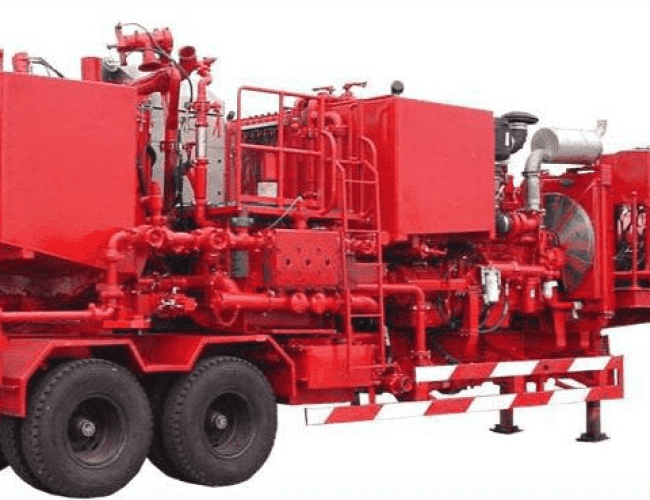

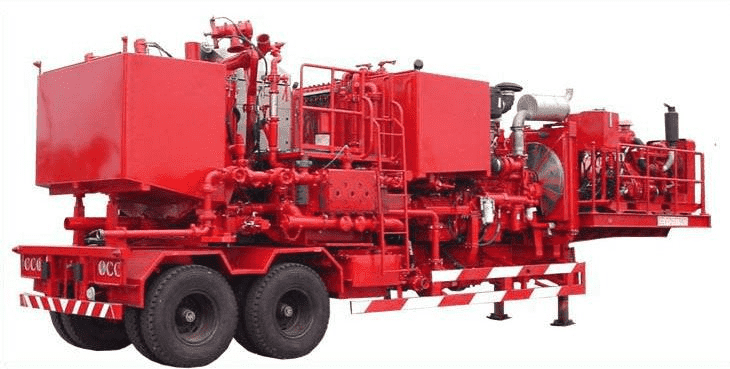

This full lineup of replacement components is precision engineered exclusively for the PCT-621 A cementing complex — the high-performance, high-pressure cementing unit designed for onshore and offshore oil/gas well cementing, zonal isolation, and well completion operations. Every part is manufactured to match OEM dimensional tolerances, pressure-rated material specifications, and performance benchmarks, with full cross-reference to original OEM part numbers (such as V-series, R-series, X-series part codes) for 100% drop-in interchangeability. All pressure-containing and sealing components comply with API Spec 10A (Cementing Materials) and API RP 10B-2 (Cementing Equipment Safety) industry standards, with hydrostatic testing validated to 1.5x maximum working pressure (up to 10,000 PSI) for reliable performance in harsh cementing environments.

2. Product Introduction

This comprehensive parts catalog covers 73 critical components for the PCT-621 A cementing complex, spanning valve assemblies, pump shafts, impellers, seals, bearings, rotary shutters, safety valves, fasteners, and clamping components. Key parts include 3.5″ valve assemblies, KUNKLE 6010 safety valves, centrifugal pump shafts/impellers, multi-size rubber rings, mechanical seals, spline shafts, and bearing kits. Each part undergoes strict quality inspection: pressure testing for valve components, wear testing for seals/impellers, and load testing for bearings, delivering 30% longer service life than generic aftermarket parts to support continuous high-pressure cement slurry pumping operations.

3. Functional Advantages

• OEM Perfect Fit: Direct dimensional and part number matching eliminates custom modifications, cutting emergency repair time by up to 60% and minimizing delays during time-sensitive cementing jobs.
• Precise Pressure Control: High-performance valve assemblies, check valves, and safety valves maintain stable cement slurry pressure, preventing blowouts and ensuring accurate zonal isolation.
• Leak-Proof Sealing: Premium oil seals, rubber rings, and mechanical seals resist cement slurry abrasion and chemical corrosion, eliminating fluid leaks and pressure loss.
• Durable Rotating Components: Hardened shafts, precision impellers, and heavy-duty bearings ensure smooth power transmission, even under high-load cement pumping conditions.
• Complete Repair Solutions: Full sets of valves, seals, bearings, and fasteners cover every wearable cementing unit component, simplifying inventory management and field repairs.

4. Structural & Material Features

All PCT-621 A cementing parts are built with oilfield-grade materials to withstand extreme pressure, abrasion, and chemical exposure, with key design attributes:

• Valve & Flow Components: Forged steel valve shafts/seats, corrosion-resistant valve assemblies, and precision rotary shutters for reliable slurry flow control.
• Pump Components: Hardened alloy steel pump shafts, high-efficiency impellers, and wear-resistant pump sleeves for consistent slurry pumping.
• Sealing Components: Oil-resistant rubber rings, high-grade mechanical seals, and O-rings rated for cement slurry compatibility and high-pressure sealing.
• Bearing & Shaft Components: Precision rolling bearings, spline shafts, and bronze lubrication rings for low-friction rotation and heavy load support.
• Safety Components: Certified KUNKLE 6010 safety valves and pressure-rated clamps for compliance with API well safety standards.

5. Applicable Operating Conditions

These spare parts are engineered for the demanding environments of PCT-621 A cementing complexes, including:

• Onshore well cementing and well completion operations
• Offshore platform and jack-up rig cementing jobs
• High-pressure cement slurry pumping (up to 10,000 PSI)
• Abrasive cement slurry and chemical additive exposure
• Continuous field operation with frequent startup/shutdown cycles

6. Maintenance & Troubleshooting Recommendations

To maximize the service life of PCT-621 A cementing components and ensure safe job execution, follow these industry-standard maintenance guidelines:

• Preventive Replacement Schedule: Inspect valves, seals, and impellers every 50 operating hours; replace worn bearings, valve springs, and rubber rings every 150 hours to prevent sudden failures.
• Lubrication Protocol: Lubricate bearings, spline shafts, and rotary shutters with API-approved high-temperature grease every 30 operating hours to reduce friction and wear.
• Pressure Testing: Perform hydrostatic pressure testing on valve assemblies and safety valves every 3 months to verify compliance with API 10A pressure standards.
• Seal Inspections: Check all seals, O-rings, and gaskets before each job for wear or cracks, replacing damaged components immediately to prevent leaks.

We supply the following spare parts:

№	Nomenclature	Unit
1	Valve shaft V10-17-201	pcs
2	Centrifugal pump shaft X04-05-696	pcs
3	Spline shaft V06-30-048	pcs
4	Spline shaft V07-47-966	pcs
5	Insert washer bronze V-06-25-241	pcs
6	Pump sleeve 4×3 R06-00-308	pcs
7	Packing nut 4.5″ R66-44-006	pcs
8	Plug 1/4″ X26-02-009	pcs
9	Rotary shutter 2″ X04-10-901	pcs
10	Rotary shutter 3″ X04-10-902	pcs
11	Rotary shutter 4″ F32-29-886	pcs
12	Rotary shutter 5″ X04-10-904	pcs
13	Impeller RA56 V06-30-045	pcs
14	Impeller RA56 V06-30-046	pcs
15	Centrifugal Pump Impeller P06-00-303	pcs
16	Valve assembly 3.5″ R60-34-600	pcs
17	Breathing valve X02-00-158	pcs
18	Needle valve X04-00-635	pcs
19	Control Valve 80-180	pcs
20	Check valve 1/4″ X04-00-652	pcs
21	Check valve 3/8″ X04-05-144	pcs
22	Safety valve KUNKLE 6010	pcs
23	Ring V06-60-879	pcs
24	Inner ring RR-275	pcs
25	Valve seat ring 000P569153	pcs
26	Rubber ring 2″ X04-02-501	pcs
27	2.5″ X04-02-502 rubber ring	pcs
28	Rubber ring 3″ X04-02-503	pcs
29	Rubber ring 4″ X04-02-504	pcs
30	Rubber ring 5″ X04-02-505	pcs
31	Rubber ring 6″ X04-02-506	pcs
32	Valve Seat Ring 3.5″ R569153	pcs
33	Lubrication ring bronze V-06-30-040	pcs
34	Inner locking ring V-06-45-366	pcs
35	O-ring V06-60-944	pcs
36	Seal kit R67-13-111	pcs
37	Packer Box X-06-00-304	pcs
38	Oil seal housing V06-30-057	pcs
39	Cover 4″ FIG206 B10-07-251	pcs
40	Rear plate V06-56-239	pcs
41	Front plate V06-56-230	pcs
42	Bearing V06-00-318	pcs
43	Bearing V06-00-322	pcs
44	Locking ring bearing V06-45-356	pcs
45	Central bearing. pump V06-45-355	pcs
46	Spacer V06-30-053	pcs
47	Upper valve spring R60-34-004	pcs
48	Lower valve spring R60-44-004	pcs
49	Belt 3L-9489	pcs
50	Oil Seal 3 3/4″ X 4 1/4″ X04-01-652	pcs
51	Oil seal CR-20098	pcs
52	Oil seal R06-00-316	pcs
53	Oil seal R06-00-317	pcs
54	Valve seat 3.5″ R60-34-008	pcs
55	Media separator X04-08-366	pcs
56	Speed tachometer X04-03-102	pcs
57	Arktic fox heat exchanger B-575-05/13	pcs
58	Snail V06-30-036	pcs
59	Shaft Seal 2″ X3 3/16″ X15/32″	pcs
60	Suction Cap Seal P60-34-704	pcs
61	3.5″ Valve Seal R60-34-601S	pcs
62	Oil seal V06-54-820	pcs
63	Oil seal of the pusher R67-13-113	pcs
64	Mechanical seal X04-05-696	pcs
65	The seal is supercharged. caps R60-34-105	pcs
66	Valve suction lock R60-34-007	pcs
67	Clamp assembly X00-01-573	pcs
68	Clamp assembly X00-01-963	pcs
69	Clamp assembly X04-00-432	pcs
70	Clamp assembly X04-00-433	pcs
71	Washer V06-25-241	pcs
72	Locking washer V06-45-358	pcs
73	Impeller key V06-47-383	pcs
		Total:

7. Field Failure Repair Cases

Case 1: Valve Assembly Leakage

Scenario: A PCT-621 A cementing unit experienced cement slurry leakage from 3.5″ valve assemblies (R60-34-600), causing pressure loss mid-job.
Solution: Replacement of worn valve seals and valve seat rings restored full sealing and pressure control.
Outcome: Pressure stabilized, and the cementing job resumed without further leaks.

Case 2: Centrifugal Pump Impeller Failure

Scenario: Reduced slurry flow and abnormal noise occurred due to a damaged centrifugal pump impeller (P06-00-303), halting cement delivery.
Solution: Installation of a new OEM impeller and pump sleeve resolved flow issues and eliminated noise.
Outcome: Slurry flow rate returned to full capacity, allowing job completion on schedule.

Case 3: Bearing Wear & Shaft Binding

Scenario: Shaft binding and excessive heat buildup due to worn central pump bearings (V06-45-355) disrupted equipment operation.
Solution: Replacement of worn bearings and locking rings restored smooth shaft rotation.
Outcome: Equipment operated normally, preventing further damage and extended downtime.

8. Frequently Asked Questions (FAQ)

Question	Answer
Are these parts compatible only with the PCT-621 A cementing complex?	Yes, these parts are exclusively designed for the PCT-621 A cementing unit, with OEM-matched dimensions and part numbers for perfect fitment.
Do these seals resist cement slurry abrasion and chemical damage?	All seals, rubber rings, and mechanical seals are made from cement-compatible materials, designed to resist abrasion and chemical corrosion from cement slurries and additives.
Are the safety valves certified for API cementing standards?	The KUNKLE 6010 safety valves included meet API RP 10B-2 and ASME pressure safety standards, ensuring compliance for well cementing operations.

9. Procurement Guidance & Call to Action

For teams operating PCT-621 A cementing complexes, these OEM-compatible spare parts serve as both a rigorous procurement benchmark and a definitive technical solution for resolving valve, seal, bearing, impeller, and shaft failures. Each component is vetted for quality, pressure rating, and API compliance to keep your cementing unit operating safely, efficiently, and with minimal unplanned downtime, ensuring full adherence to global well completion safety and equipment maintenance regulations.
