Premium EMSCO F-800 & F-1000 Mud Pump Fluid End Replacement Parts

Detailed Product Introduction

We supply a complete range of field-proven, OEM-compatible premium fluid end replacement parts for EMSCO F-800 and F-1000 triplex mud pumps, covering all listed OEM-equivalent part numbers to address every maintenance and repair scenario. Parts are available as individual components, pre-assembled modules, full hardware stud sets, complete gasket kits, or full fluid end overhaul packages, with no on-site grinding, modification, or secondary machining required for installation. Each part undergoes strict dimensional inspection, material performance testing, and multi-stage quality verification before shipment, built for long-term durability and simplified field service to support daily routine upkeep, scheduled preventive maintenance, emergency fault repairs, and full fluid end rebuilding for onshore land drilling and well service operations.

Core Functional Specifications

Every premium EMSCO F-800/F-1000 fluid end part delivers stable, reliable performance under extreme operating conditions, with verified industry-leading performance metrics:

• High-Pressure Sealing Capacity: Built to withstand sustained operating pressures up to 4800 PSI, effectively absorbing hydraulic shock and pressure spikes common in medium to deep-well drilling operations.
• Superior Wear & Fatigue Resistance: Forged alloy construction and heat-treated surfaces resist cracking, abrasion, and metal fatigue from prolonged high-cycle reciprocating pump operation.
• Zero-Leakage Sealing Performance: Precision-molded gaskets and finely machined mating surfaces create consistent, tight seals, eliminating fluid leakage under high pressure and extreme thermal cycling.
• Dual-Model Compatibility: Exact OEM dimensional specs ensure direct drop-in fit, precise component alignment, and full compatibility with both EMSCO F-800 and F-1000 pump models.
• Extended Service Intervals: Premium high-grade materials extend replacement cycles by 70%-88% compared to generic aftermarket parts, lowering long-term maintenance and procurement costs.

Structural Characteristics

Our EMSCO F-800/F-1000 fluid end parts feature a heavy-duty, field-optimized structural design built for harsh operating conditions:

• Forged Alloy Steel Construction: All load-bearing components use high-density forged alloy, eliminating internal porosity and weak points common in lower-quality cast parts.
• Reinforced Stress Points: Critical mounting and pressure-bearing areas are reinforced to resist deformation and cracking under continuous vibration and high torque loads.
• Precision Machined Mating Surfaces: Tight-tolerance machining ensures perfect component alignment, consistent sealing, and smooth fluid end operation.
• Modular Replaceable Design: Individual components can be replaced separately, reducing repair costs and avoiding full fluid end replacement for localized faults.
• Standardized Mounting Hardware: Uniform thread sizes and torque specifications match OEM standards, simplifying field installation and routine maintenance.

Applicable Operating Conditions

These premium fluid end parts are engineered to perform reliably in the harshest oilfield drilling and well service environments:

• Medium-High Pressure Drilling Operations: Onshore land drilling, well workover, well cementing, and high-pressure drilling fluid pumping, supporting 24/7 uninterrupted heavy-load operation.
• High-Abrasion Fluid Environments: Fully compatible with sand-heavy, high-solid-content, and mildly corrosive drilling mud formulations, resisting erosion and material degradation.
• Extreme Temperature Ranges: Operate stably in temperatures from -40°F to 360°F, adapting to desert, coastal, cold-climate, and high-temperature rig sites.
• Harsh Field Conditions: Withstand dust, debris, and heavy mechanical vibration common in remote onshore drilling locations.

Maintenance & Care Recommendations

Follow these field-proven maintenance steps to maximize part lifespan and keep EMSCO F-800/F-1000 pumps running reliably:

• Daily Inspection: Check all fluid end joints for mud leakage, listen for abnormal vibration or knocking noises, and monitor pump discharge pressure stability.
• Weekly Maintenance: Clean mud deposits from sealing surfaces, inspect valve guide alignment, and check locking clip retention for signs of wear.
• Monthly Checks: Re-torque all mounting studs to OEM specifications, inspect gasket integrity for cracks or hardening, and assess threaded ring and liner cage wear.
• Scheduled Overhaul: Replace all gaskets and worn wearable parts every 8-10 months under heavy continuous use; conduct a full fluid end structural inspection annually.
• Proper Spare Part Storage: Store spare parts in a dry, dust-free, climate-controlled area, and coat metal components with anti-rust lubricant to prevent corrosion during long-term storage.

We supply the following spare parts:

Valve Cover Gasket				Cylinder Head Gasket
0740-P				0282-P

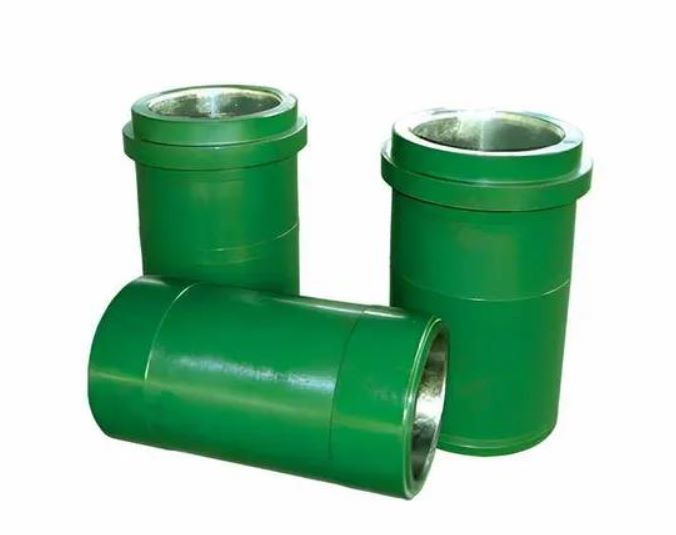

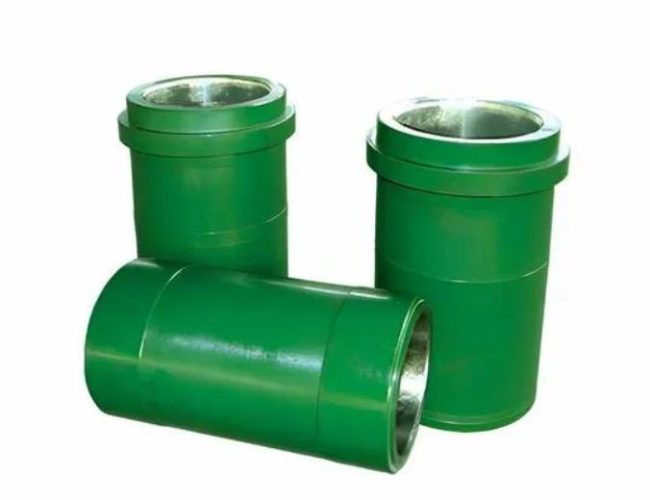

SIZE		LINER					LINER GASKET
4,/2“		〇148^4-P					0282-P
5″		0148-50-P					0282-P
514″		0148-54-P					0282-P
6″		0148-60-P					0282-P
6%”		0148-62-P					0282-P
6，/2“		0148-64-P					0282-P
63/V.		0148-66-P					0282-P
r		N/A					N/A
STYLE					WEB				FULL OPEN
VALVE (Urethane Insert)					U5B-EH-P				6FO-V1-P
VALVE (BlueFlame<s) HighTemp)					HT-U5B-EH-P				HT-6FO-V1-P
VALVE SEAT					6ADD-B6-P				6FO-S1-P
VALVE SPRING					5710-115-P				5710-115-P
VALVE INSERT (Urethane)					UDD-6AB-P				6FO-SI-P
VALA/E INSEFR丁（BlueFlame⑥ HighTemp)					HT-UDD-6AB-P				HT-6FO-SI-P
VALVE SEAT PULLER HEAD					1 700-6-P				6-PH-P
Piston	Bonded		Urethane			Rubber		Replaceable Rubber
Size	Long Life		BlueFlame®			Bonded		Assembly			Kits
4″	LL-400-P		HT-400-P			RB-400-P		I40HK14/15-P			I40HK-P
4W	LL-440-P		HT-440-P			RB-440-P		I44HK14/15-P			I44HK-P
5″	LL-500-P		HT-500-P			RB-500-P		I50HB14/15-P			I50HB-P
51,2“	LL-540-P		HT-540-P			RB-540-P		I54HB14/15-P			I54HB-P
6”	LL-600-P		HT-600-P			RB-600-P		I60HB14/15-P			I60HB-P
6V2”	LL-640-P		HT-640-P			RB-640-P		I64HL14/15-P			I64HL-P
7”	LL-700-P		HT-700-P			RB-700-P		I70HL14/15-P			I70HL-P

Field Fault Repair Cases

Case 1: Discharge Manifold Gasket Leakage Causing Pressure Loss

An EMSCO F-1000 mud pump operating at full drilling pressure developed persistent high-pressure mud leakage at the discharge manifold joint, leading to unstable pressure and reduced pumping efficiency. Field inspection revealed a hardened, worn 0241-P discharge manifold gasket that had lost sealing integrity from prolonged pressure and vibration exposure. Replacing the gasket with a premium 0241-P unit and re-torquing the manifold studs to API standards fully stopped leakage and restored normal pump operating pressure.

Case 2: Worn Lower Valve Guide Triggering Operational Vibration

An EMSCO F-800 pump exhibited severe abnormal vibration and minor internal fluid leakage during land drilling operations. Inspection identified excessive wear on the 6319-0087-00-P lower valve guide with bushing, causing valve misalignment and uneven fluid flow. Installing a new premium lower valve guide assembly eliminated vibration, restored proper valve seating, and stopped internal fluid loss.

Case 3: Fatigued Frame Studs Causing Clamping Failure

An EMSCO F-1000 pump experienced loose fluid end frame hardware and minor leakage during well workover operations. Stretched, fatigued 7507-2205-00-P frame studs had lost clamping force under extreme torque loads. Replacing the damaged studs and nuts, then torquing to OEM specifications, secured the fluid end assembly and created a permanent leak-free seal.

Frequently Asked Questions (FAQ)

Question	Answer
Are these parts fully interchangeable with original EMSCO F-800/F-1000 fluid end components?	Yes, all parts are manufactured to exact OEM dimensions, materials, and performance standards, offering 100% direct drop-in replacement with no on-site modifications or machining required.
Can I purchase individual parts or only full fluid end overhaul kits?	We offer full purchasing flexibility: individual components, complete modules, custom hardware sets, gasket kits, and full fluid end overhaul kits to match your exact repair, maintenance, and procurement needs.
Do these parts meet official oilfield industry standards?	All parts comply with strict API 7K drilling equipment standards, undergo full material and dimensional testing, and meet or exceed OEM quality requirements for heavy-duty oilfield use.

Procurement Guidance

This premium EMSCO F-800/F-1000 mud pump fluid end parts document serves as a dual professional reference: it sets clear, standardized procurement benchmarks to eliminate costly ordering errors and guarantee perfect part compatibility across both pump models, while also providing actionable field guidance for quick fault diagnosis, safe disassembly, and proper component installation. All parts undergo multi-stage quality testing and comply with API 7K industry standards, delivering far better durability and reliability than generic aftermarket alternatives. Using these precision-matched, high-strength parts eliminates common fluid end failures caused by low-quality, ill-fitting components, directly cutting unplanned rig downtime, long-term maintenance costs, and costly operational disruptions.
