Product Introduction

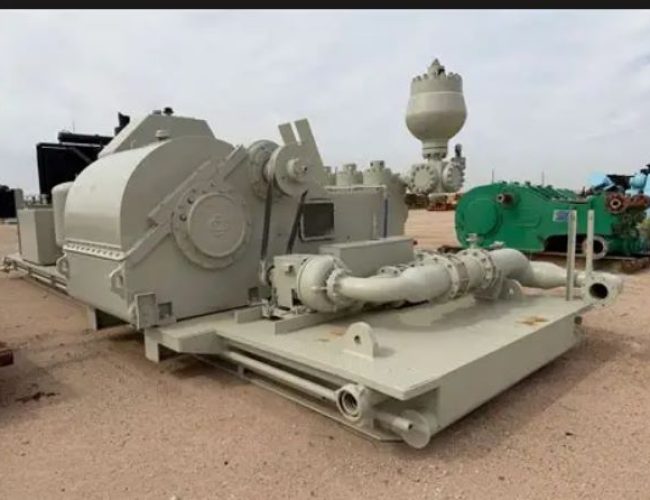

We supply a complete range of field-proven, OEM-compatible premium fluid end parts for Gardner Denver PZ-11 and PZ-12 triplex mud pumps, covering all listed OEM-equivalent part numbers to support every maintenance and repair scenario. Parts are available as individual components, pre-assembled modules, full hardware stud sets, complete gasket kits or full fluid end overhaul packages, with no on-site grinding, modification or secondary machining required for installation. Each part undergoes strict dimensional inspection, material testing and multi-stage quality verification before shipment, engineered for long-term durability and simplified field service to support routine daily maintenance, scheduled preventive care, emergency fault repairs and full fluid end rebuilding for high-pressure onshore and offshore drilling operations.
Core Functional Specifications
Every premium Gardner Denver PZ-11/PZ-12 fluid end part delivers stable, reliable performance under extreme operating conditions, with verified industry-leading performance metrics:
- Extreme High-Pressure Resistance: Built to withstand sustained operating pressures up to 7500 PSI, effectively absorbing hydraulic shock and pressure spikes common in deep-well and high-demand drilling operations.
- Superior Wear & Fatigue Resistance: Forged alloy construction and heat-treated surfaces resist cracking, abrasion and metal fatigue from prolonged high-cycle reciprocating operation.
- Zero-Leakage Sealing: Precision-molded gaskets and finely machined mating surfaces create consistent, tight seals, eliminating fluid leakage under high pressure and extreme thermal cycling.
- Full Model Compatibility: Exact OEM dimensional specs ensure direct drop-in fit, precise component alignment and full compatibility with both Gardner Denver PZ-11 and PZ-12 pump models.
- Extended Service Intervals: Premium high-grade materials extend replacement cycles by 70%-88% compared to generic aftermarket parts, lowering long-term maintenance and procurement costs.
Structural Characteristics
Our Gardner Denver PZ-11/PZ-12 fluid end parts feature a heavy-duty, field-optimized structural design built for harsh operating conditions:
- Forged Alloy Steel Construction: All load-bearing components use high-density forged alloy, eliminating internal porosity and weak points found in lower-quality cast parts.
- Reinforced Stress Points: Critical mounting and pressure-bearing areas are reinforced to resist deformation and cracking under continuous vibration and high torque loads.
- Precision Machined Mating Surfaces: Tight-tolerance machining ensures perfect component alignment, consistent sealing and smooth fluid end operation.
- Modular Replaceable Design: Individual components can be replaced separately, reducing repair costs and avoiding full fluid end replacement for localized faults.
- Standardized Mounting Hardware: Uniform thread sizes and torque specifications match OEM standards, simplifying field installation and routine maintenance.
Applicable Operating Conditions
These premium fluid end parts are built to perform reliably in the harshest oilfield drilling and well service environments:
- High-Pressure Drilling Operations: Onshore and offshore deep-well drilling, well workover, cementing and high-pressure drilling fluid pumping, supporting 24/7 uninterrupted heavy-load operation.
- High-Abrasion Fluid Environments: Fully compatible with sand-heavy, high-solid-content and mildly corrosive drilling mud formulations, resisting erosion and material degradation.
- Extreme Temperature Ranges: Operate stably in temperatures from -40°F to 380°F, adapting to desert, coastal, cold-climate and high-temperature rig sites.
- Harsh Field Conditions: Withstand dust, debris and heavy mechanical vibration common in remote onshore and offshore drilling locations.
Maintenance & Care Recommendations
Follow these field-proven maintenance steps to maximize part lifespan and keep Gardner Denver PZ-11/PZ-12 pumps running reliably:
- Daily Inspection: Check all fluid end joints for mud leakage, listen for abnormal vibration or knocking, and monitor pump discharge pressure stability.
- Weekly Maintenance: Clean mud deposits from sealing surfaces, inspect wear plate condition and check valve guide alignment for signs of wear.
- Monthly Checks: Re-torque all mounting studs to OEM specifications, inspect gasket integrity for cracks or hardening, and check threaded ring and liner clamp wear.
- Scheduled Overhaul: Replace all gaskets and worn wearable parts every 8-10 months under heavy continuous use; conduct a full fluid end structural inspection annually.
- Proper Storage: Store spare parts in a dry, dust-free, climate-controlled area, and coat metal components with anti-rust lubricant to prevent corrosion during long-term storage.
We supply the following spare parts:
| Item | Part Number | Description |
| 1 | 202PZL029B-P | Module with Studs |
| NS-202PZL029B-P | Module – No Studs | |
| 2 | 201PZL110-P | Stud with Nut – Liner Clamp |
| 3 | 205PZL110-P | Stud with Nut – Frame |
| 4 | 204PZL110-P | Stud with Nut – Threaded Ring |
| 5 | 202PZL110-P | Stud with Nut – Discharge Manifold |
| STUDSET-PZ10/11-P | Stud Set with Nuts (Complete) | |
| 6 | 200PZL587-P | Valve Lock Cap |
| 7 | 200PZL147-P | Valve Cover (Plug) with Bushing |
| 8 | 0780-P | Gasket – Valve Cover |
| 9 | 200PZL387-P | Threaded Ring |
| 10 | 200PZL483A-P | Valve Guide Assembly with Bushing |
| 11 | 0747-P | Gasket – Discharge Manifold |
| 12 | 0911-P | Gasket – Suction Manifold |
| 13 | 200PZL455-P | Liner Clamp |
| 14 | 8477-4-P | Wear Plate |
| 15 | 2974-11-P | Gasket – Wear Plate |
Field Fault Repair Cases
Case 1: Discharge Manifold Gasket Leakage Causing Pressure Loss
A Gardner Denver PZ-12 mud pump operating at full drilling pressure developed persistent high-pressure mud leakage at the discharge manifold joint, leading to unstable pressure and reduced pumping efficiency. Field inspection revealed a hardened, worn 0747-P discharge manifold gasket that had lost sealing integrity from prolonged pressure and vibration exposure. Replacing the gasket with a premium 0747-P unit and re-torquing the manifold studs to API standards fully stopped leakage and restored normal pump operating pressure.
Case 2: Worn Valve Guide Assembly Triggering Operational Vibration
A Gardner Denver PZ-11 pump exhibited severe abnormal vibration and minor internal fluid leakage during deep-well drilling operations. Inspection identified excessive wear on the 200PZL483A-P valve guide assembly with bushing, causing valve misalignment and uneven fluid flow. Installing a new premium valve guide assembly eliminated vibration, restored proper valve seating and stopped internal fluid loss.
Case 3: Fatigued Frame Studs Causing Clamping Failure
A Gardner Denver PZ-12 pump experienced loose fluid end frame hardware and minor leakage during extended drilling operations. Stretched, fatigued 205PZL110-P frame studs had lost clamping force under extreme torque loads. Replacing the damaged studs and nuts, then torquing to OEM specifications, secured the frame assembly and created a permanent leak-free seal.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these parts fully interchangeable with original Gardner Denver PZ-11/PZ-12 fluid end components? | Yes, all parts are manufactured to exact OEM dimensions, materials and performance standards, offering 100% direct drop-in replacement with no on-site modifications or machining required. |
| Can I purchase individual parts or only full fluid end overhaul kits? | We offer full purchasing flexibility: individual components, complete modules, custom hardware sets, gasket kits and full fluid end overhaul kits to match your exact repair, maintenance and procurement needs. |
| Do these parts meet official oilfield industry standards? | All parts comply with strict API 7K drilling equipment standards, undergo full material and dimensional testing, and meet or exceed OEM quality requirements for heavy-duty oilfield use. |
Procurement Guidance
This premium Gardner Denver PZ-11/PZ-12 mud pump fluid end parts document serves as a dual professional reference: it sets clear, standardized procurement benchmarks to eliminate costly ordering errors and guarantee perfect part compatibility across both pump models, while also providing actionable field guidance for quick fault diagnosis, safe disassembly and proper component installation. All parts undergo multi-stage quality testing and comply with API 7K industry standards, delivering far better durability and reliability than generic aftermarket alternatives. Using these precision-matched, high-strength parts eliminates common fluid end failures caused by low-quality, ill-fitting components, directly cutting unplanned rig downtime, long-term maintenance costs and costly operational disruptions.
